The Volvo D16 EPA04 EECU document is a technical reference guide that details all pin assignments and connector configurations for the Electronic Engine Control Unit (EECU) used on Volvo D16 EPA 2004 emissions-compliant diesel engines. Published by Volvo Group North America on March 1, 2006, this resource provides mechanics and technicians with precise wiring information for diagnostic and repair work on these engine systems.

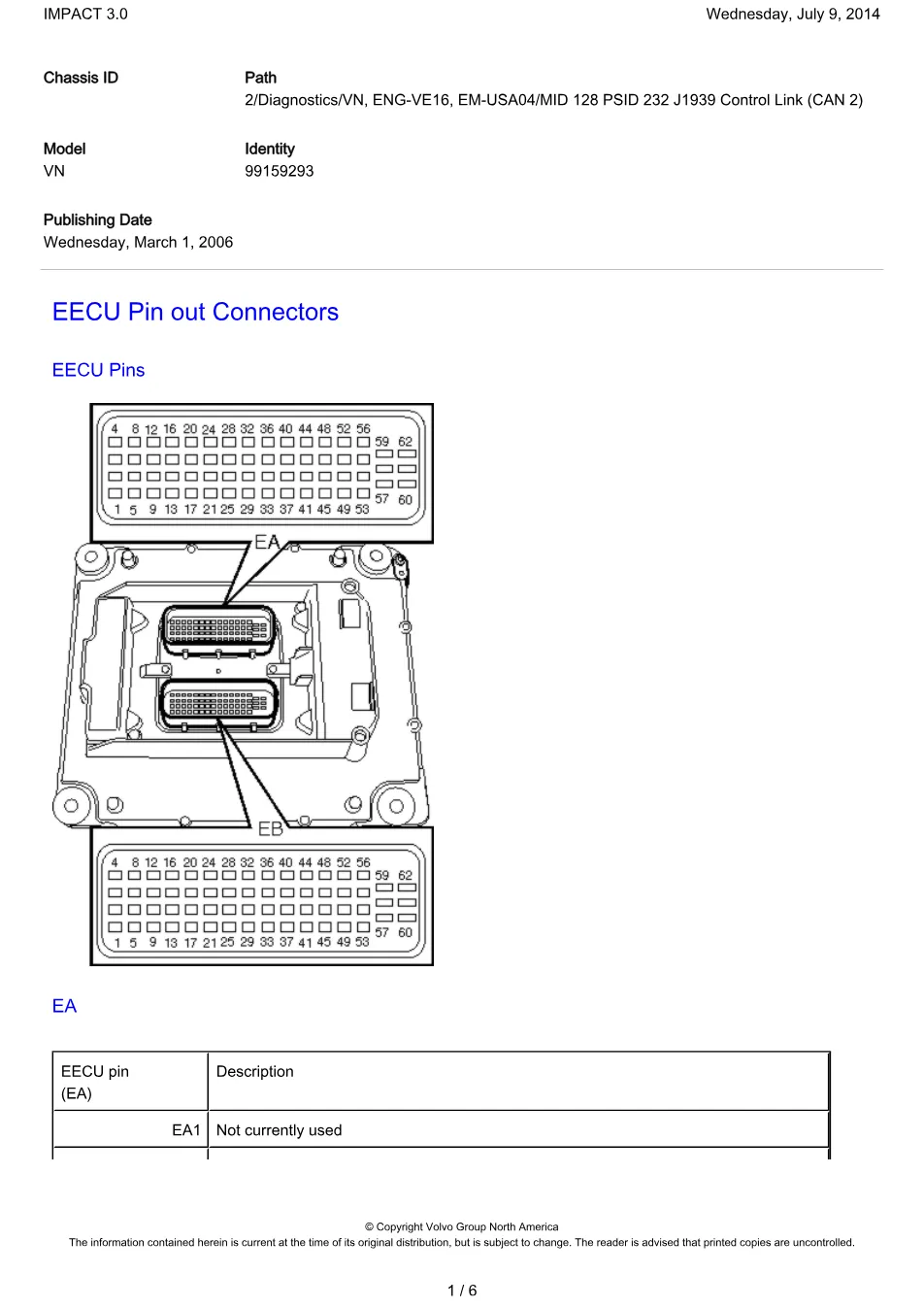

The document covers two primary connector groups—EA and EB—with comprehensive pin-by-pin descriptions for sensor inputs, solenoid outputs, power supplies, and communication networks including J1939 CAN bus connections.
Document details and specifications — Volvo D16 EPA04
| Brand | Volvo |
| Model coverage | D16 (EPA 2004) |
| System/Group | Engines / Engine Control Electronics |
| Publication number | Not listed |
| Year/Revision | March 1, 2006 / IMPAC7 30 (July 9, 2014) |
| Pages | 6 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Table of contents
- EECU Pin out Connectors – Overview

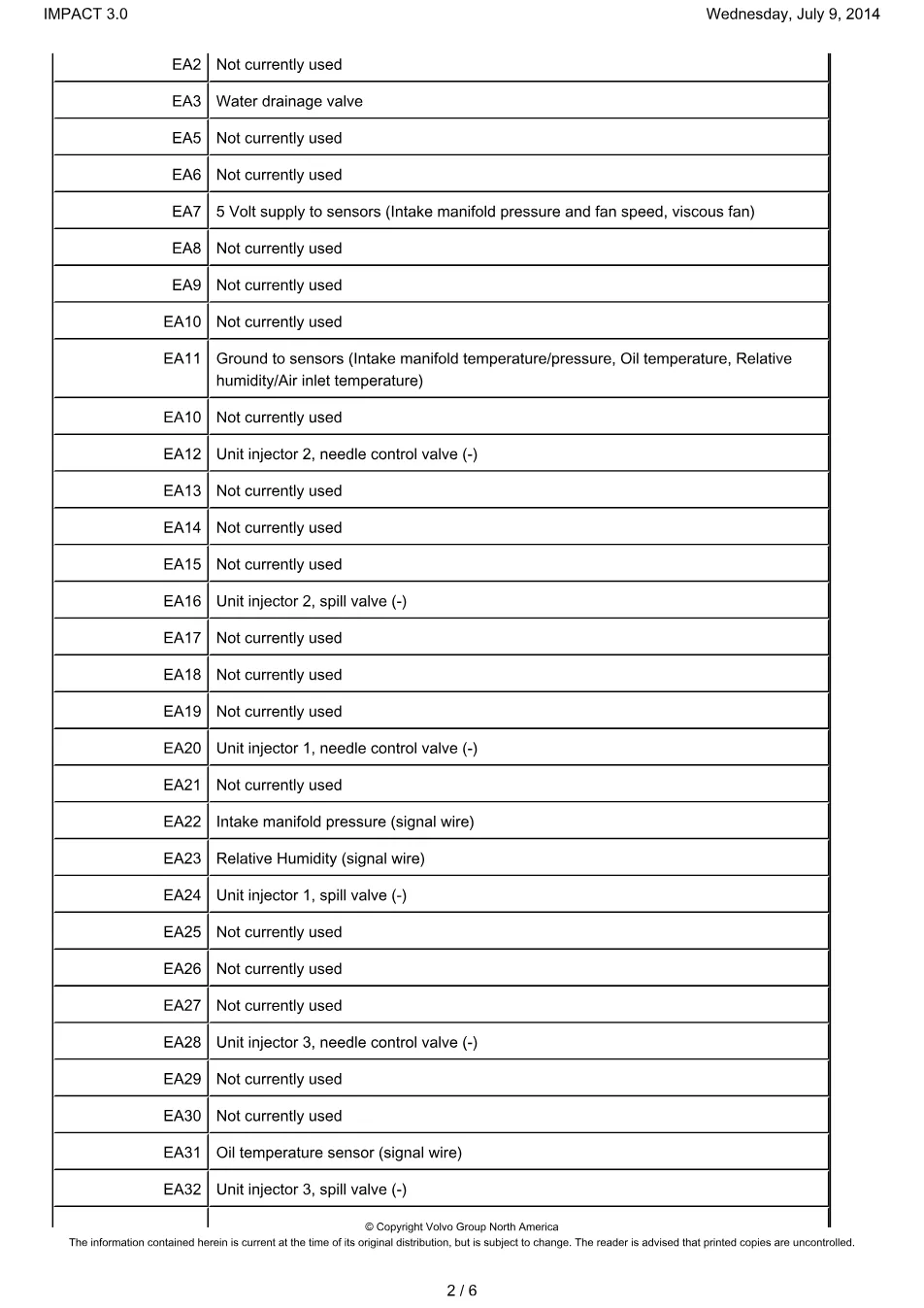

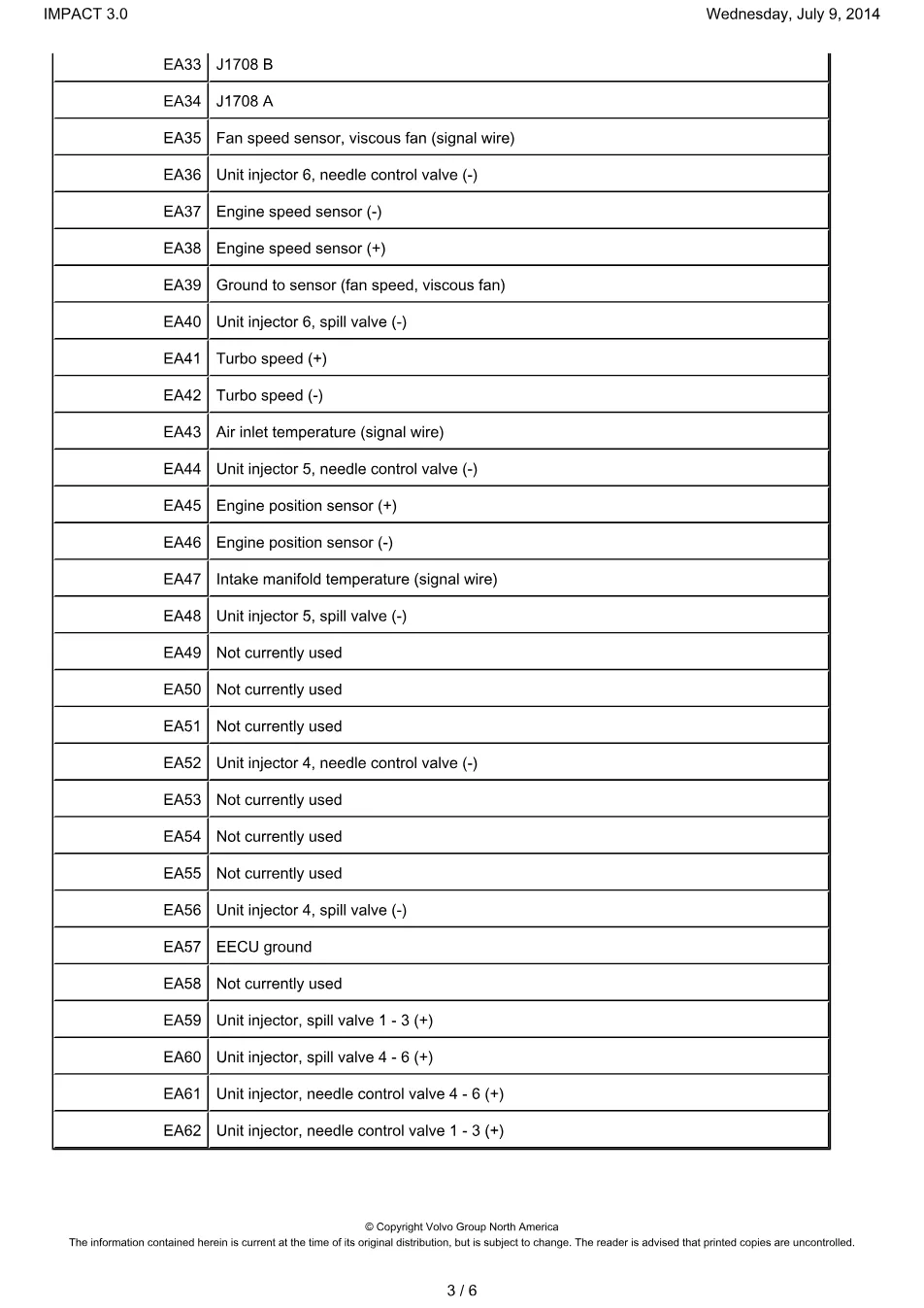

- EA Connector Pin Assignments (EA1–EA62)
- EB Connector Pin Assignments (EB1–EB61)
- EECU Wiring Diagram
Applies to these models
This Volvo D16 EPA04 EECU guide applies to Volvo heavy-duty diesel engines manufactured under EPA 2004 emissions regulations. The document references engine model ENG-VE16 (EM-USA04) and covers the complete Electronic Engine Control Unit architecture for North American-spec trucks. For official product information, visit Volvo Trucks official.
Who needs this D16 EPA04 EECU manual
Diesel engine technicians, heavy truck mechanics, and workshop owners performing electrical diagnostics, sensor replacement, injector service, or wiring repairs on Volvo D16 EPA 2004 engines require this D16 EPA04 EECU reference. It is essential for anyone troubleshooting J1939 CAN bus communications, unit injector circuits, or engine management sensor connections.
