The PACCAR P1269B troubleshooting guide is a comprehensive technical manual for diagnosing cylinder-specific ignition dwell control faults on MX Europe engines compliant with EPA 2004 emissions standards. Published by PACCAR and distributed through their Rapido technical portal, this document provides mechanics and workshop owners with structured step-by-step procedures to isolate and correct DTC P1269B across multiple failure modes.
The PACCAR P1269B troubleshooting guide employs a systematic diagnostic methodology that begins with related DTC investigation, progresses through sensor wiring and electrical verification, and culminates in fuel system component isolation. This approach ensures technicians address root causes rather than symptoms, reducing diagnostic time and repeat repairs.
Document details and specifications — PACCAR P1269B troubleshooting
| Brand | PACCAR |
| Model coverage | MX Europe Engines |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication number | M050799 |
| Year/Revision | 07.22.2015 (issued 17-Aug-2017) |
| Pages | 9 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents

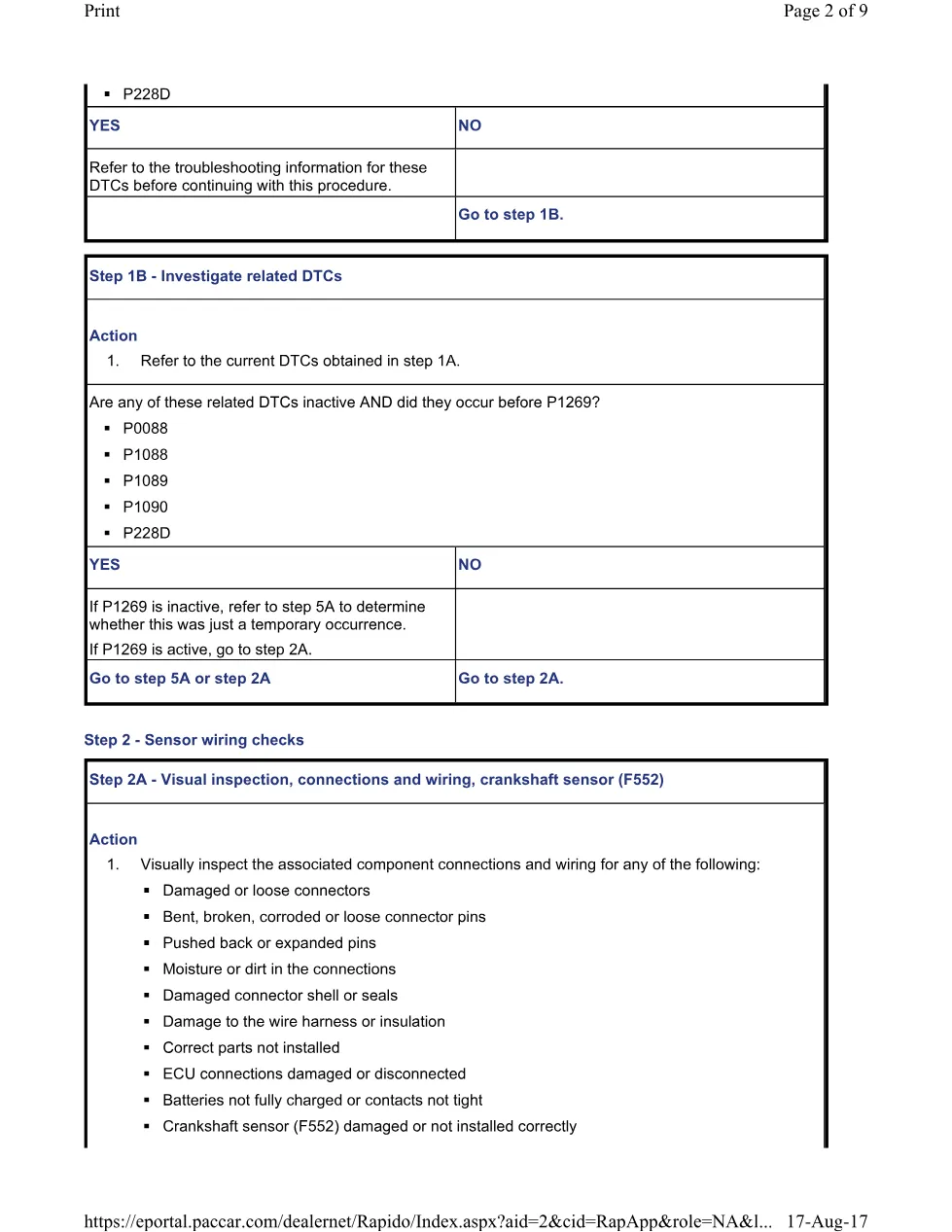

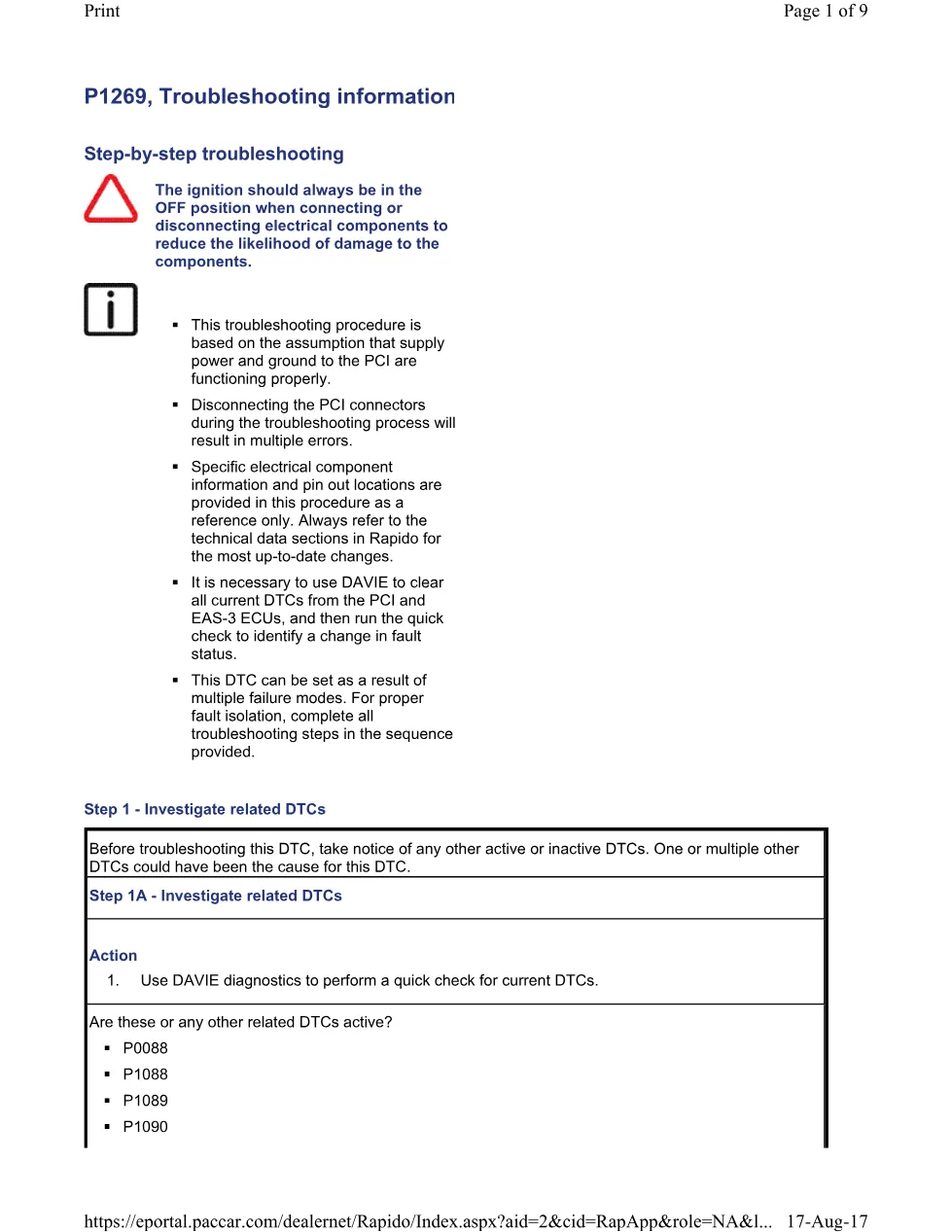

- Step 1: Investigate related DTCs (P0088, P1088, P1089, P1090, P228D)

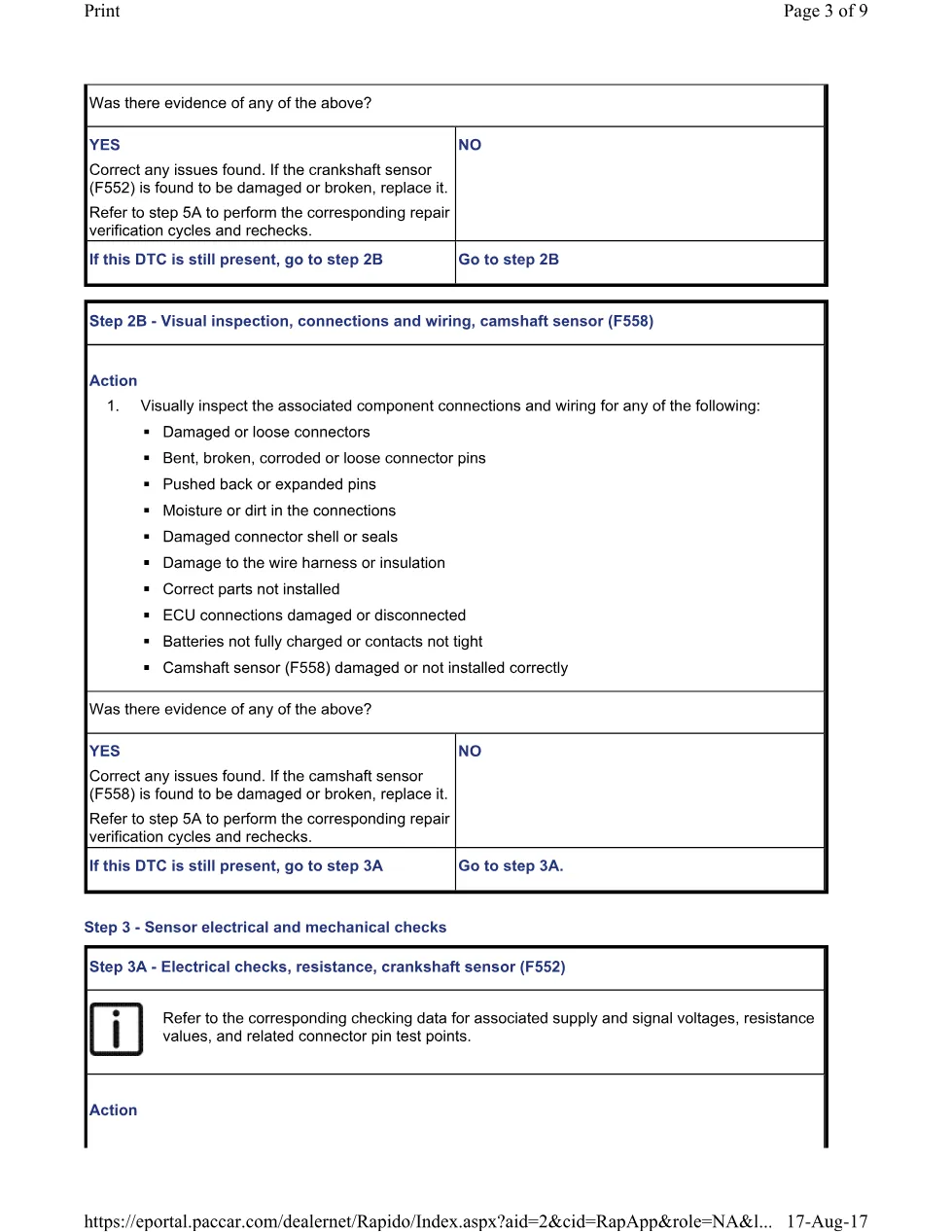

- Step 2: Sensor wiring checks — crankshaft sensor (F552) and camshaft sensor (F558)
- Step 3: Sensor electrical and mechanical checks — resistance measurement and visual inspection
- Step 4: Fuel system checks — fuel injector and engine brake rocker-solenoid isolation
- Step 5: Repair verification cycles and DAVIE diagnostics confirmation
- MX-13 ignition firing order reference (1, 5, 3, 6, 2, 4)
Applies to these models
The PACCAR P1269B troubleshooting guide applies to PACCAR MX Europe diesel engines manufactured to EPA 2004 standards. Procedures cover diagnostics for crankshaft and camshaft sensor circuits, fuel injector electrical systems, and engine brake rocker-solenoid assemblies on cylinders 3, 5, and 6. Technicians must use DAVIE diagnostic software to clear DTCs and perform quick checks. For comprehensive support and official PACCAR technical documentation, visit PACCAR official site.
