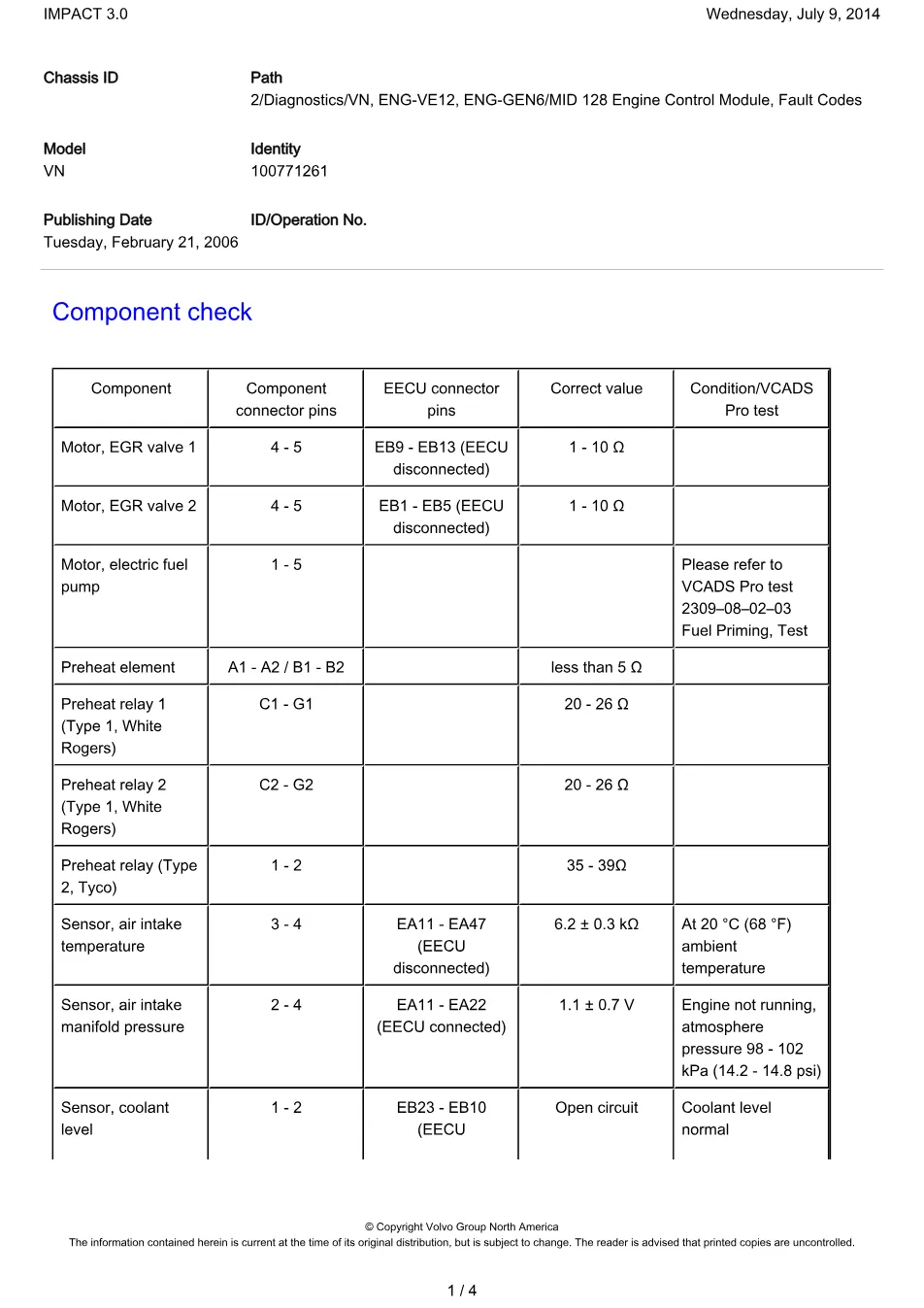

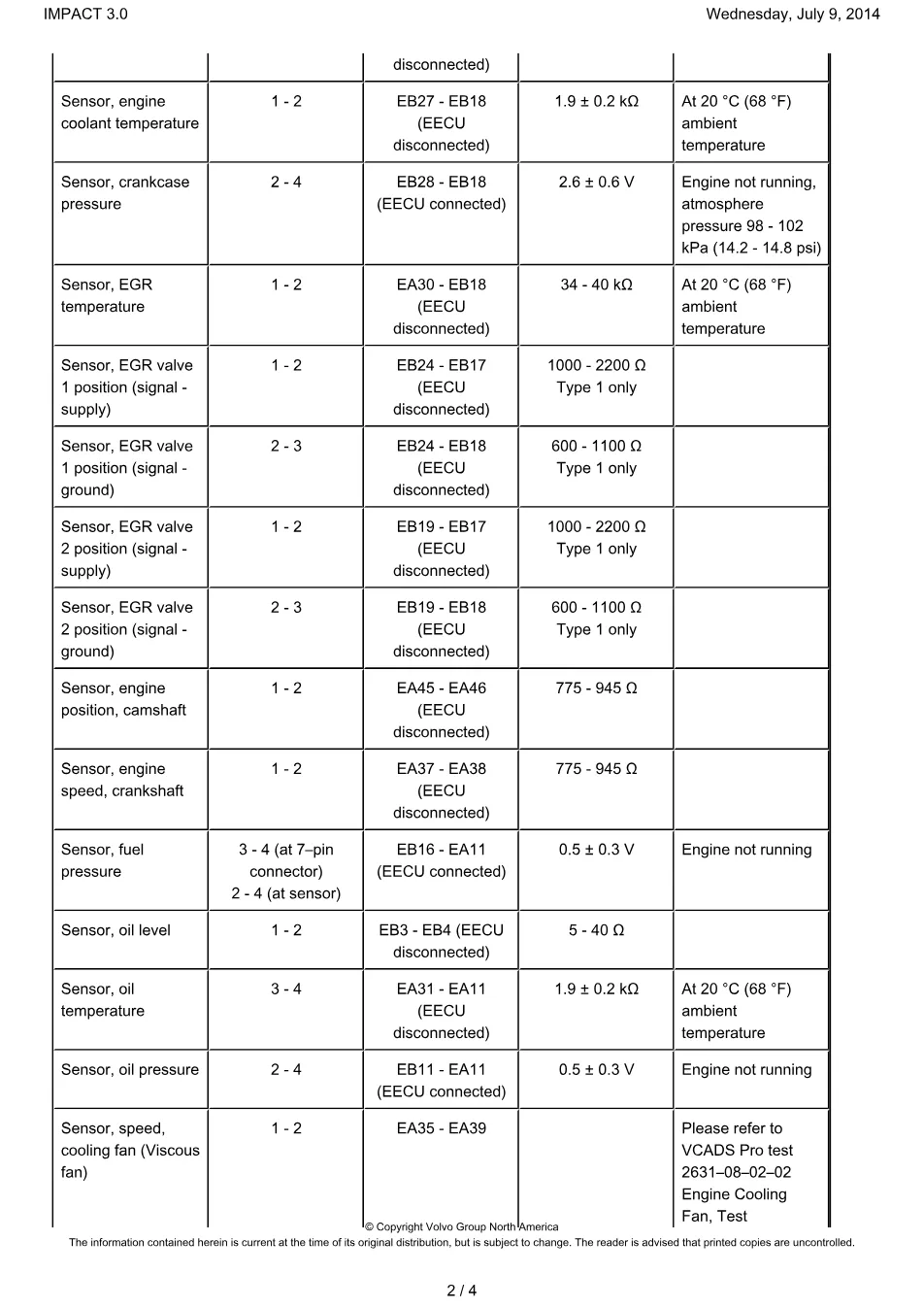

The Volvo D12 component wiring is a technical diagnostic reference document published by Volvo Group North America in 2006. This manual provides mechanics and technicians with precise connector pin assignments, correct resistance values, and VCADS Pro test references for all major engine control components on Volvo D12A diesel engines. The guide covers EGR valve motors, fuel system components, temperature and pressure sensors, solenoid valves, and all six unit injectors with their control circuits.
Technicians use the Volvo D12 component wiring to verify component integrity before diagnosing engine control faults. Every specification in this manual is measured at the Engine Control Unit (EECU) connector or component connector level, with ambient conditions and EECU connection state clearly noted for accuracy.
Document details and specifications — Volvo D12 component
| Brand | Volvo |
| Model coverage | Volvo D12A (1993–1998); 2006 revision |
| System/Group | Engines / D12A |
| Publication number | VN 100771261 |
| Year/Revision | 2006 |
| Pages | 4 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Table of contents
- EGR valve motors (motor winding resistance)
- Electric fuel pump circuit test reference
- Preheat element and relay specifications (Type 1 White Rogers, Type 2 Tyco)
- Air intake temperature and manifold pressure sensors
- Coolant level and engine coolant temperature sensors
- Crankcase and EGR temperature sensors
- EGR valve position sensors (signal and ground path resistance)
- Engine position and speed sensors (camshaft, crankshaft)
- Fuel, oil level, and oil temperature sensors
- Oil pressure and cooling fan speed sensors
- Solenoid valve specifications (bulkhead, frame, cooling fan, exhaust pressure governor, compression brake)
- Unit injector 1–6 needle control valve (NCV) and solenoid valve (SV) resistance data
Applies to these models
This Volvo D12 component wiring applies to Volvo D12A engines from the 1993–1998 generation with 2006 diagnostic updates. The manual covers all D12 variants with six-cylinder fuel injection systems, engine brake controls, and electronically controlled EGR systems. Refer to Volvo Trucks official for engine identification and application verification.
Who needs this Volvo D12 component wiring manual
Diesel mechanics, workshop technicians, and diagnostic specialists need this D12 component wiring when troubleshooting EECU fault codes, verifying sensor continuity, testing motor coils, or replacing engine control components. Technicians must cross-reference VCADS Pro test numbers for solenoid valve and fuel pump diagnostics before replacing expensive electrical components.
