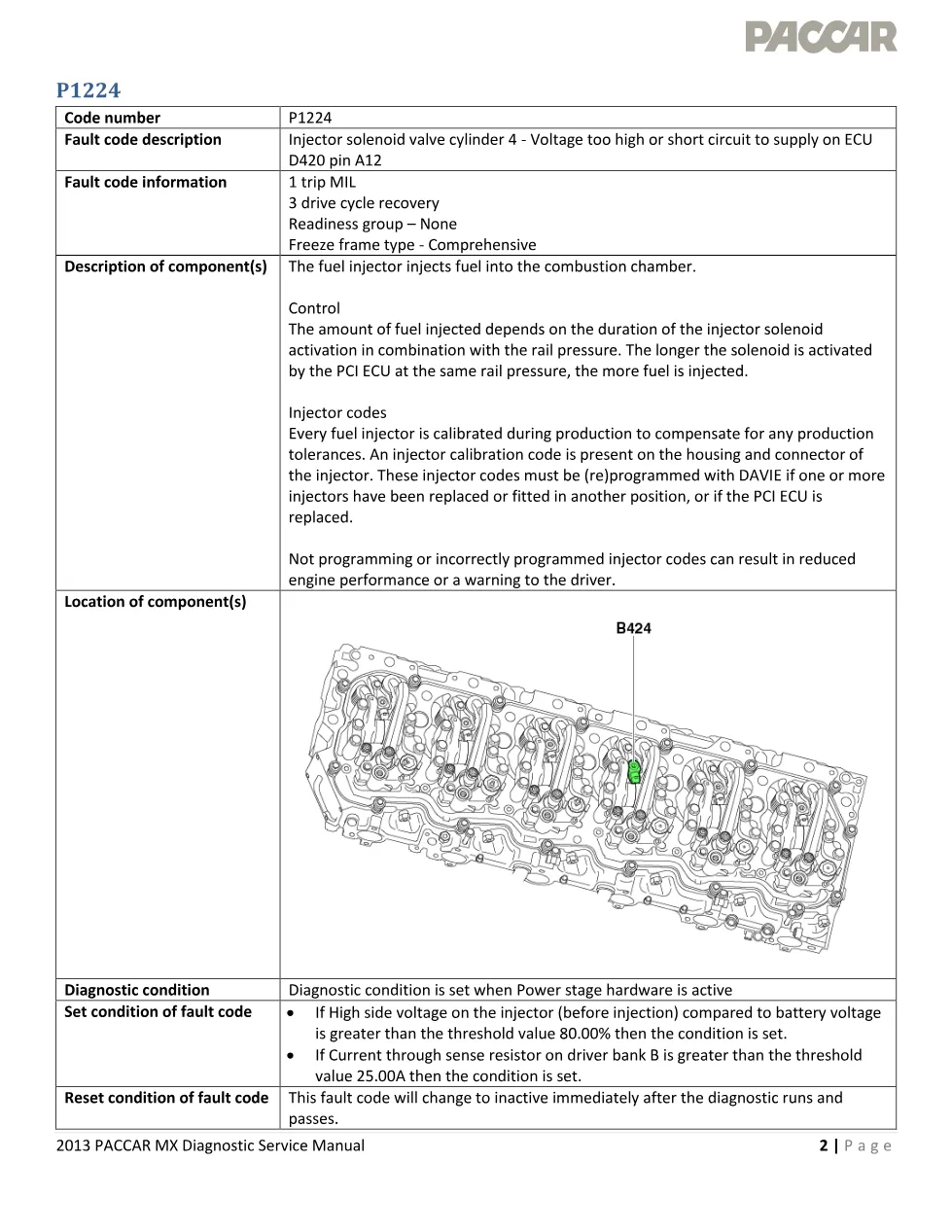

The injector solenoid fault P1224 code P1224 diagnostic manual provides comprehensive troubleshooting procedures for cylinder 4 injector solenoid voltage faults and short circuit conditions detected on the D420 PCI ECU at pin A12. Published by PACCAR for 2013 MX engines compliant with EPA2013 emission standards, this 6-page manual equips technicians with electrical schematics, component specifications, and step-by-step diagnostic protocols to resolve injector control faults.
This service document covers the fuel injection system architecture where solenoid-activated injectors meter fuel into the combustion chamber based on activation duration and rail pressure. The injector solenoid fault P1224 code P1224 sets when high-side voltage exceeds 80% of battery voltage or when current through the sense resistor driver bank exceeds 25.00A, triggering a single-trip MIL illumination with three-drive-cycle recovery capability.
Document details and specifications — injector solenoid fault
| Brand | PACCAR |
| Model coverage | MX Series (EPA2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication number | P1224 |
| Year/Revision | 2013 |
| Pages | 6 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Table of contents
- Fault code description and information
- Description of fuel injector components and control operation
- Injector calibration codes and programming requirements
- Component location and diagnostic conditions
- Set and reset conditions for injector solenoid fault P1224 code P1224

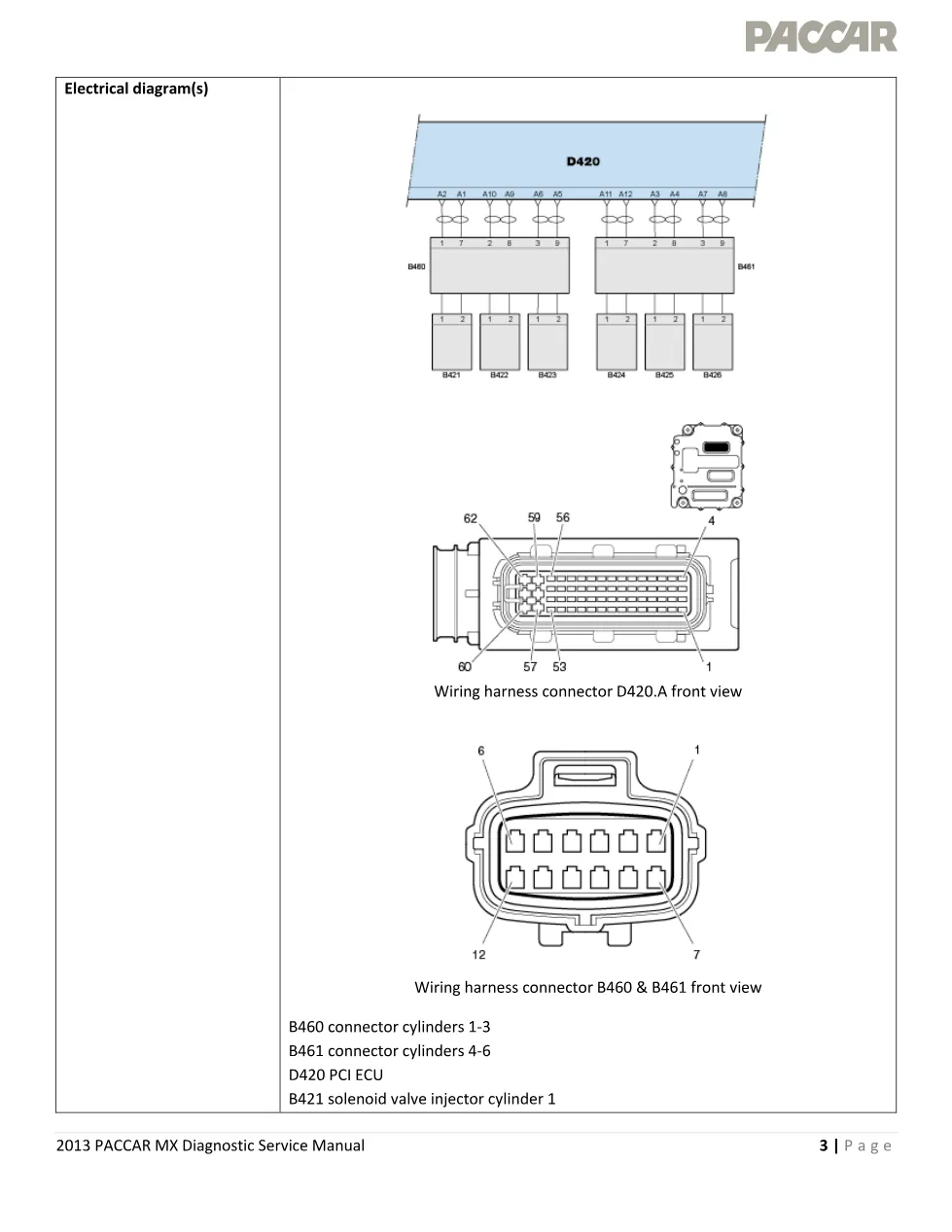

- Electrical diagrams: D420 ECU, B460/B461 connectors, B421–B426 solenoid valves

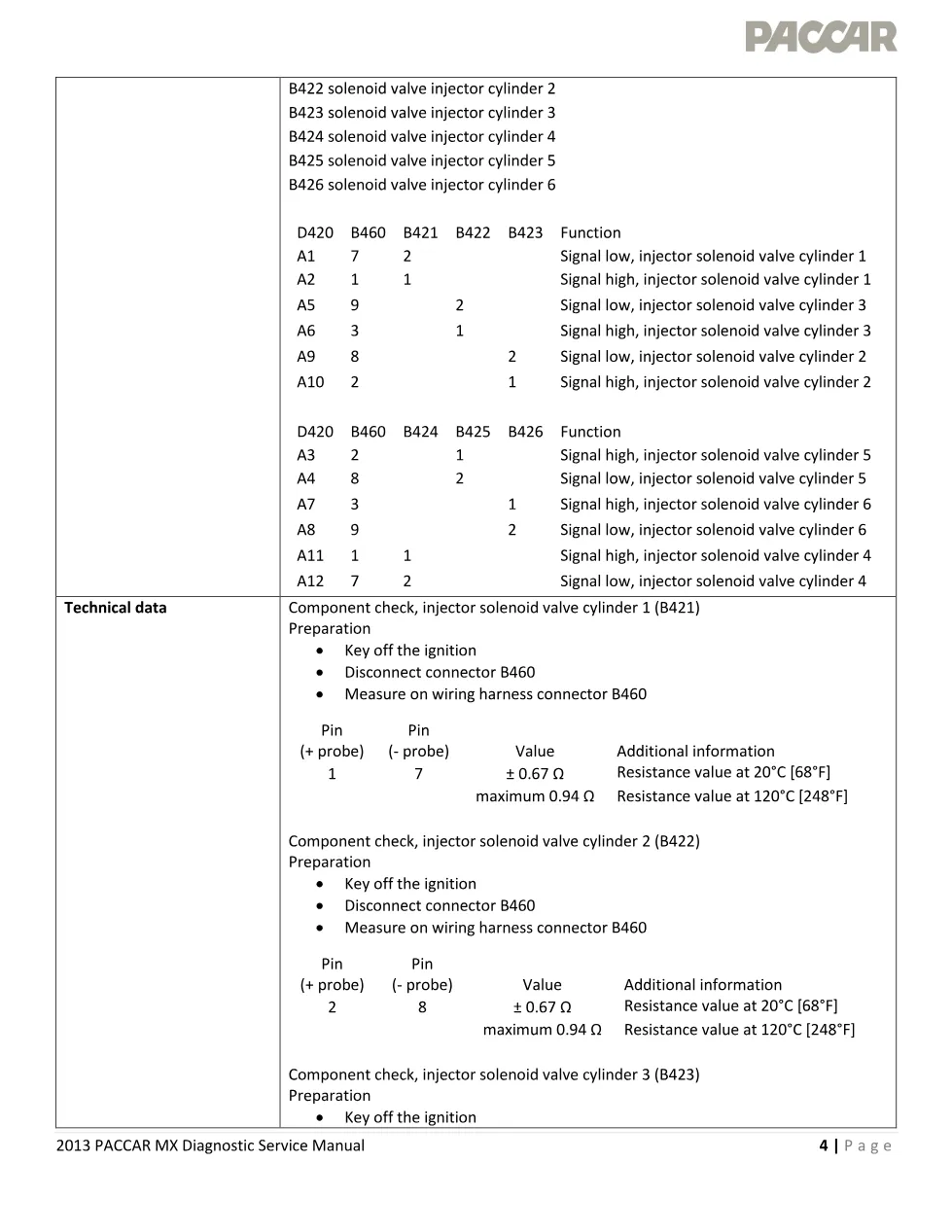

- Wiring pinout tables for cylinders 1–6 signal high/low circuits
- Technical data: component resistance checks at 20°C and 120°C
- Diagnostic step-by-step troubleshooting procedure
- Verification drive cycle protocol
Applies to these models
This manual applies to PACCAR MX-series diesel engines from the 2013 model year equipped with electronically controlled fuel injection and the D420 PCI ECU. The injector solenoid fault P1224 code P1224 specifically addresses cylinder 4 injector circuits on trucks and medium-duty vehicles using common-rail injection technology with EPA2013 compliance. For complete engine and truck specifications, visit PACCAR official.
Who needs this solenoid fault P1224 code P1224 manual
Diesel technicians, workshop owners, and fleet maintenance teams diagnosing PACCAR MX engine faults require this manual to systematically isolate electrical and component failures within the cylinder 4 fuel injection circuit. The solenoid fault P1224 code P1224 resource provides the connector pinouts, resistance specifications, and diagnostic decision trees necessary to differentiate between wiring harness damage, ECU driver faults, and solenoid valve replacement needs.
The complete solenoid fault P1224 code P1224 diagnostic manual is available in the DiagTechPro manuals library. Create a free account to download the full PDF and access the complete electrical schematics, component test values, and step-by-step repair workflows for efficient fault resolution.
