This injector solenoid fault P1222 code P1222 diagnostic service manual provides technicians with complete troubleshooting procedures for cylinder 4 short circuit faults detected between ECU D420 pins A11 and A12. Published by PACCAR for the 2013 MX engine series, this document covers fuel injector solenoid valve diagnosis, electrical testing, and component replacement procedures essential for workshop repair operations.
The fault code sets when high side voltage on the injector falls between 20% to 80% of threshold value, or when current through the sense resistor on driver bank A exceeds 25 amperes. This injector solenoid fault P1222 code requires visual inspection of connectors and electrical continuity testing before component replacement.
Document details and specifications — injector solenoid fault
| Brand | PACCAR |
| Model coverage | MX Engines (EPA2013) |
| System/Group | DTCs / MX Engines |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents

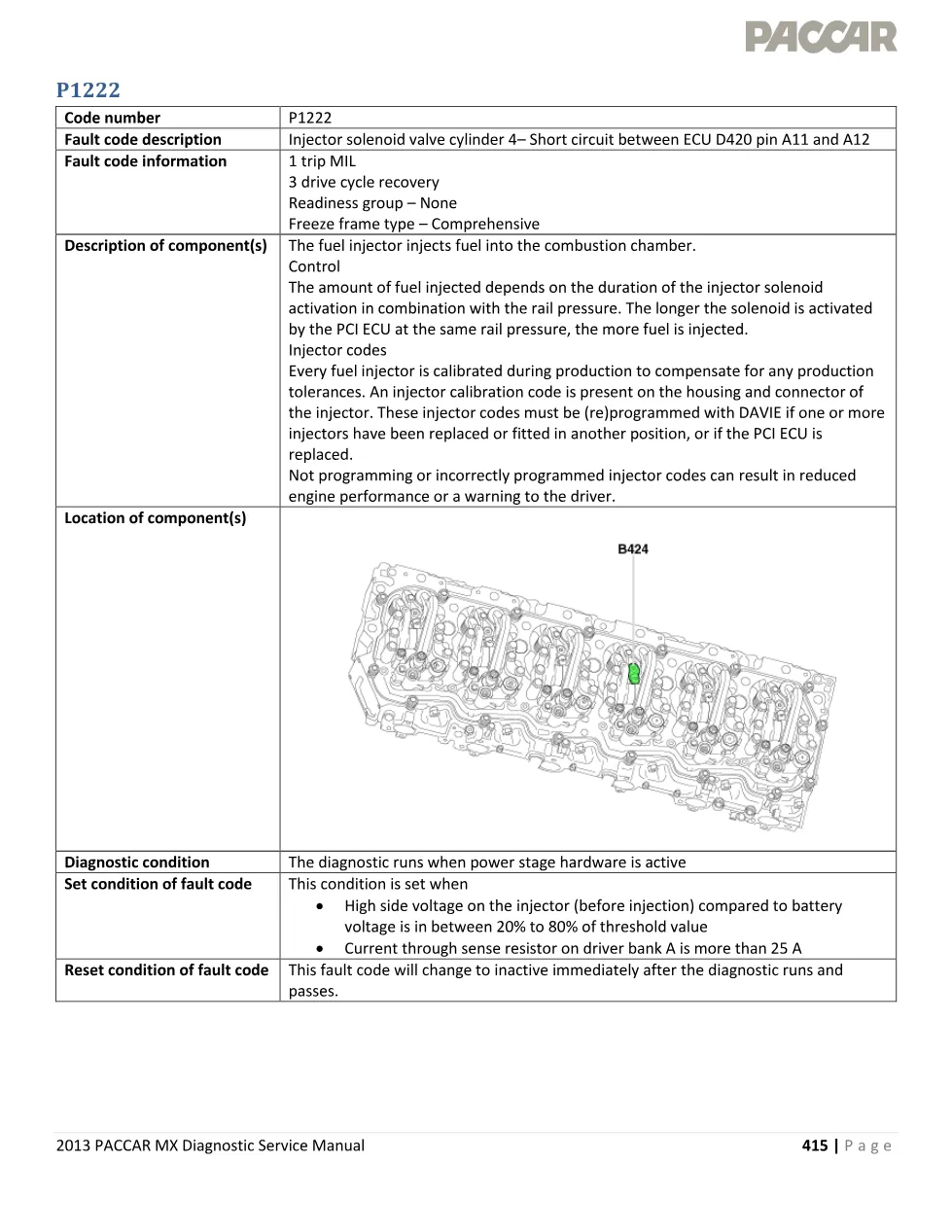

- P1222 Code number and Fault code description
- Fault code information and diagnostic conditions
- Description of components and control operation
- Injector codes and calibration procedures
- Location of components
- Set and reset conditions

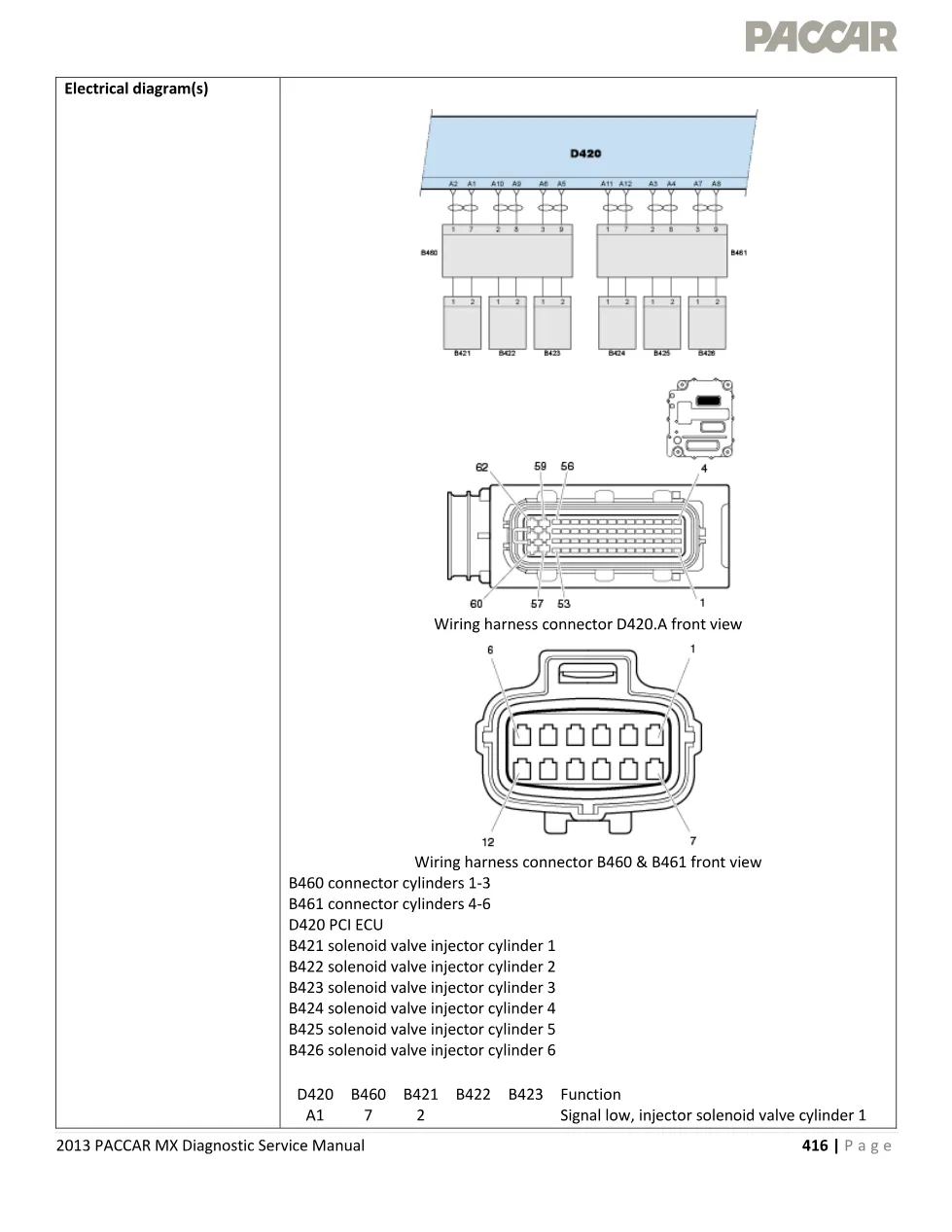

- Electrical diagrams and wiring harness connectors

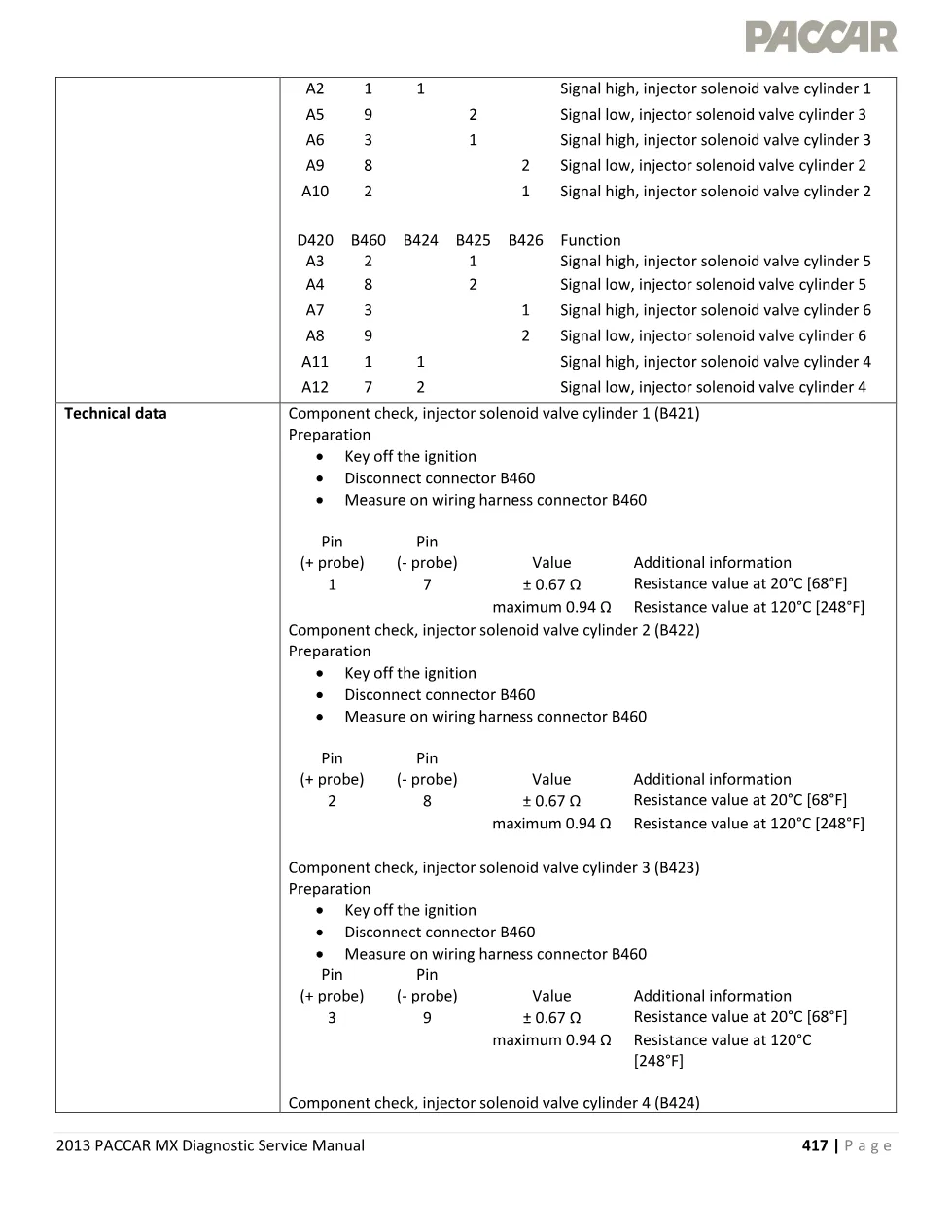

- Technical data and component resistance specifications
