The 2013 PACCAR MX P1225 diagnostic guide is a technical service manual covering injector solenoid voltage faults on cylinders 1, 2, and 3 in PACCAR MX engines built to EPA 2013 emissions standards. Published by PACCAR, this document provides mechanics and workshop technicians with complete electrical diagnostics, wiring harness information, component testing procedures, and step-by-step troubleshooting to resolve P1225 fault conditions.
Code P1225 is triggered when high-side voltage on the fuel injector solenoid falls below the 20% threshold relative to battery voltage, or when driver bank A voltage exceeds specified limits during the diagnostic cycle. The fault activates the malfunction indicator lamp (MIL) and typically requires three drive cycles to clear once repaired.
Document details and specifications — PACCAR MX P1225
| Brand | PACCAR |
| Model coverage | PACCAR MX engines (EPA2013) |
| System/Group | Diagnostic Trouble Codes (DTCs) / MX Engines |
| Publication number | P1225 |
| Year/Revision | 2013 |
| Pages | 7 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Table of contents
- Code number and fault description
- Fault code information and recovery cycles
- Component description and control operation
- Injector calibration codes and reprogramming requirements

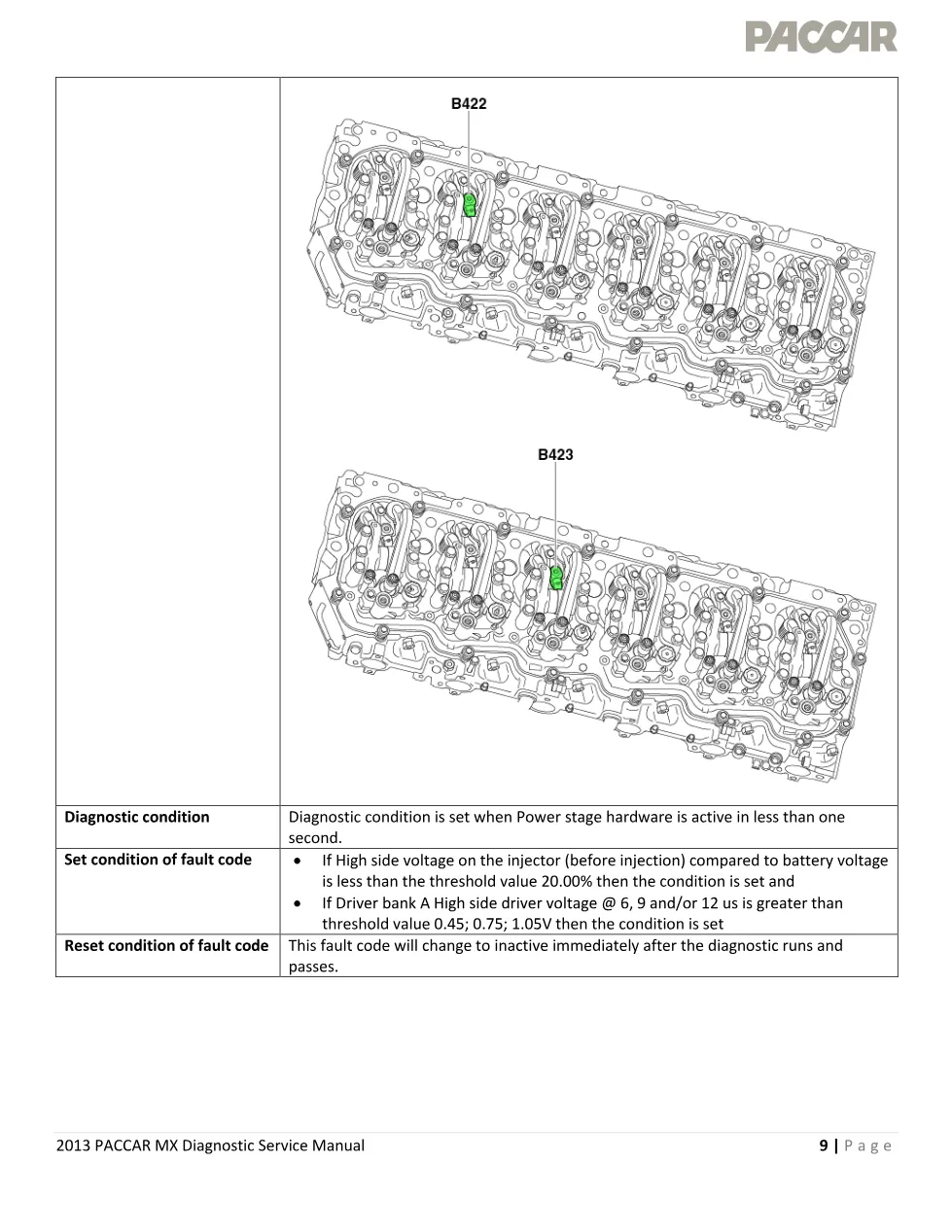

- Diagnostic conditions and set/reset criteria

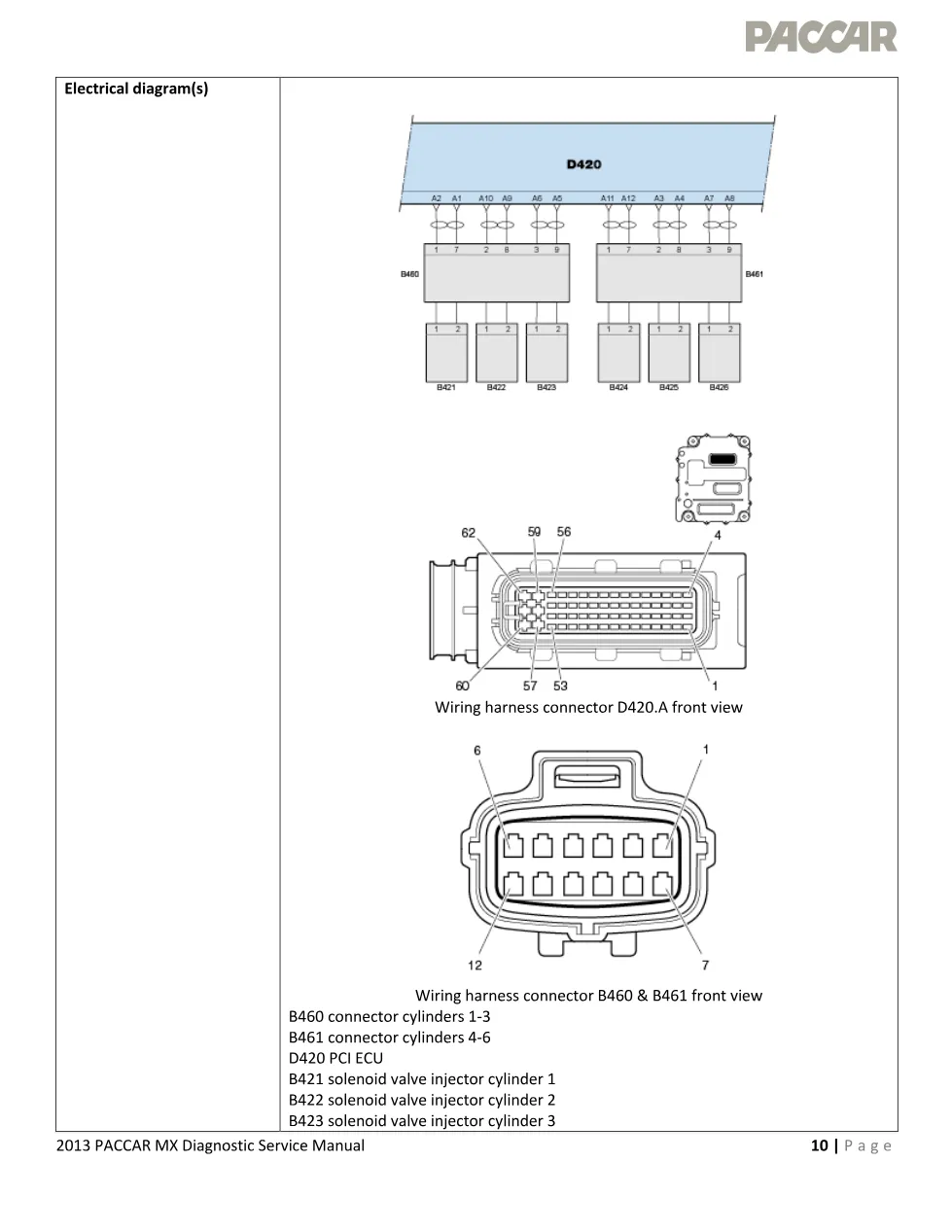

- Electrical wiring diagrams (D420 PCI ECU, B460/B461 connectors, injector solenoid valves B421–B426)
- Technical data and component resistance specifications
- Possible causes (faulty wiring, connectors, injectors)
- Diagnostic step-by-step procedure (Steps 1–8 with decision trees)
- Verification and drive cycle validation
Applies to these models
This PACCAR MX P1225 diagnostic manual applies to PACCAR MX engines compliant with EPA 2013 emissions standards. It covers fuel injector solenoid diagnostics for cylinders 1, 2, and 3, including all wiring harness connectors, PCI ECU pin assignments, and component testing on PACCAR medium and heavy-duty trucks equipped with common-rail fuel systems. For official PACCAR engine specifications and service bulletins, visit PACCAR official.
Who needs this PACCAR MX P1225 diagnostic manual
This manual is essential for diesel mechanics, engine diagnosticians, and workshop owners troubleshooting fuel injector solenoid faults in PACCAR MX-powered trucks. Technicians requiring detailed electrical schematics, resistance specifications, and fault isolation procedures will rely on the MX P1225 diagnostic procedures to pinpoint wiring defects, connector corrosion, injector failures, and ECU issues.
The complete MX P1225 diagnostic PDF is available in the DiagTechPro manuals library. Register a free account to download this 7-page service document and access hundreds of truck diagnostic resources.
