This is the official 2013 PACCAR MX diagnostic service manual covering the injector solenoid fault P1234 code P1234, which identifies a short circuit condition in the injector solenoid valve for cylinder 5. Published by PACCAR for heavy-duty truck engine service technicians, this document provides complete electrical diagnostics, component testing procedures, and step-by-step troubleshooting for EPA 2013 emissions-compliant MX series engines.
The injector solenoid fault P1234 code P1234 triggers after one trip with the malfunction indicator lamp (MIL) and requires three complete drive cycles for recovery. This manual equips technicians with the wiring diagrams, resistance specifications, and diagnostic logic needed to isolate faults in the fuel injection control circuit.
Document details and specifications — injector solenoid fault
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines |
| Year/Revision | 2013 |
| Pages | 4 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Table of contents

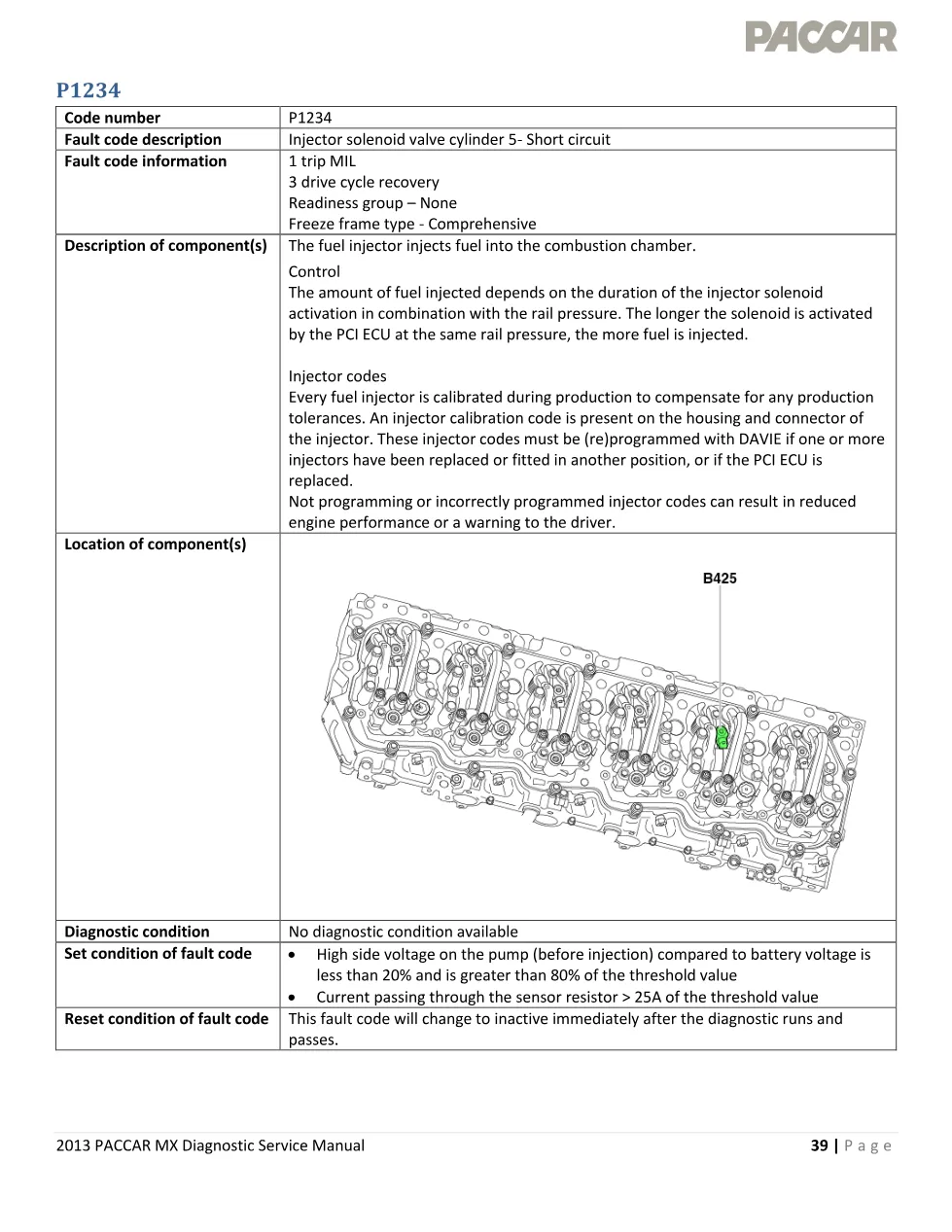

- Fault code P1234 description and MIL behavior
- Injector solenoid valve component overview and control strategy
- Injector calibration codes and reprogramming requirements

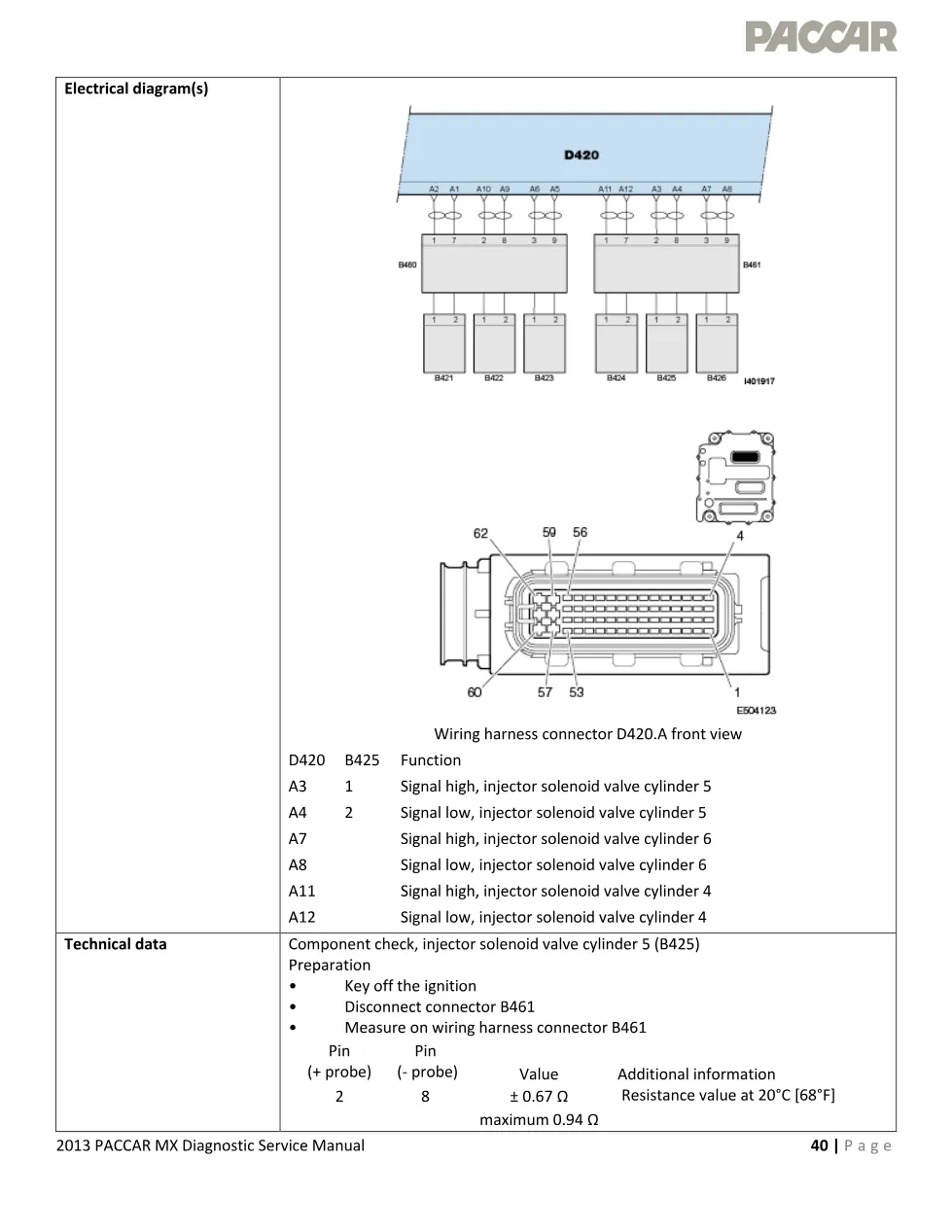

- Electrical diagram — wiring harness connector D420.A pinout
- Technical data — component resistance specifications (B425)
- Possible causes: faulty wiring, connectors, and injectors
- Diagnostic Step-by-Step procedure (Steps 1–6)
- Verification drive cycle and fault code clearing
Applies to these models
This injector solenoid fault P1234 code manual covers the 2013 EPA-compliant MX series heavy-duty truck engines equipped with common-rail fuel injection and PCI electronic control units. The diagnostic procedures address short-circuit conditions in the injector solenoid valve circuit for cylinder 5 specifically, though the methodology applies to other cylinder injector solenoid faults within the same engine family. For additional technical resources, visit PACCAR official.
Who needs this solenoid fault P1234 code manual
This diagnostic guide is essential for ASE-certified heavy-duty diesel technicians and workshop owners operating PACCAR MX engines who encounter the P1234 fault code. Technicians require this manual to perform accurate electrical testing, diode checks, and component isolation using DAVIE diagnostic software and a digital multimeter.
The complete solenoid fault P1234 code manual is available in the DiagTechPro manuals library. A free account is required to download the full PDF document.
