PACCAR ESA

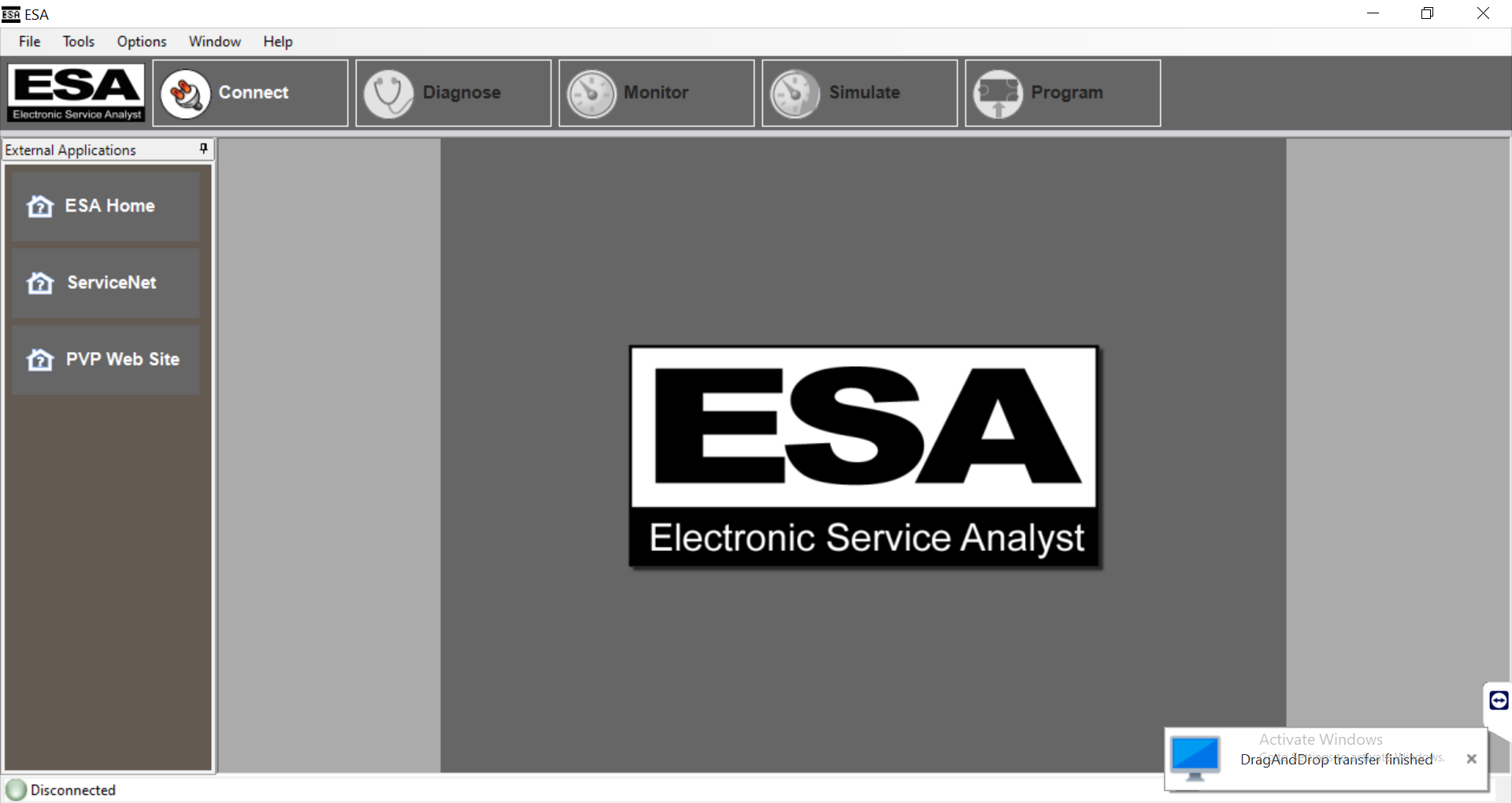

PACCAR ESA (Electronic Service Analyst) is the Kenworth and Peterbilt dealer application for cab and chassis electronics — the Cab Electronic Control Unit (CECU), instrument cluster, chassis node, HVAC module, and the multiplexed body systems built around them. It is the software a dealer technician uses to diagnose and program the electrical systems that sit outside the engine package. If you have seen ESA described as the tool for PACCAR MX engines, that is incorrect and it leads to expensive purchasing mistakes: dealer-level MX-11 and MX-13 engine work is done with a different application, PACCAR DAVIE4. Many shops run both.

What PACCAR ESA does

• Fault diagnosis — read and clear active and stored codes from the cab, dashboard, and chassis electrical modules, with PACCAR-specific descriptions.
• Live data and I/O monitoring — watch inputs and outputs in real time to isolate a multiplexing or body-electrical fault before replacing parts.
• Component tests — command outputs to confirm a circuit end to end.

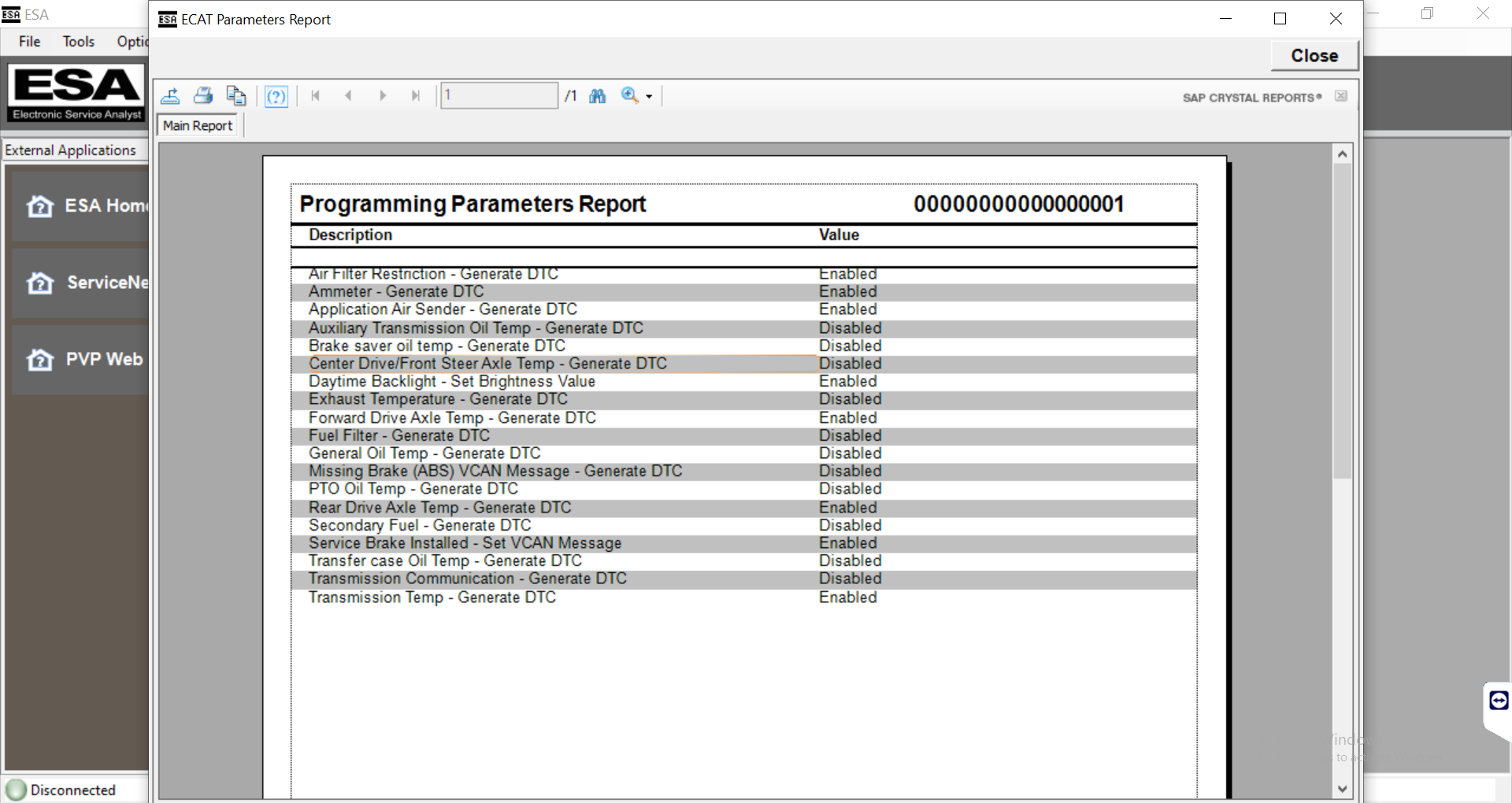

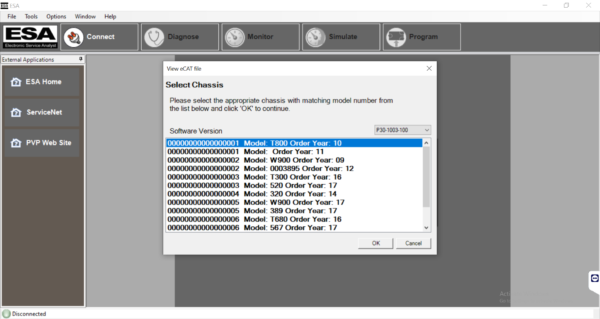

• Parameter programming — view and adjust configurable vehicle and CECU parameters.
• Module flashing — write updated software to the instrument cluster, chassis node, CECU, HVAC module, and PACCAR displays. Replace a CECU or cluster and the new unit has to be programmed before the truck behaves correctly — that is ESA’s job.

What ESA does not do is engine work. It performs no engine ECM diagnostics or engine programming; forced regens, injector tests, and ECM flashing on MX engines all belong to PACCAR DAVIE4.

ESA vs PACCAR DAVIE4

The overlap between the two is essentially zero, which is why a full dealer-equivalent PACCAR setup runs both.

Vehicle coverage

ESA covers Kenworth and Peterbilt trucks with PACCAR’s multiplexed cab and chassis electronics — and the engine badge does not matter. A Cummins-powered Kenworth uses the same CECU, cluster, and chassis-node architecture as an MX-powered one, so ESA serves both.

What you need to run it

• Adapter: a standard RP1210 data link adapter such as a NEXIQ USB-Link 2/3 or a DG Technologies DPA5 — no PACCAR-proprietary VCI or J2534 box is required. On 2016–2021 model years with the green diagnostic port you also need a PACCAR CAN3-to-CAN1 adapter cable between the port and your adapter.
• Laptop: Windows 7 SP1 or higher is supported, with Windows 10/11 64-bit recommended. Hardware demands are modest — roughly a 1.5 GHz processor, 2–4 GB of RAM, and about 10 GB of free disk space.

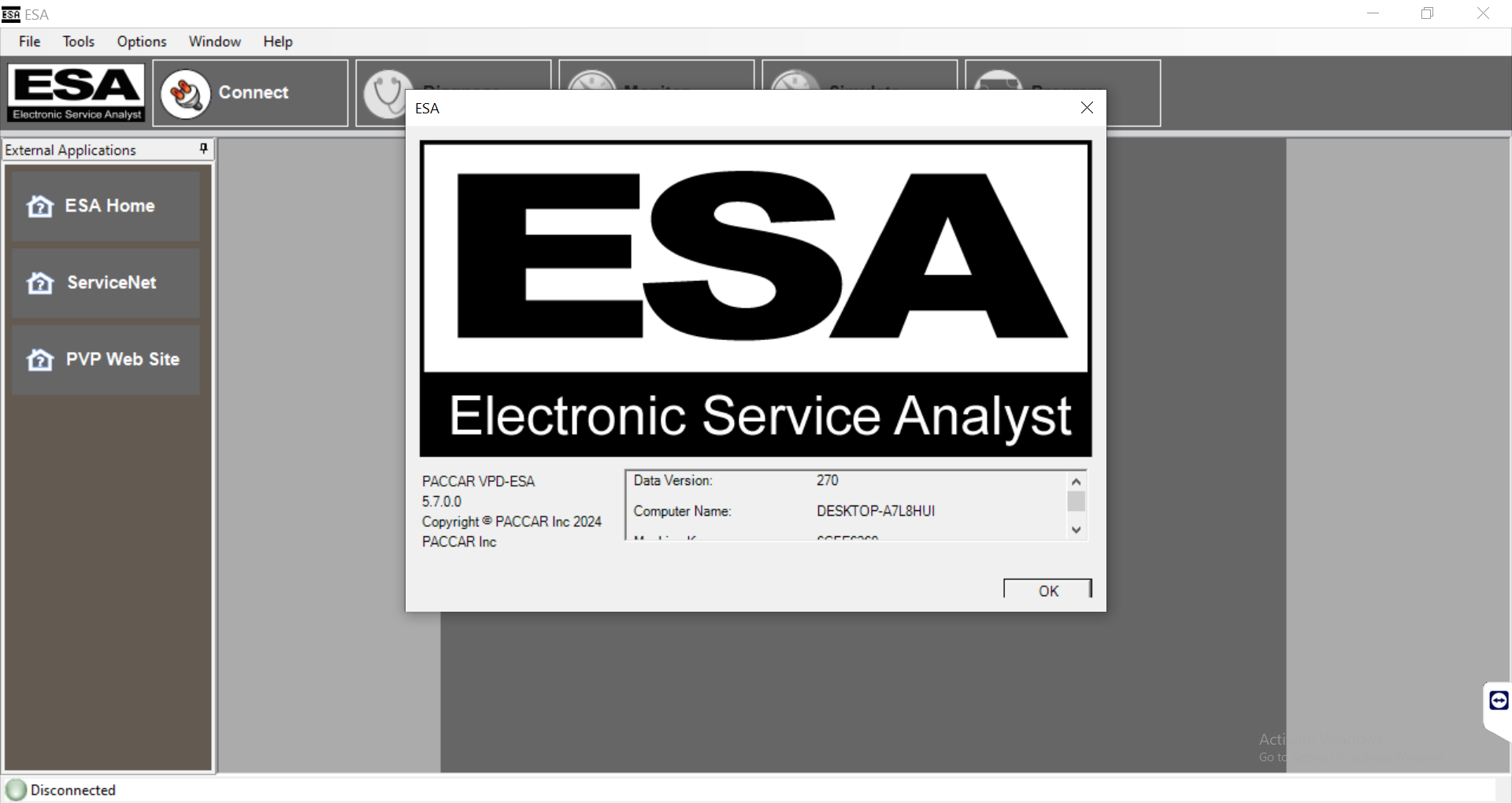

• Version: current builds are ESA 5.x with dated software packages; 5.7 is the newest, with 5.6 and 5.3 also in circulation.

Who it is for

Independent truck shops, fleets running Kenworth or Peterbilt, and mobile technicians who want to handle cab and chassis electrical repairs in-house — cluster swaps, CECU replacements, parameter changes, and multiplexed lighting and switch faults — instead of subletting them to the dealer. If MX engine work is also on your bench, plan on pairing ESA with DAVIE4.

Included with your order

Every DiagTechPro order includes remote installation and setup over TeamViewer: we install PACCAR ESA on your laptop, configure your RP1210 adapter, and verify the software connects before you ever plug into a truck. Browse our full range of PACCAR diagnostic tools for related software.

Official source & compatibility

PACCAR ESA is the dealer application for Kenworth and Peterbilt cab electronics. It runs on Windows 10 and 11 with remote installation support from our team. For vehicle coverage refer to the official PACCAR website.
