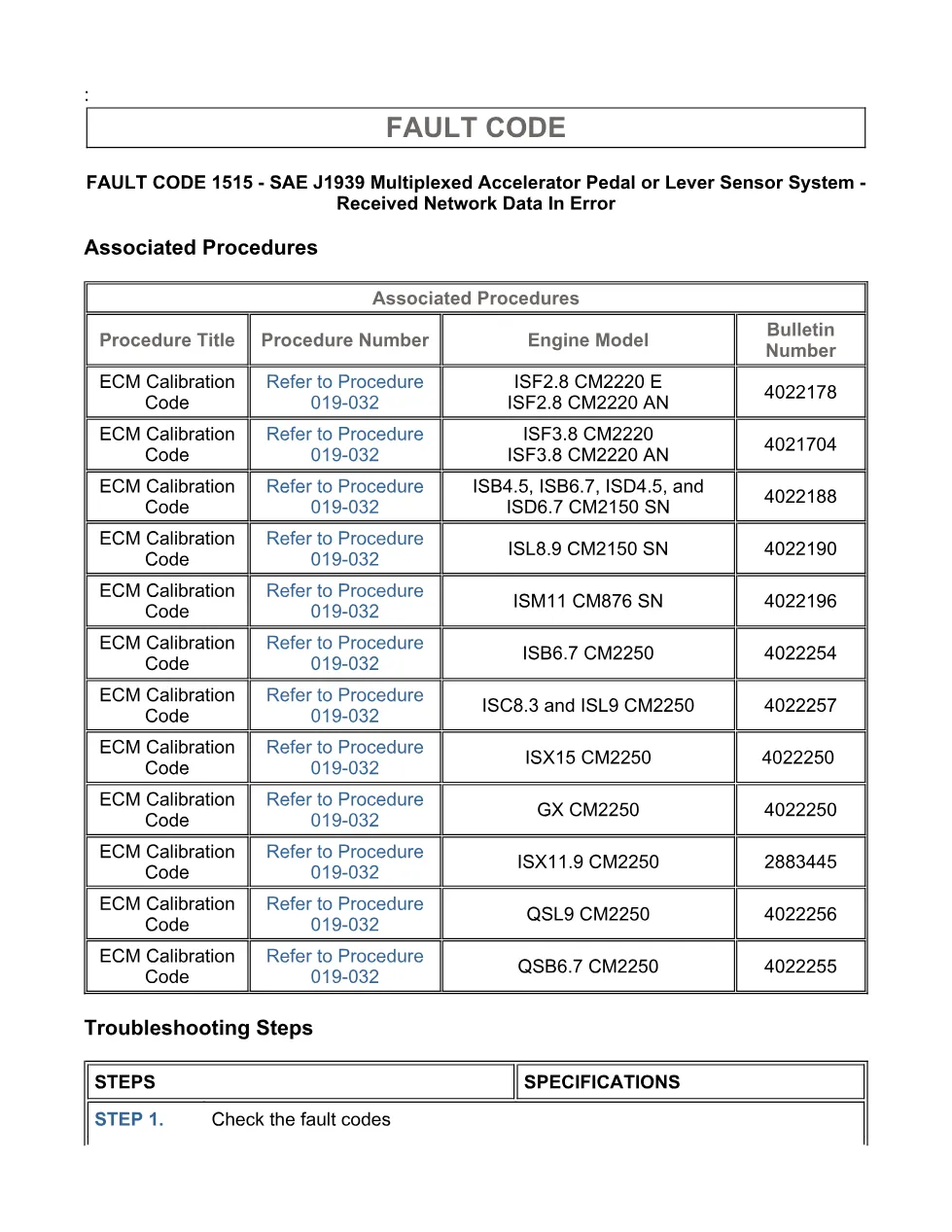

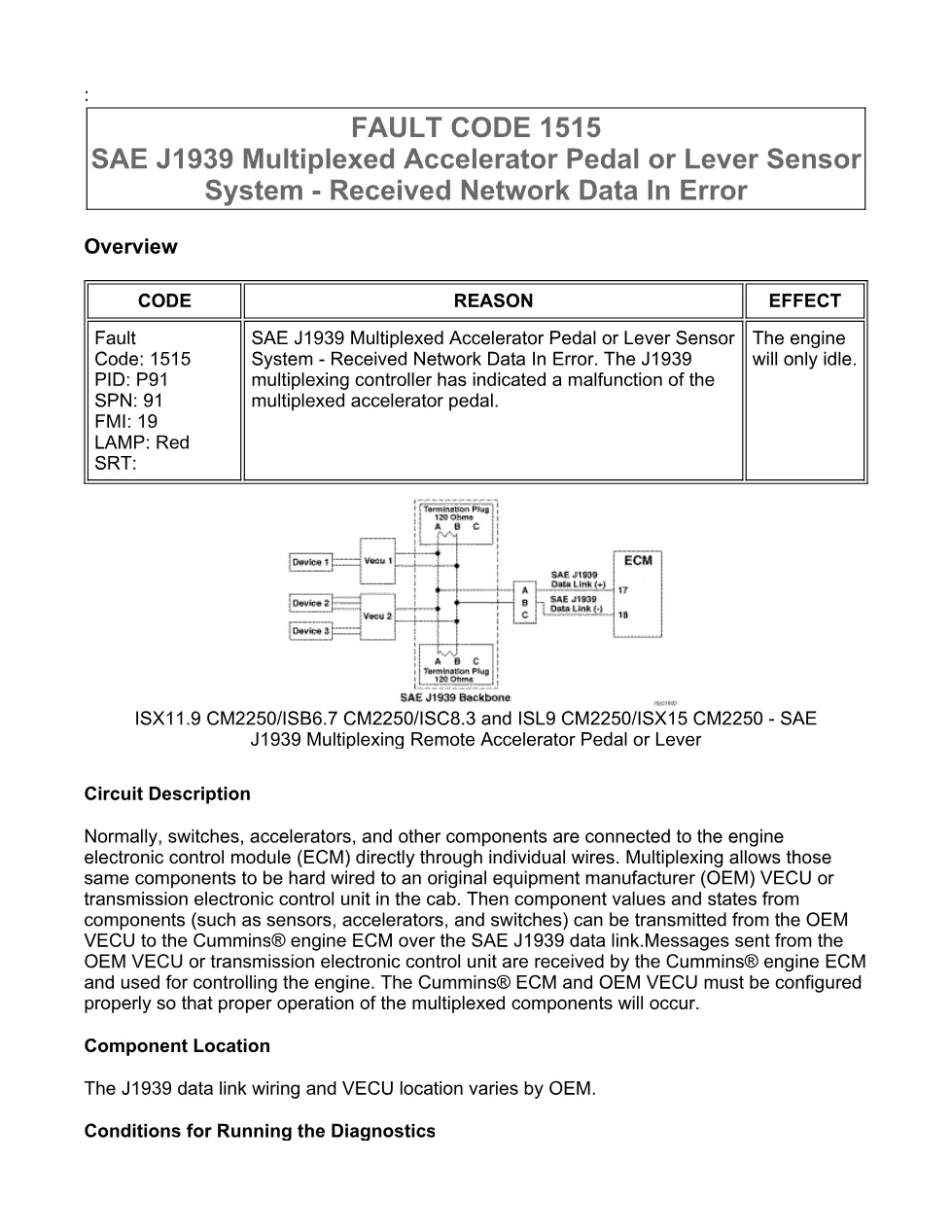

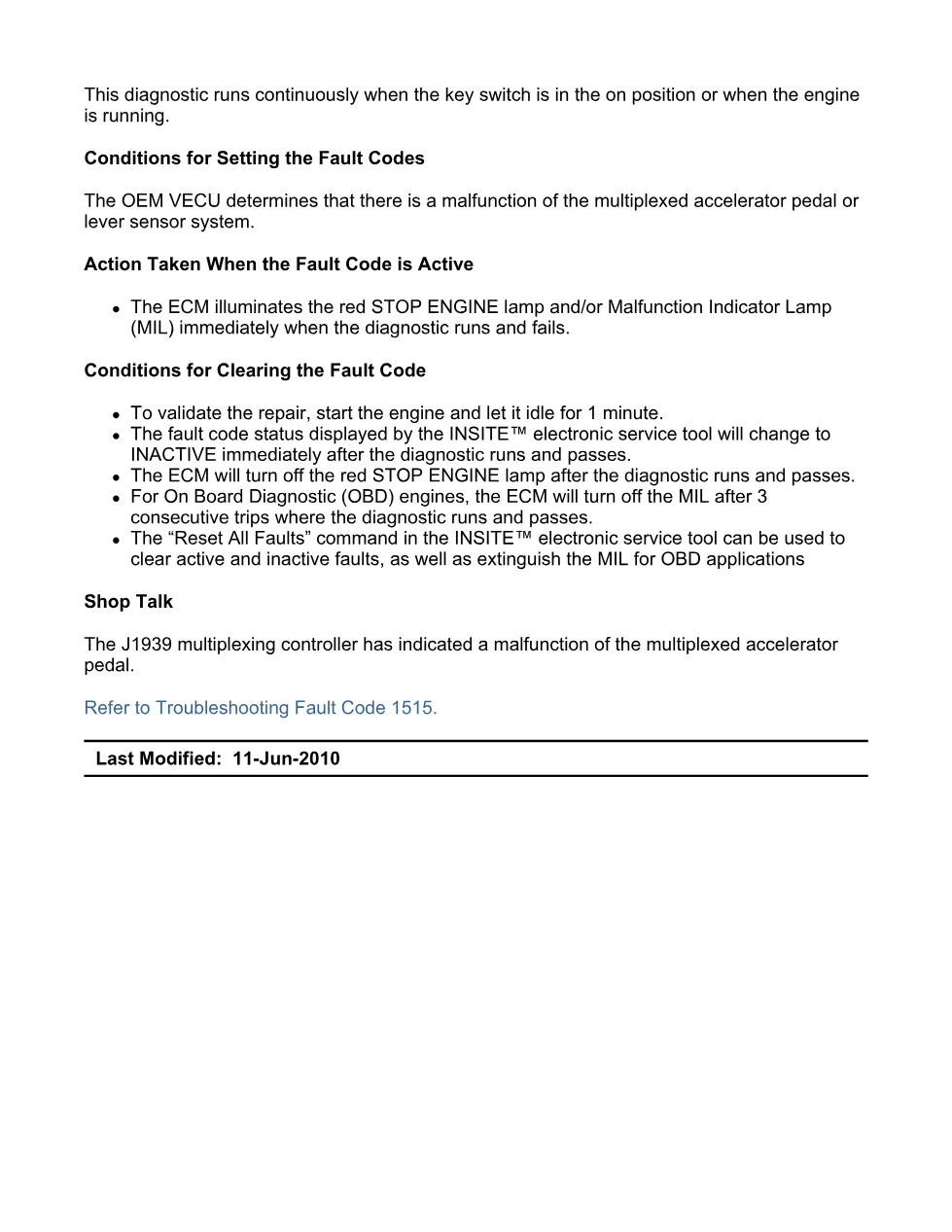

Cummins fault code 1515 is the Cummins ISX11.9 CM2250 diagnostic trouble code for SAE J1939 Multiplexed Accelerator Pedal or Lever Sensor System – Received Network Data In Error. This 7-page troubleshooting PDF is taken from the Cummins ISX11.9 CM2250 (2010-12) service documentation and explains the circuit, the conditions that set the fault, and the guided steps used to confirm the repair. It is logged as SPN 91, FMI 19 with red warning lamp, and the failure typically points to a multiplexed J1939 accelerator fault that forces the engine to idle only.
Cummins fault code 1515 document details
| Brand | Cummins |
|---|---|
| Model coverage | Cummins ISX11.9, ISB6.7, ISC8.3, ISL9 and ISX15 CM2250 |
| System / group | ISX11.9 CM2250 (2010-12) / DTCs |
| Fault code identifiers | PID P91 · SPN 91 · FMI 19 · Lamp Red |
| Associated procedures | Cummins Procedures 019-362 and 019-032 |
| Revision | Last modified 20-Jan-2011 |
| Pages | 7 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Overview and circuit description
- Fault code reason, effect and identifiers
- Conditions for running and setting the diagnostic
- Action taken when the fault code is active
- Conditions for clearing the fault code
- Shop Talk and possible causes
- Associated procedures and guided troubleshooting steps
Applicable truck models
This diagnostic trouble code applies to Cummins ISX11.9, ISB6.7, ISC8.3, ISL9 and ISX15 CM2250 engines built in the 2010-12 CM2250 range and covers the SAE J1939 multiplexing circuit. Component locations vary by original equipment manufacturer, so the wiring and connector views in the manual should be read alongside the vehicle build. For calibration histories, INSITE service-tool resources and the latest revision of this Cummins troubleshooting procedure, see the Cummins engine support website.
