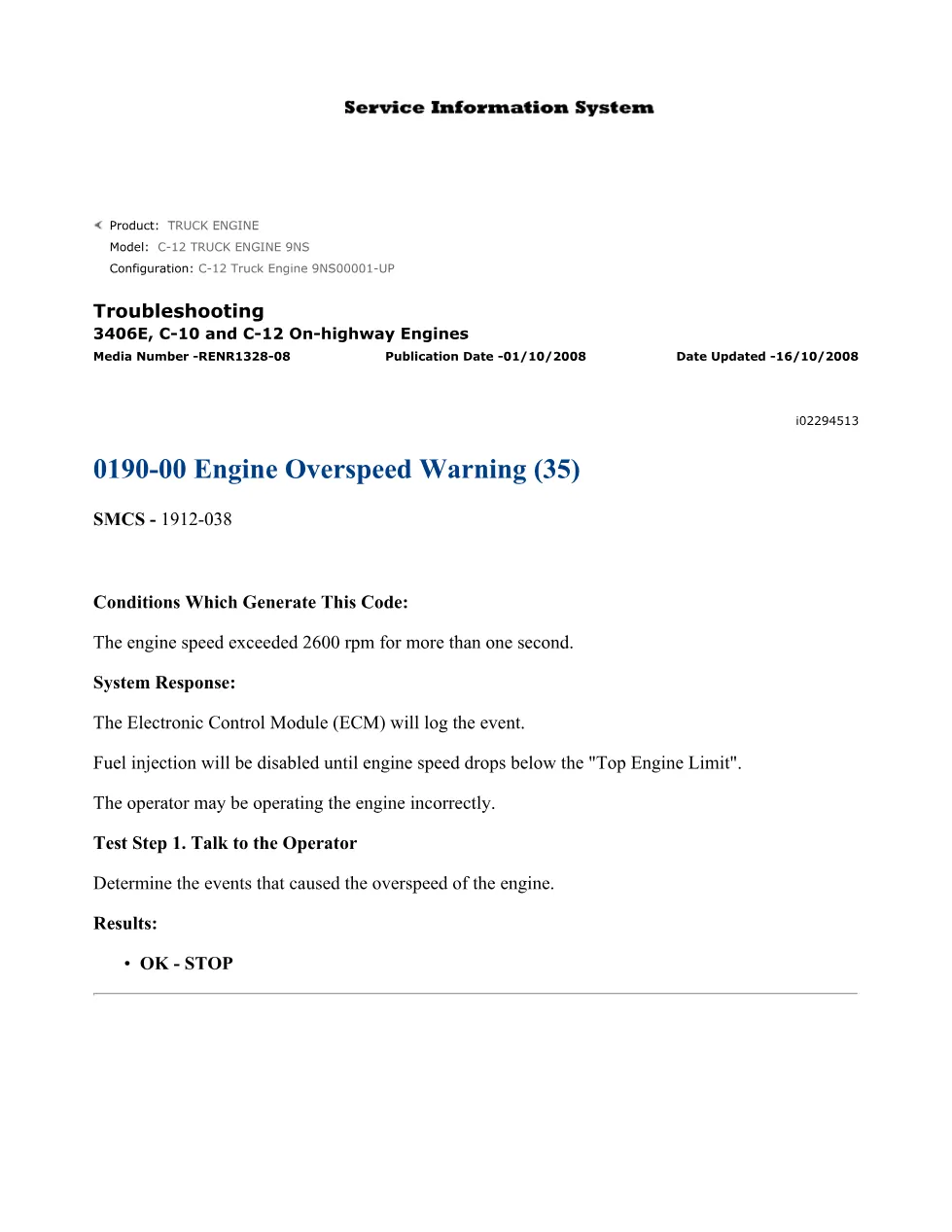

This document is a CAT Engine Overspeed Warning troubleshooting guide covering diagnostic trouble code 0190-00 for Caterpillar on-highway truck engines. It explains the conditions that generate the overspeed event code, the system response from the Electronic Control Module (ECM), and the recommended diagnostic test steps for technicians.
Official CAT Engine Overspeed Warning document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3406E, C-10, C-12 Truck Engines (8YS, 9NS, 5DS, 1LW prefixes) |
| System/Group | Diagnostic Trouble Codes (DTCs) — SMCS 1912-038 |
| Publication no. | RENR1328-08 |
| Year/Revision | Published 01/10/2008, Updated 16/10/2008 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- 0190-00 Engine Overspeed Warning (35) — Conditions Which Generate This Code
- System Response — ECM Event Logging and Fuel Injection Disable
- Test Step 1: Talk to the Operator — Determine Overspeed Cause
Applicable truck models
This troubleshooting sheet applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families. Specific serial-number prefixes covered are 8YS, 9NS, 5DS, and 1LW. The configuration example listed in the document is the C-12 Truck Engine 9NS00001-UP. When the engine speed exceeds 2600 rpm for more than one second, the ECM logs the overspeed event and disables fuel injection until engine speed falls below the Top Engine Limit. The single diagnostic step directs technicians to interview the operator about the events leading to the overspeed condition. For official Caterpillar service resources, visit Caterpillar Support.
Who needs this Engine Overspeed Warning manual
Fleet mechanics, independent diesel technicians, and workshop owners servicing Caterpillar 3406E, C-10, or C-12 powered trucks will find this single-page reference essential when diagnosing DTC 0190-00. It provides the exact trigger threshold, ECM behavior, and the prescribed first diagnostic action for an overspeed event.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
