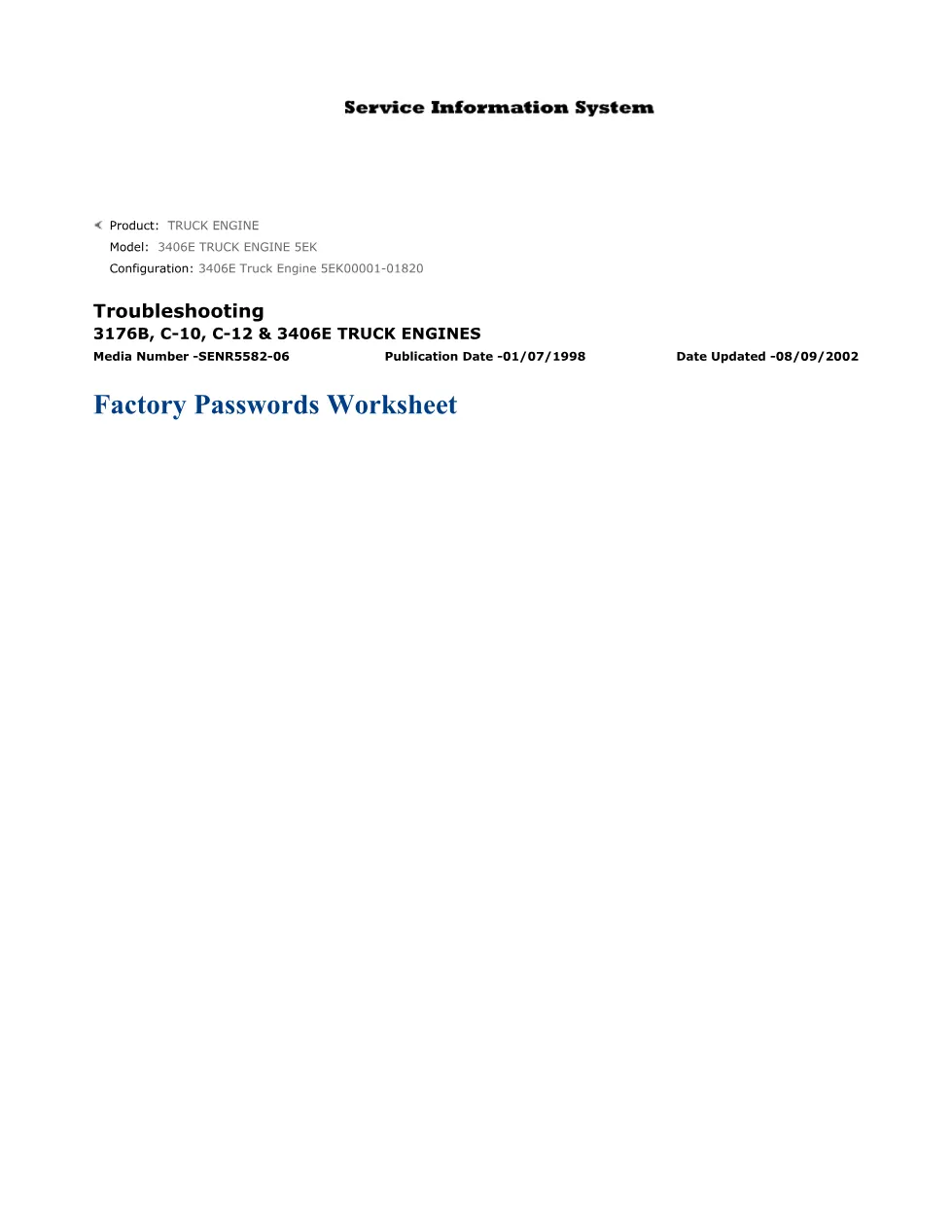

The CAT factory passwords worksheet is a two-page form from Caterpillar troubleshooting manual SENR5582-06 for the 3176B, C-10, C-12 and 3406E truck engines. It is a structured worksheet, not a procedure, used to record the factory passwords required to carry out protected functions on the ECM.
What this document is — CAT factory passwords

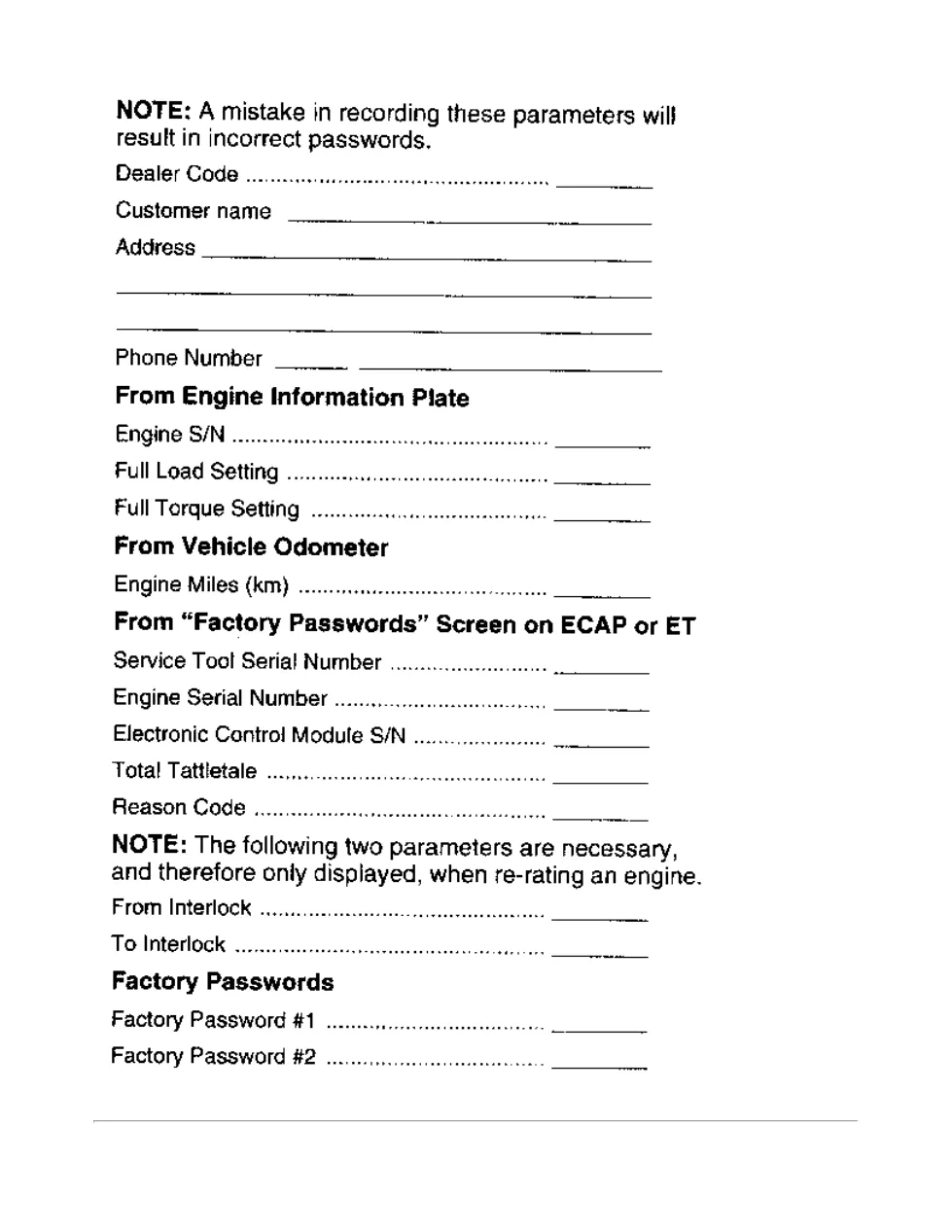

Certain service actions on these engines are locked behind factory passwords. The CAT factory passwords worksheet gives the technician a fixed place to write down the identifiers and password values needed to perform those actions, so the details are on hand when the Electronic Technician service tool asks for them and the job does not stall halfway through.
When you need factory passwords — CAT factory passwords
The worksheet supports the protected functions defined elsewhere in the manual:
- Programming a new ECM after its first configuration
- Rerating the engine to another engine family
- Reading lost customer passwords so parameters can be reprogrammed
- Clearing certain diagnostic codes such as engine overspeed
Why the worksheet matters
Factory passwords are generated from engine and ECM identifiers, so a technician must gather the correct values before the service tool can proceed. Filling in the factory passwords worksheet in advance avoids stopping mid-job to hunt for numbers, and it leaves a record of what was authorised and when, which is useful if the work is ever questioned. Because each password is tied to a specific engine and function, keeping the completed worksheet with the job file means the same numbers do not have to be requested again for a follow-up visit.
Document details manual information
The manual pairs this form with the passwords section, the customer-parameter worksheet and the ECM programming procedures, so the set is used together on a programming job. This worksheet belongs to the SENR5582-06 set, dated 01/07/1998 and updated 08/09/2002. Caterpillar product information is at the Caterpillar website. Related sections are listed in the DiagTechPro manuals library.
