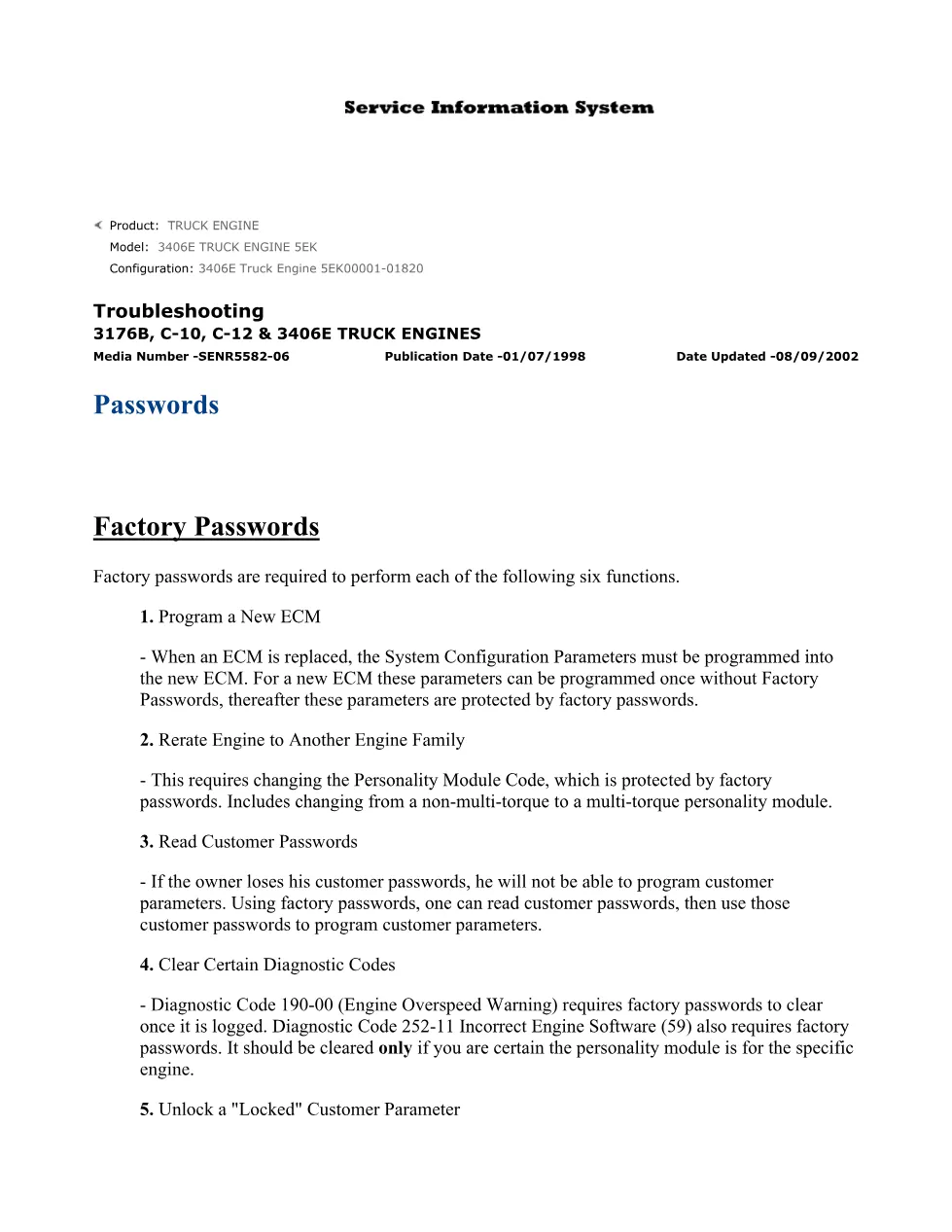

CAT engine factory passwords are the subject of this section of Caterpillar manual SENR5582-06 for the 3176B, C-10, C-12 and 3406E truck engines. The section explains why factory passwords exist and lists the six protected functions that require them before the electronic service tool will proceed.
The six protected functions — CAT engine factory
Each of these actions is locked because it changes how the engine runs or reveals protected data:
- Program a new ECM — configuration parameters can be set once without passwords, then are protected
- Rerate the engine to another engine family — changes the personality module code
- Read customer passwords — recovers lost customer passwords so parameters can be programmed
- Clear certain diagnostic codes — such as 190-00 Engine Overspeed Warning
- Clear code 252-11 Incorrect Engine Software (59)
- Other protected changes described in the section
Factory versus customer passwords — CAT engine factory

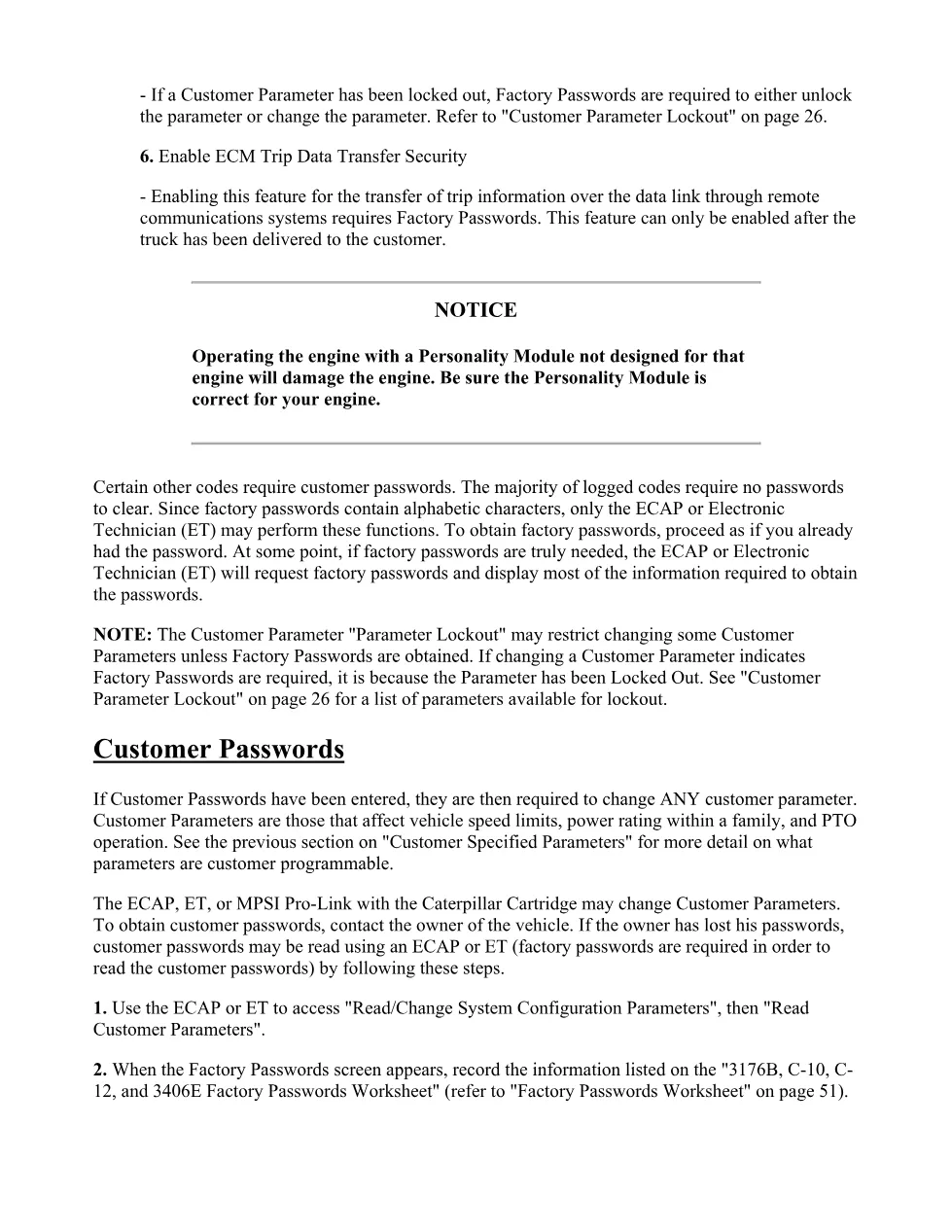

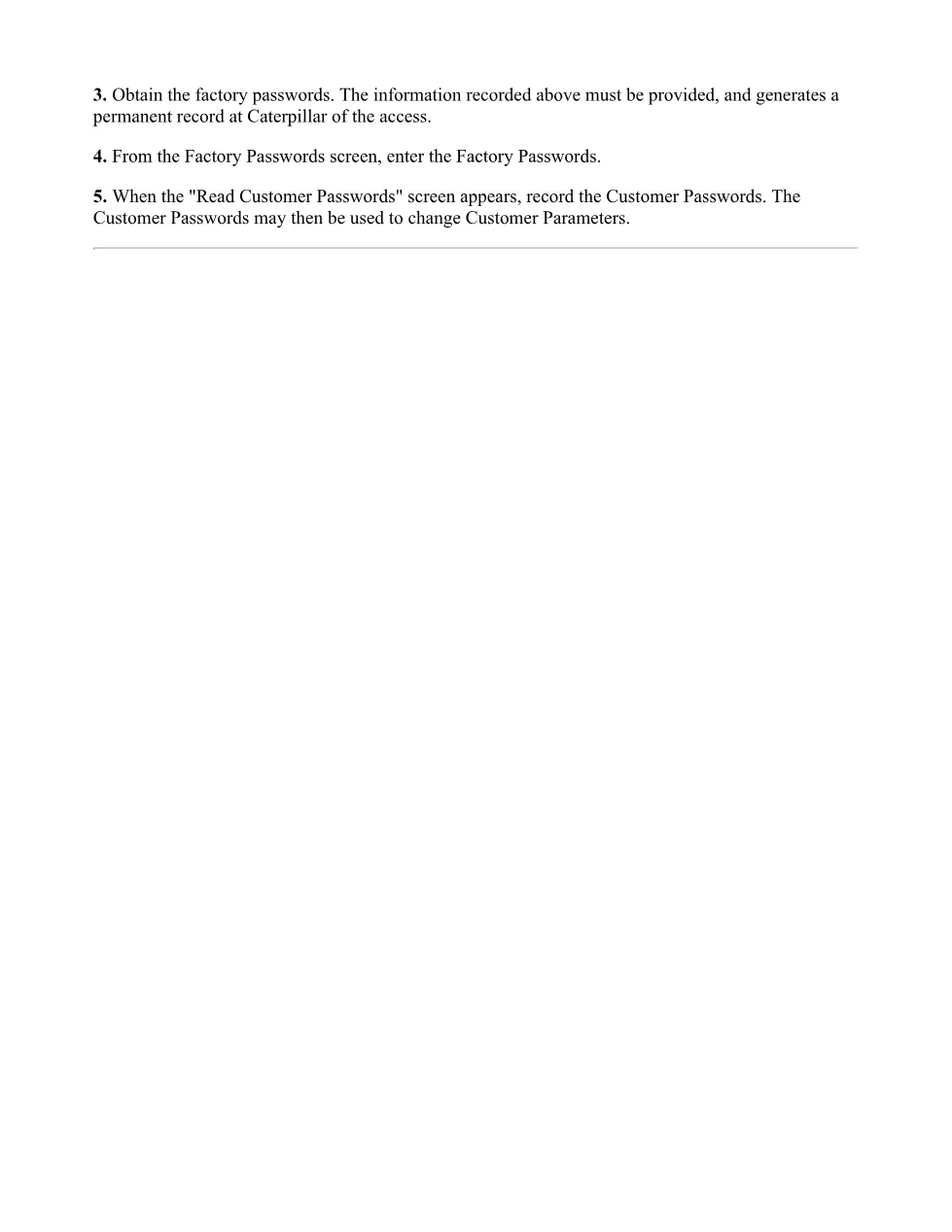

The manual distinguishes CAT engine factory passwords, which authorise the actions above, from customer passwords, which protect day-to-day programmable parameters. If an owner loses the customer passwords, factory passwords can be used to read them, after which the customer parameters can be reprogrammed. Knowing which type is needed for a task saves time at the service tool.
Why this matters
Because a code such as 190-00 or 252-11 cannot be cleared without authorisation, a technician must gather the correct password data before starting. Understanding CAT engine factory passwords prevents a job from stalling, and it ties directly to the factory-password worksheet and the ECM programming procedures. Reading the section before a rerate or an ECM replacement tells the technician exactly which of the six functions is about to be used and therefore which passwords to obtain in advance, so the electronic service tool is never left waiting mid-procedure while numbers are chased down.
Document details manual information
This section belongs to the SENR5582-06 set, dated 01/07/1998 and updated 08/09/2002. Caterpillar information is at the Caterpillar website. Related sections are in the DiagTechPro manuals library.
