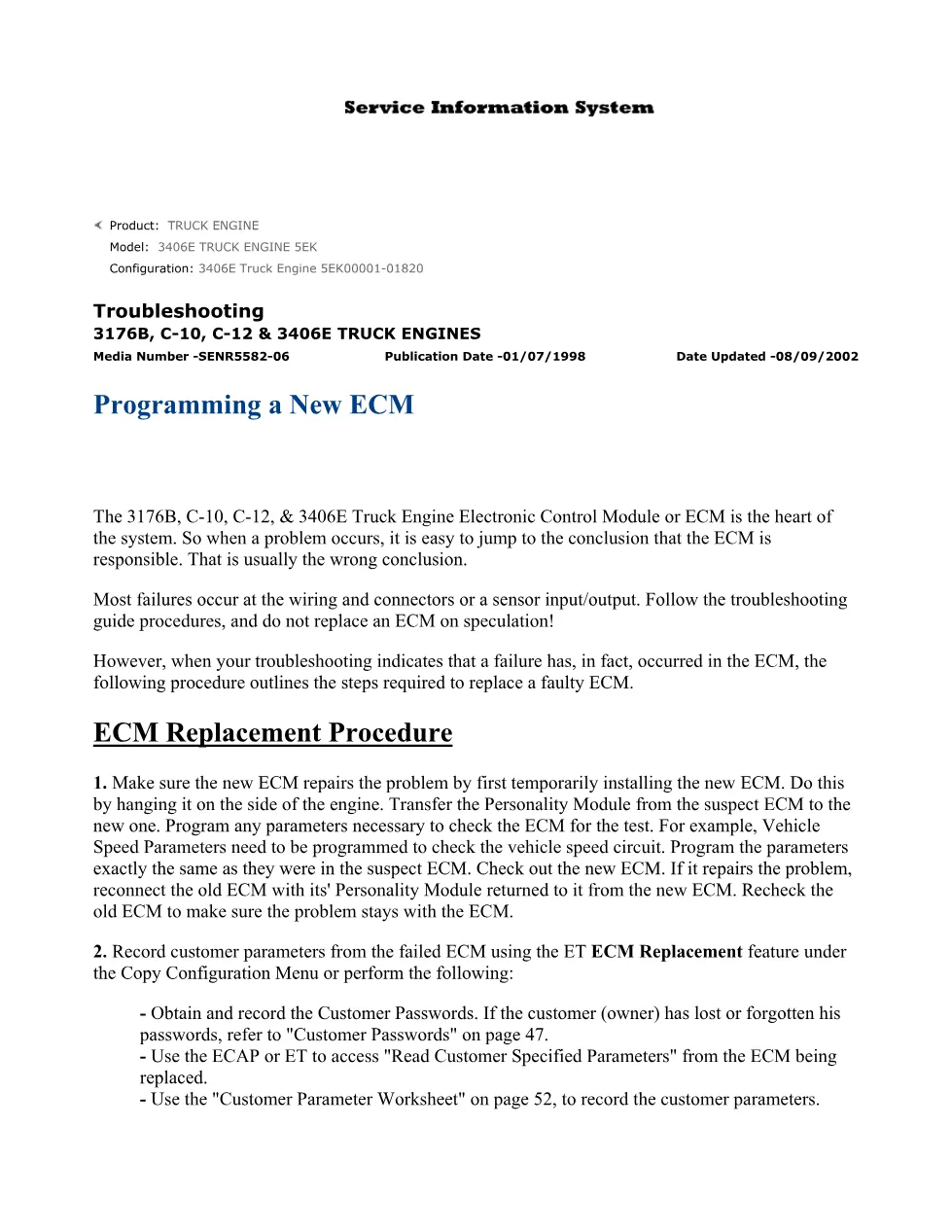

Programming a new ECM is the Caterpillar procedure in manual SENR5582-06 for replacing the Electronic Control Module on a 3176B, C-10, C-12 or 3406E truck engine. The manual opens with a warning: the ECM is the heart of the electronic system, so it is easy to blame it when a problem occurs, but that is usually the wrong conclusion.
Confirm the ECM is really at fault — programming a new
Most failures occur at the wiring and connectors or at a sensor input or output, not inside the module. The manual insists you follow the troubleshooting procedures and never replace an ECM on speculation. Only when diagnosis proves the fault is genuinely inside the ECM should you begin programming a new ECM, because the module is an expensive part to fit unnecessarily.
Replacement procedure manual information — programming a new

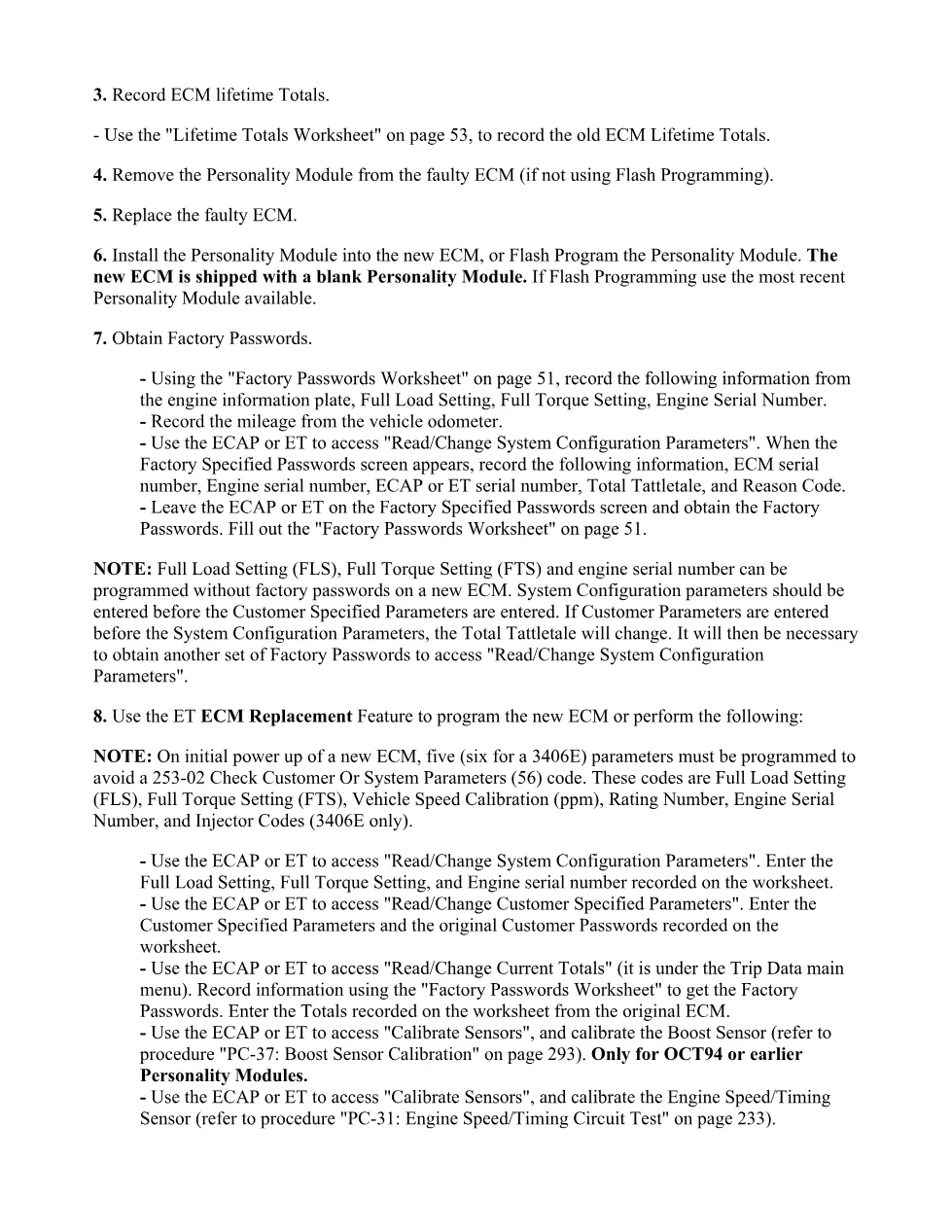

The steps are designed to prove the repair before the old module is permanently removed:
- Temporarily install the new ECM by hanging it on the side of the engine
- Transfer the personality module from the suspect ECM to the new one
- Program the parameters needed to test — for example, vehicle speed parameters to check the speed circuit
- Program them exactly as they were in the suspect ECM, then verify the repair
Why the test-first approach matters
By proving the new ECM fixes the problem first, the procedure avoids a costly mistake if the real fault was elsewhere in the wiring or a sensor. For a genuinely new ECM, the system configuration parameters can be programmed once without factory passwords; afterward they are protected. This makes programming a new ECM a deliberate, verified process rather than a first guess, and it saves the cost of a module that would not have fixed the truck.
Document details manual information
This procedure is part of the SENR5582-06 set, dated 01/07/1998 and updated 08/09/2002, and it works alongside the passwords and personality-module sections. Caterpillar corporate information is at the Caterpillar website. Related sections are in the DiagTechPro manuals library.
