This document is the PACCAR MX grid heater diagnostic service manual extracted from the 2013 PACCAR MX Diagnostic Service Manual. It provides fault code identification, diagnostic conditions, and technical guidance for technicians troubleshooting grid heater electrical faults on PACCAR MX engines built to EPA 2013 emissions standards. Published by PACCAR, this single-page reference covers one of the critical emissions control diagnostic trouble codes found in MX-powered heavy-duty trucks.
Document details and specifications — PACCAR MX grid
| Brand | PACCAR |
| Model coverage | PACCAR MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines |
| Year/Revision | 2013 |
| Pages | 1 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Table of contents

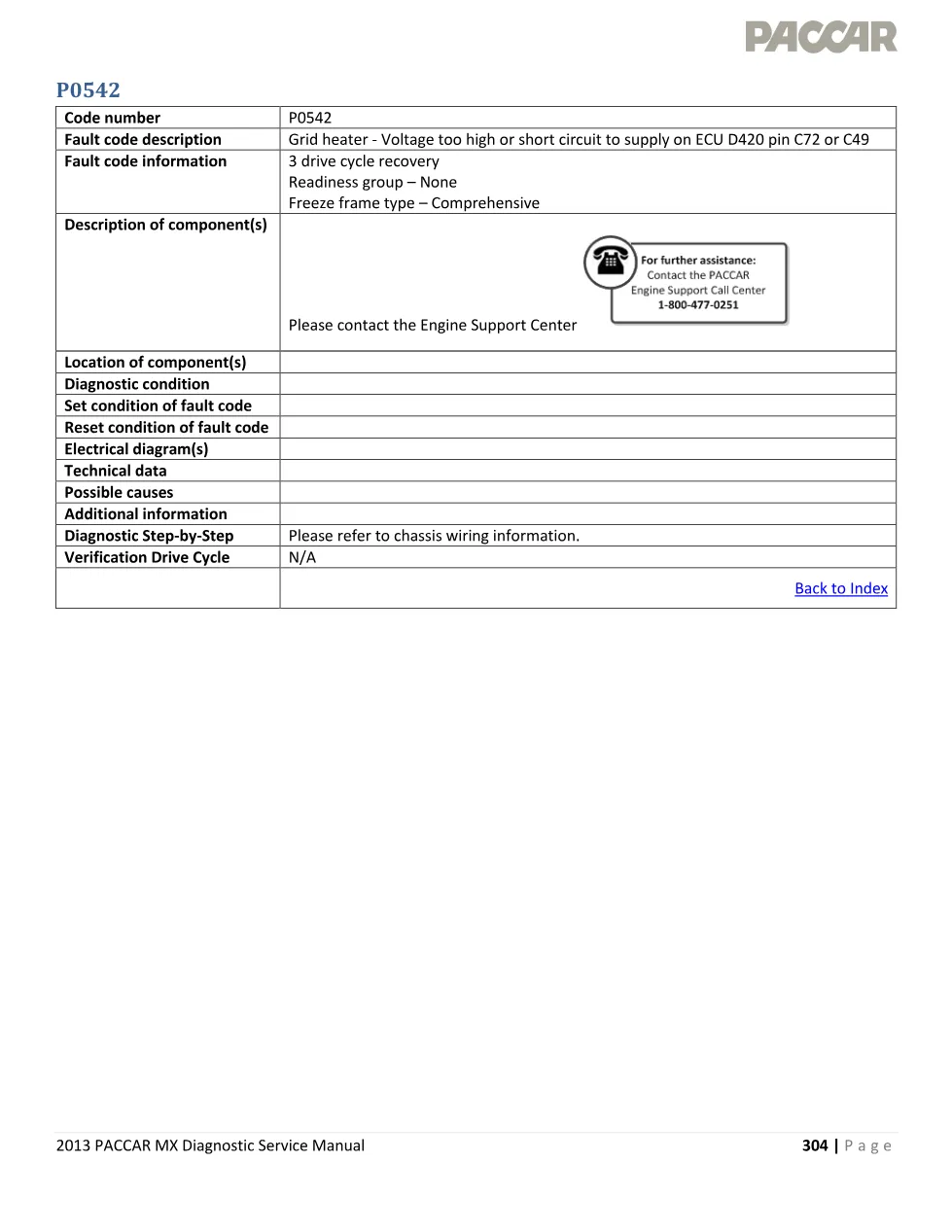

- Code number P0542
- Fault code description: Grid heater voltage too high or short circuit to supply
- Fault code information: 3 drive cycle recovery, Readiness group – None, Freeze frame type – Comprehensive
- Description of component(s)
- Location of component(s)
- Diagnostic condition
- Set condition of fault code
- Reset condition of fault code
- Electrical diagram(s)
- Technical data
- Possible causes
- Additional information
- Diagnostic Step-by-Step
- Verification Drive Cycle
Applies to these models
The PACCAR MX grid heater code applies to PACCAR MX diesel engines manufactured to meet 2013 EPA emissions regulations. This diagnostic reference is specific to grid heater circuit faults on ECU connector pins C72 or C49. For complete technical support and additional resources, visit PACCAR official website.
Who needs this MX grid heater manual
Diesel technicians, engine diagnosticians, and fleet workshop managers troubleshooting grid heater electrical faults on PACCAR MX–powered trucks need this MX grid heater reference. The manual provides essential DTC interpretation and electrical circuit guidance required to diagnose voltage and short circuit conditions affecting engine starting and cold-weather performance.
The complete PDF is available in the DiagTechPro manuals library. A free account is required to download this MX grid heater diagnostic document and access the full 2013 service manual collection.
