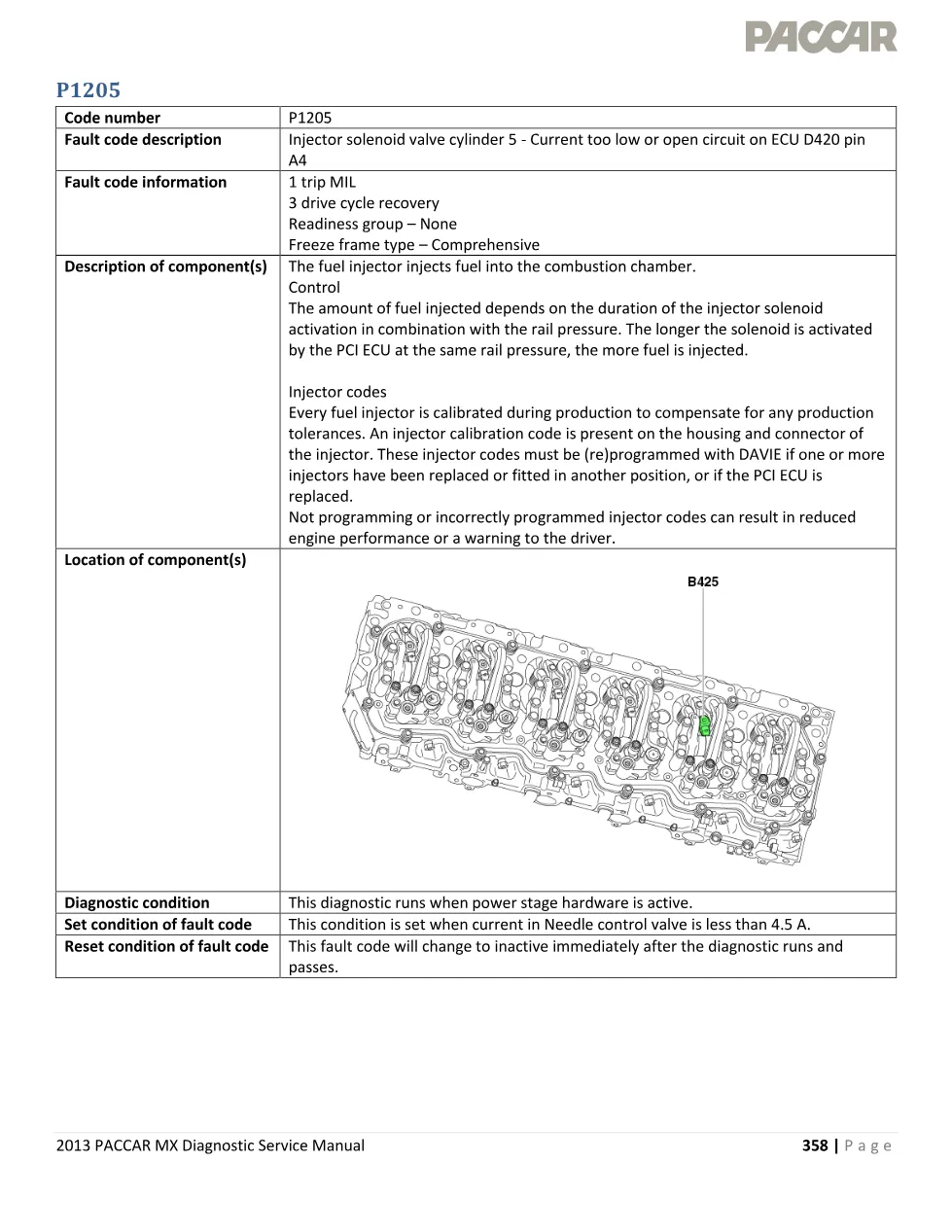

This PACCAR MX injector fault P1205 diagnostic manual provides complete technical guidance for diagnosing and resolving solenoid valve faults on cylinder 5 in 2013 PACCAR MX engines. Published by PACCAR as part of their EPA 2013 Diagnostic Service Manual series, this document covers fuel injector control circuits, electrical testing procedures, and step-by-step repair verification for mechanics and workshop technicians.
Fault code P1205 is triggered when the needle control valve current drops below 4.5 amperes, indicating either an open circuit condition or low current draw at ECU pin D420 A4. This manual explains the diagnostic conditions, set/reset parameters, and electrical specifications required to isolate and correct the fault.
Document details and specifications — PACCAR MX injector
| Brand | PACCAR |
| Model coverage | PACCAR MX Engines |
| System/Group | DTCs / MX Engines (EPA 2013) |
| Publication number | P1205 |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Fault code description and MIL information
- Description of fuel injector components and control operation
- Injector calibration codes and DAVIE programming requirements

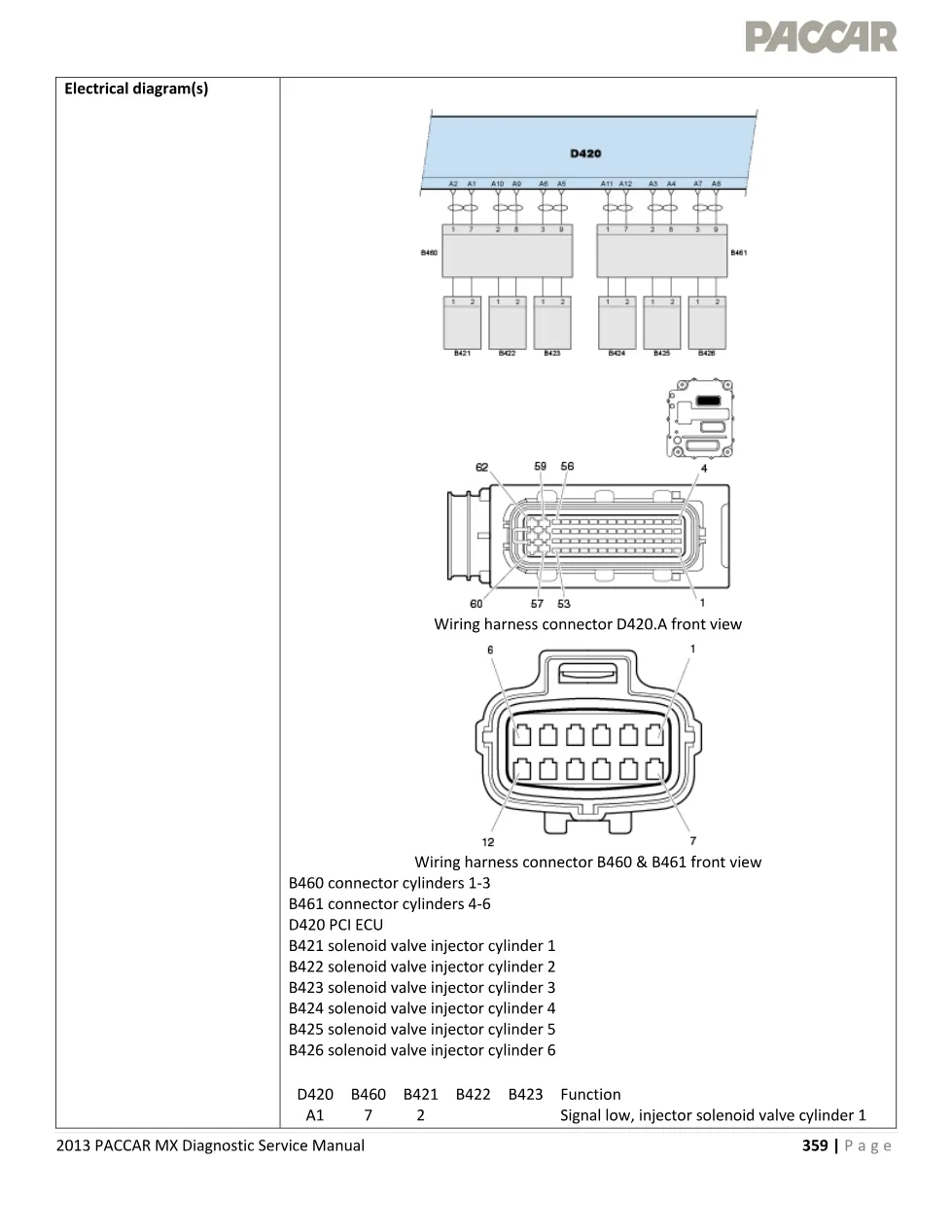

- Electrical wiring diagrams for connectors D420, B460, and B461

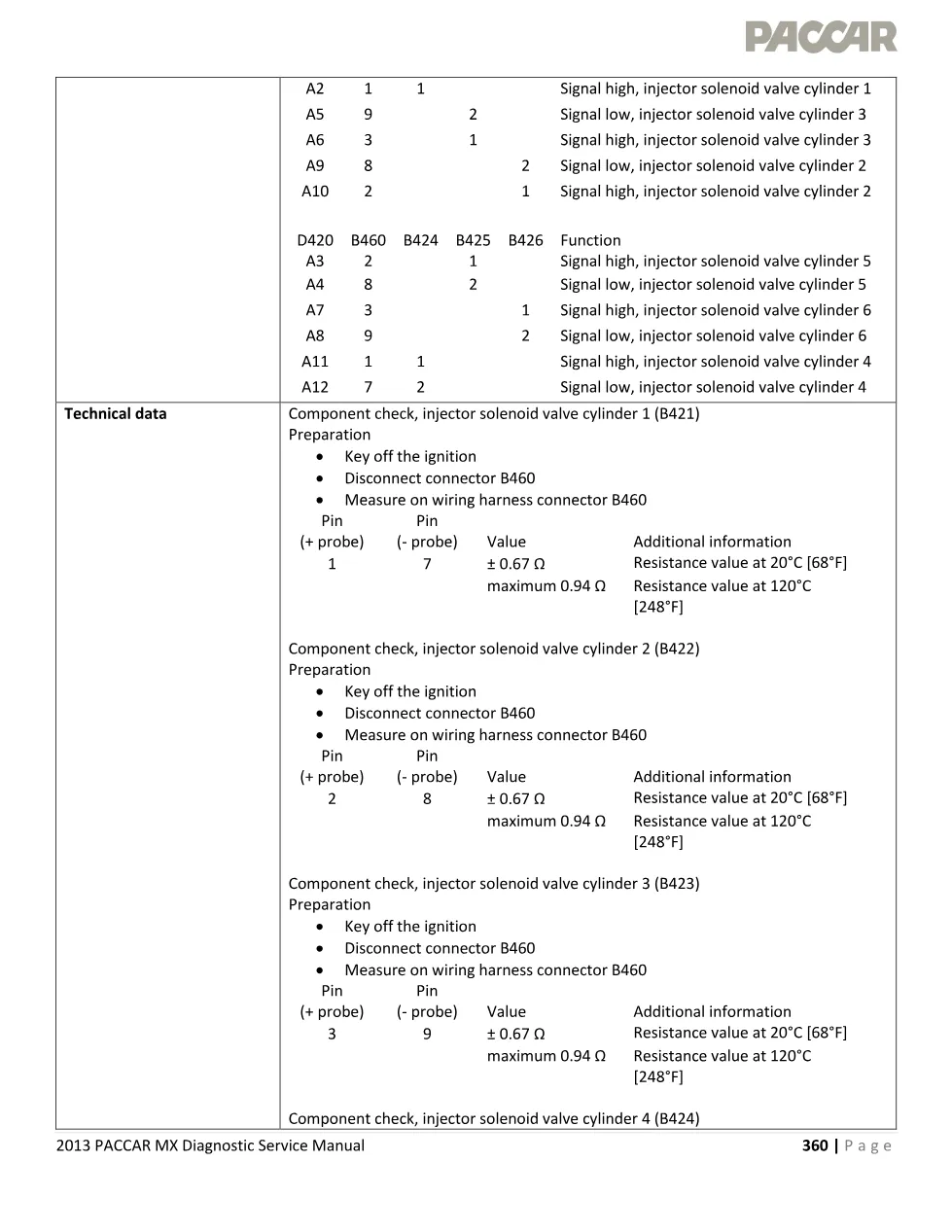

- Pin mapping for cylinders 1–6 injector solenoid circuits
- Technical resistance specifications for all six injector solenoids
- Diagnostic step-by-step troubleshooting procedure
- Verification drive cycle validation method
Applies to these models
This PACCAR MX injector fault P1205 manual applies to all 2013 PACCAR MX diesel engines equipped with electronic fuel injection systems and six-cylinder configurations. The technical data and wiring references are specific to cylinder 5 solenoid valve circuits but include reference information for all six cylinders to aid diagnostics. For official engine documentation and technical support resources, visit PACCAR official.
Who needs this PACCAR MX injector fault P1205 manual
Diesel mechanics, engine technicians, and workshop owners diagnosing PACCAR truck fuel injection problems require this manual. It is essential for anyone troubleshooting the MX injector fault P1205 or performing electrical diagnostics on solenoid valve circuits in EPA 2013 engines.
The complete PDF is available in the DiagTechPro manuals library. Free account registration is required to download this technical document.
