This document is the 2013 PACCAR MX Diagnostic Service Manual covering PACCAR MX fuel filter for EPA 2013 emissions-compliant engines. Published by PACCAR, it provides detailed diagnostic procedures and troubleshooting steps for fault codes P1191 and P1194, which indicate fuel filter blockage conditions detected by the PCI ECU (D420) engine control unit.
The PACCAR MX fuel filter are triggered when fuel temperature exceeds 95°C (203°F) and fuel pressure drops below acceptable thresholds. Mechanics and workshop technicians use this manual to diagnose clogged fuel filters, verify sensor operation, and execute proper repair validation procedures on PACCAR MX-powered trucks.
Document details and specifications — PACCAR MX fuel
| Brand | PACCAR |
| Model coverage | PACCAR MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines |
| Year/Revision | 2013 |
| Pages | 6 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Table of contents
- P1191 – Fuel filter – Clogged
- Code number and fault code description
- Fault code information and readiness group

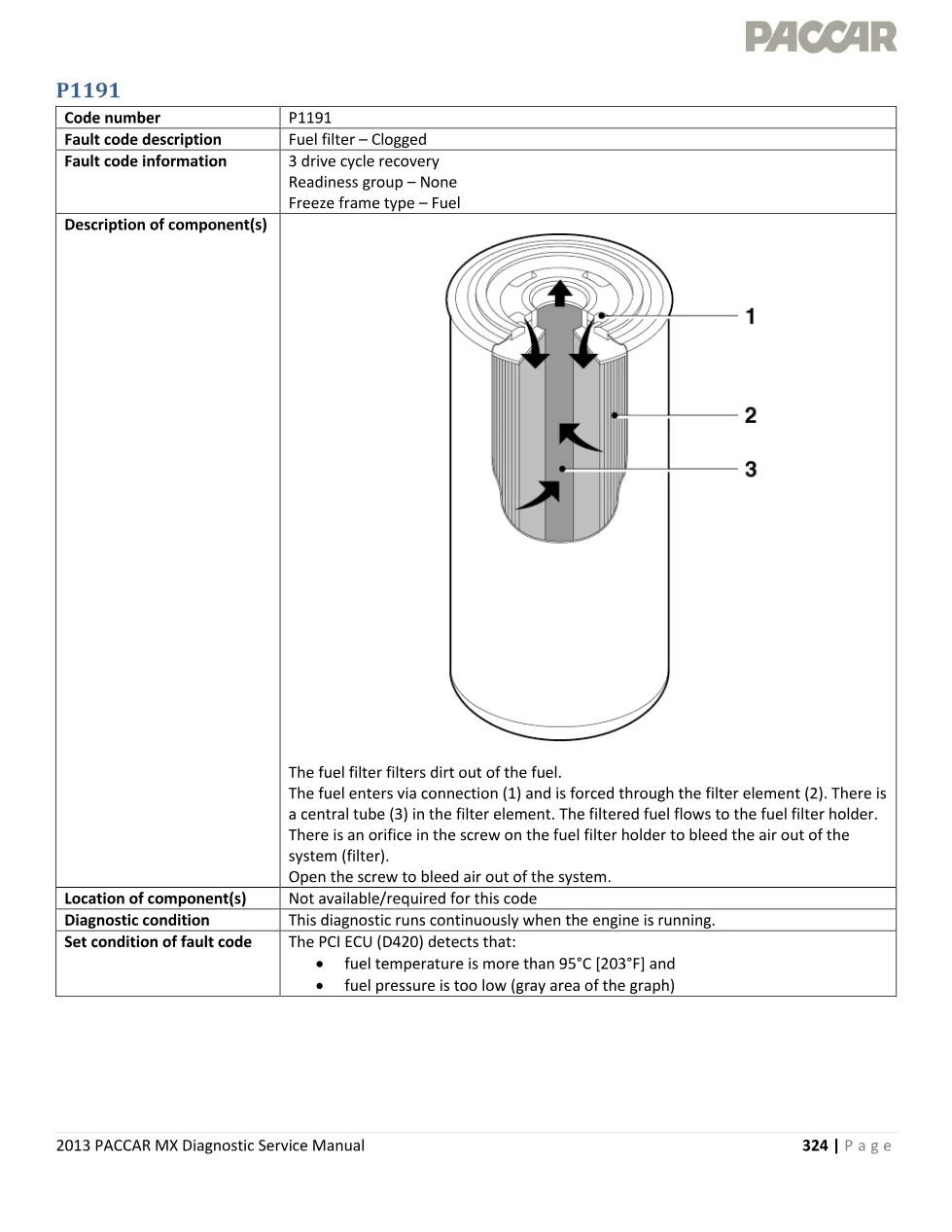

- Description of component(s)
- Diagnostic condition

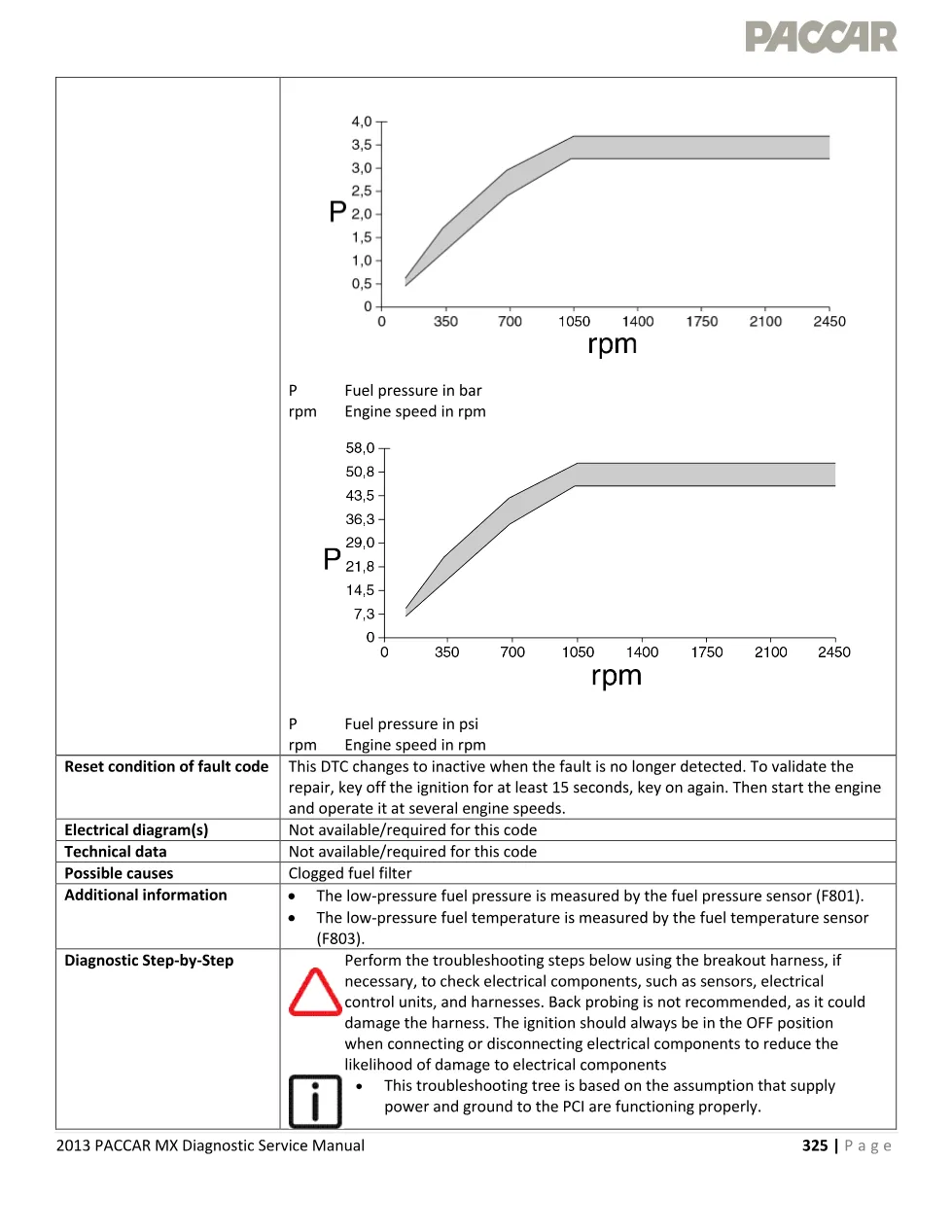

- Set condition of fault code
- Reset condition of fault code
- Possible causes
- Additional information

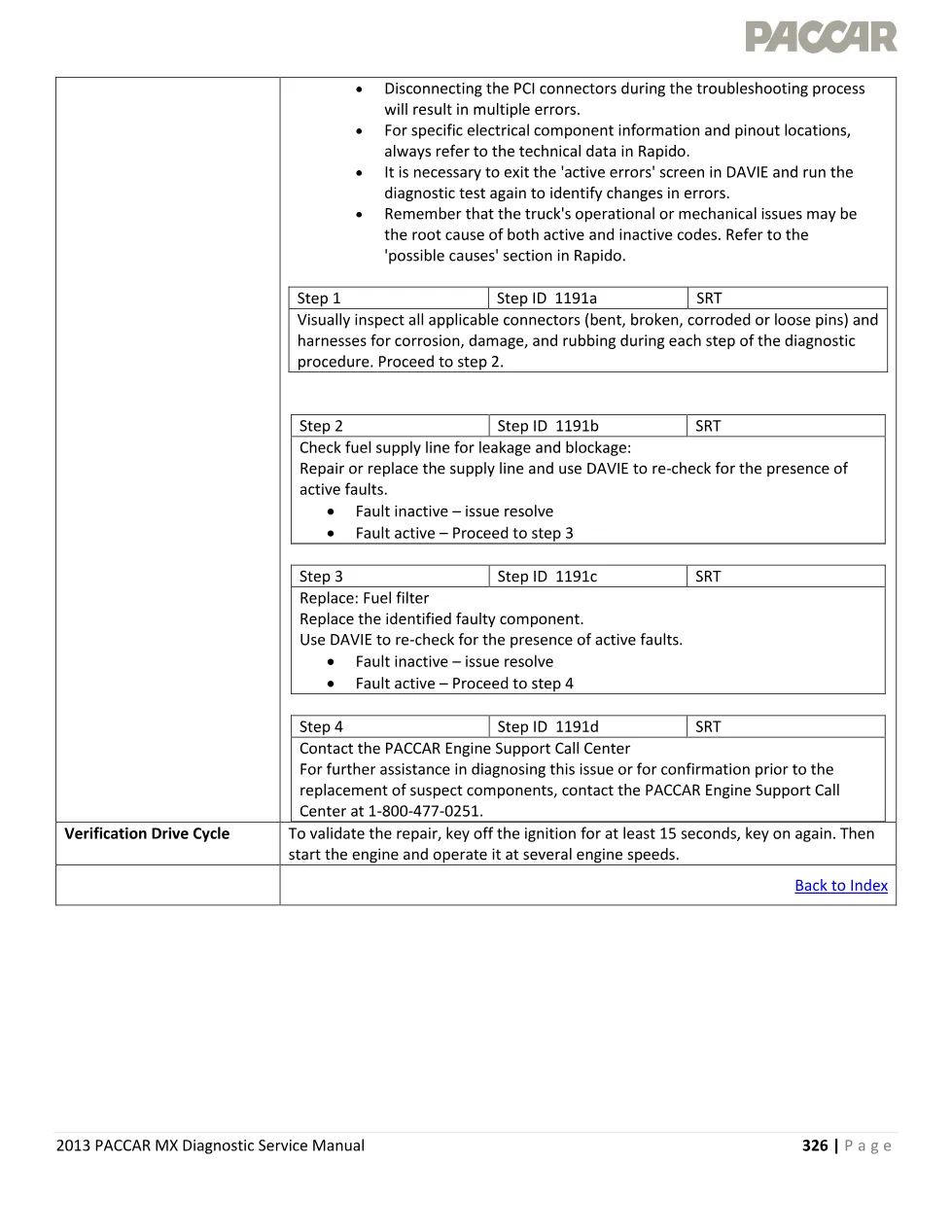

- Diagnostic Step-by-Step procedure (Steps 1–4)
- Verification Drive Cycle
- P1194 – Fuel filter – Very clogged
- Complete diagnostic breakdown for P1194
