This document is the 2013 PACCAR MX fuel temperature P1167 diagnostic service manual, published by PACCAR for technicians servicing EPA 2013 MX-series engines. The manual provides complete troubleshooting procedures, electrical schematics, and component specifications for diagnosing and repairing high fuel temperature faults in the low-pressure fuel supply gallery.

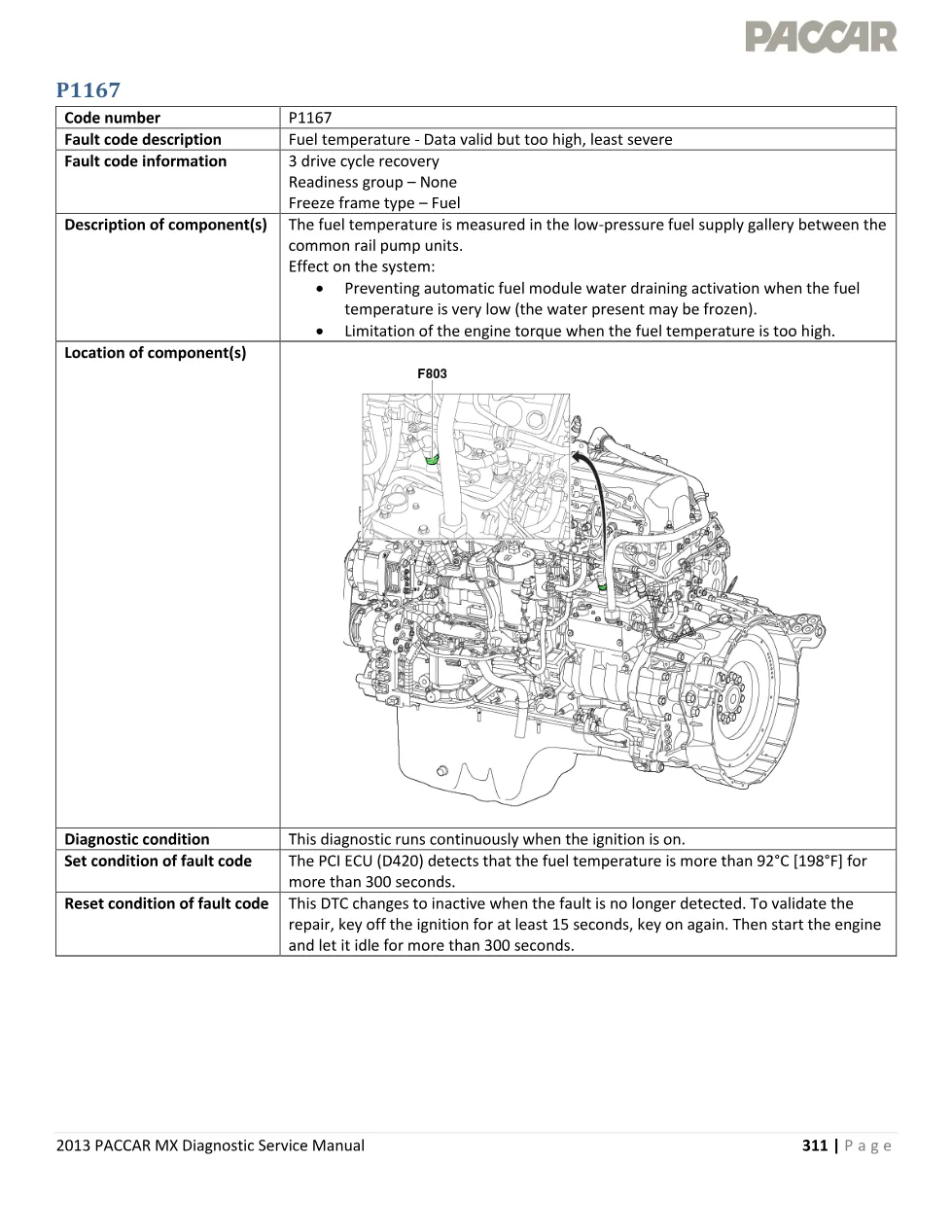

PACCAR MX fuel temperature P1167 is triggered when the PCI ECU (D420) detects fuel temperature exceeding 92°C (198°F) for more than 300 seconds. This diagnostic runs continuously during ignition-on operation and requires a 3 drive cycle recovery period. The fault affects automatic water draining and engine torque limitation functions.
Document details and specifications — PACCAR MX fuel
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication no. | P1167 |
| Year/Revision | 2013 |
| Pages | 4 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Fault code description and information
- Component description and location
- Diagnostic conditions and set/reset criteria

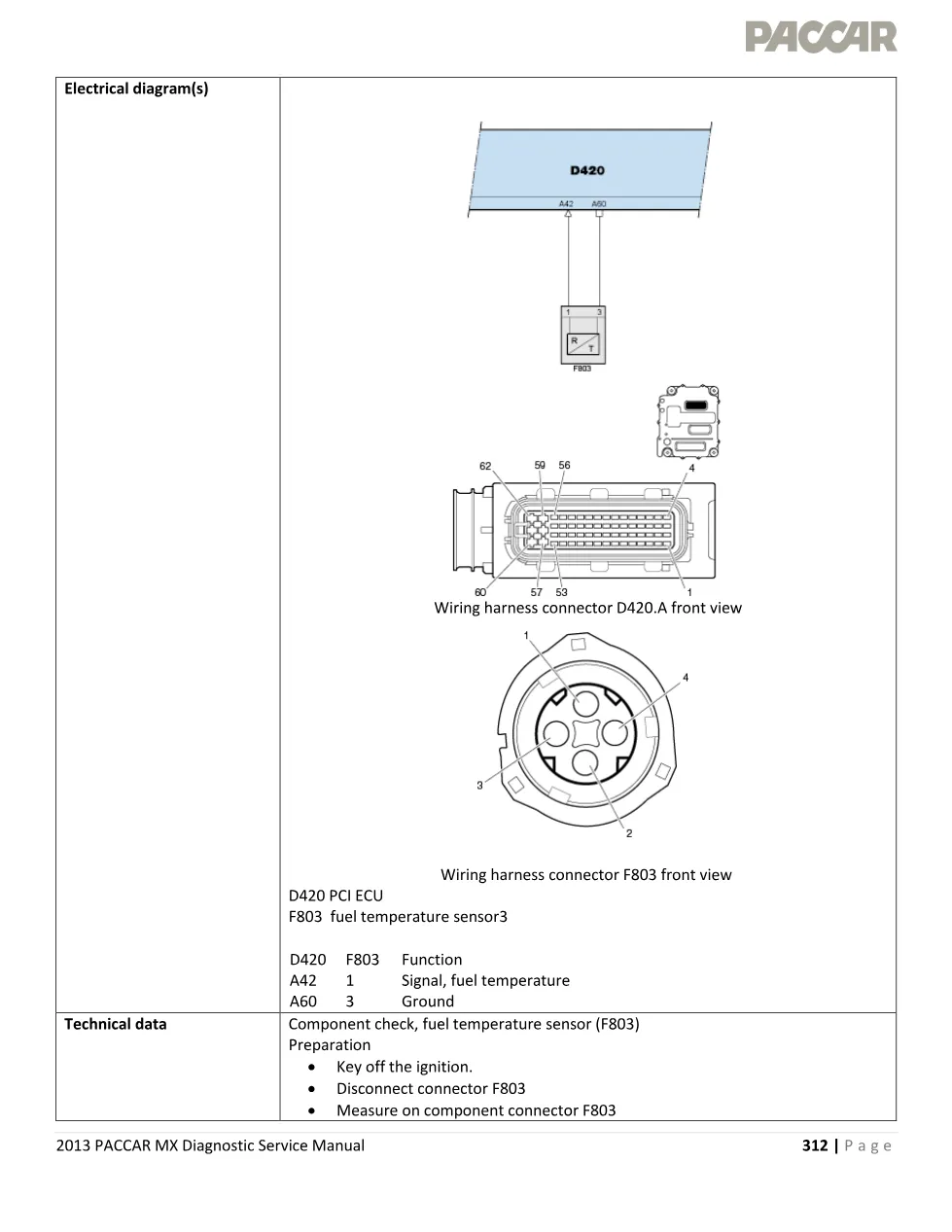

- Electrical diagrams (D420 PCI ECU, F803 connector)

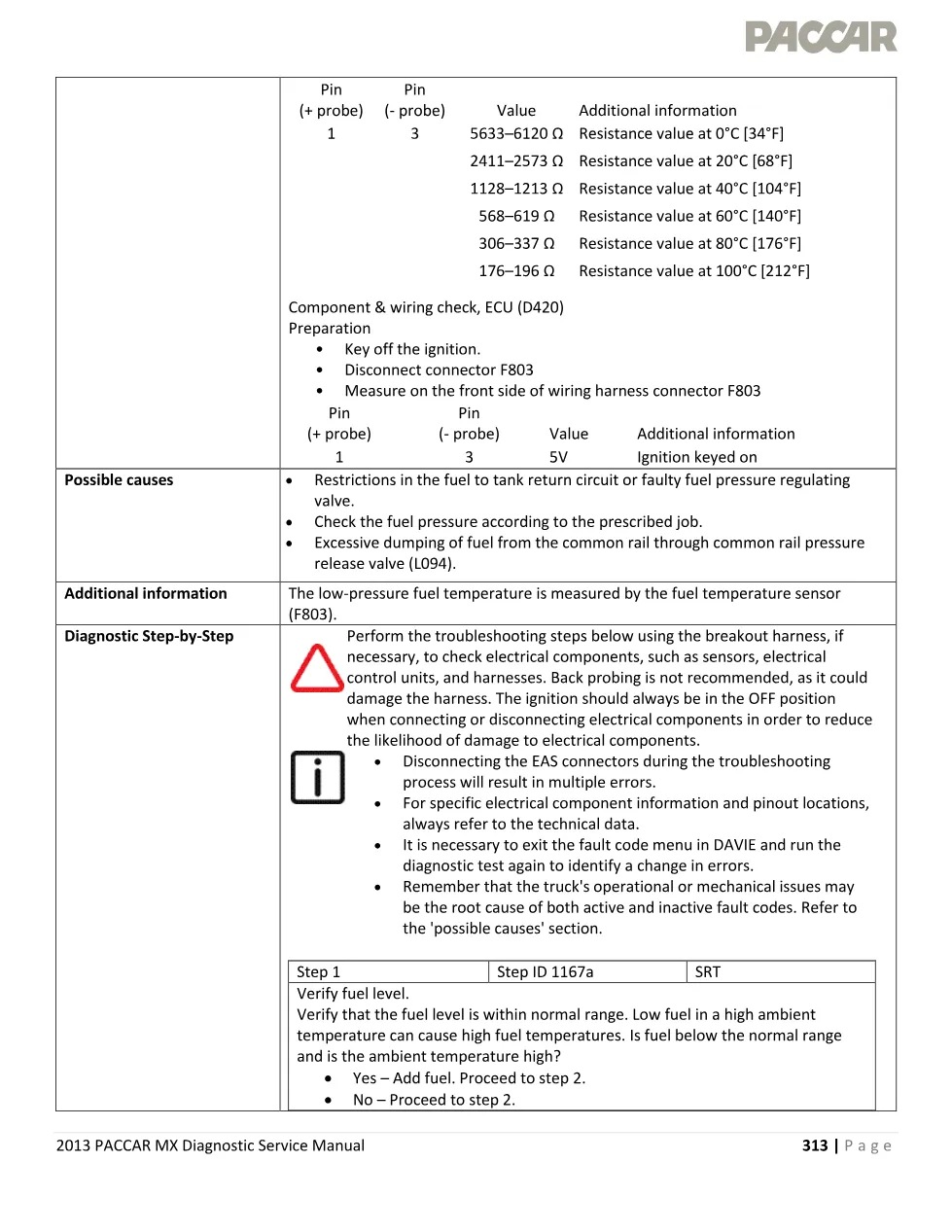

- Technical data: fuel temperature sensor (F803) resistance values
- Component and wiring check procedures for ECU (D420)
- Possible causes and additional information
- Diagnostic step-by-step troubleshooting
- Verification drive cycle procedures
