Flash programming personality module is the procedure in Caterpillar manual SENR5582-06 that loads new software into the personality module of a 3176B, C-10, C-12 or 3406E ECM without physically swapping the chip. Engine operation after flash programming personality module work is identical to operation after replacing the chip; the only difference is that you perform the programming yourself instead of receiving a pre-programmed chip.
What you still need — flash programming personality
The manual is clear that this method does not bypass security. If you are rerating an engine, you still need factory passwords to change the personality module code, exactly as you would when swapping the chip. In other words, flash programming personality module work changes how the software is loaded, not the authorisation required to do it.
Protect the histogram data first — flash programming personality

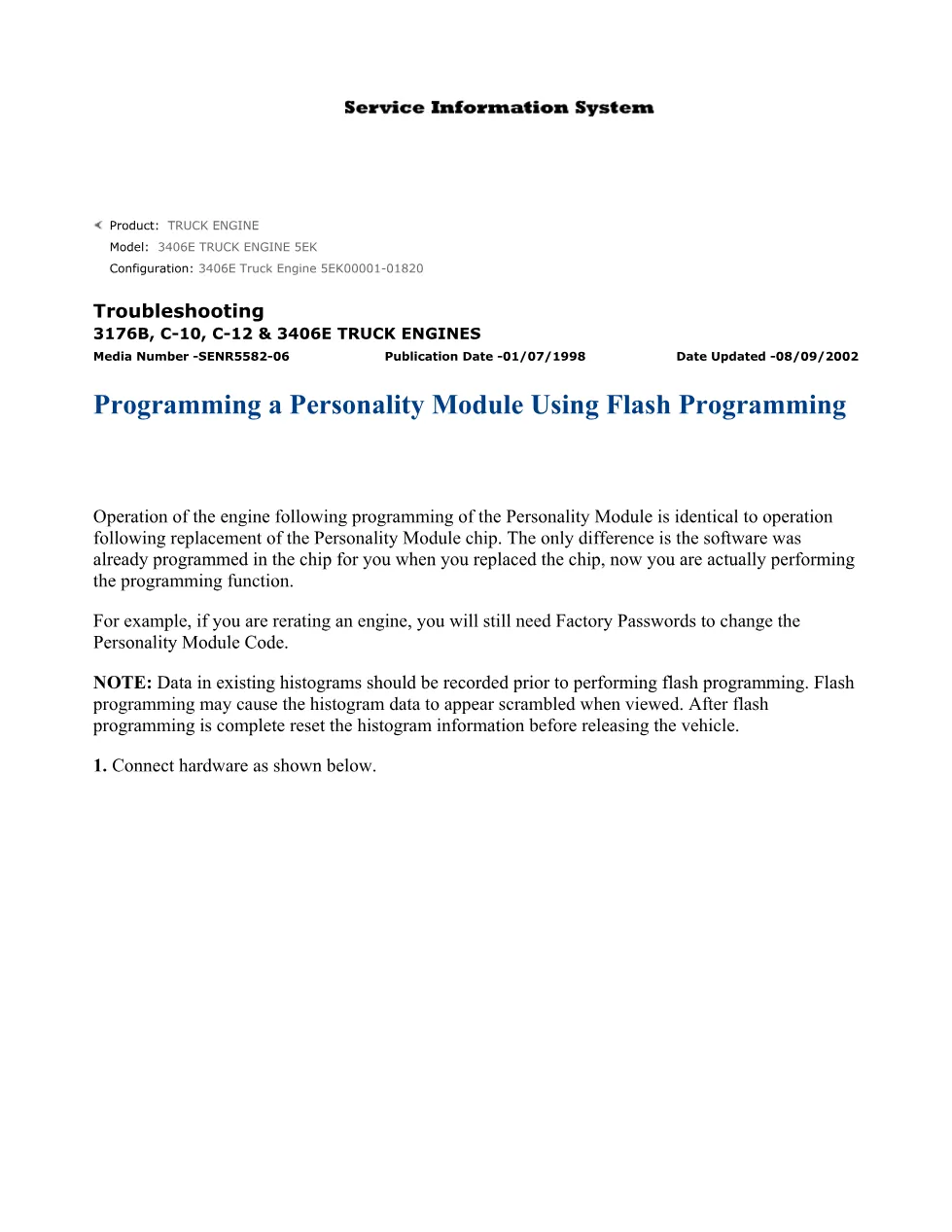

Before you start, record any existing histogram data. Flash programming may make the histogram data appear scrambled when viewed, so after programming is complete you must reset the histogram information before releasing the vehicle, otherwise later readings will be misleading.
Procedure outline manual information

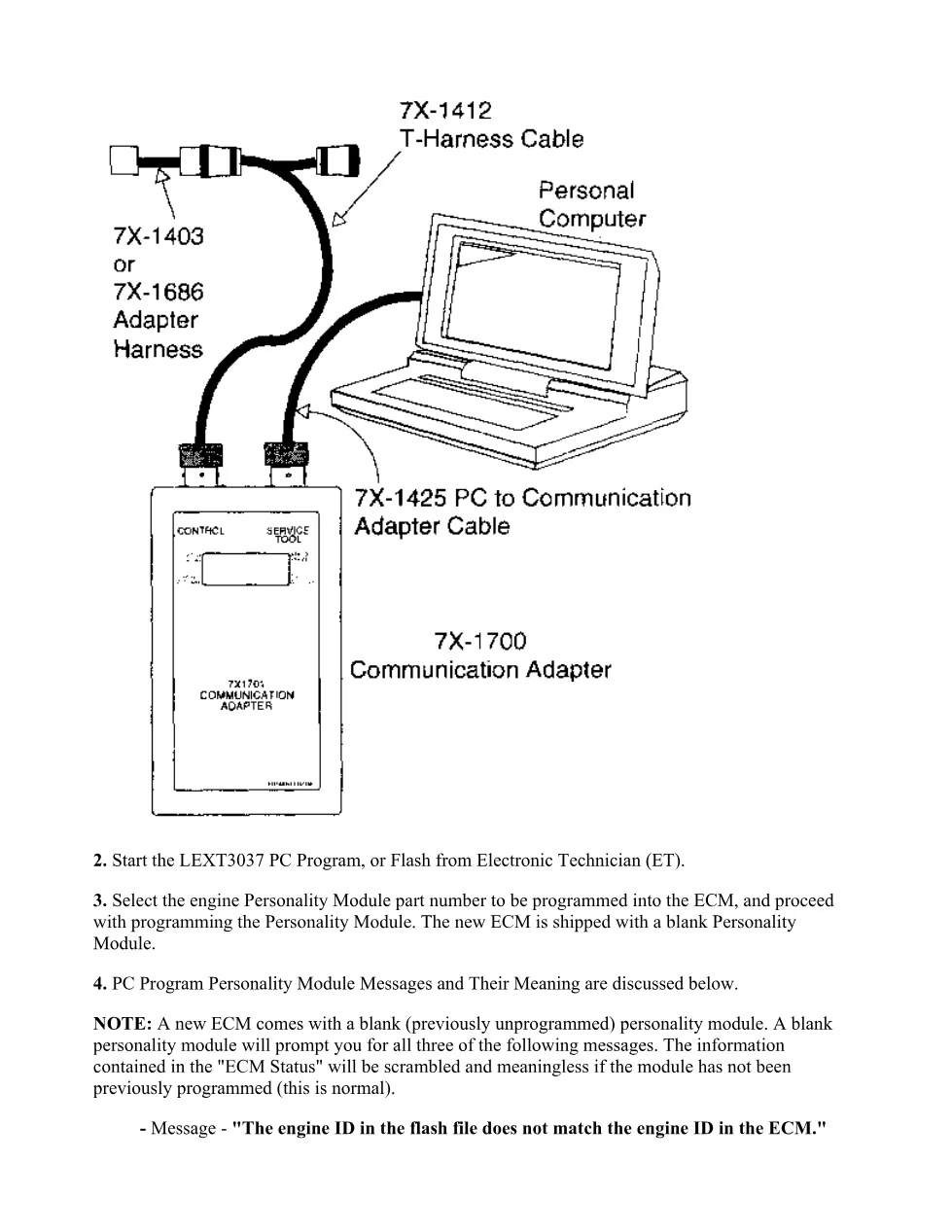

- Connect the hardware as shown in the manual
- Start the LEXT3037 PC program, or use Flash from Electronic Technician (ET)
- Select the engine personality module part number to program into the ECM
- Proceed with programming; a new ECM ships with a blank personality module

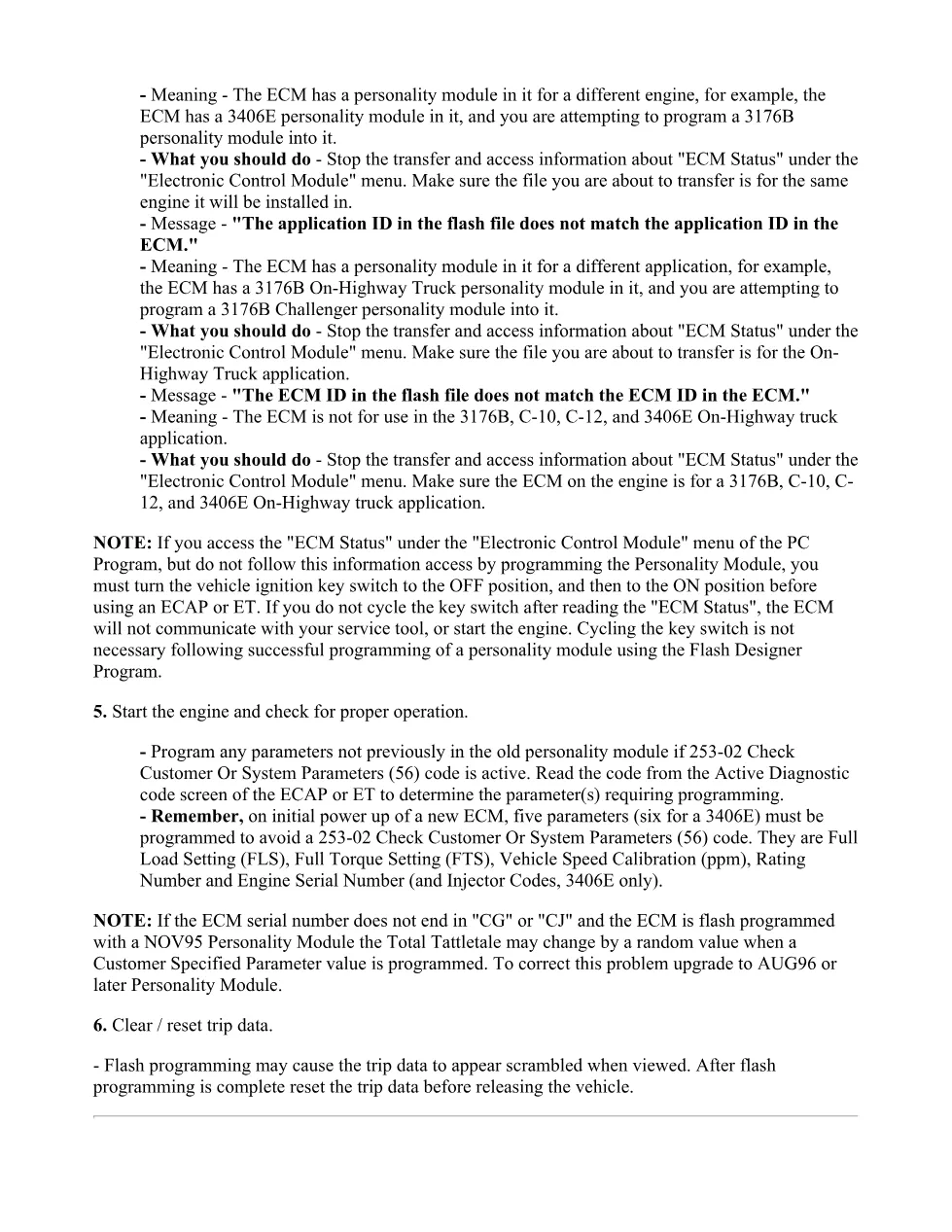

Reading the prompts
The section also lists the PC-program messages and what each one means, so a technician can interpret the prompts during the flash rather than guessing at an error. Used with the factory-password and customer-parameter worksheets, programming personality module work becomes a controlled, repeatable step instead of a risky one. Because the outcome matches a physical chip swap, a workshop can update or rerate an engine in the bay without waiting for a new chip to arrive, provided the correct factory passwords are in hand. This procedure belongs to the SENR5582-06 set, dated 01/07/1998 and updated 08/09/2002. Caterpillar information is at the Caterpillar website. Related sections are in the DiagTechPro manuals library.
