This Cummins N14 injector circuit guide covers Fault Code 332 (PID S004, SPN 737, FMI 5, SRT 00-605) on the CELECT Plus platform. The 7-page yellow-lamp document describes how the ECM drives the injector solenoid valves through the N14 actuator harness.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | M11 / N14 CELECT Plus (1995-98) |
| System / group | Injector Circuit |
| Fault code | 332 (N14) |
| PID / SPN | S004 / SPN 737 |
| FMI | 5 |
| Diagnostic lamp | Yellow |
| SRT | 00-605 |
| Pages | 7 |
| File size | 0.3 MB |
| Format | |
| Language | English |
| Source | Cummins fault code reference (TruckFaultCodes.com, 2017) |
Document table of contents
- Circuit description
- Component location
- Shop talk diagnostic notes

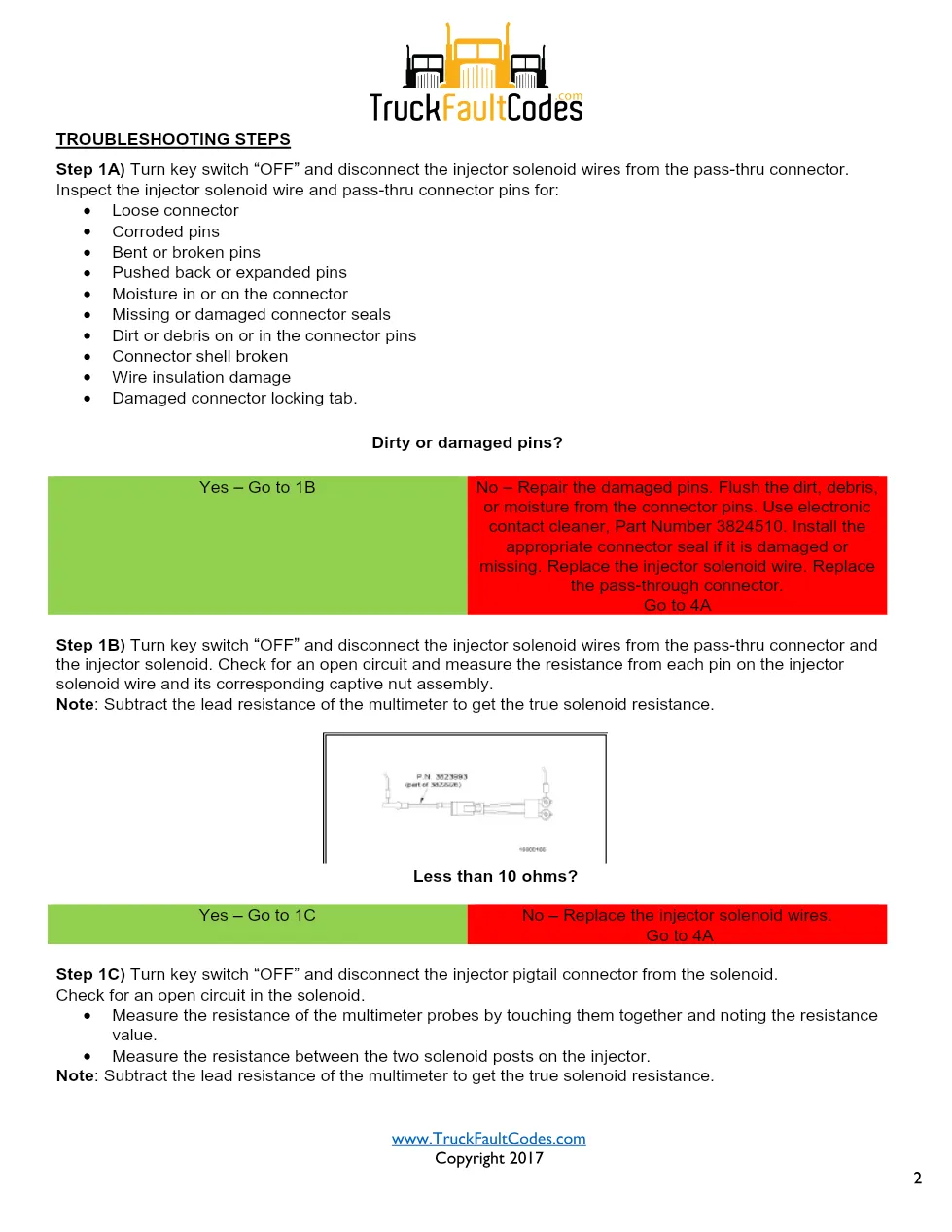

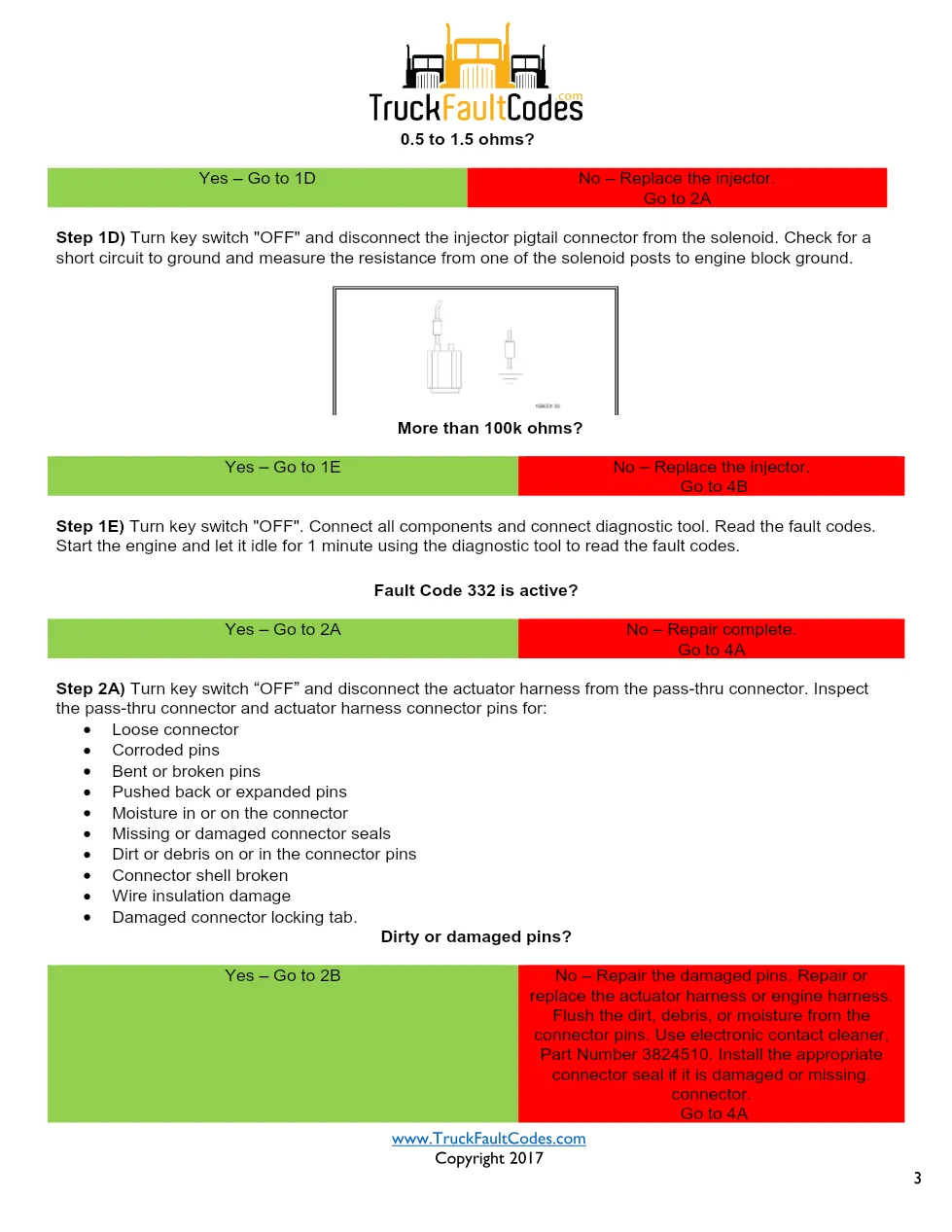

- Step-by-step troubleshooting
- Fault verification and clearing codes
Cummins N14 injector circuit checks

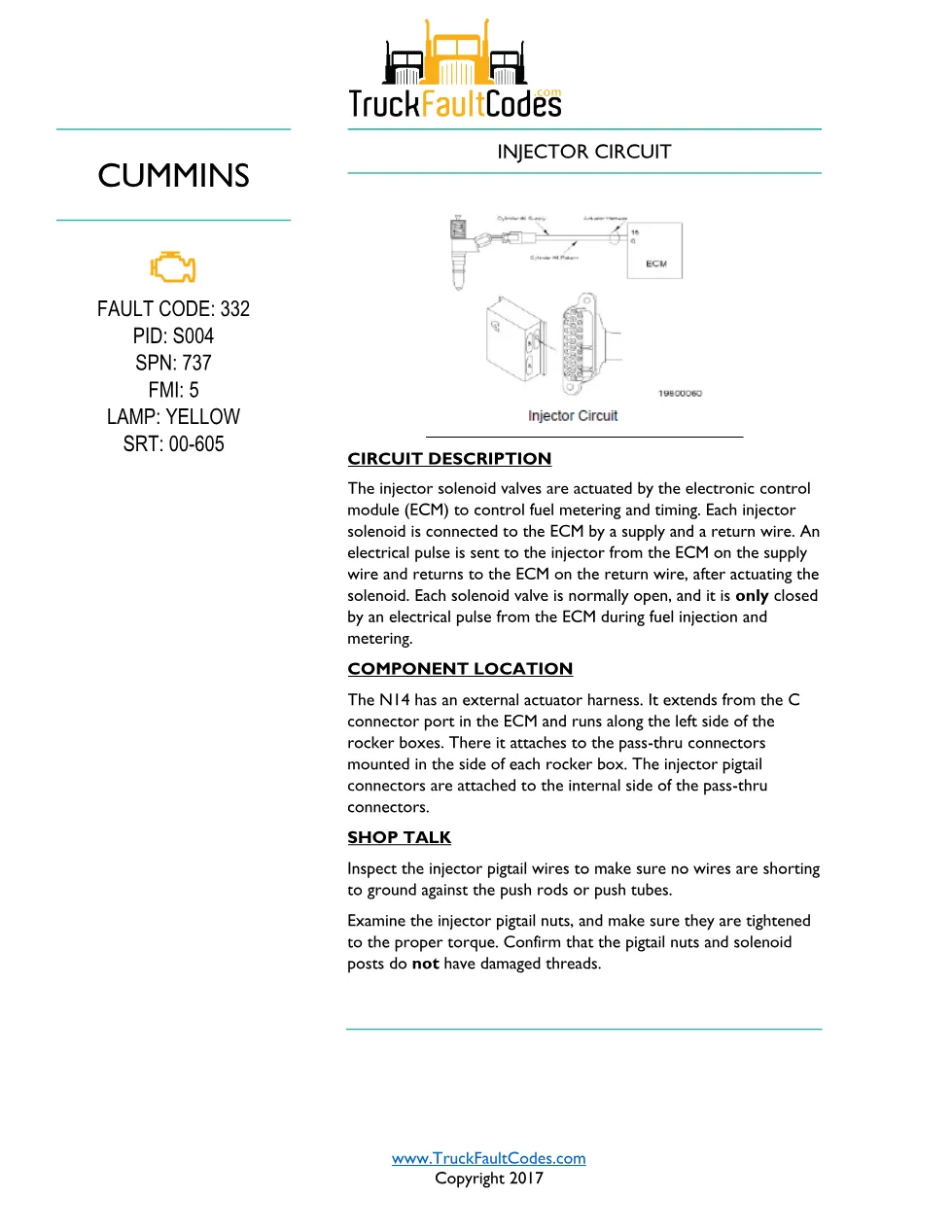

The injector solenoid valves are actuated by the ECM to control fuel metering and timing, each connected by a supply and a return wire; the normally open valve closes only on an electrical pulse during injection. On the N14 the actuator harness is external, extending from the C connector port in the ECM along the left side of the rocker boxes to the pass-thru connectors mounted in each rocker box, where the injector pigtail connectors attach on the inside. Shop talk tells the technician to inspect the injector pigtail wires so none short to ground against the push rods or push tubes, and to examine the pigtail nuts and connectors.
Applicable truck models
Coverage is the Cummins N14 CELECT Plus (1995-98) with its external actuator harness. Confirm harness routing and pigtail torque on the official Cummins website.
Who needs this N14 injector circuit manual
Technicians diagnosing misfire, injector solenoid, or pigtail short-to-ground faults on N14 CELECT Plus engines use this external-harness guidance.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
