This Cummins M11 injector circuit guide covers Fault Code 332 (PID S004, SPN 737, FMI 5, SRT 00-605) on the CELECT Plus platform. The 7-page yellow-lamp document describes how the ECM drives the injector solenoid valves through the M11 two-piece actuator harness.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | M11 CELECT Plus (1995-98) |
| System / group | Injector Circuit |
| Fault code | 332 (M11) |
| PID / SPN | S004 / SPN 737 |
| FMI | 5 |
| Diagnostic lamp | Yellow |
| SRT | 00-605 |
| Pages | 7 |
| File size | 0.3 MB |
| Format | |
| Language | English |
| Source | Cummins fault code reference (TruckFaultCodes.com, 2017) |
Document table of contents

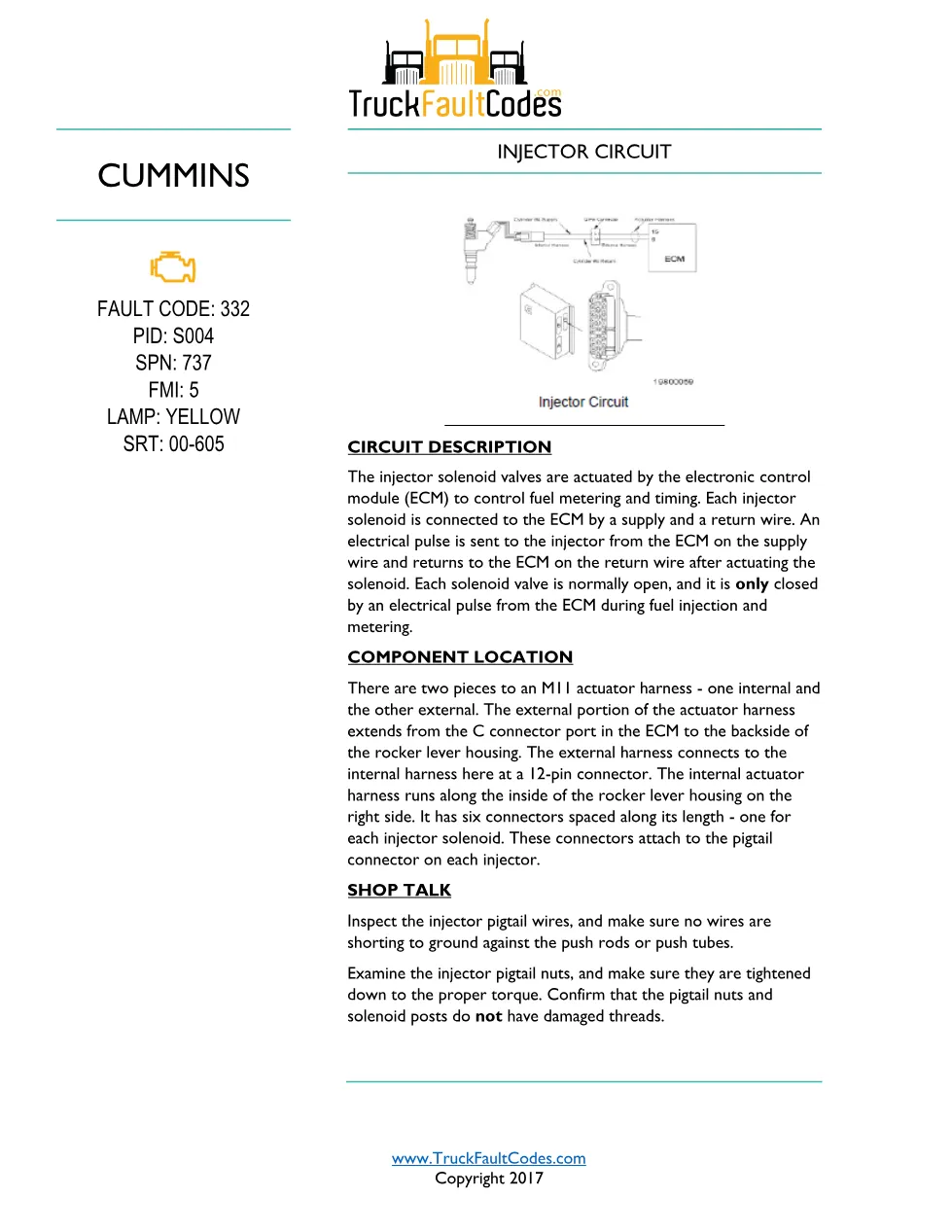

- Circuit description
- Component location
- Shop talk diagnostic notes

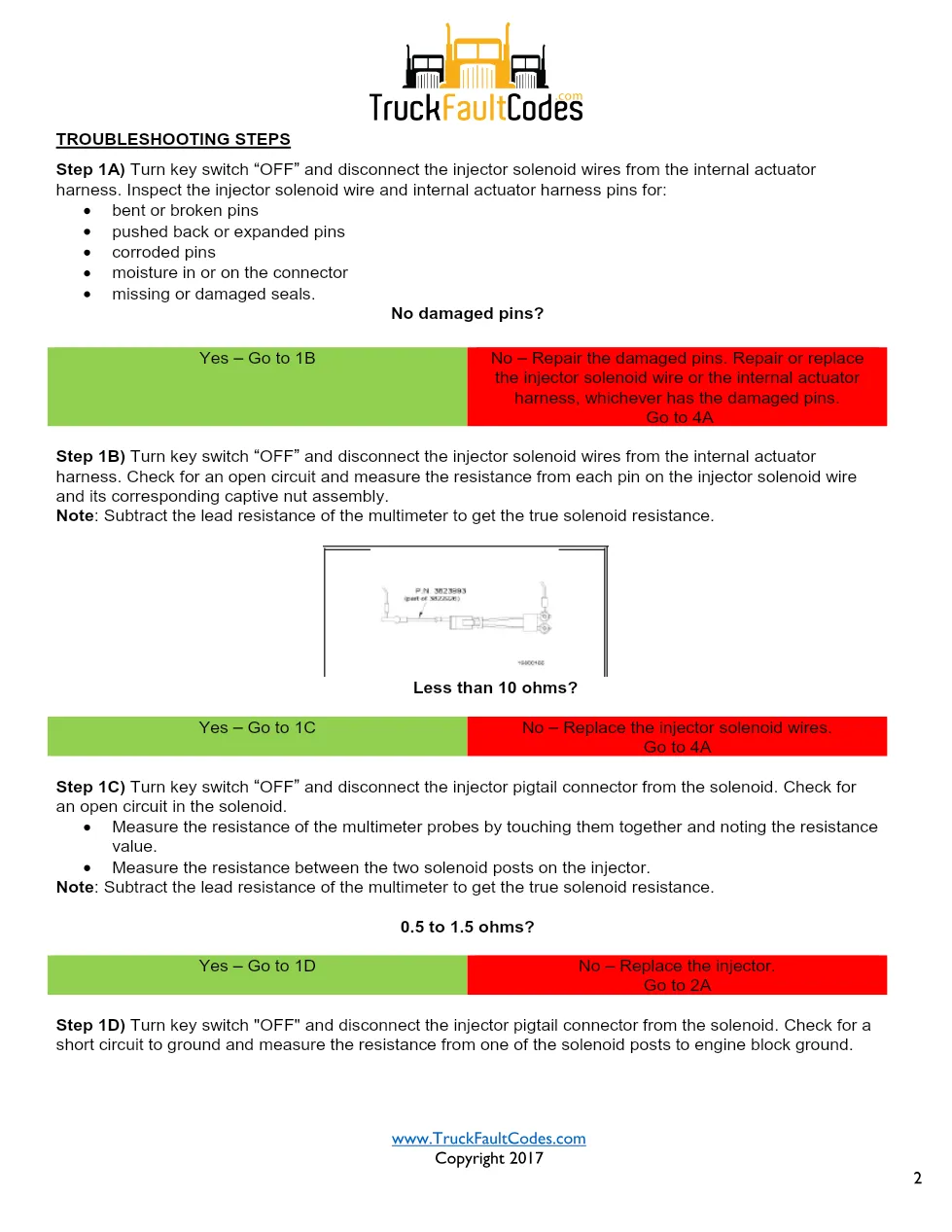

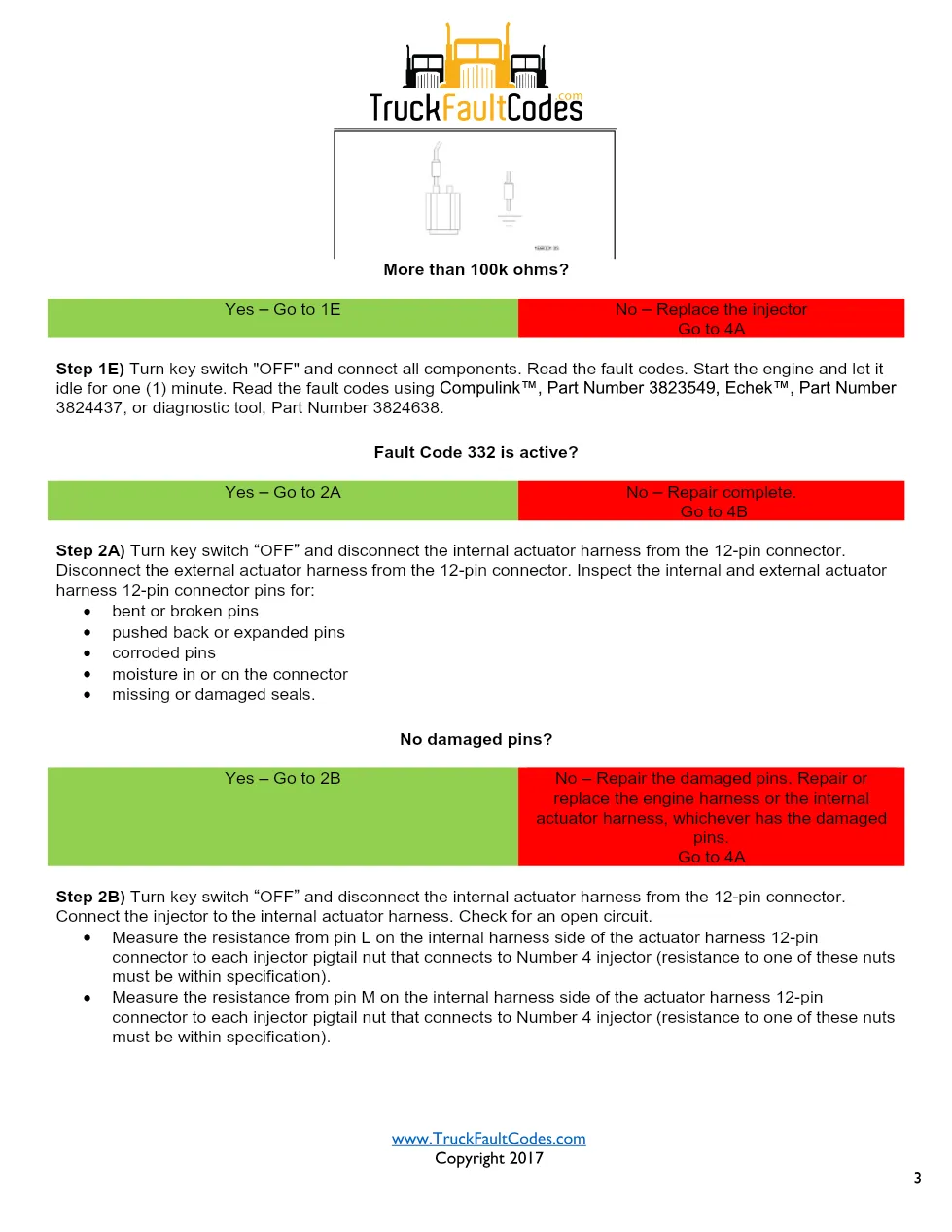

- Step-by-step troubleshooting
- Fault verification and clearing codes
Cummins M11 injector circuit checks
The injector solenoid valves are actuated by the ECM to control fuel metering and timing, each connected by a supply and a return wire; the normally open valve closes only on an electrical pulse during injection. On the M11 the actuator harness is in two pieces: the external portion runs from the C connector port in the ECM to the backside of the rocker lever housing, where it meets the internal harness at a 12-pin connector, and the internal harness runs along the inside of the rocker lever housing on the right side with six connectors spaced along its length. Troubleshooting inspects these connectors and the injector pigtail wiring for shorts and damage.
Applicable truck models
Coverage is the Cummins M11 CELECT Plus (1995-98) with its two-piece actuator harness. Confirm the internal harness layout and 12-pin connector on the official Cummins website.
Who needs this M11 injector circuit manual
Technicians diagnosing misfire or injector solenoid faults on M11 CELECT Plus engines, including internal rocker-housing harness issues, use this guidance.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
- Cummins DTCs
- Cummins M11 CELECT Plus (1995-98)
