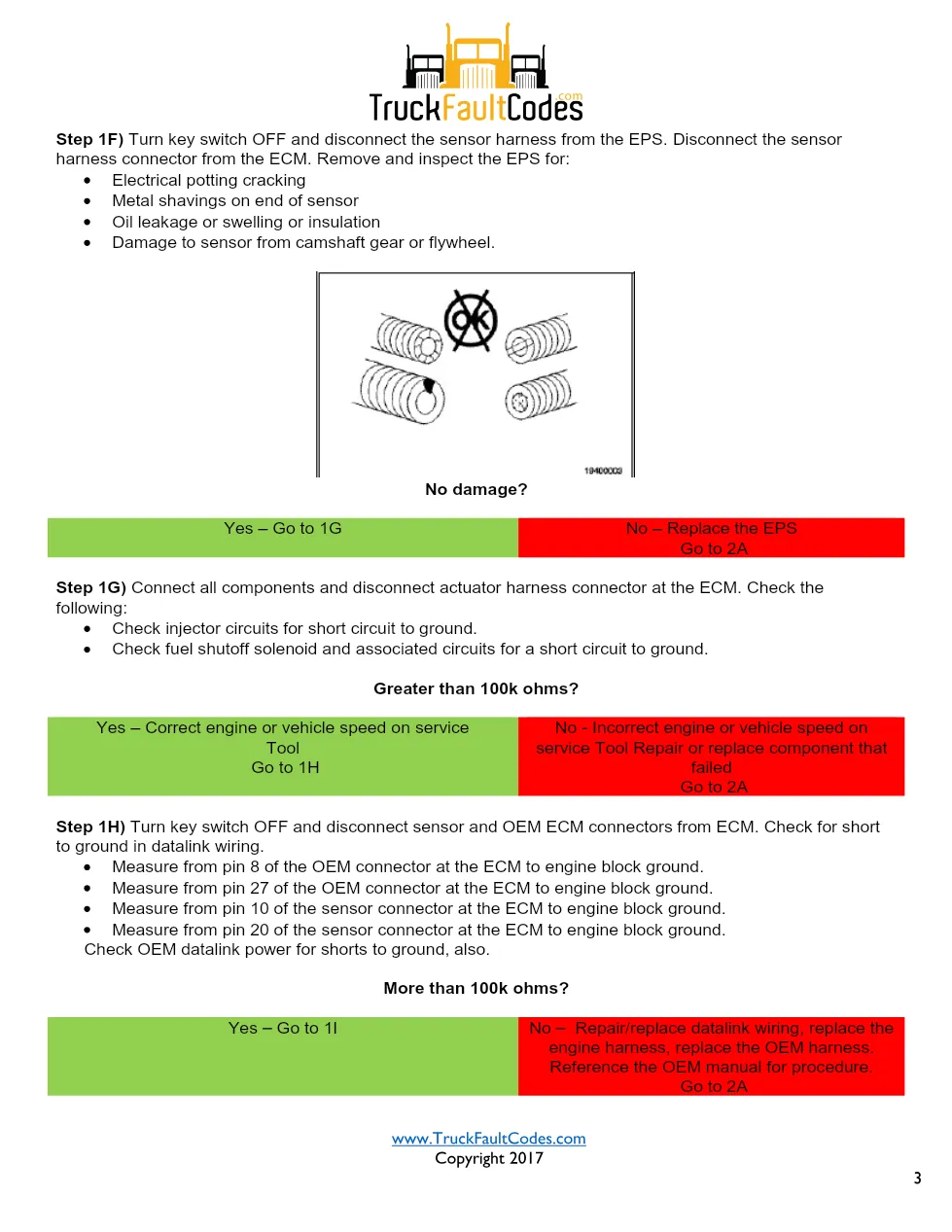

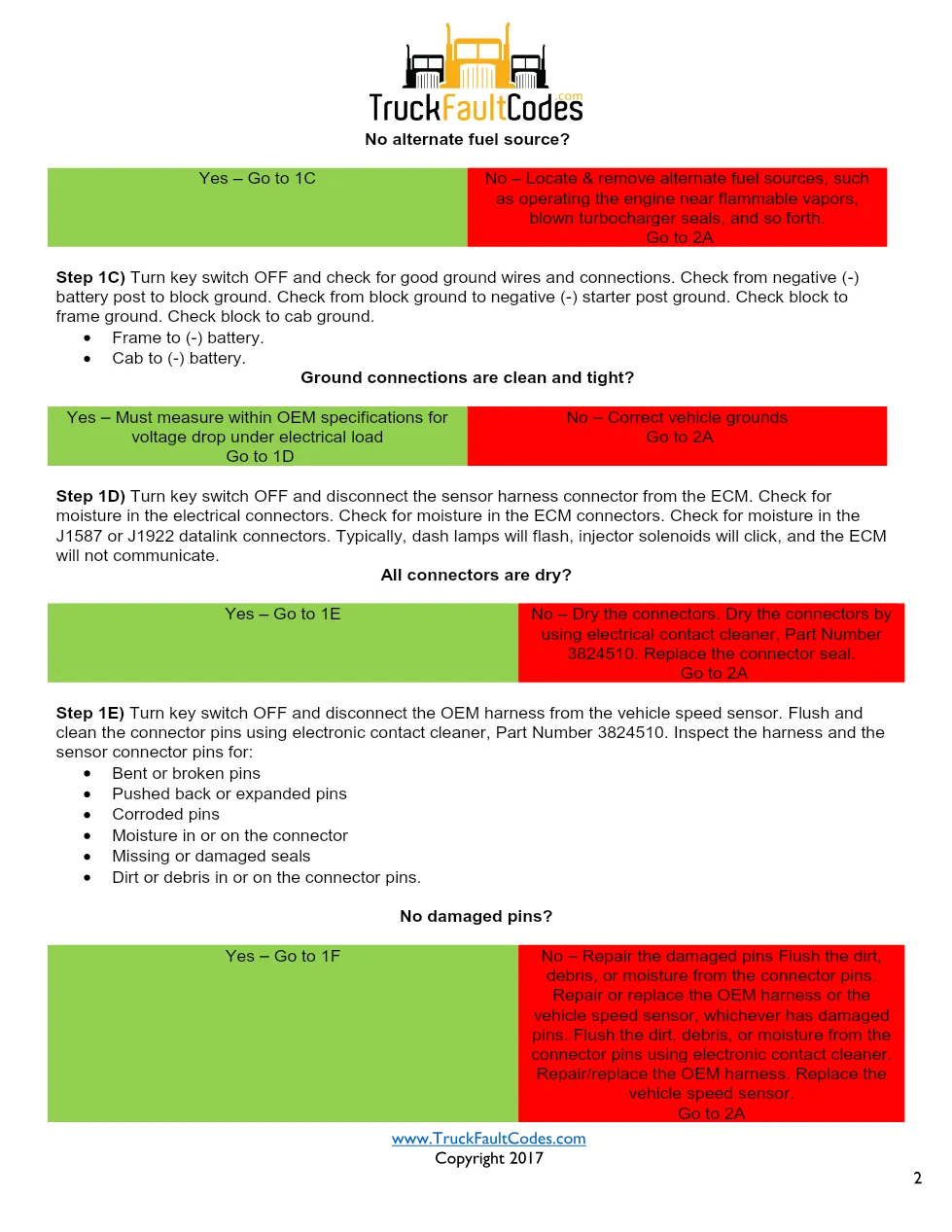

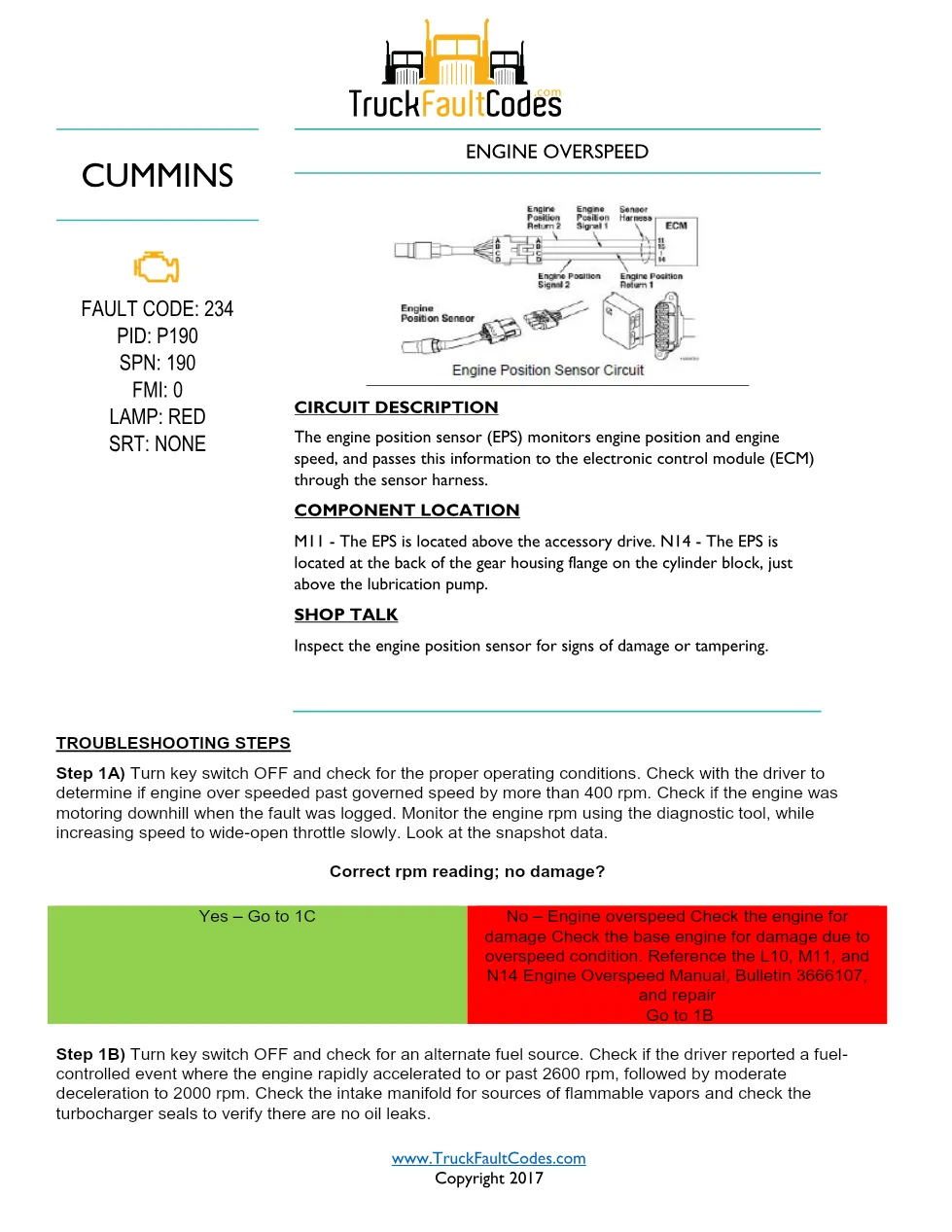

The Cummins M11 code 234 troubleshooting document is a 5-page factory-style fault code guide covering the engine overspeed fault (PID P190, SPN 190, FMI 0) on Cummins CELECT engines. The engine position sensor (EPS) reports engine position and engine speed to the ECM through the sensor harness; on the M11 it sits above the accessory drive, and this code flags an engine overspeed condition. It reproduces the circuit description, component location and the full step-by-step diagnostic procedure a technician follows to confirm the fault and verify the repair. The guide moves through connector inspection, harness continuity and resistance measurements, sensor and ECM checks, and then explains how to disable, re-run and clear the code once the repair has been confirmed on a diagnostic tool.
Cummins M11 code 234 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT (1990-94) |
| System / Group | Engine Overspeed Fault |
| Fault code identifiers | Fault Code 234 · PID P190 · SPN 190 · FMI 0 · Red lamp · SRT None |
| Source publication | TruckFaultCodes.com (Copyright 2017) |
| Year / Revision | 1990-94 platform |
| Pages | 5 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit Description
- Component Location
- Troubleshooting Steps
- Fault Code Verification and Clearing
Applicable truck models
This procedure applies to trucks running Cummins M11 and N14 CELECT (1990-94) with CELECT electronic controls. Technicians should confirm the engine dataplate and ECM calibration first, and cross-check every pin and connector location against the OEM wiring diagram, because connector positions vary with the chassis manufacturer. For engine-level specifications and authorised repair locations, see the Cummins official engine support site.
