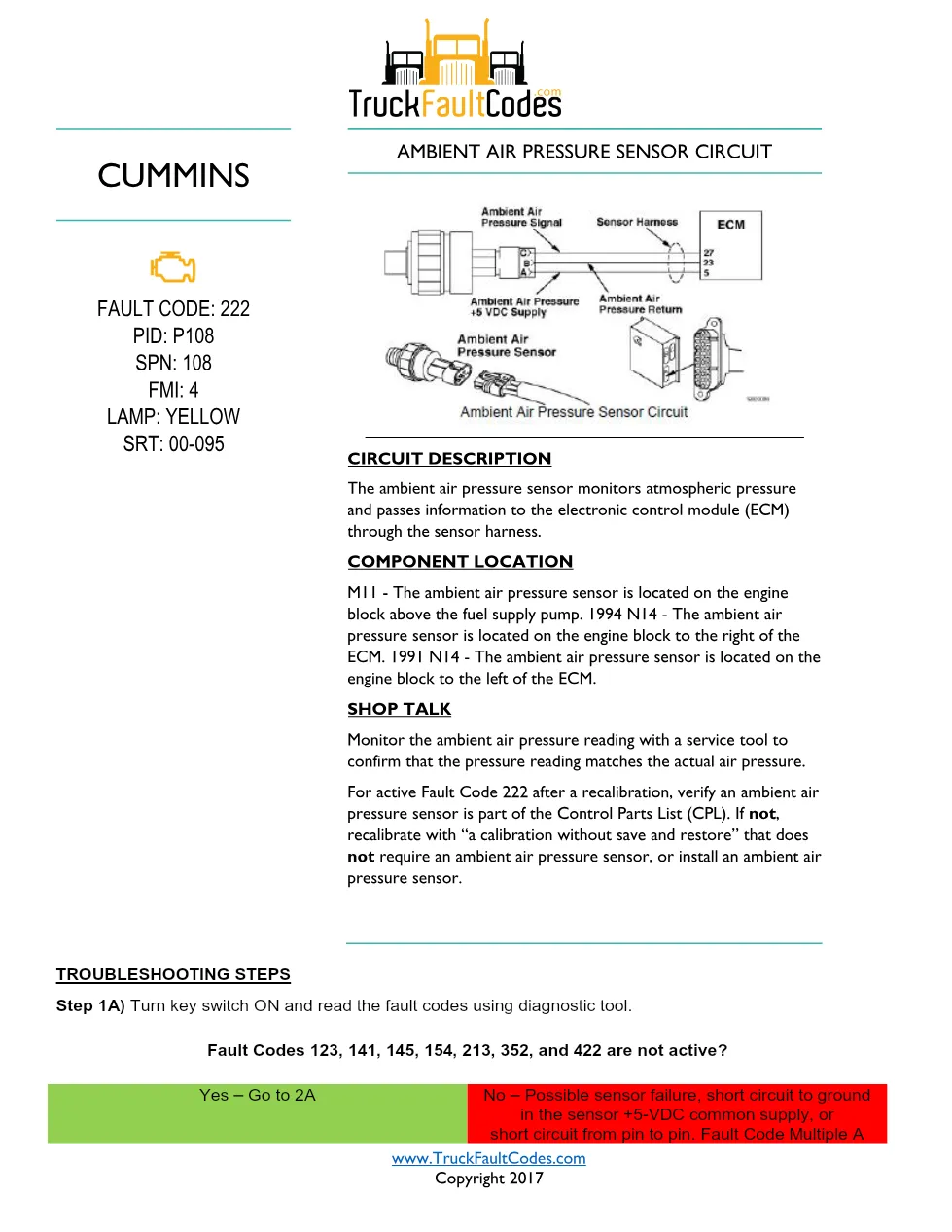

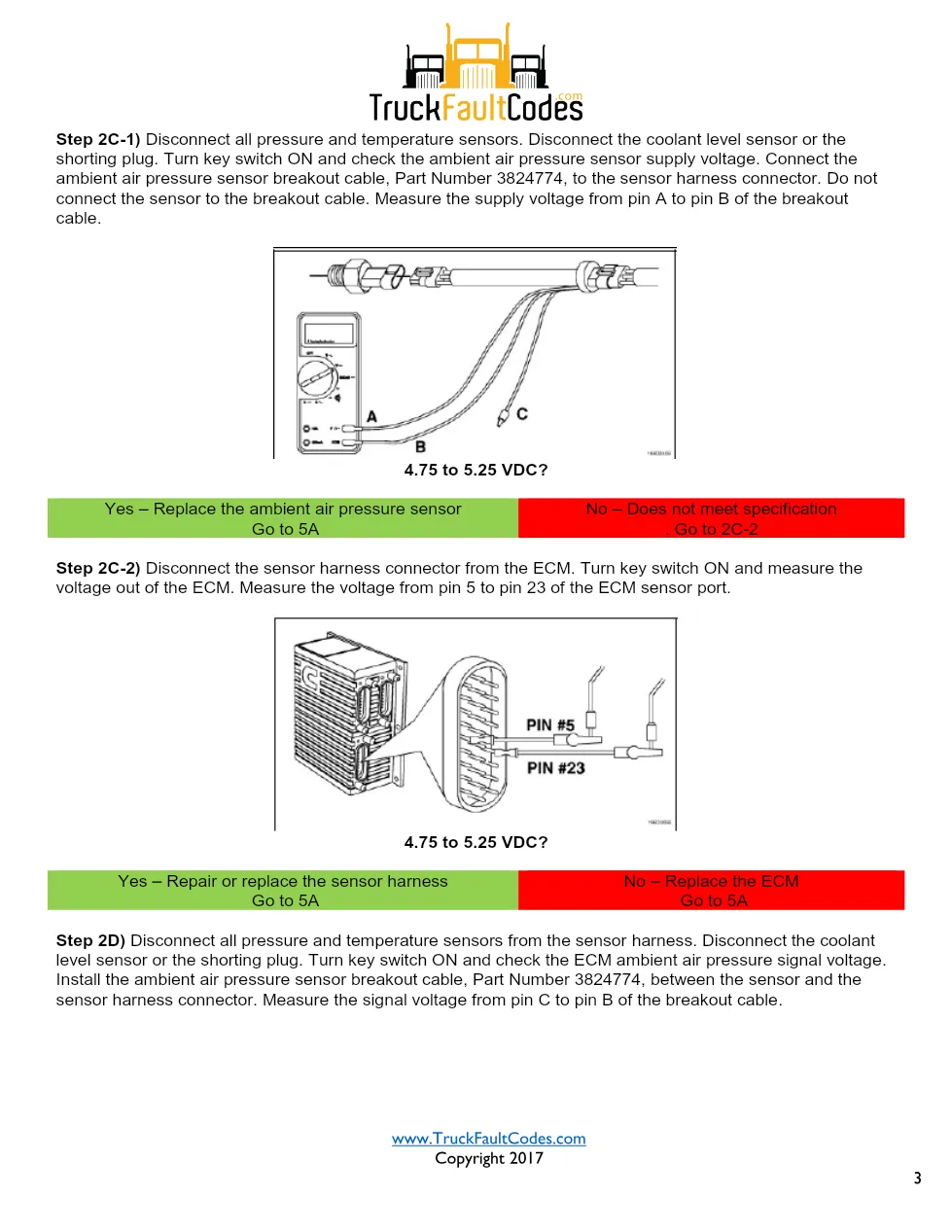

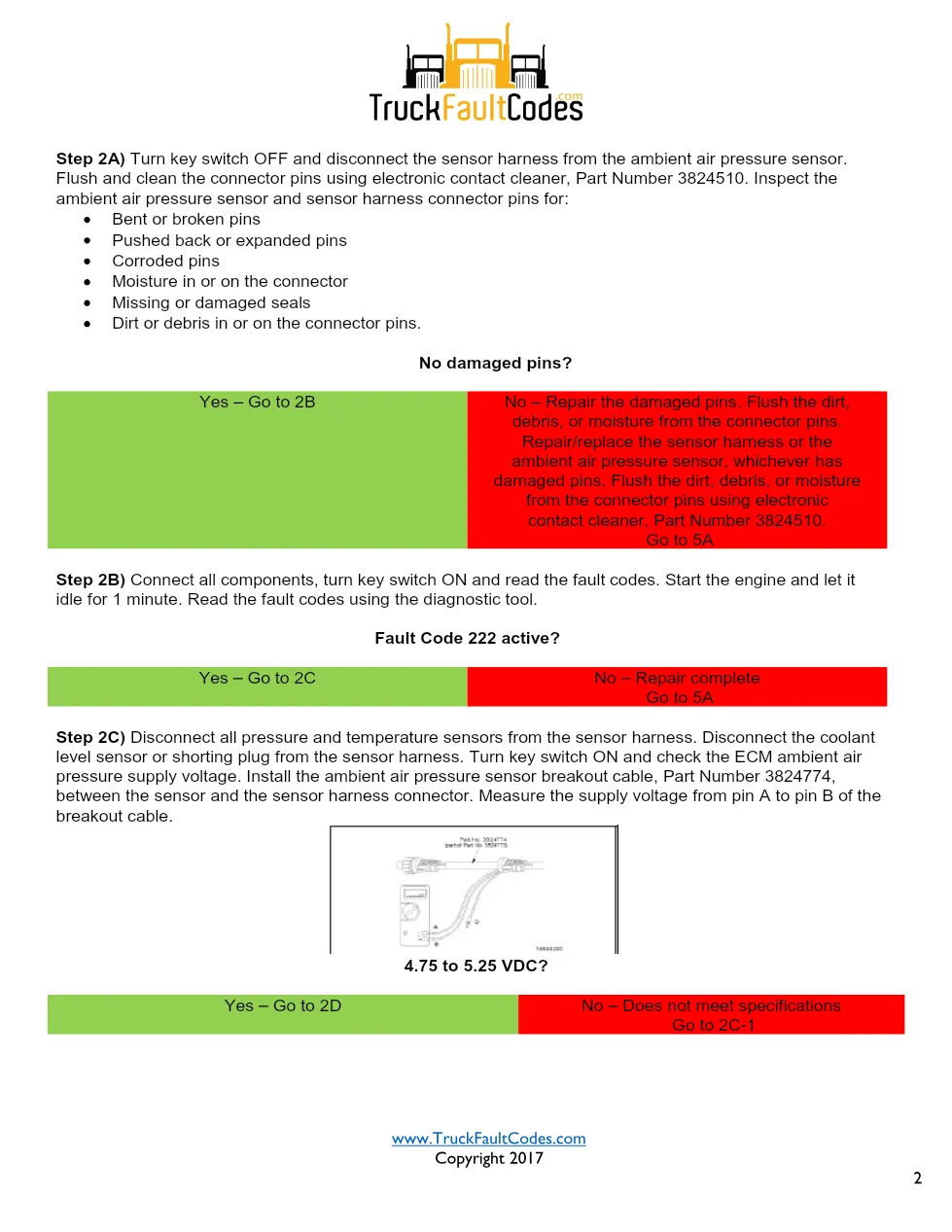

The Cummins M11 code 222 troubleshooting document is a 7-page factory-style fault code guide covering the ambient air pressure sensor circuit (PID P108, SPN 108, FMI 4) on Cummins CELECT engines. The ambient air pressure sensor reports atmospheric pressure to the ECM through the sensor harness; on the M11 it is mounted on the engine, with a similar arrangement on the N14. It reproduces the circuit description, component location and the full step-by-step diagnostic procedure a technician follows to confirm the fault and verify the repair. The guide moves through connector inspection, harness continuity and resistance measurements, sensor and ECM checks, and then explains how to disable, re-run and clear the code once the repair has been confirmed on a diagnostic tool.
Cummins M11 code 222 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT (1990-94) |
| System / Group | Ambient Air Pressure Sensor Circuit |
| Fault code identifiers | Fault Code 222 · PID P108 · SPN 108 · FMI 4 · Yellow lamp · SRT 00-095 |
| Source publication | TruckFaultCodes.com (Copyright 2017) |
| Year / Revision | 1990-94 platform |
| Pages | 7 |
| File size | 0.4 MB |
| Format | |
| Language | English |
