Cummins ISM Code 343 is the official Cummins fault code troubleshooting PDF that documents the electronic control module (ecm) on ISM CM570 (1999-02) engines. This 15-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | Electronic Control Module (Ecm) (DTCs) |
| Fault code | Code 343 · PID S254 · SPN 629 · FMI 12/12 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 15 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes
- Troubleshooting steps
- Fault code verification and clearing
Cummins ISM Code 343 troubleshooting summary

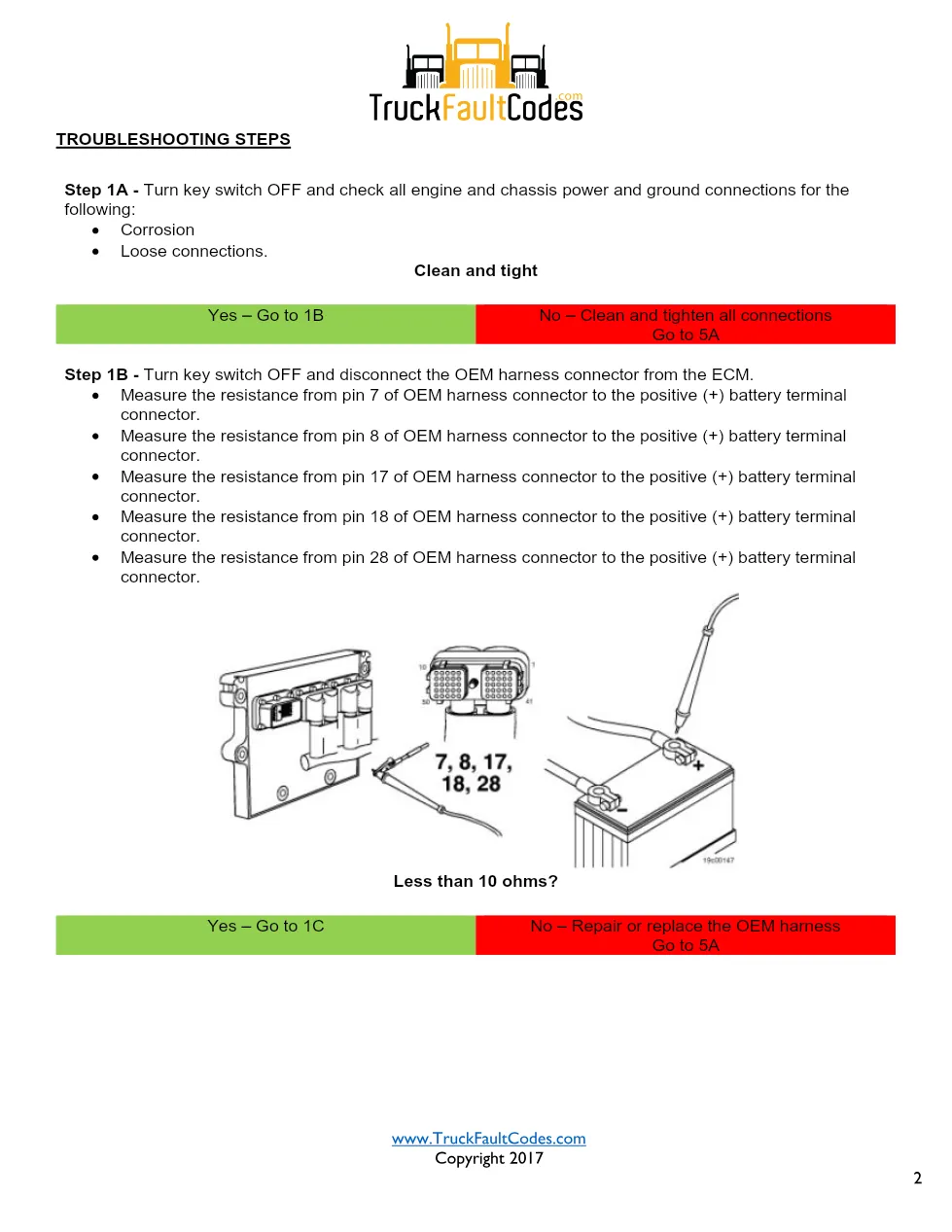

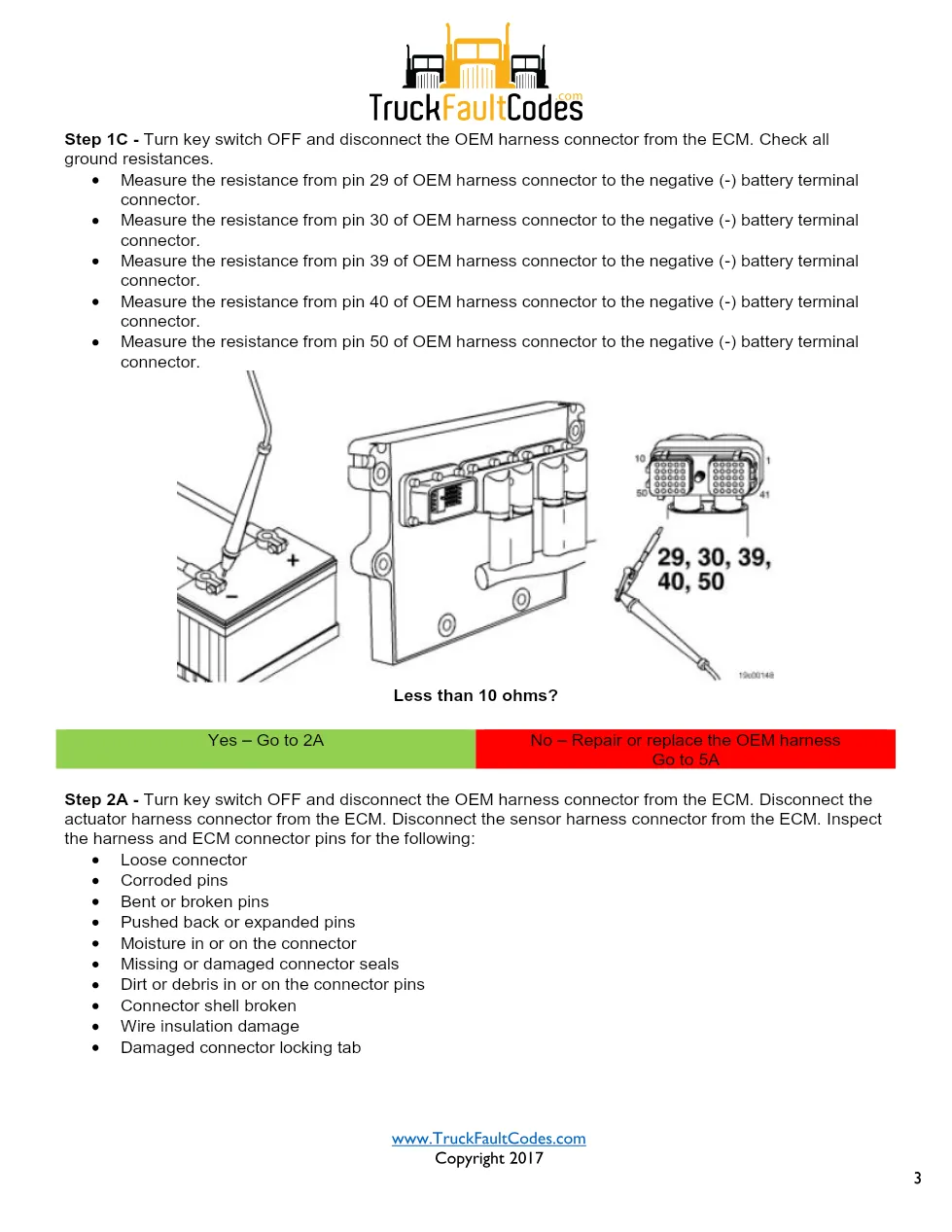

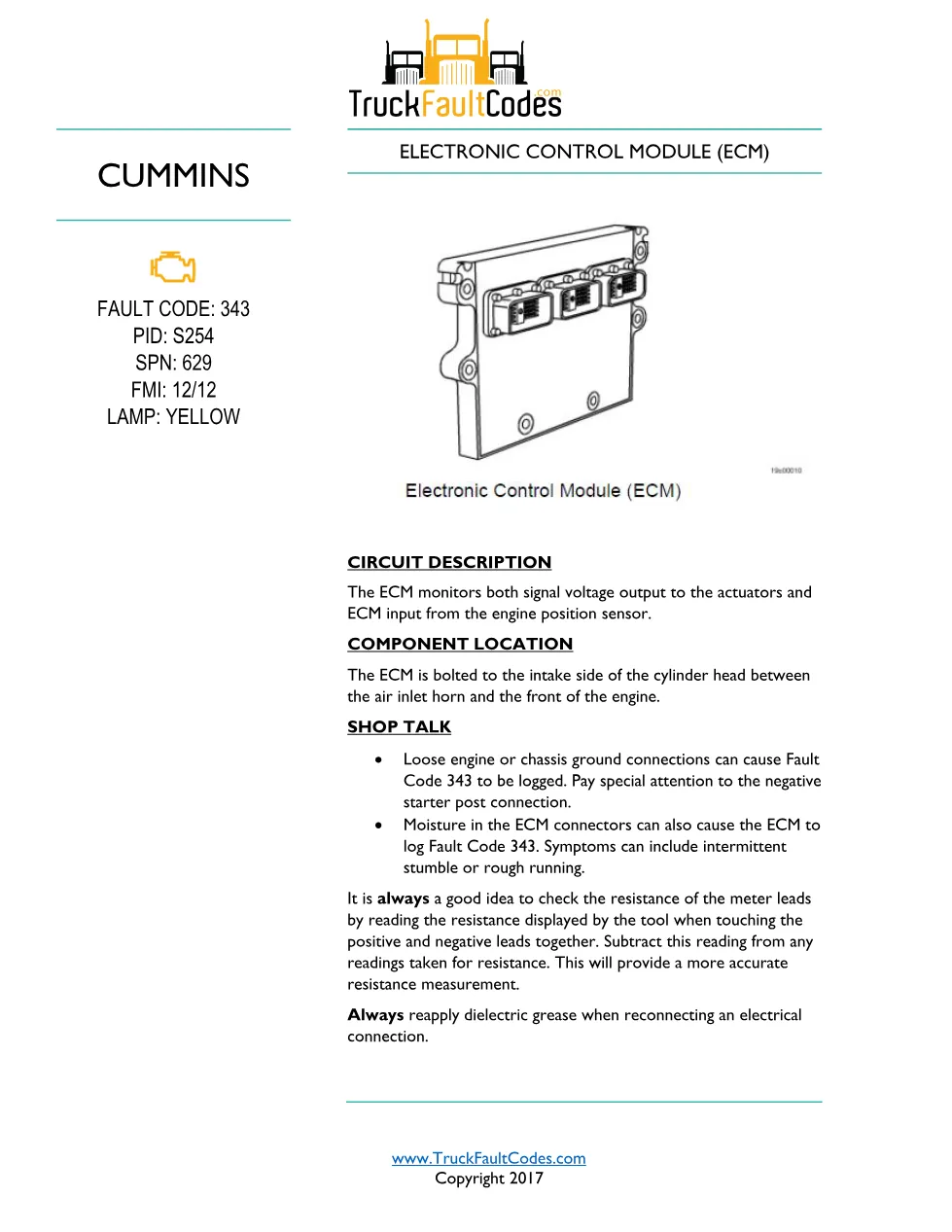

The ECM monitors both signal voltage output to the actuators and ECM input from the engine position sensor. The ECM is bolted to the intake side of the cylinder head between the air inlet horn and the front of the engine. The manual walks through 19 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
Possible causes listed in the Shop Talk section include:
- Loose engine or chassis ground connections can cause Fault
- Moisture in the ECM connectors can also cause the ECM to
Referenced Cummins service tools and part numbers: 3824510.
Applicable truck models
This procedure applies to Cummins ISM CM570, ISX CM570 and Signature CM570 engines built in the 1999-02 range, as used in Class 8 highway trucks. Always confirm the exact engine dataplate before servicing. Full engine specifications and dealer support are available on the Cummins official website.
Who needs this Cummins ISM Code 343 manual
Heavy-duty diesel technicians, fleet service managers and independent workshop owners diagnosing a Code 343 on the electronic control module (ecm) rely on this document to follow the manufacturer procedure instead of guessing at parts. Because Code 343 shares its troubleshooting logic with the ISX CM570 and Signature CM570 platforms, a single PDF supports several Cummins engine families in the same workshop.
