Cummins ISM Code 339 is the official Cummins fault code troubleshooting PDF that documents the idle shutdown vehicle accessory/ignition bus relay circuit on ISM CM570 (1999-02) engines. This 4-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | Idle Shutdown Vehicle Accessory/Ignition Bus Relay Circuit (DTCs) |
| Fault code | Code 339 · PID S087 · SPN 1267 · FMI 4/4 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 4 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes
- Troubleshooting steps
- Fault code verification and clearing
Cummins ISM Code 339 troubleshooting summary

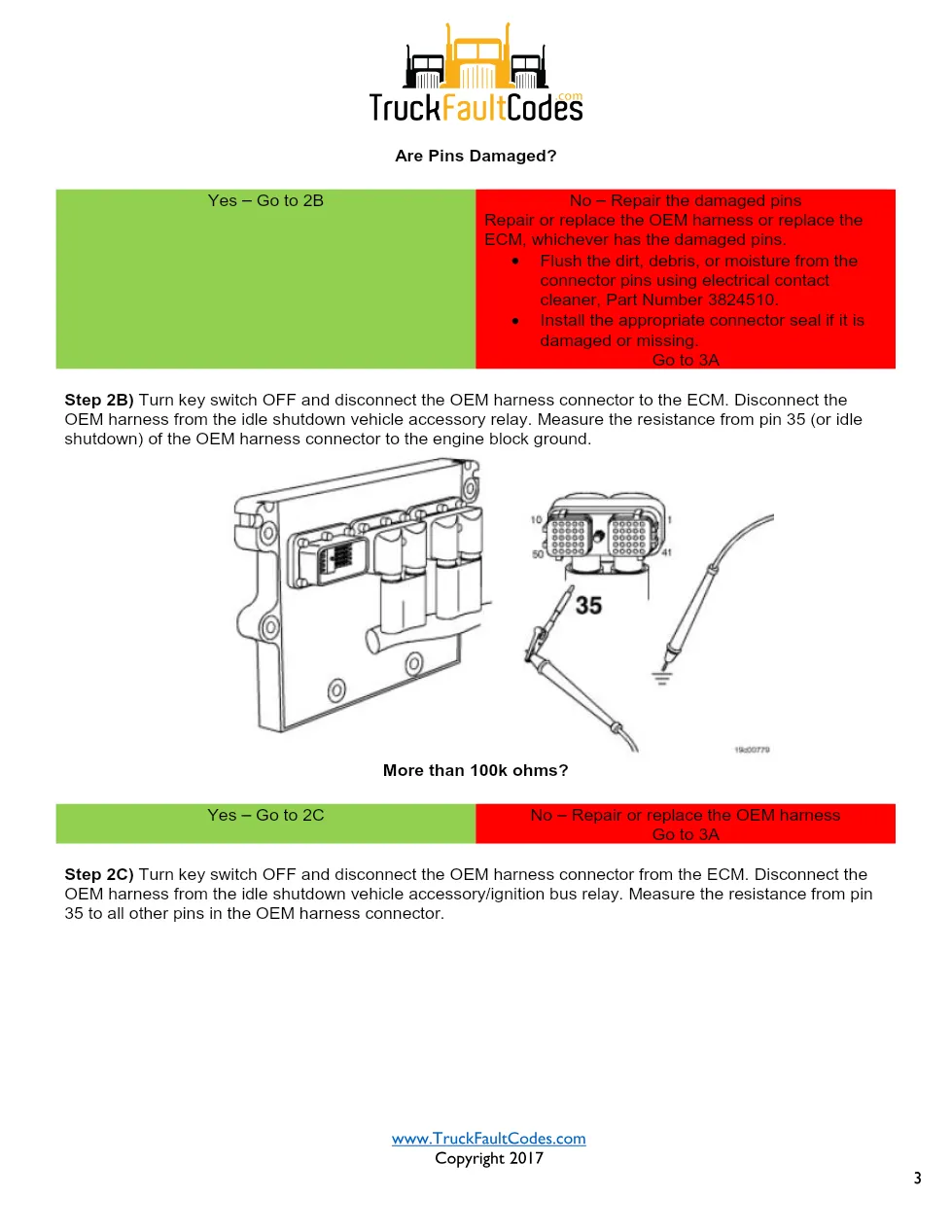

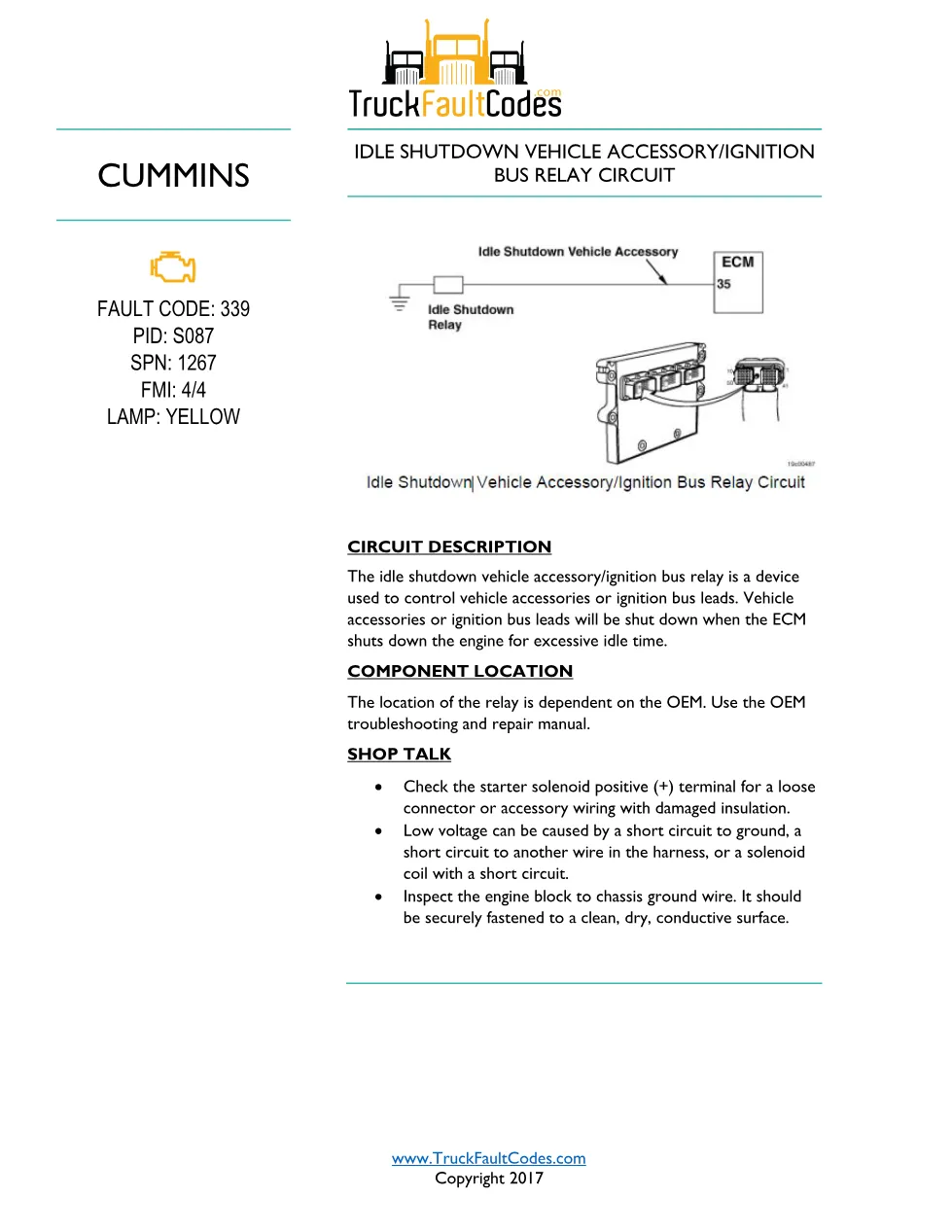

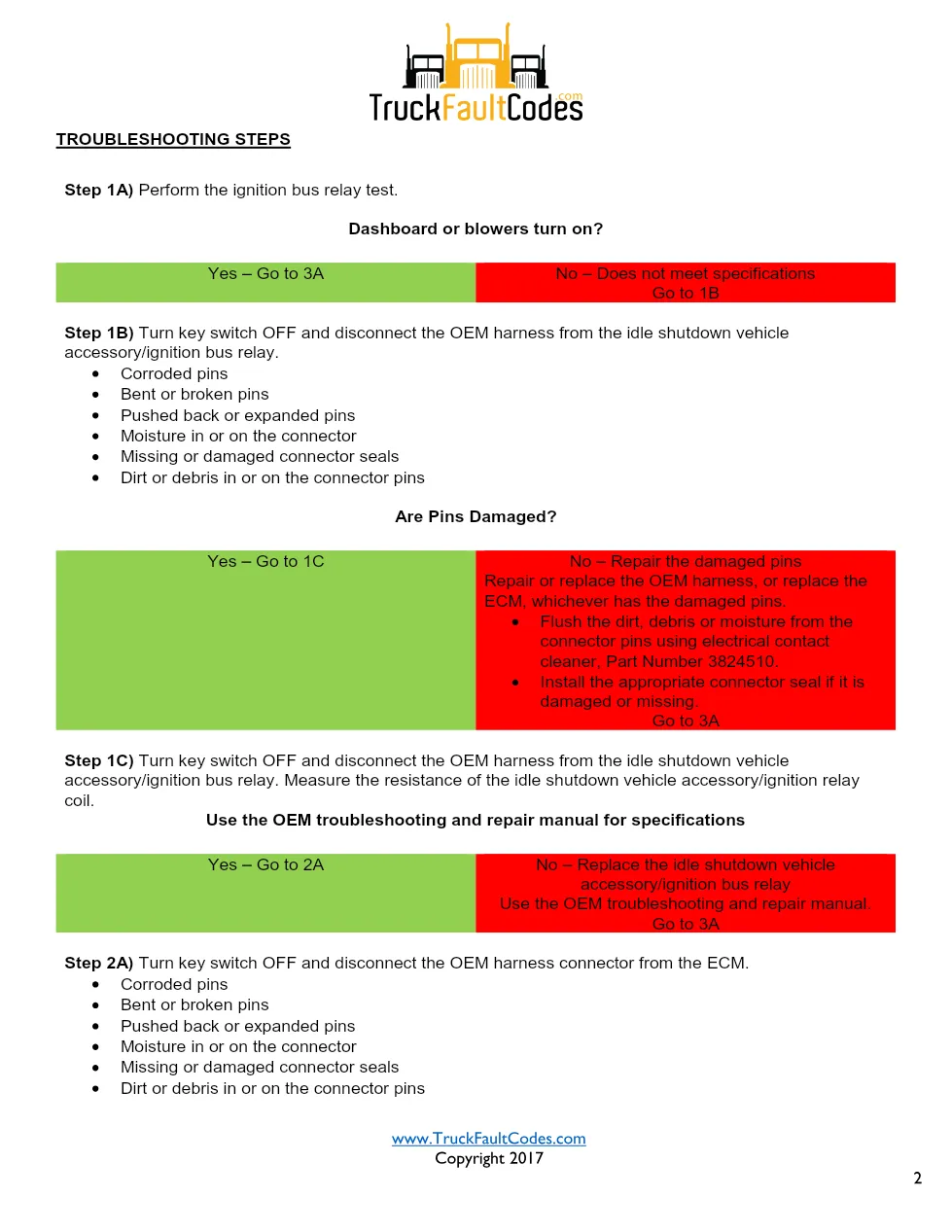

The idle shutdown vehicle accessory/ignition bus relay is a device used to control vehicle accessories or ignition bus leads. Vehicle accessories or ignition bus leads will be shut down when the ECM shuts down the engine for excessive idle time. The location of the relay is dependent on the OEM. The manual walks through 8 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
Possible causes listed in the Shop Talk section include:
- Check the starter solenoid positive (+) terminal for a loose
- Low voltage can be caused by a short circuit to ground, a
- Inspect the engine block to chassis ground wire. It should
Referenced Cummins service tools and part numbers: 3824510.
