Cummins ISM Code 286 is the official Cummins fault code troubleshooting PDF that documents the j1939 datalink multiplexing on ISM CM570 (1999-02) engines. This 3-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | J1939 Datalink Multiplexing (DTCs) |
| Fault code | Code 286 · PID S231 · SPN 639 · FMI 13/13 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 3 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes
- Troubleshooting steps
- Fault code verification and clearing
Cummins ISM Code 286 troubleshooting summary

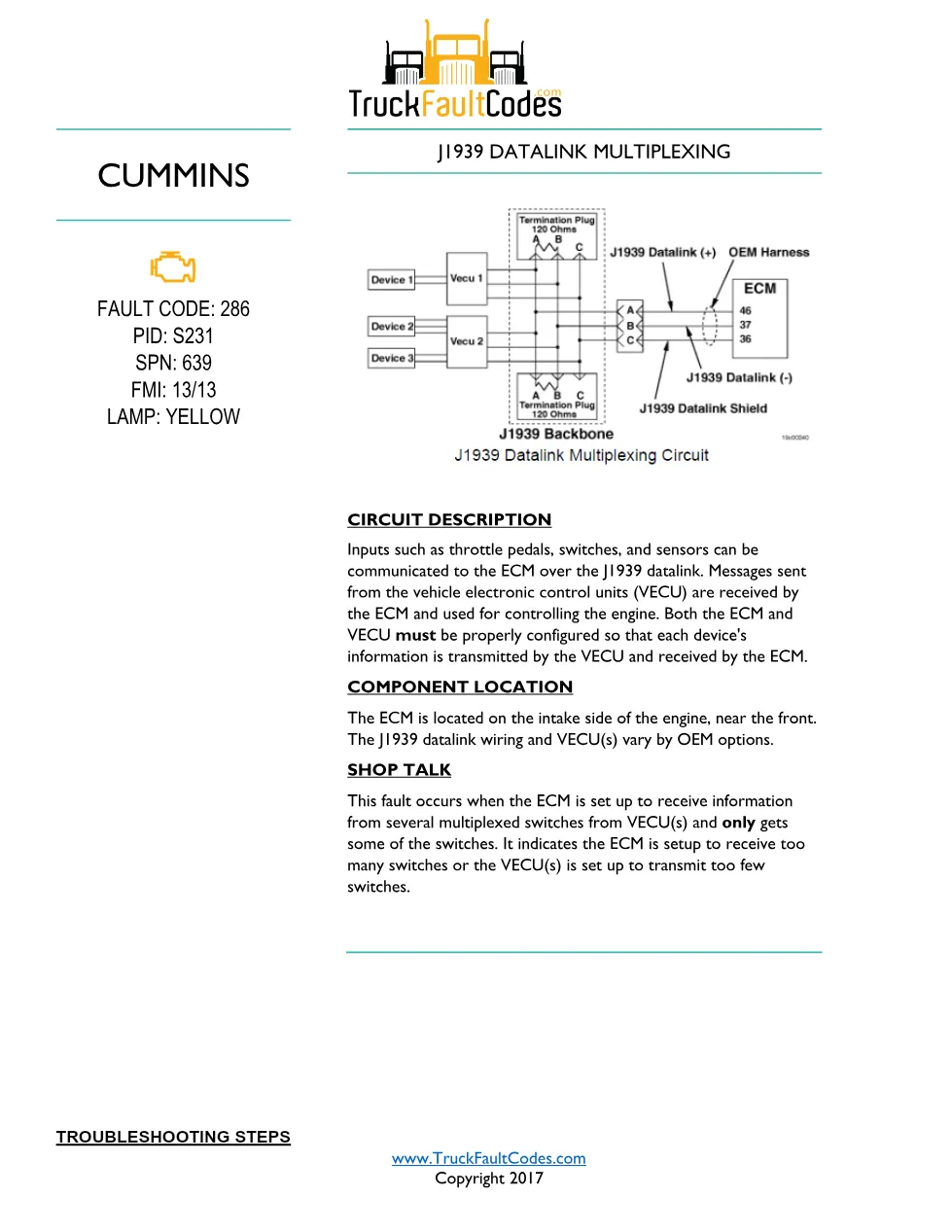

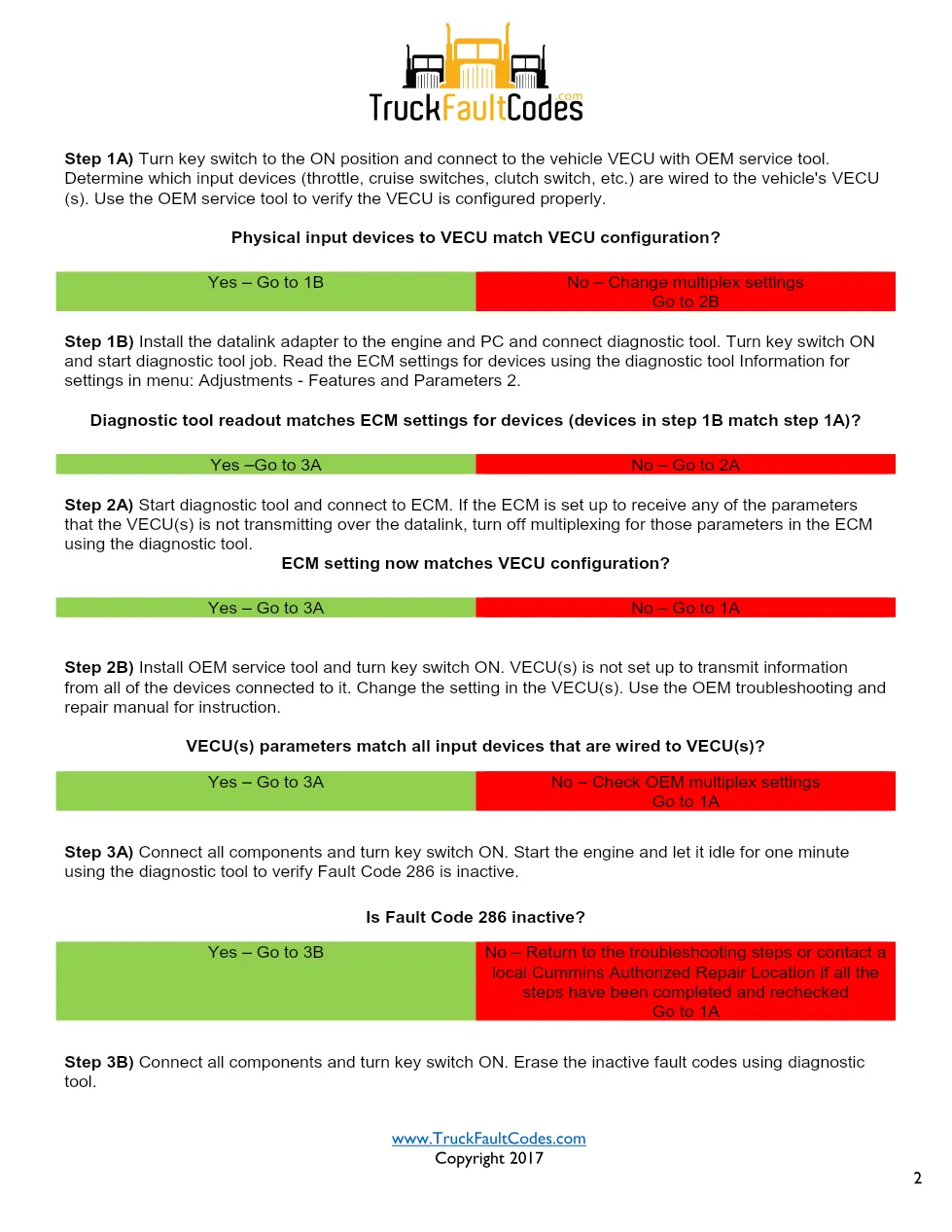

Inputs such as throttle pedals, switches, and sensors can be communicated to the ECM over the J1939 datalink. Messages sent from the vehicle electronic control units (VECU) are received by the ECM and used for controlling the engine. The ECM is located on the intake side of the engine, near the front. The manual walks through 6 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
This fault occurs when the ECM is set up to receive information
from several multiplexed switches from VECU(s) and only gets
some of the switches. It indicates the ECM is setup to receive too
many switches or the VECU(s) is set up to transmit too few
switches.
Applicable truck models
This procedure applies to Cummins ISM CM570, ISX CM570 and Signature CM570 engines built in the 1999-02 range, as used in Class 8 highway trucks. Always confirm the exact engine dataplate before servicing. Full engine specifications and dealer support are available on the Cummins official website.
Who needs this Cummins ISM Code 286 manual
Heavy-duty diesel technicians, fleet service managers and independent workshop owners diagnosing a Code 286 on the j1939 datalink multiplexing rely on this document to follow the manufacturer procedure instead of guessing at parts. Because Code 286 shares its troubleshooting logic with the ISX CM570 and Signature CM570 platforms, a single PDF supports several Cummins engine families in the same workshop.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
