Cummins ISM Code 284 is the official Cummins fault code troubleshooting PDF that documents the sensor supply voltage on ISM CM570 (1999-02) engines. This 4-page reference from the Cummins service literature explains the circuit, the likely causes behind the yellow warning lamp, and the step-by-step checks a technician follows to confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570 and Signature CM570 (1999-02) |
| System / Group | Sensor Supply Voltage (DTCs) |
| Fault code | Code 284 · PID P221 · SPN 1043 · FMI 4/4 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 4 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk – possible causes
- Troubleshooting steps
- Fault code verification and clearing
Cummins ISM Code 284 troubleshooting summary

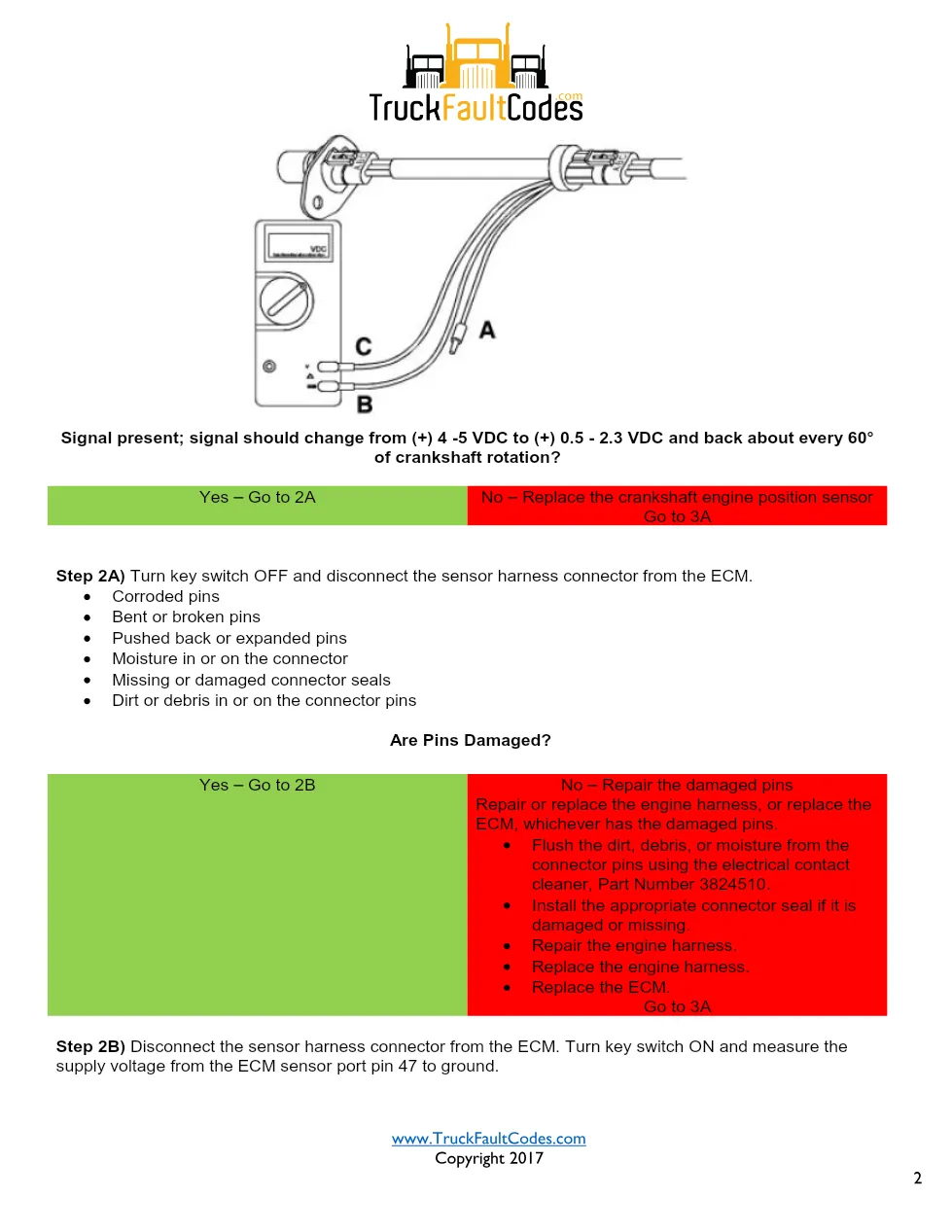

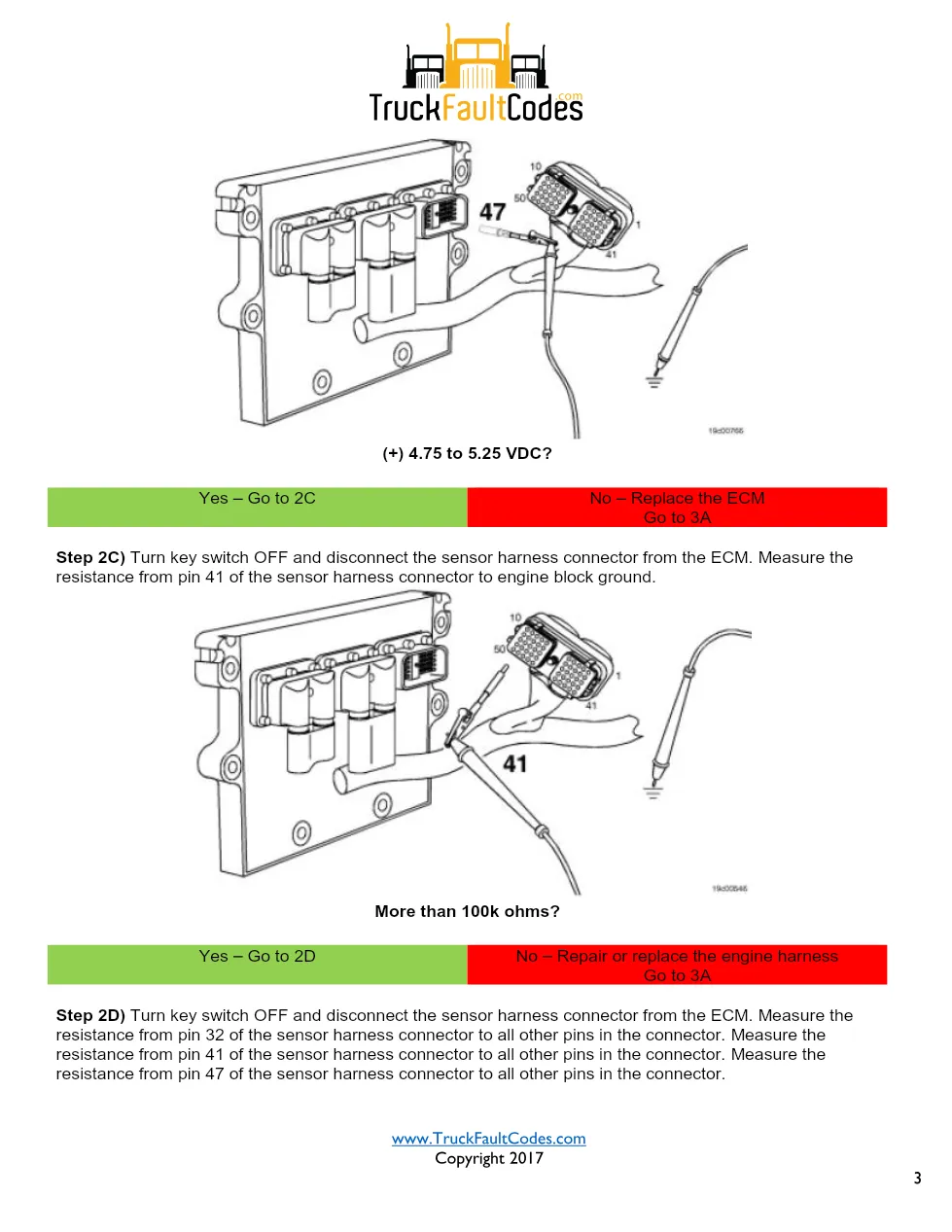

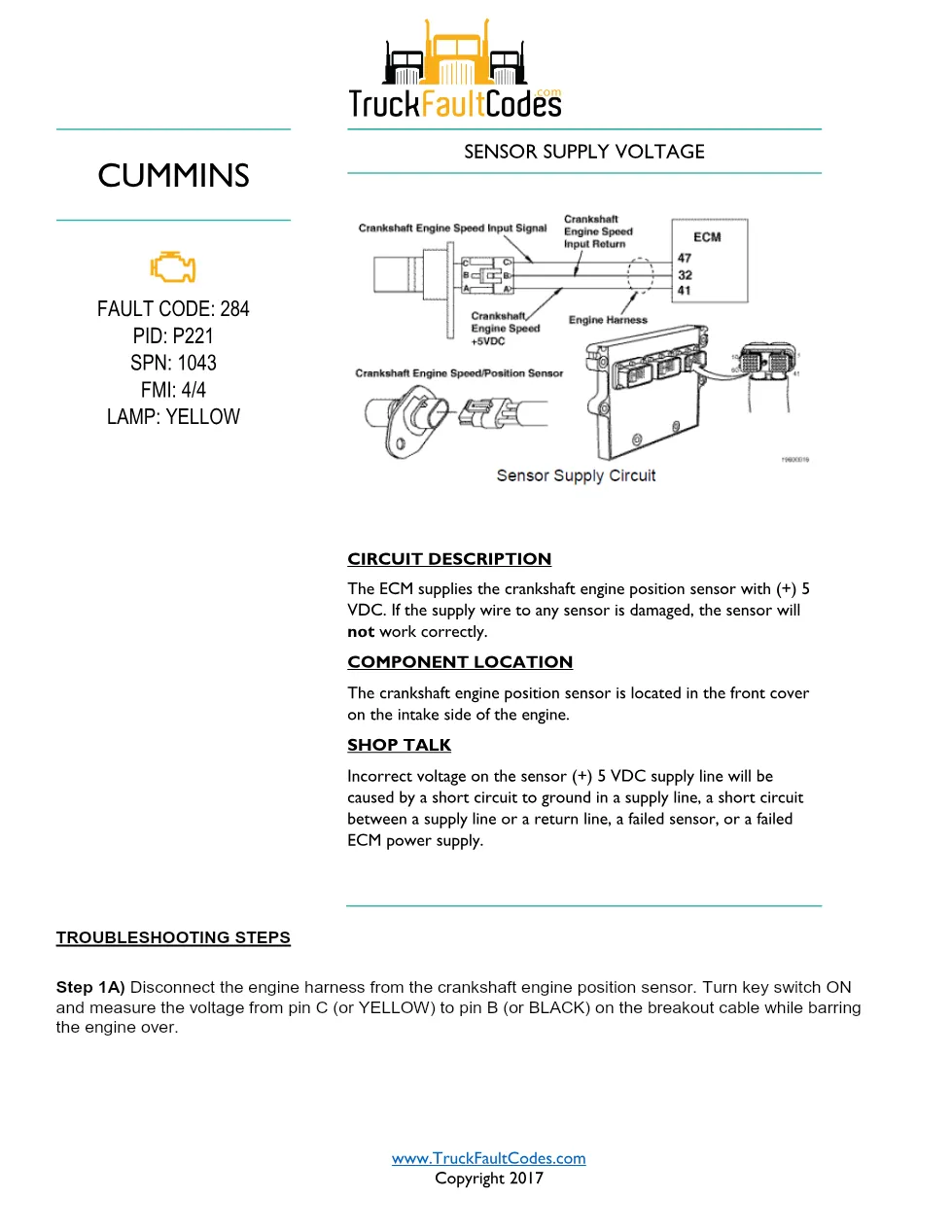

The ECM supplies the crankshaft engine position sensor with (+) 5 VDC. If the supply wire to any sensor is damaged, the sensor will not work correctly. The crankshaft engine position sensor is located in the front cover on the intake side of the engine. The manual walks through 7 labelled troubleshooting steps that inspect connectors and pins, measure circuit resistance, and verify the fault code is inactive after the repair.
Incorrect voltage on the sensor (+) 5 VDC supply line will be
caused by a short circuit to ground in a supply line, a short circuit
between a supply line or a return line, a failed sensor, or a failed
ECM power supply.
Referenced Cummins service tools and part numbers: 3824510.
Applicable truck models
This procedure applies to Cummins ISM CM570, ISX CM570 and Signature CM570 engines built in the 1999-02 range, as used in Class 8 highway trucks. Always confirm the exact engine dataplate before servicing. Full engine specifications and dealer support are available on the Cummins official website.
Who needs this Cummins ISM Code 284 manual
Heavy-duty diesel technicians, fleet service managers and independent workshop owners diagnosing a Code 284 on the sensor supply voltage rely on this document to follow the manufacturer procedure instead of guessing at parts. Because Code 284 shares its troubleshooting logic with the ISX CM570 and Signature CM570 platforms, a single PDF supports several Cummins engine families in the same workshop.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
