Cummins ISM Code 217 documents the Wet Tank Pressure Sensor Circuit Ground Short diagnostic and troubleshooting procedure for the Cummins ISM CM570 (1999-02) engine platform. This 7-page fault code sheet from TruckFaultCodes.com (Copyright 2017) covers fault code 217 (PID P046, SPN 46, FMI 4/4, YELLOW lamp) and the checks used to confirm and clear it.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | ISM CM570, ISX CM570, Signature CM570 (1999-02) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | 217 — PID P046, SPN 46, FMI 4/4 |
| Warning lamp | YELLOW |
| Pages | 7 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Shop talk
- Troubleshooting steps
- Fault code verification and clearing

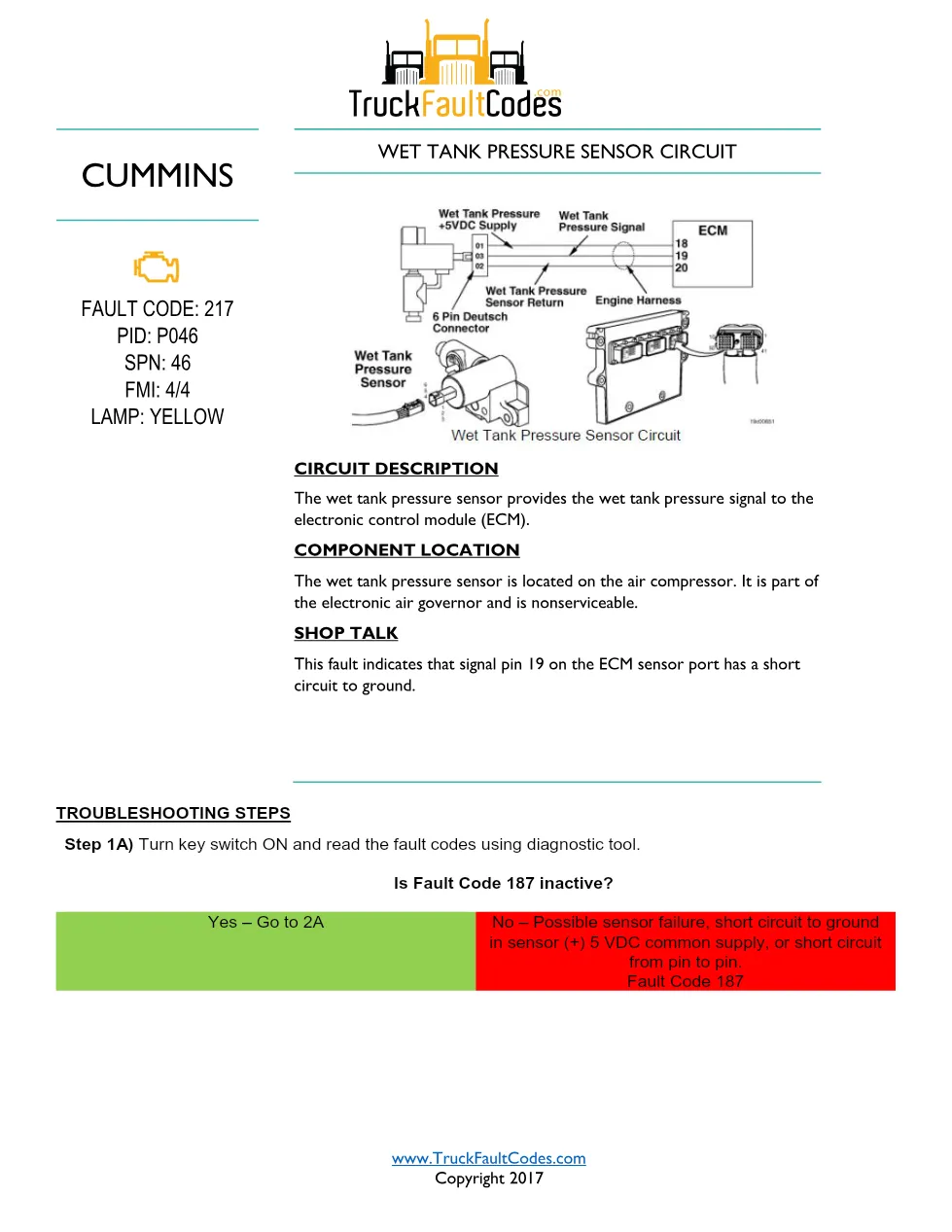

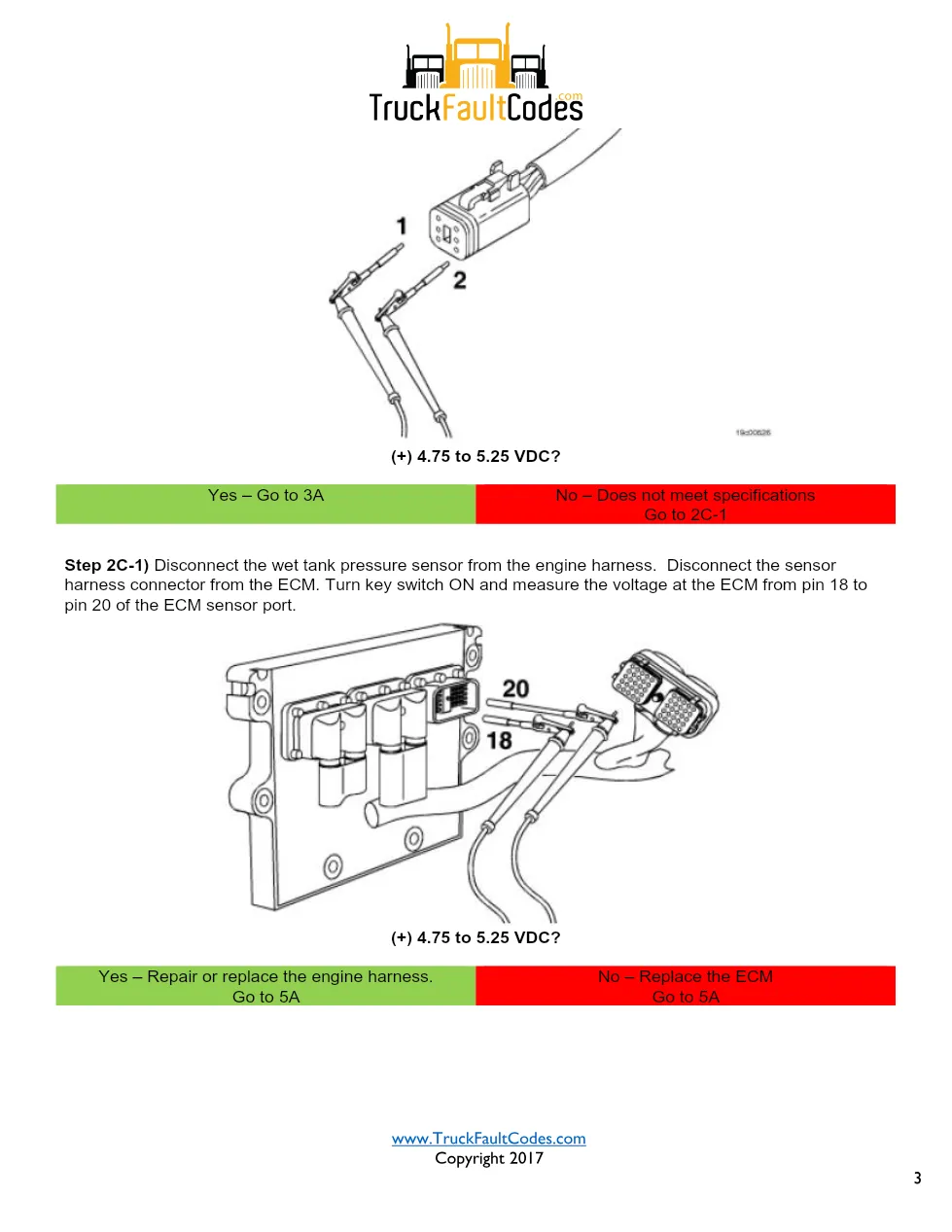

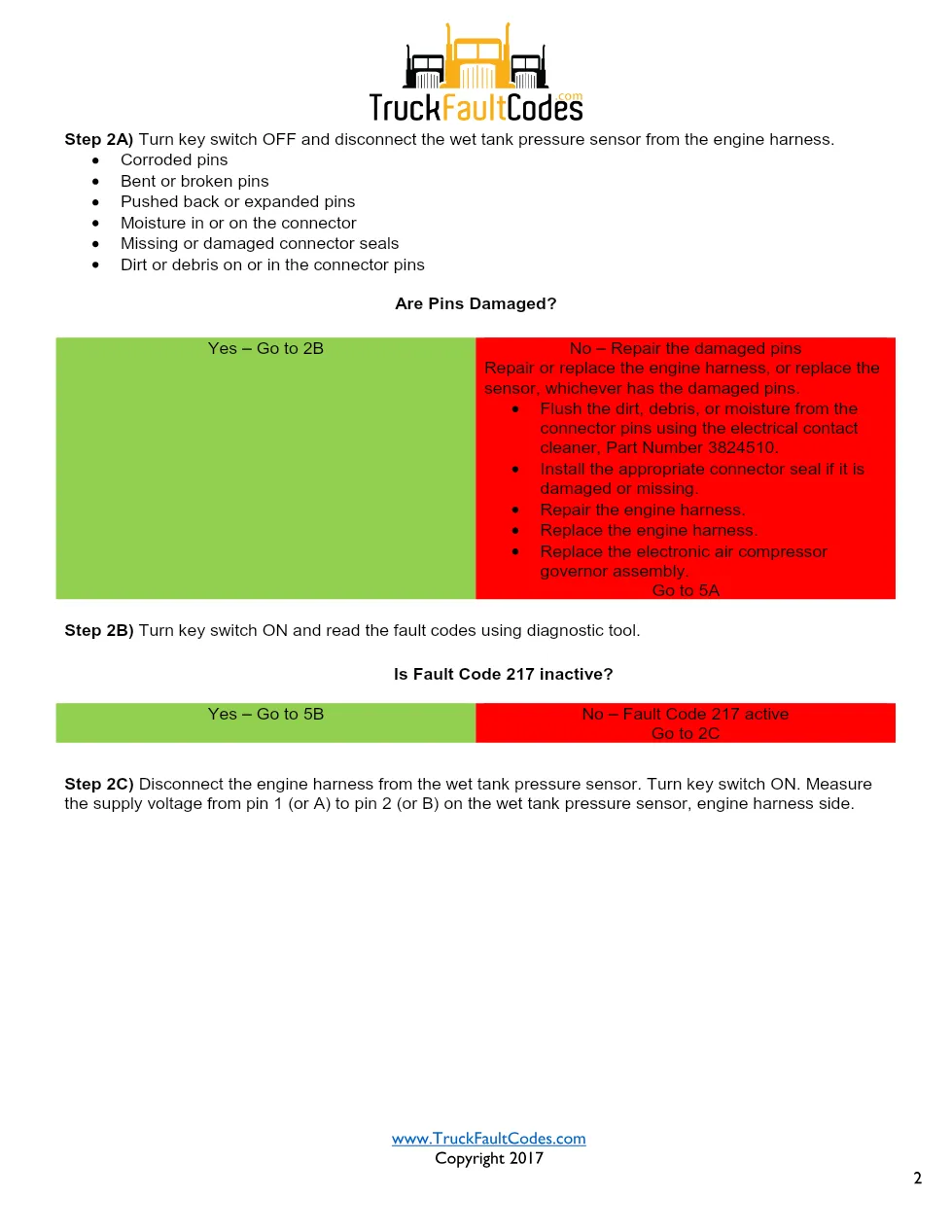

Cummins ISM Code 217 diagnostic steps
This fault indicates that signal pin 19 at the ECM sensor port has a short circuit to ground. The wet tank pressure sensor is part of the electronic air governor on the air compressor and is nonserviceable. The seven-page procedure inspects the sensor and ECM connector pins, checks the signal circuit for a short to ground, and isolates whether the engine harness or the ECM is the cause before the code is cleared.
Applicable truck models
This sheet applies to Cummins ISM CM570, ISX CM570, and Signature CM570 (1999-02) engines built around the CM570 ECM and the wet tank pressure sensor. The wet tank pressure sensor sits on the air compressor as part of the electronic air governor and is nonserviceable. The document is laid out with a circuit description, a component location note, shop-talk tips, and a step-by-step troubleshooting chart whose go-to branches route the technician through each measurement. Refer to the official Cummins engine support site for wiring diagrams and component part numbers.
Who needs this Cummins ISM Code 217 manual
Heavy-duty diesel technicians, fleet service teams, and owner-operators diagnosing a yellow-lamp wet tank pressure sensor fault will use this sheet to follow the factory decision tree, confirm the reading, and repair the harness, connector, or component instead of replacing parts on guesswork. It spells out each measurement threshold and its pass or fail branch, so the fault can be verified active, the repair validated, and the inactive code cleared with the diagnostic tool.
