Cummins fault code 3616 is logged by the electronic control module (ECM) on Cummins ISX11.9 and ISX15 CM2250 engines when it detects a VGT nozzle position problem recorded as Engine VGT Nozzle Position – Mechanical System Not Responding or Out of Adjustment. This page in the DiagTechPro manuals library explains the SPN, FMI and lamp behaviour so a technician can plan the repair before the truck reaches the bay. Every entry in this library follows the same layout, so a workshop can move quickly from the dashboard warning to the correct wiring or component test.
What Cummins fault code 3616 means

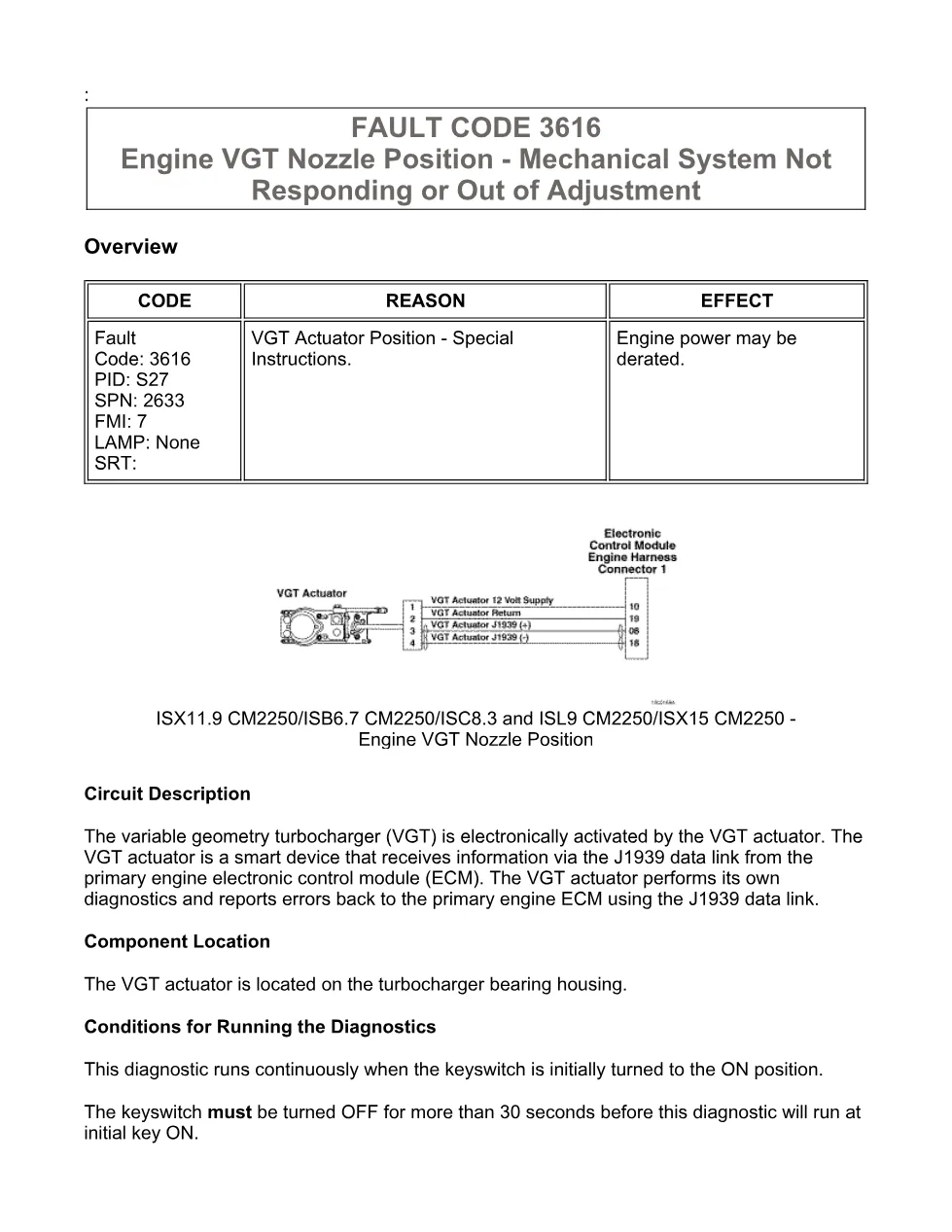

Cummins identifies this event as SPN 2633, FMI 7, with no warning lamp. The ECM logs the code about 10 seconds after the diagnostic fails, and no warning lamp is commanded.
How the ECM sets this code

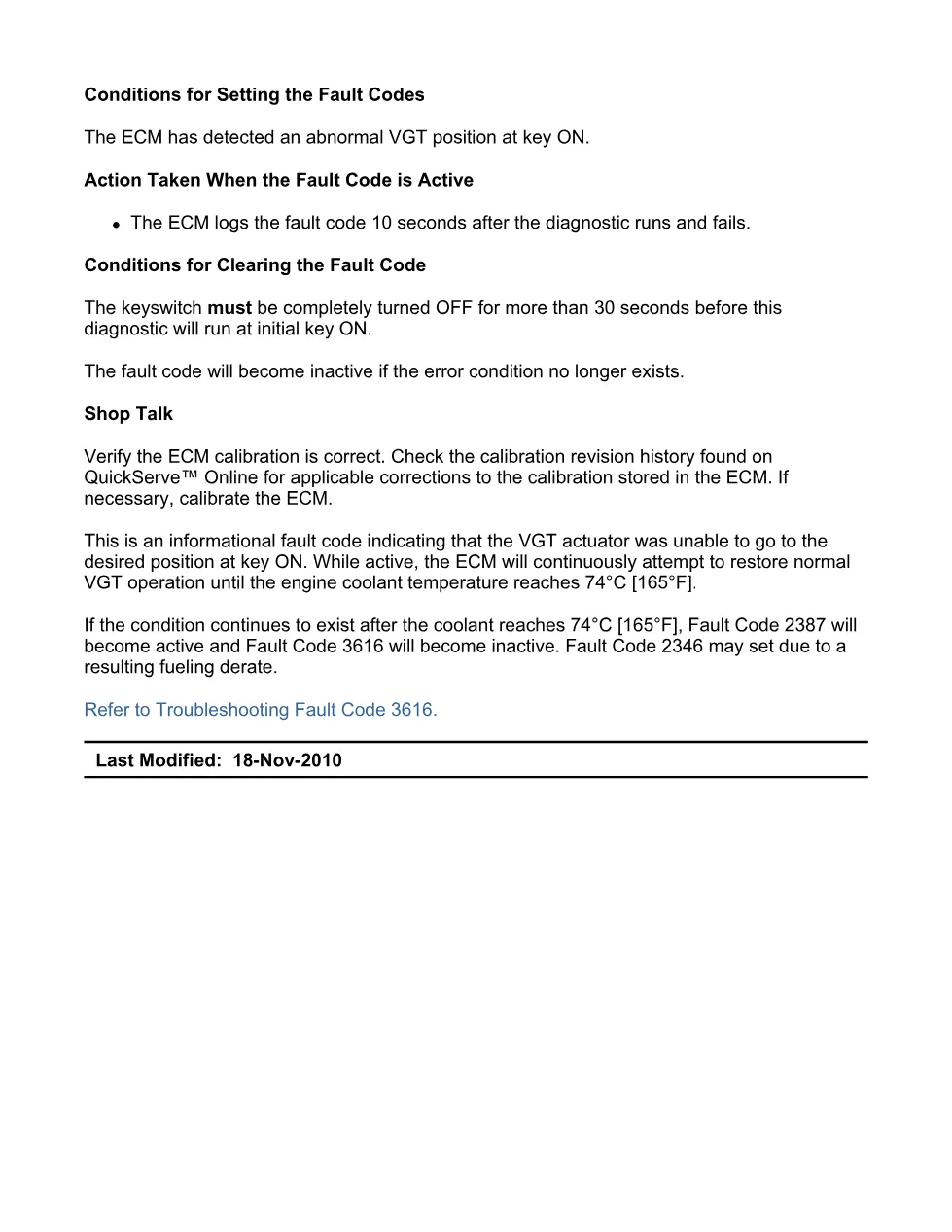

This information-only code indicates that the variable-geometry turbocharger (VGT) actuator could not reach its commanded nozzle position at key ON. Reading the exact SPN and FMI with a Cummins INSITE electronic service tool is the fastest way to confirm you are chasing the right circuit rather than a related aftertreatment code.
Possible causes and shop talk
Verify the ECM calibration is correct and check the calibration revision history on QuickServe Online, then recalibrate the ECM if a correction applies before condemning the VGT actuator. This entry behaves as an informational status rather than a hard component failure, so read every active code with INSITE and work the highest-priority faults first.
Clearing fault code 3616

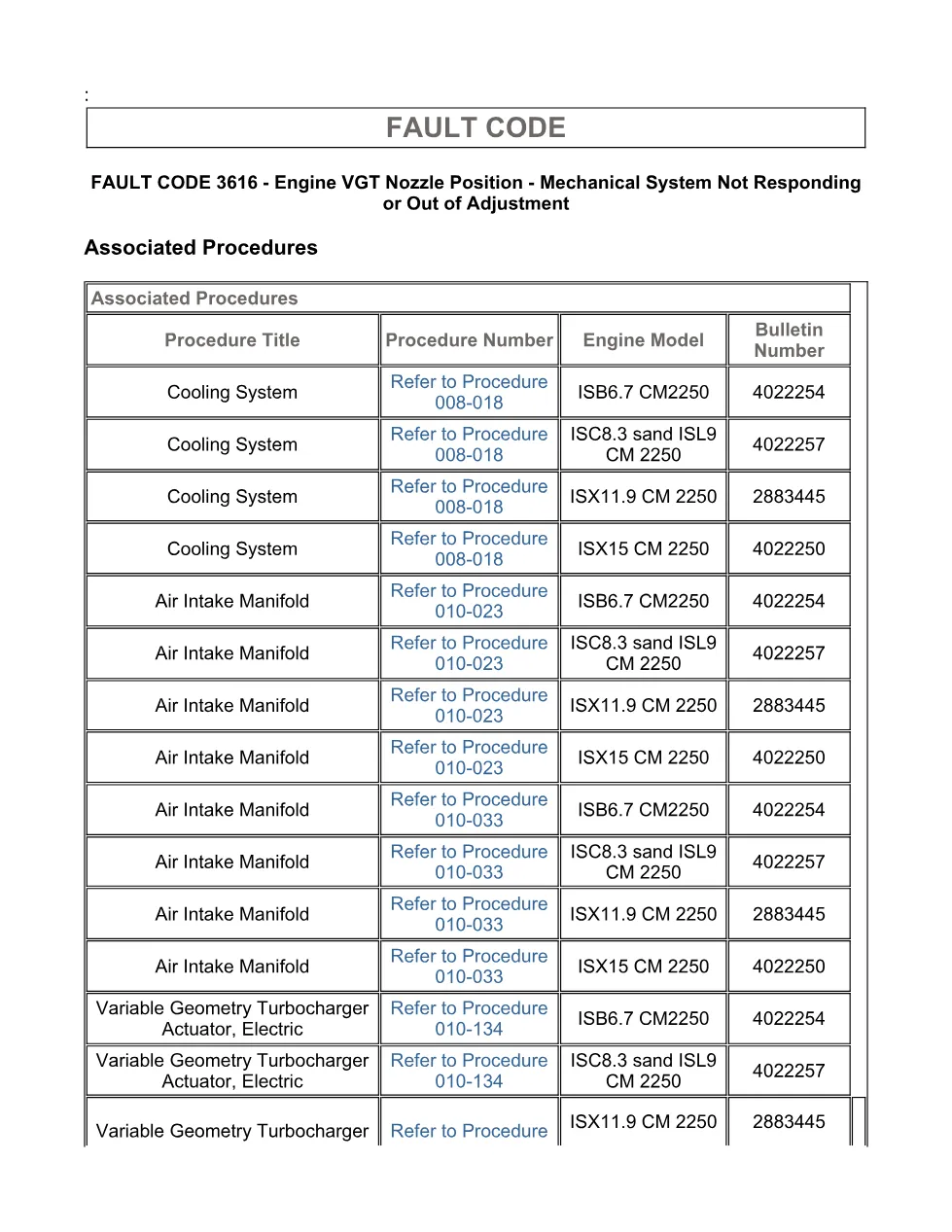

Because fault code 3616 can share root causes with other SPN 2633 aftertreatment and engine codes, repair the confirmed fault, then restore the monitored conditions and check that the status changes to inactive in INSITE. This document was last revised in the ISX11.9 CM2250 fault code set by Cummins. Open the full step-by-step tree from the DiagTechPro manuals library, and confirm current bulletins through official Cummins engine support before finishing the job.
