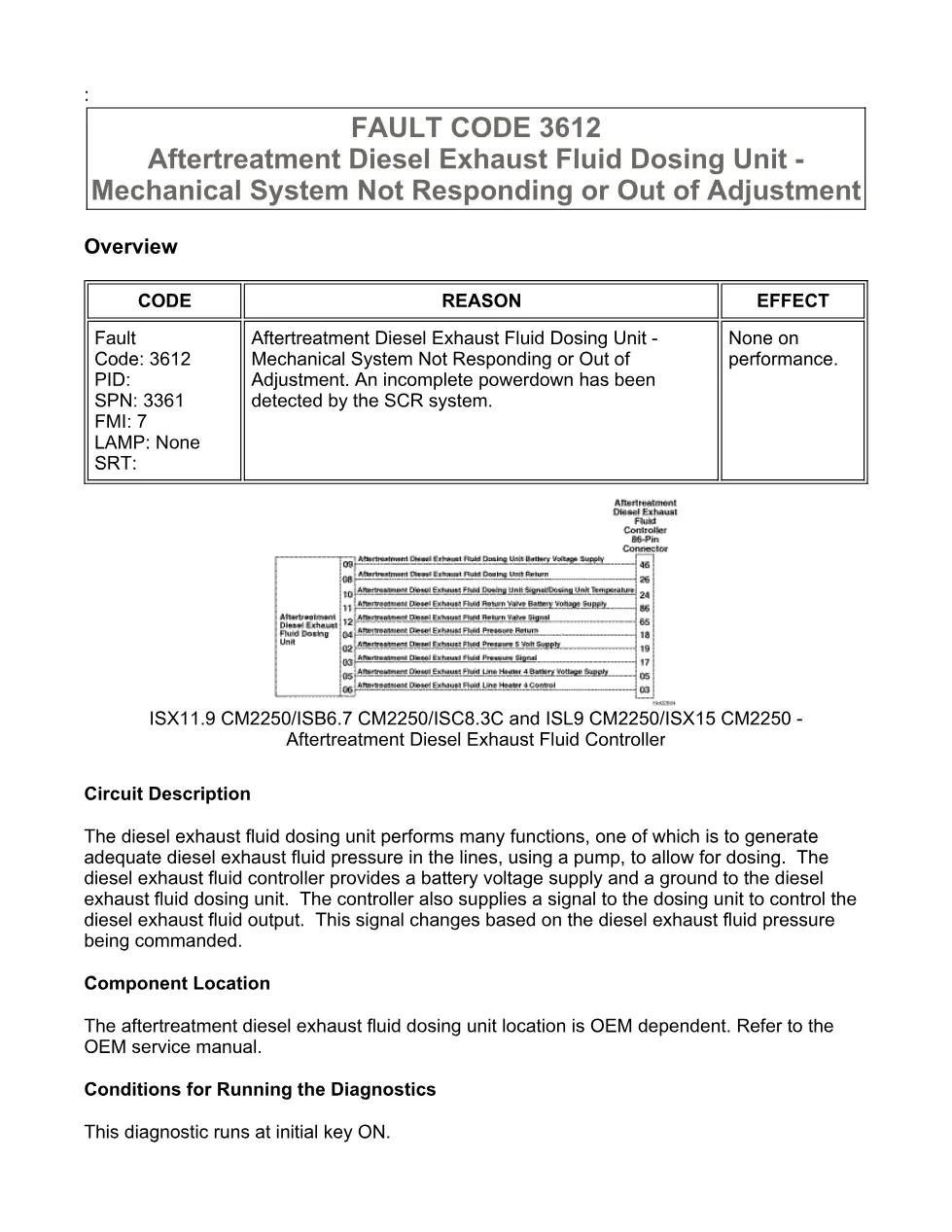

Cummins fault code 3612 is logged by the electronic control module (ECM) on Cummins ISX11.9 and ISX15 CM2250 engines when it detects a DEF dosing unit purge problem recorded as Aftertreatment Diesel Exhaust Fluid Dosing Unit – Mechanical System Not Responding or Out of Adjustment. This page in the DiagTechPro manuals library explains the SPN, FMI and lamp behaviour so a technician can plan the repair before the truck reaches the bay. Every entry in this library follows the same layout, so a workshop can move quickly from the dashboard warning to the correct wiring or component test.
What Cummins fault code 3612 means
Cummins identifies this event as SPN 3361, FMI 7, with no warning lamp. The fault is set with no warning lamp and will not go inactive until the purge counters have completed, and the purge can take up to 60 seconds.
How the ECM sets this code

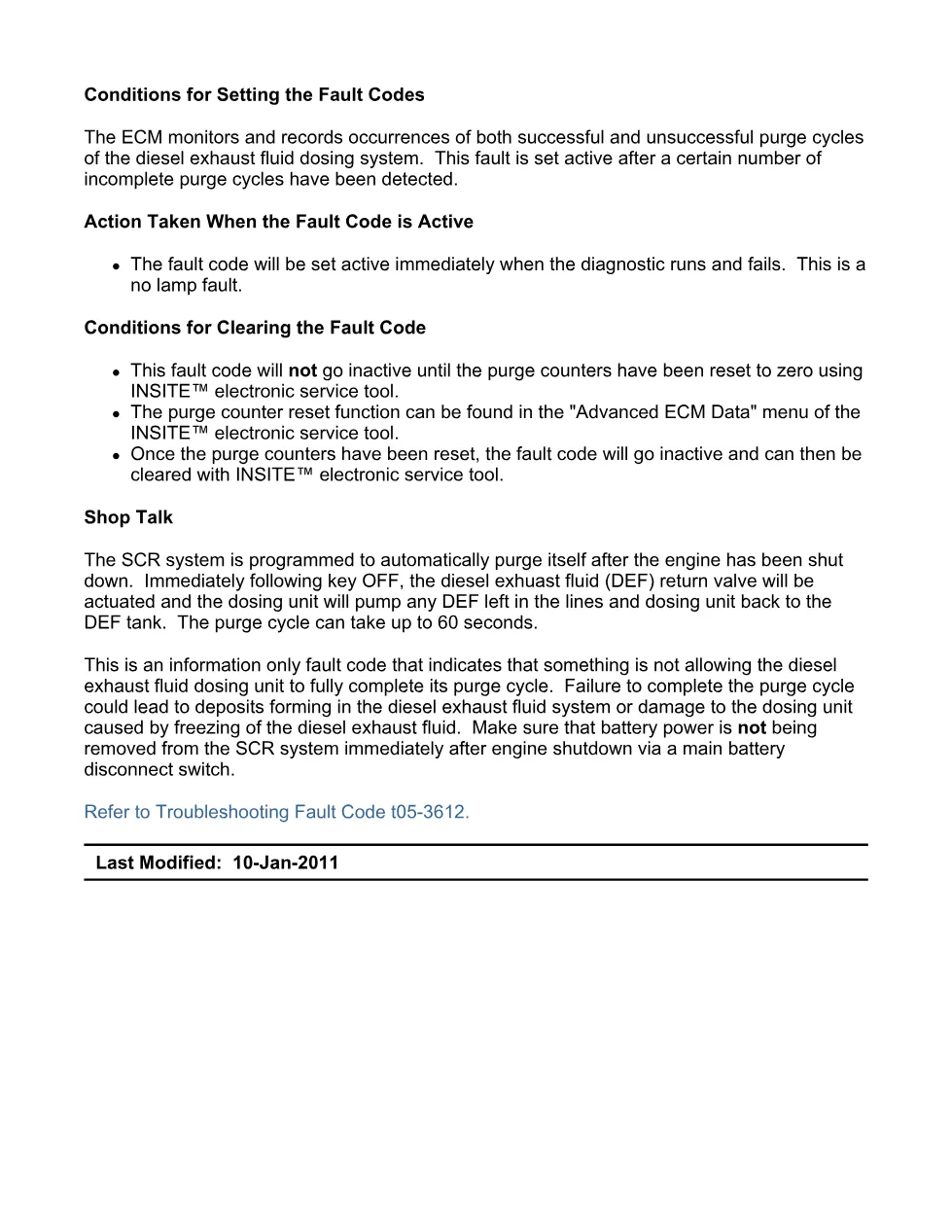

This information-only code appears during the normal SCR purge that runs after key OFF, when the diesel exhaust fluid return valve is actuated and the dosing unit pumps residual fluid back to the tank. Reading the exact SPN and FMI with a Cummins INSITE electronic service tool is the fastest way to confirm you are chasing the right circuit rather than a related aftertreatment code.
Possible causes and shop talk
In most trucks this is a normal purge event, so only investigate further if the code stays active after the purge cycle has finished. This entry behaves as an informational status rather than a hard component failure, so read every active code with INSITE and work the highest-priority faults first.
Clearing Cummins fault code 3612

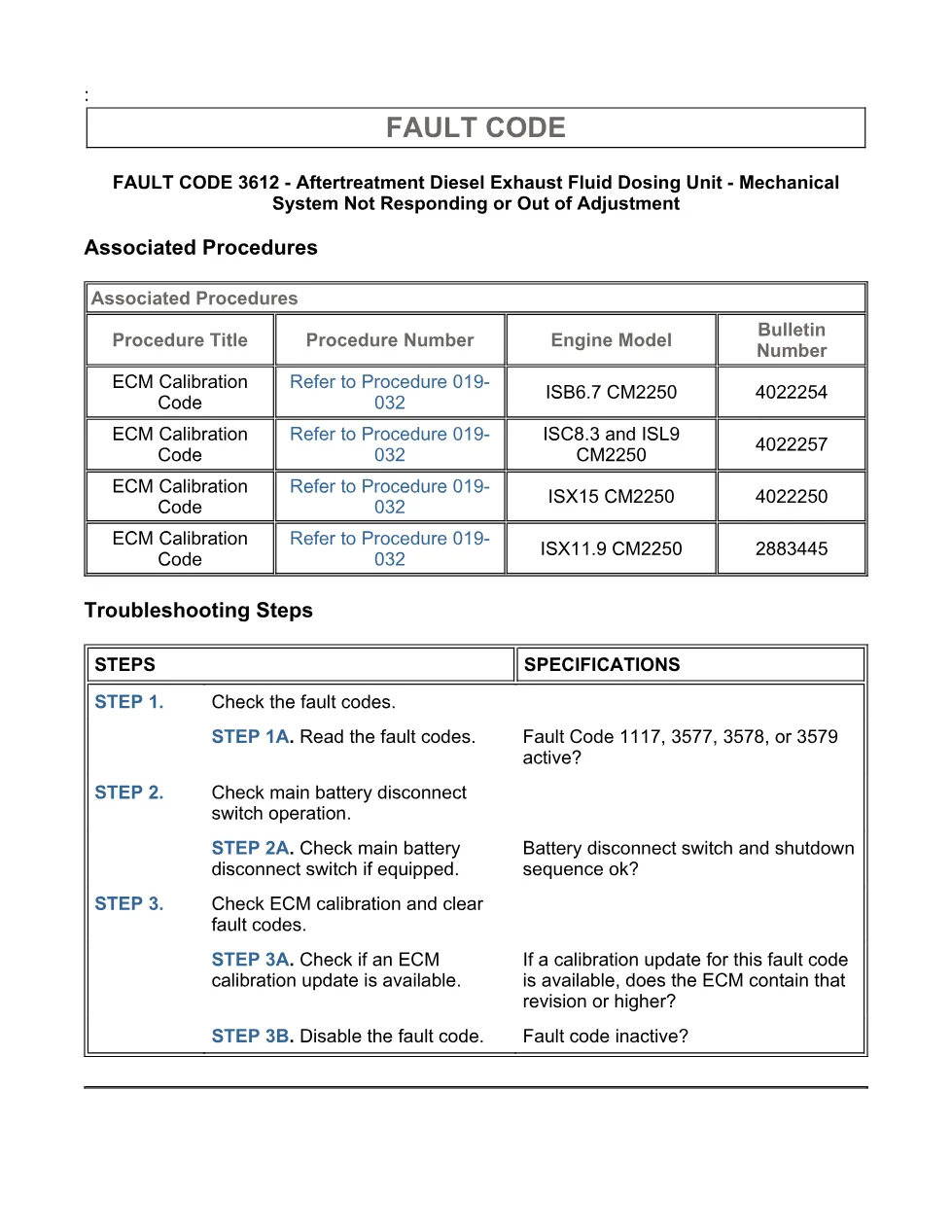

Because fault code 3612 can share root causes with other SPN 3361 aftertreatment and engine codes, repair the confirmed fault, then restore the monitored conditions and check that the status changes to inactive in INSITE. This document was last revised in the ISX11.9 CM2250 fault code set by Cummins. Open the full step-by-step tree from the DiagTechPro manuals library, and confirm current bulletins through official Cummins engine support before finishing the job.
