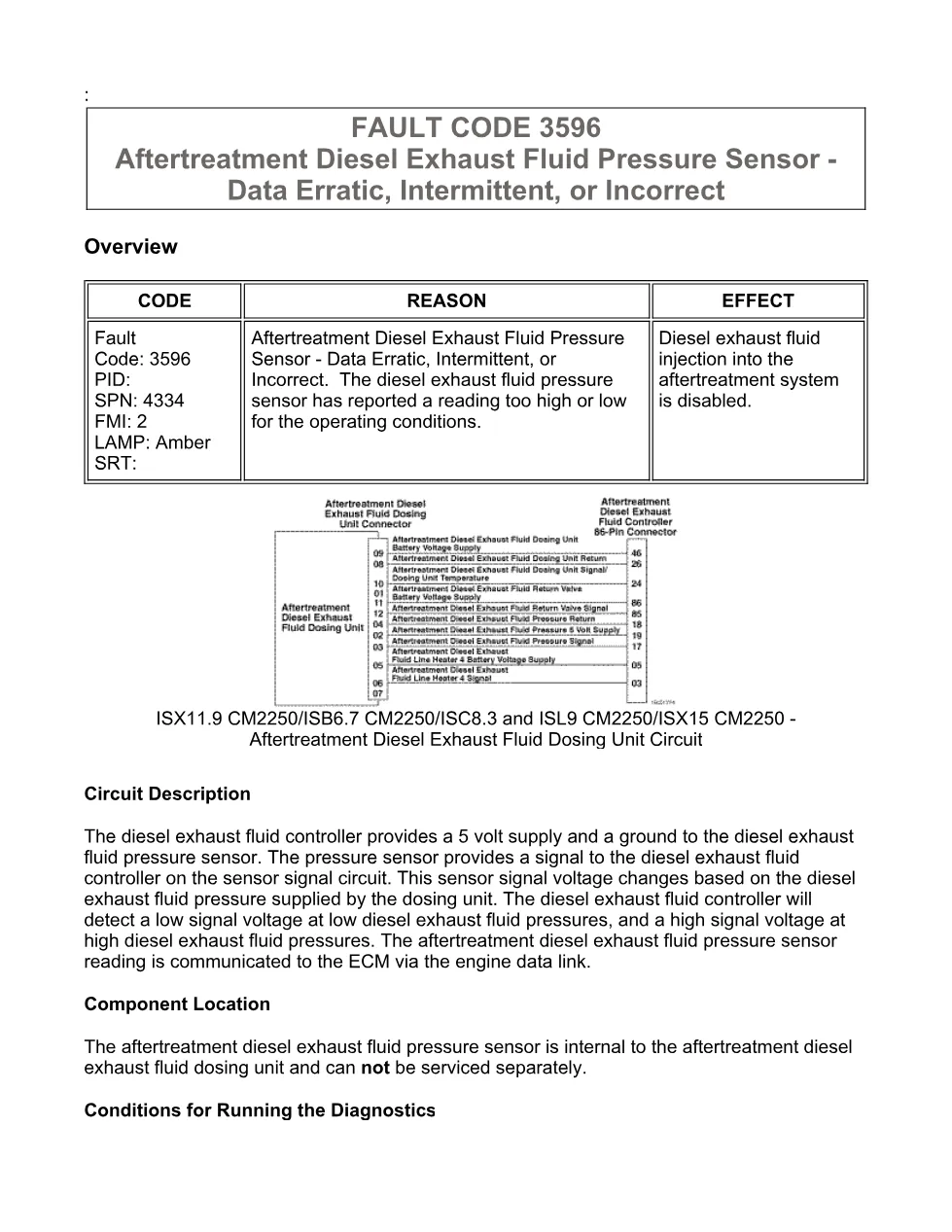

Cummins fault code 3596 is logged by the electronic control module (ECM) on Cummins ISX11.9 and ISX15 CM2250 engines when it detects a DEF pressure sensor problem recorded as Aftertreatment Diesel Exhaust Fluid Pressure Sensor – Data Erratic, Intermittent, or Incorrect. This page in the DiagTechPro manuals library explains the SPN, FMI and lamp behaviour so a technician can plan the repair before the truck reaches the bay. Every entry in this library follows the same layout, so a workshop can move quickly from the dashboard warning to the correct wiring or component test.
What Cummins fault code 3596 means
Cummins identifies this event as SPN 4334, FMI 2, with an amber warning lamp. The ECM illuminates the amber CHECK ENGINE lamp when the diagnostic fails.
How the ECM sets this code
The ECM monitors the aftertreatment diesel exhaust fluid pressure sensor and flags a reading that is erratic, intermittent or incorrect. Reading the exact SPN and FMI with a Cummins INSITE electronic service tool is the fastest way to confirm you are chasing the right circuit rather than a related aftertreatment code.

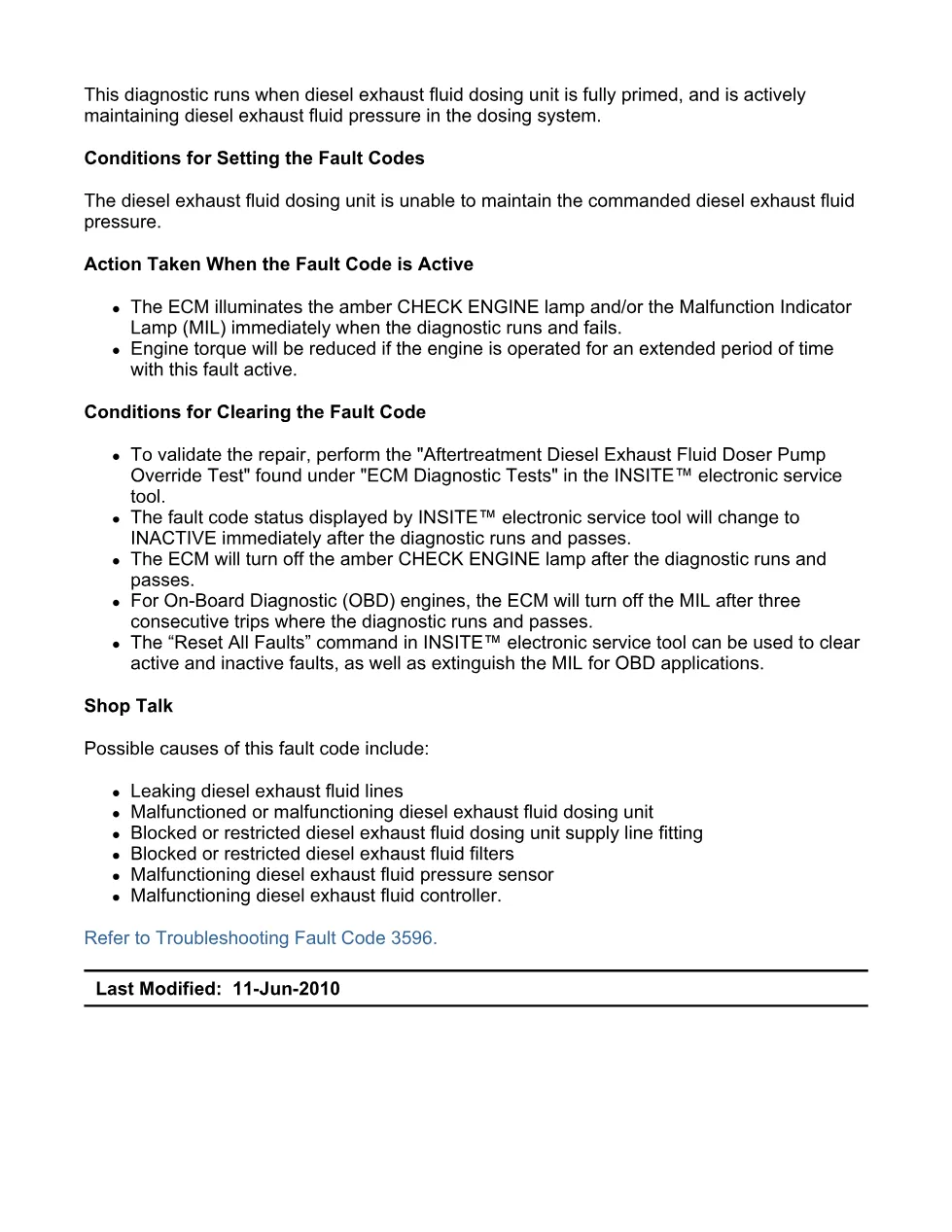

Possible causes and shop talk
The Cummins service information lists the following possible causes:
- Leaking diesel exhaust fluid lines
- Malfunctioning diesel exhaust fluid dosing unit
- Blocked or restricted dosing unit supply line fitting
- Blocked or restricted diesel exhaust fluid filters
- Malfunctioning diesel exhaust fluid pressure sensor
- Malfunctioning diesel exhaust fluid controller
Inspect the wiring and connectors for the affected circuit first, then test the component itself, and only replace parts after INSITE confirms the failure. Check the calibration revision history on Cummins QuickServe Online in case a software update addresses the complaint.
Clearing Cummins fault code 3596

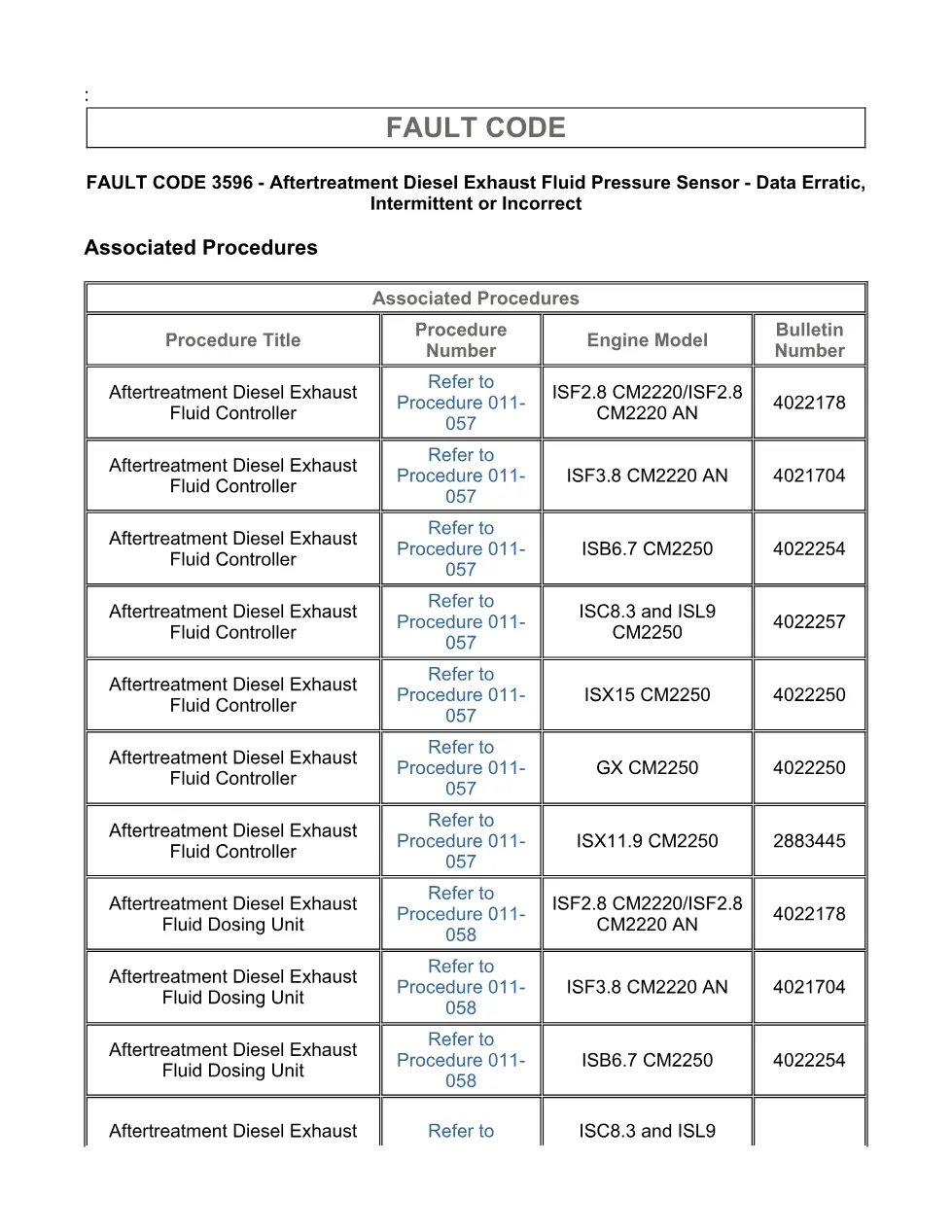

Because fault code 3596 can share root causes with other SPN 4334 aftertreatment and engine codes, repair the confirmed fault, then restore the monitored conditions and check that the status changes to inactive in INSITE. This document was last revised in the ISX11.9 CM2250 fault code set by Cummins. Open the full step-by-step tree from the DiagTechPro manuals library, and confirm current bulletins through official Cummins engine support before finishing the job.
