Cummins fault code 3583 is logged by the electronic control module (ECM) on Cummins ISX11.9 and ISX15 CM2250 engines when it detects a outlet NOx sensor heater problem recorded as Aftertreatment Outlet NOx Sensor Heater – Abnormal Rate of Change. This page in the DiagTechPro manuals library explains the SPN, FMI and lamp behaviour so a technician can plan the repair before the truck reaches the bay. Every entry in this library follows the same layout, so a workshop can move quickly from the dashboard warning to the correct wiring or component test.

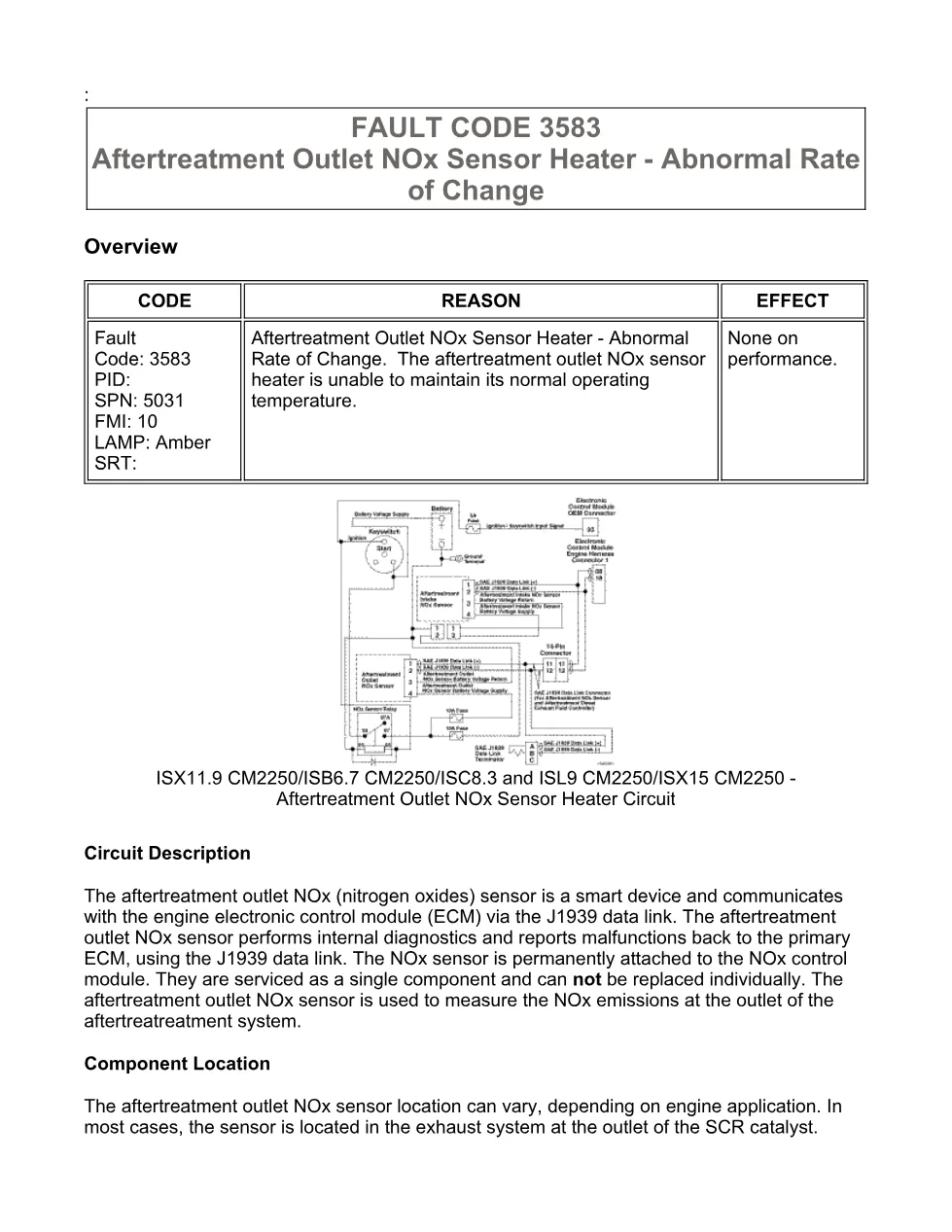

What Cummins fault code 3583 means
Cummins identifies this event as SPN 5031, FMI 10, with an amber warning lamp. The ECM illuminates the amber CHECK ENGINE lamp when the diagnostic fails.
How the ECM sets this code
The ECM watches the heater inside the aftertreatment outlet NOx sensor and flags an abnormal rate of change in its signal. Reading the exact SPN and FMI with a Cummins INSITE electronic service tool is the fastest way to confirm you are chasing the right circuit rather than a related aftertreatment code.
Possible causes and shop talk
The Cummins service information lists the following possible causes:
- Damaged aftertreatment outlet NOx sensor
- Intermittent power connection to the aftertreatment outlet NOx sensor

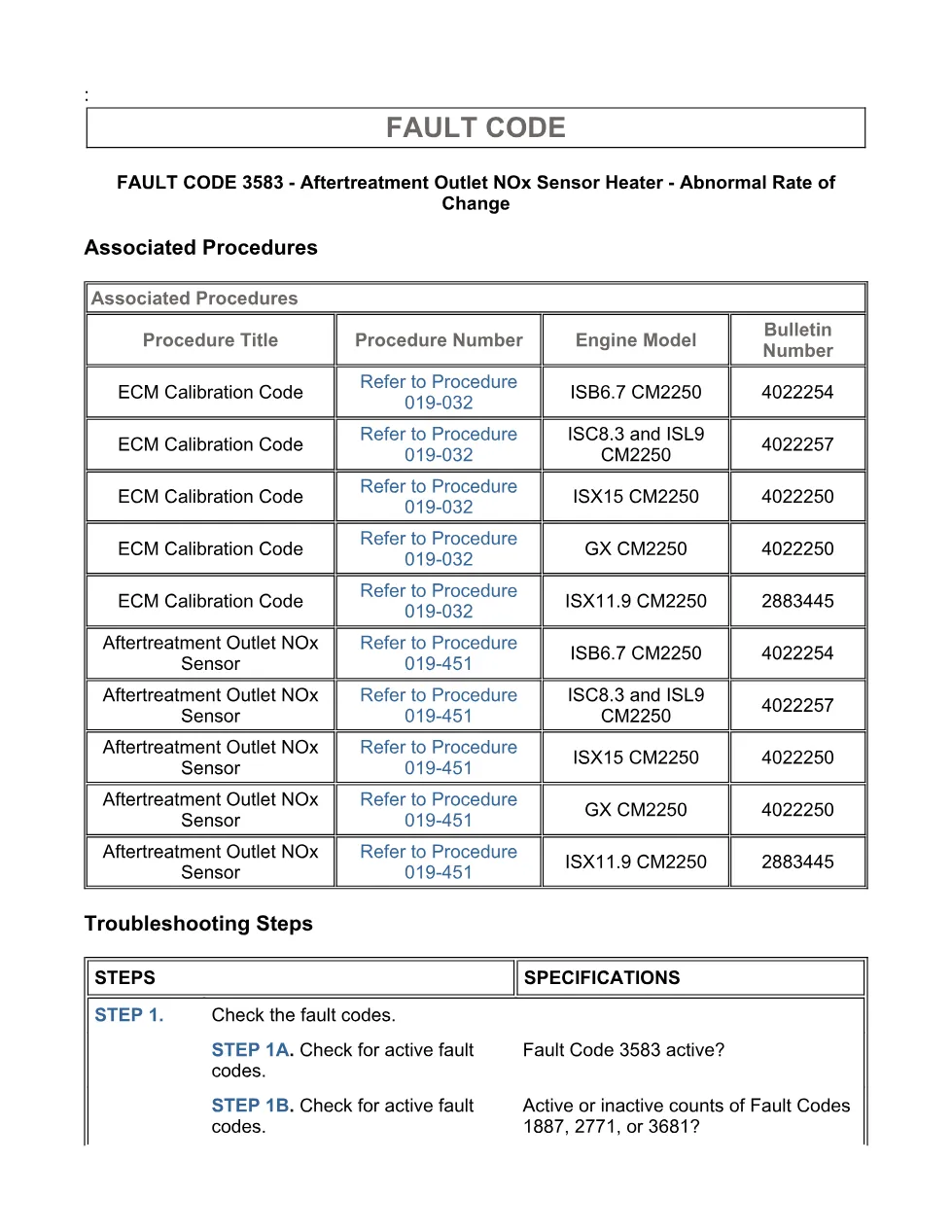

Inspect the wiring and connectors for the affected circuit first, then test the component itself, and only replace parts after INSITE confirms the failure. Check the calibration revision history on Cummins QuickServe Online in case a software update addresses the complaint.

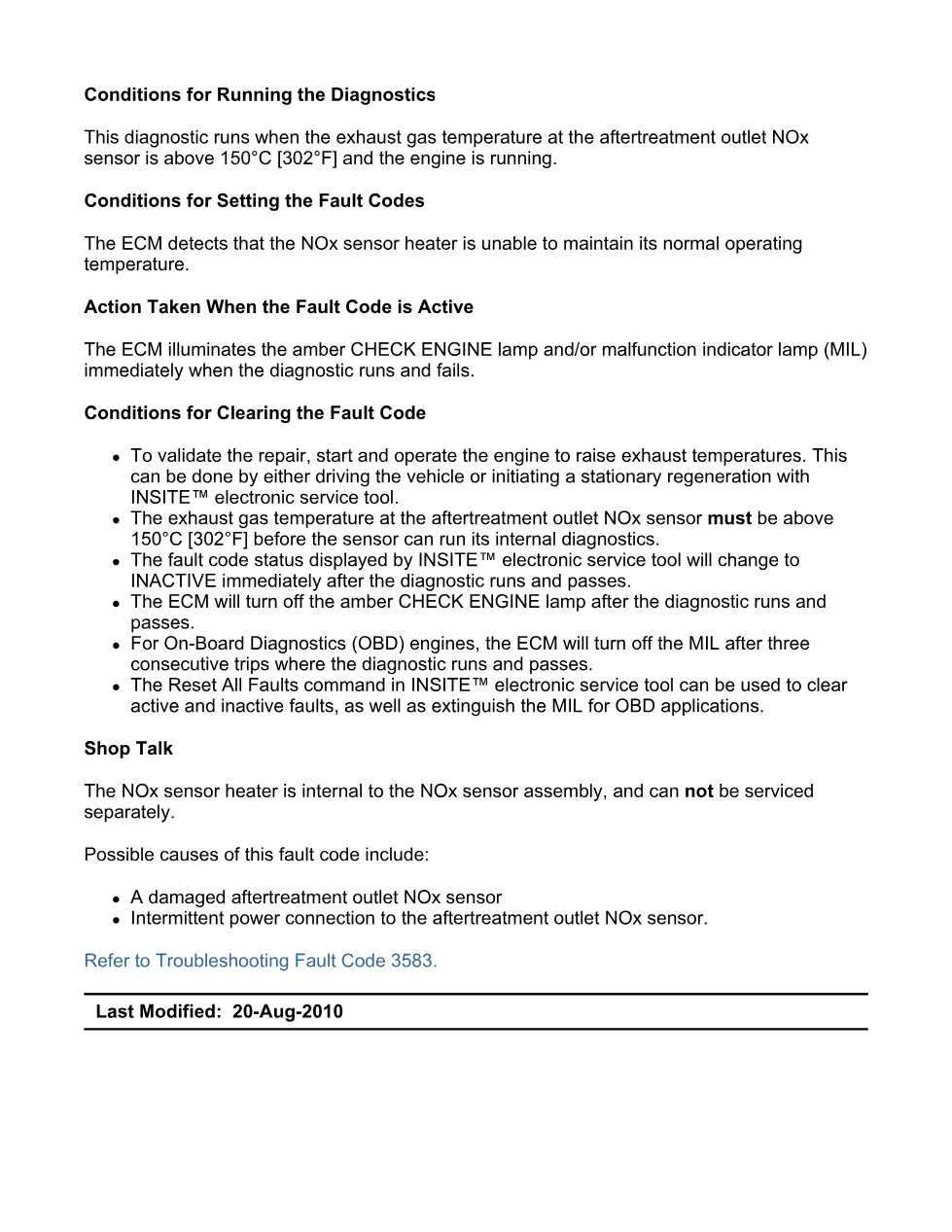

Clearing fault code 3583
Because fault code 3583 can share root causes with other SPN 5031 aftertreatment and engine codes, repair the confirmed fault, then restore the monitored conditions and check that the status changes to inactive in INSITE. This document was last revised on 20-Aug-2010 by Cummins. Open the full step-by-step tree from the DiagTechPro manuals library, and confirm current bulletins through official Cummins engine support before finishing the job.
