This Cummins engine speed sensor document is a 5-page diagnostic PDF for Fault Code 284, PID P190, SPN 190, FMI 3 or 4. It explains the engine speed sensor supply circuit, sensor location, connector inspection, harness resistance checks, 5 VDC supply verification, and final fault-code clearing steps.
Official Cummins engine speed sensor document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB and QSB5.9 engines with the Bosch VP44 fuel system; QSB engines with the Bosch VP30 fuel system |
| System/Group | ISB CM550 (1990-94) / DTCs |
| Year/Revision | Unknown |
| Pages | 5 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- FAULT CODE: 284
- PID: P190
- SPN: 190
- FMI: 3 or 4

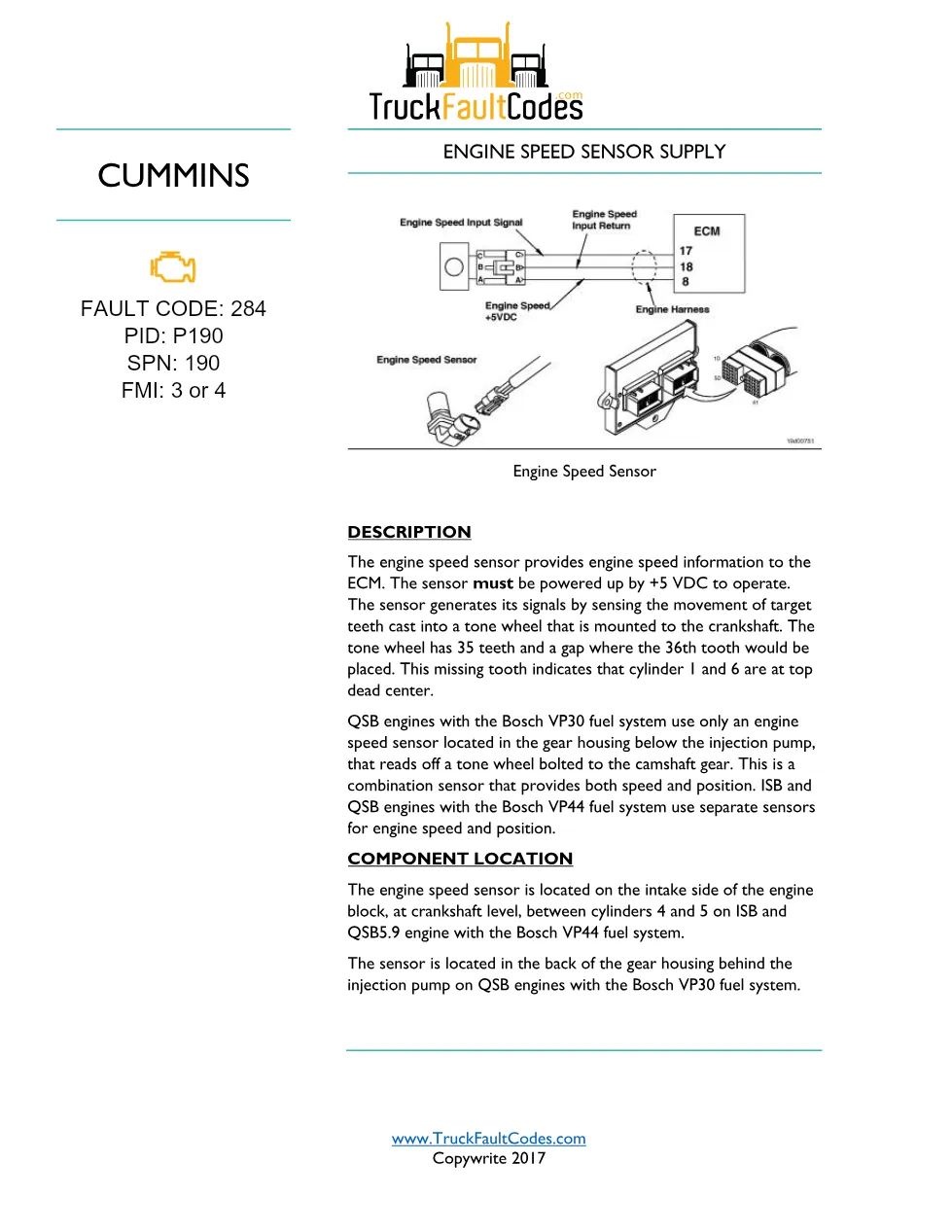

- ENGINE SPEED SENSOR SUPPLY
- Engine Speed Sensor
- DESCRIPTION
- COMPONENT LOCATION
- TROUBLESHOOTING STEPS

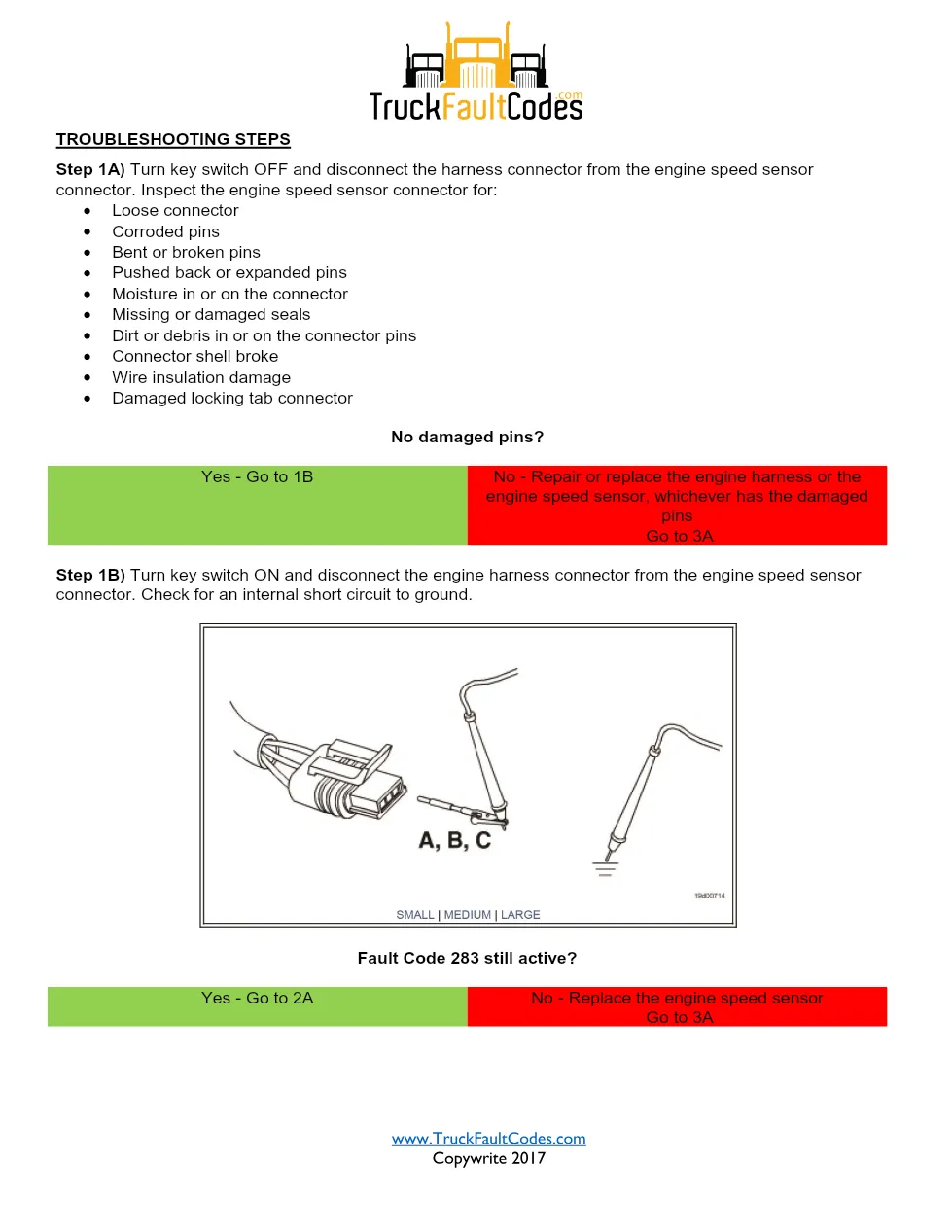

- Step 1A) Turn key switch OFF and disconnect the harness connector from the engine speed sensor connector
- Step 1B) Turn key switch ON and disconnect the engine harness connector from the engine speed sensor connector
- Step 2A) Turn key switch OFF and disconnect the engine harness from the ECM

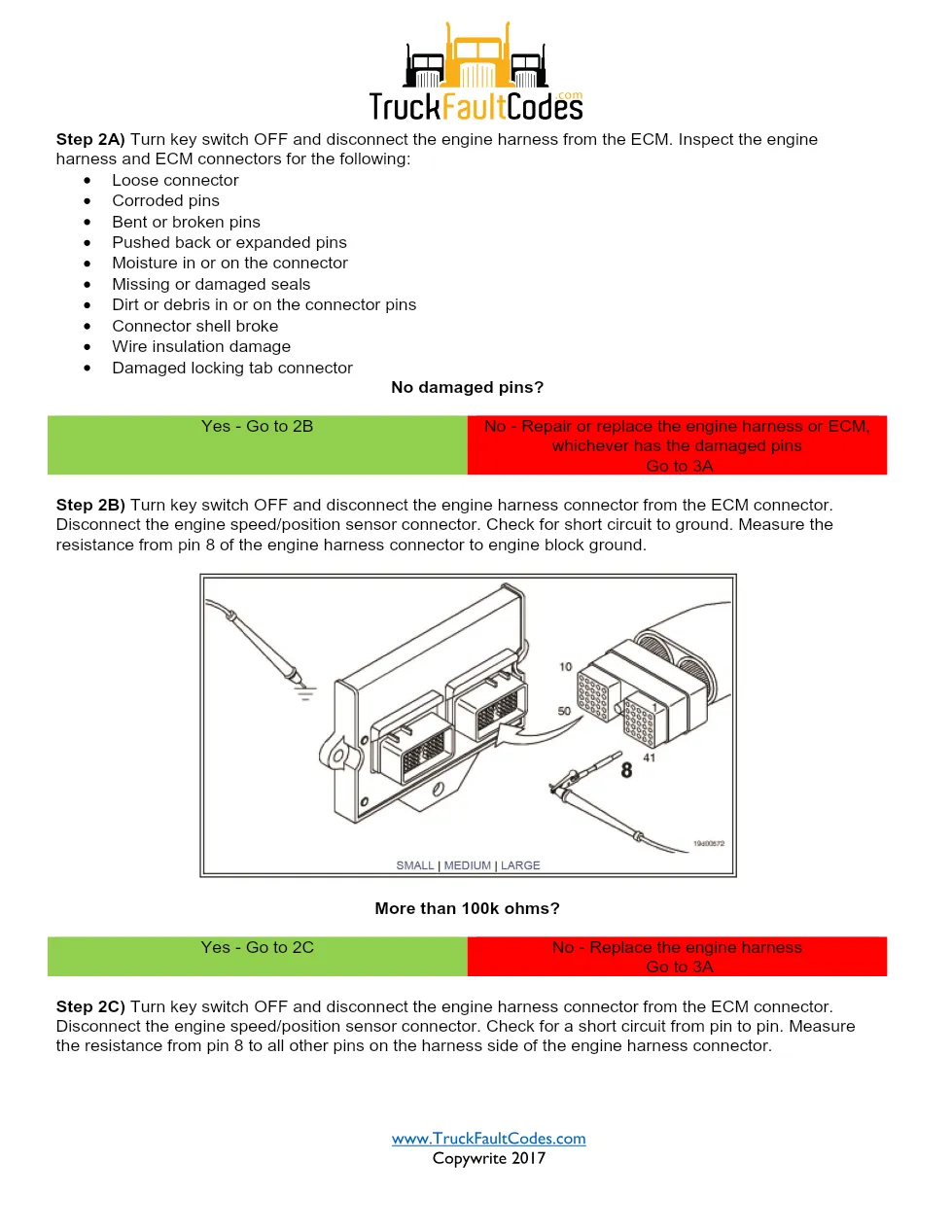

- Step 2B) Check for short circuit to ground
- Step 2C) Check for a short circuit from pin to pin
- Step 2D) Check sensor supply voltage
- Step 3A) Disable the fault code, start the engine, and verify Fault Codes 283 and 284 are inactive
- Step 3B) Clear the inactive fault codes using the diagnostic tool
Applicable truck models
This file applies to Cummins ISB and QSB5.9 engines using the Bosch VP44 fuel system, where the engine speed sensor is on the intake side of the engine block at crankshaft level between cylinders 4 and 5. It also identifies QSB engines with the Bosch VP30 fuel system, where a combination speed and position sensor is located in the back of the gear housing behind the injection pump and reads a tone wheel bolted to the camshaft gear. The extract does not list specific truck makes or chassis models. See the manufacturer at Cummins official website.
Who needs this Cummins engine speed sensor manual
Workshop owners, diesel mechanics, and diagnostic technicians need this Cummins engine speed sensor manual when Fault Code 284 is active or when the sensor supply circuit must be checked. The procedure is useful for inspecting connector damage, testing for shorts to ground, measuring resistance above 100k ohms, checking 4.75 to 5.25 VDC supply voltage, and confirming Fault Codes 283 and 284 are inactive after repair.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
