This Cummins fault code 283 document is a 5-page troubleshooting guide for the engine speed sensor supply circuit. It identifies PID P190, SPN 190, and FMI 3 or 4, then gives inspection, resistance, voltage, repair, and verification steps for the sensor, harness, and ECM circuit.
Official Cummins fault code 283 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB and QSB5.9 engines with Bosch VP44 fuel system; QSB engines with Bosch VP30 fuel system |
| System/Group | ISB CM550 (1990-94) / DTCs; Engine Speed Sensor Supply |
| Publication no. | Not stated |
| Year/Revision | Unknown; document copy marked 2017 |
| Pages | 5 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- FAULT CODE: 283
- PID: P190
- SPN: 190
- FMI: 3 or 4

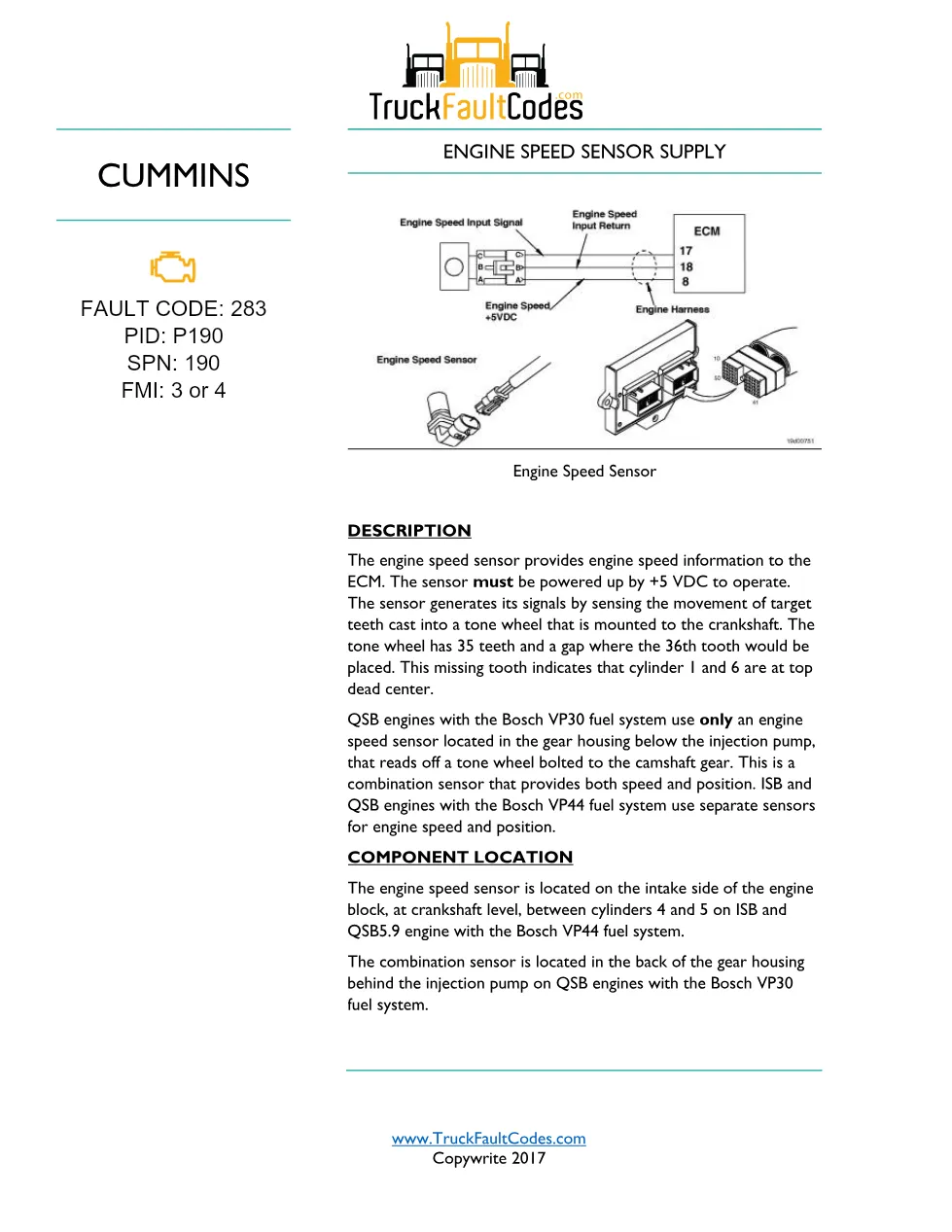

- ENGINE SPEED SENSOR SUPPLY
- Engine Speed Sensor
- DESCRIPTION
- COMPONENT LOCATION
- TROUBLESHOOTING STEPS

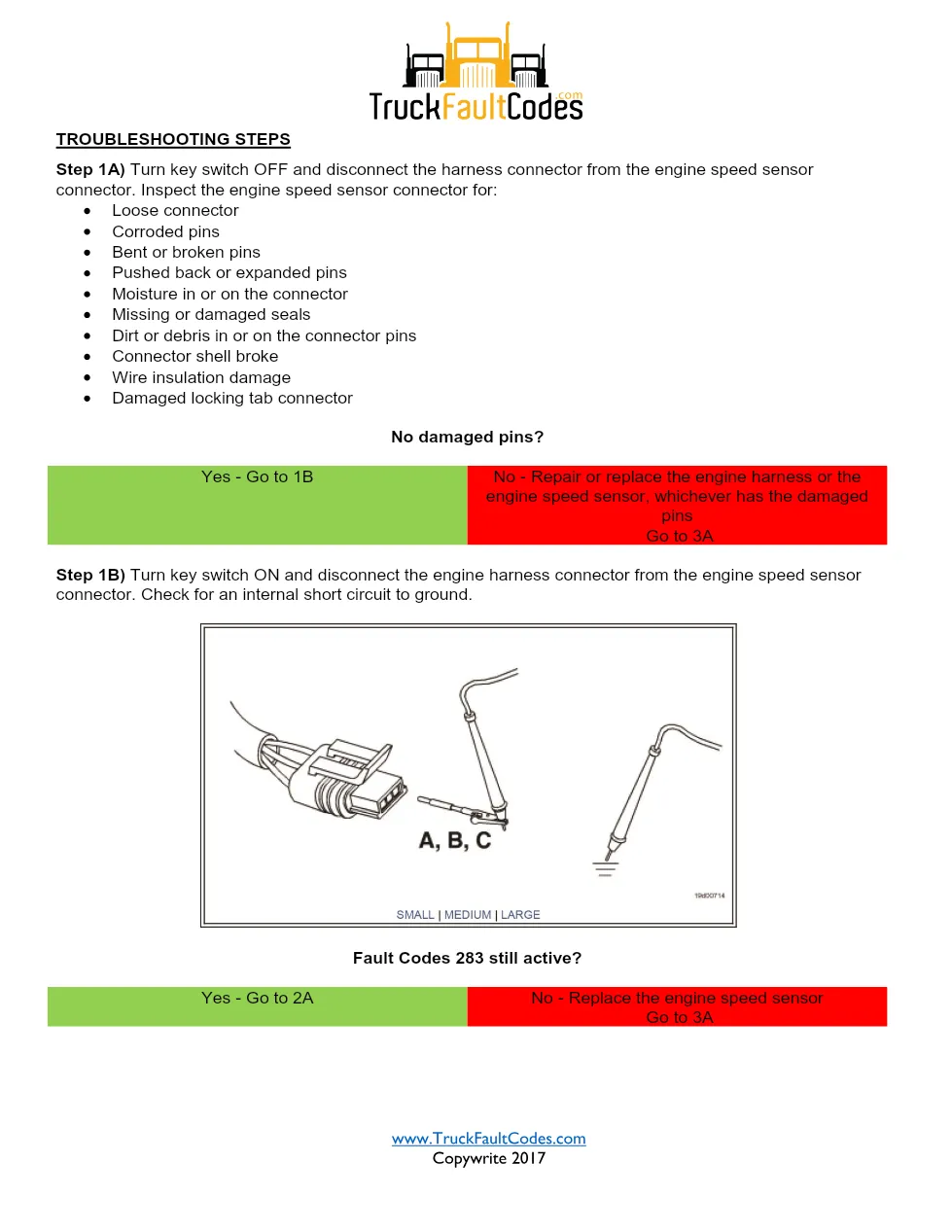

- Step 1A: Inspect the engine speed sensor connector
- Step 1B: Check for an internal short circuit to ground

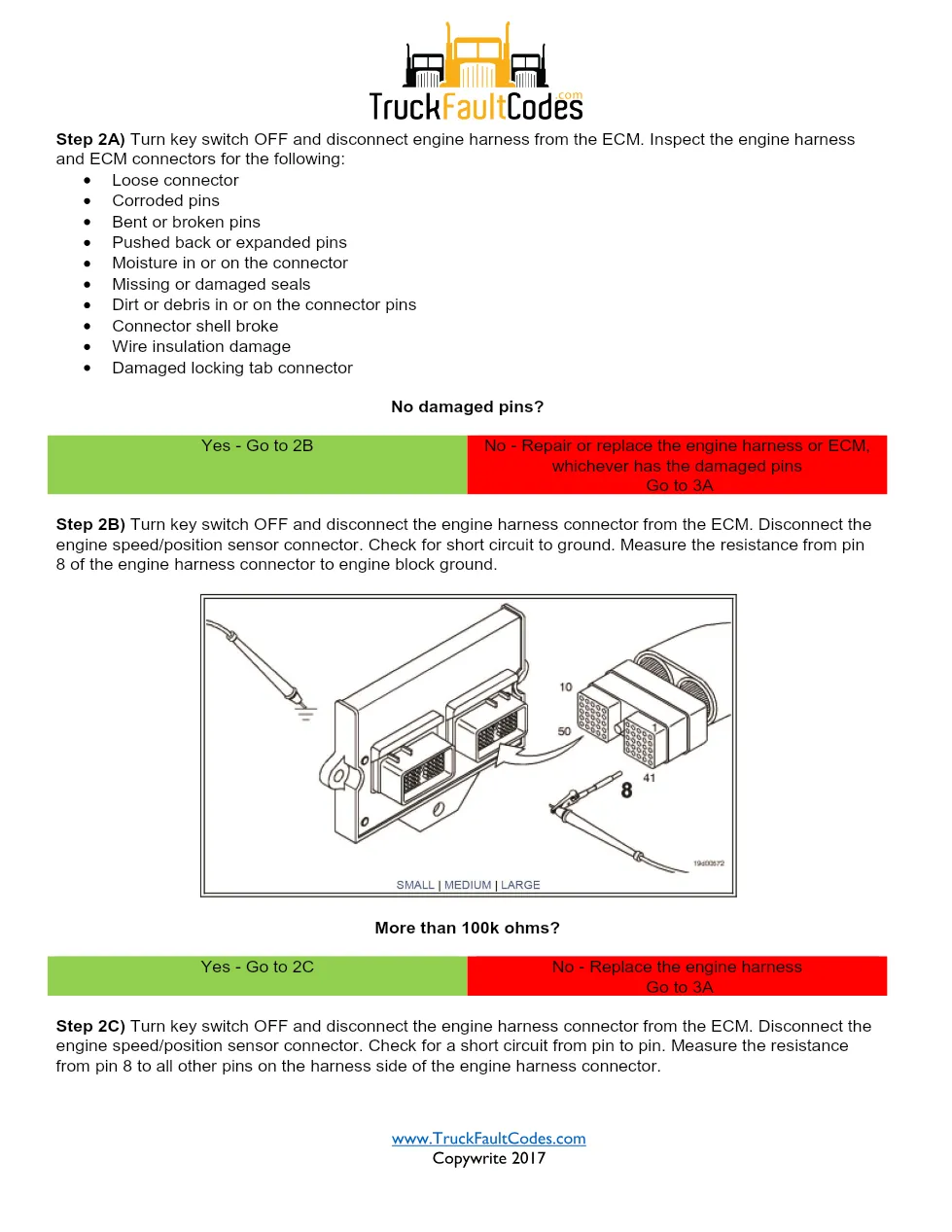

- Step 2A: Inspect the engine harness and ECM connectors
- Step 2B: Check for short circuit to ground from pin 8 to engine block ground
- Step 2C: Check for a short circuit from pin to pin
- Step 2D: Check sensor supply voltage at pin A
- Step 3A: Disable the fault code, start the engine, and verify Fault Codes 283 and 284 are inactive
- Step 3B: Clear inactive fault codes using the diagnostic tool
Applicable truck models
This file applies to Cummins ISB and QSB5.9 engine applications described in the extract, including units using the Bosch VP44 fuel system with separate engine speed and position sensors. It also covers QSB engines with the Bosch VP30 fuel system, where the combination sensor is located in the back of the gear housing behind the injection pump and reads a tone wheel bolted to the camshaft gear. The document states that the engine speed sensor supplies engine speed information to the ECM and must be powered by +5 VDC to operate. The sensor signal is generated by target teeth on a tone wheel, with a missing tooth indicating cylinders 1 and 6 at top dead center. For official brand information, visit Cummins official website.
Who needs this Cummins fault code 283 manual
Workshop owners, diesel mechanics, and diagnostic technicians need this Cummins fault code 283 manual when a truck shows an engine speed sensor supply fault, especially where connector damage, harness shorts, low or missing 5 VDC supply, or ECM circuit checks must be confirmed. The procedure supports systematic testing before replacing the engine speed sensor, engine harness, or ECM.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
