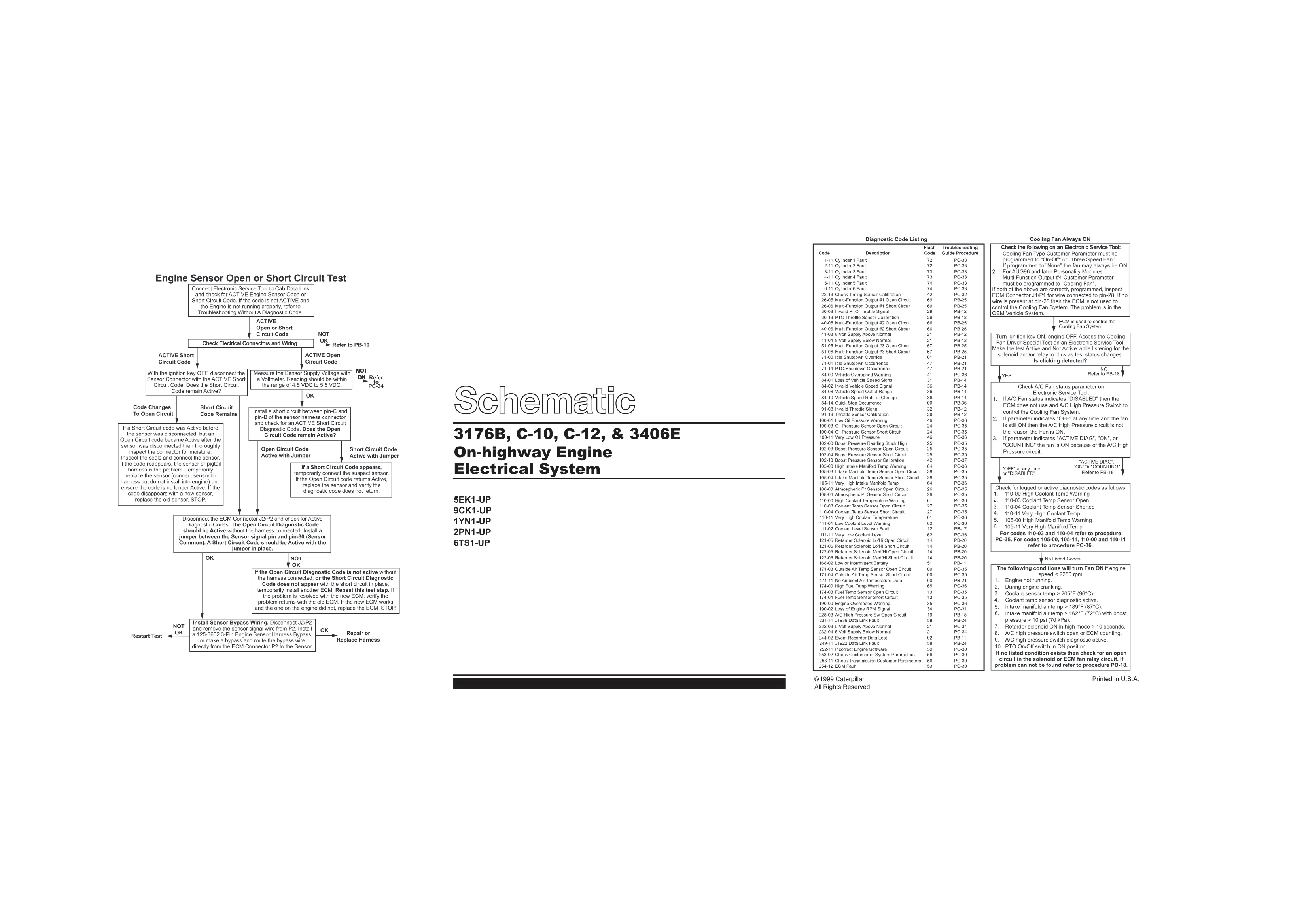

This Caterpillar 3176B electrical schematic is the cover and diagnostic code index for the 3176B, C-10, C-12 and 3406E on-highway engine electrical system. It lists each diagnostic code with its flash code and the troubleshooting procedure that applies.
Official document details
| Brand | Caterpillar (CAT) |
|---|---|
| Engine coverage | 3176B, C-10, C-12, 3406E on-highway engine |
| Serial ranges | 5EK, 1YN, 2PN, 6TS |
| System / Group | Electrical system schematics |
| Copyright | 1999 Caterpillar |
| Pages | 1 |
| File size | 50 KB |
| Format / Language | PDF / English |
Caterpillar 3176B electrical schematic table of contents
- Diagnostic code listing with flash codes
- Cooling fan system diagnostic sequence
- Engine sensor open or short circuit test
- ECM connector J1/P1 and J2/P2 references
- Coolant, boost, oil pressure and manifold temperature codes
- Multi-function output circuit codes
- J1939 and J1922 data link fault codes
Applicable truck models covered
The schematic set applies to Caterpillar 3176B, C-10, C-12 and 3406E on-highway engines in the 5EK, 1YN, 2PN and 6TS serial ranges. This cover page indexes the diagnostic codes; the companion schematic sheet shows the wiring and connector pins in detail. See the manufacturer at Caterpillar.
Who needs the Caterpillar 3176B electrical schematic
Diesel electricians pairing Cat ET data with a wiring layout use this 3176B electrical schematic because it ties each fault, such as a 5-volt supply or retarder solenoid code, to the correct PB or PC procedure and ECM connector.
A flash code lets a driver count lamp blinks to identify a fault without a laptop, and this index maps each listed condition to the matching PB or PC procedure number. The cooling fan diagnostic explains the customer parameters and the A/C high pressure circuit that can keep a fan running, and points to an open solenoid or relay when no listed condition is present. The engine sensor open or short circuit test details disconnecting the ECM connector, fitting a jumper and watching whether the code stays active, so the sensor, harness or module is proven at fault before it is replaced and the repair is not wasted.
