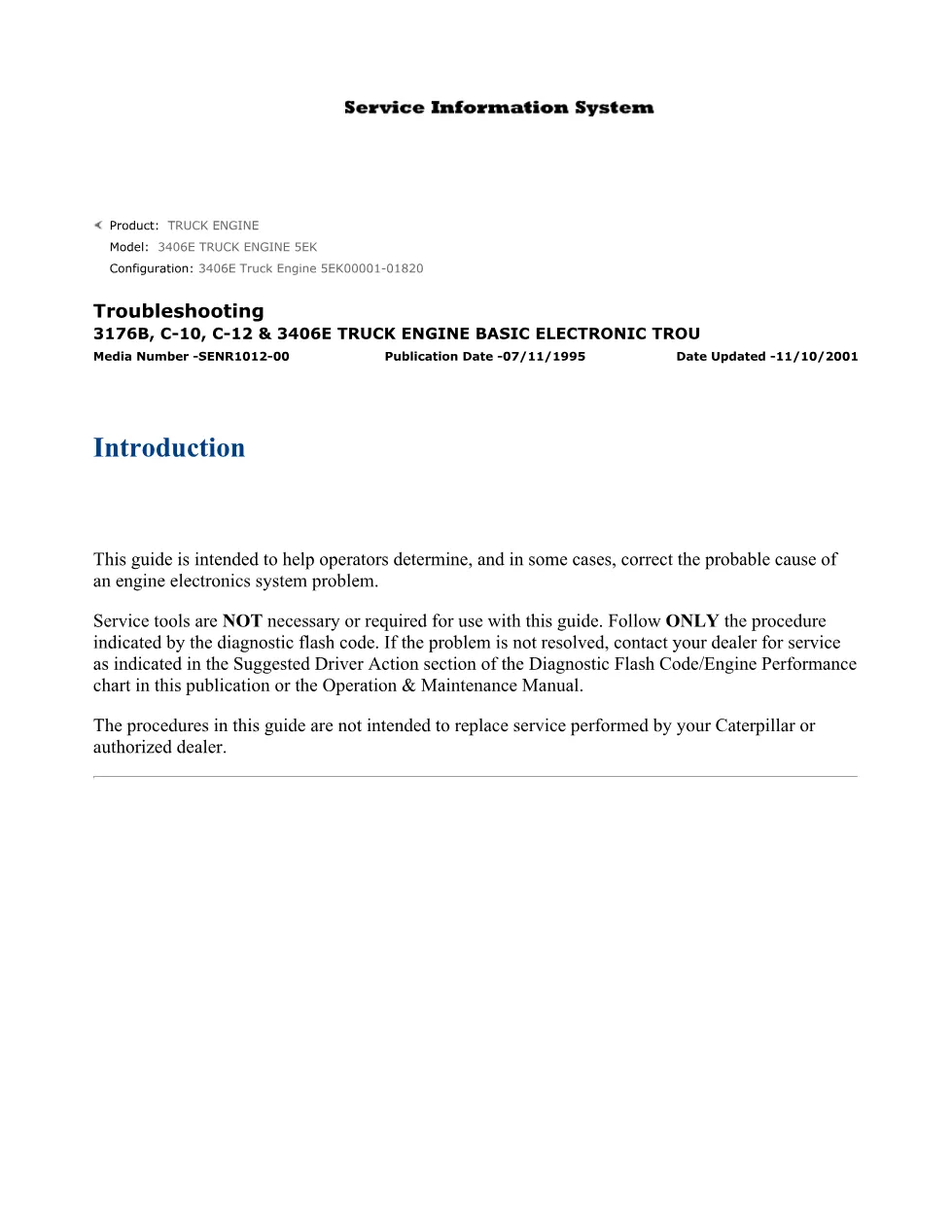

This Caterpillar 3406E troubleshooting guide is the introduction to the Basic Electronic Troubleshooting publication, media number SENR1012-00, for 3176B, C-10, C-12 and 3406E truck engines. It explains how to use diagnostic flash codes to find and, in some cases, correct engine electronics faults.
Official document details
| Brand | Caterpillar (CAT) |
|---|---|
| Engine coverage | 3176B, C-10, C-12, 3406E truck engine |
| Serial example | 3406E Truck Engine 5EK |
| System / Group | Basic Electronic Troubleshooting |
| Media number | SENR1012-00 |
| Publication date | 07/11/1995 (updated 11/10/2001) |
| Pages | 1 |
| File size | 84 KB |
| Format / Language | PDF / English |
Caterpillar 3406E troubleshooting guide table of contents
- Introduction and how to use the guide
- Driver questionnaire
- Determining diagnostic flash codes
- Electrical connector and wiring inspection procedure
- Diagnostic flash code list
- Suggested driver action
Applicable truck models covered
The guide serves Caterpillar 3176B, C-10, C-12 and 3406E truck engines. It states that service tools are not required to use it: the driver or technician follows only the procedure indicated by the flash code, and contacts a dealer if the problem is not resolved. See the manufacturer at Caterpillar.
Who needs the Caterpillar 3406E troubleshooting guide
Owner-operators and roadside technicians reach for this 3406E troubleshooting guide because it lets them read blink-code faults without a laptop and take the correct first action before scheduling authorized dealer repair.
The publication is built around a driver questionnaire and a determining-flash-codes procedure, so a complaint can be narrowed down before any part is ordered. It stresses that the guide does not replace Caterpillar dealer service, and that the technician should follow only the procedure the flash code indicates, running the electrical connector and wiring inspection routine whenever a code points at the harness rather than a sensor. Keeping the media number SENR1012-00 with the engine records helps a shop confirm it is reading the correct revision, since the document carries a 1995 publication date with a 2001 update, and the suggested driver action tells the operator what to do next.
