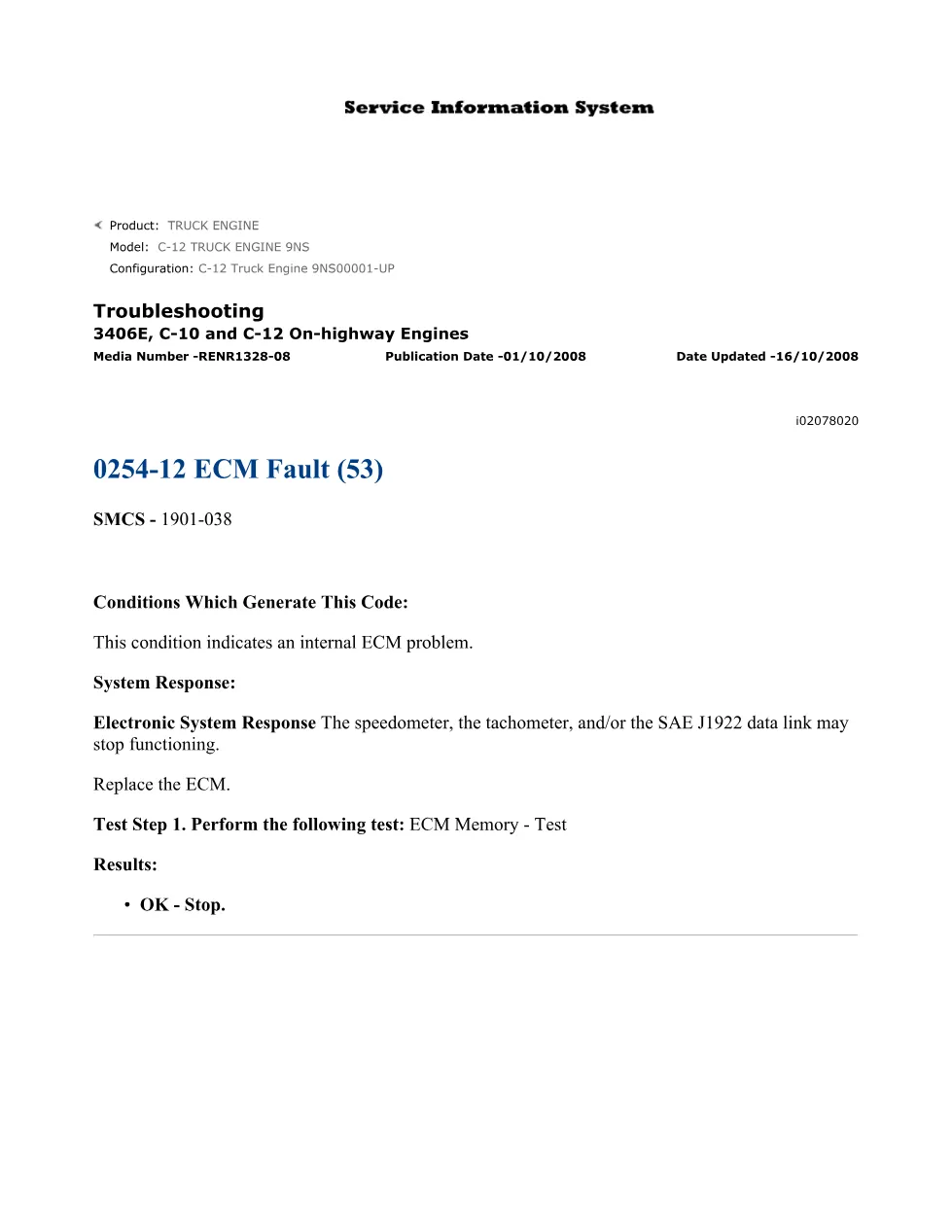

This document is a CAT ECM Fault 53 troubleshooting reference covering diagnostic trouble code 0254-12 for Caterpillar 3406E, C-10, and C-12 on-highway truck engines. It identifies the internal ECM problem condition, describes the electronic system response, and provides the required test procedure for resolving the fault. The guide is published under media number RENR1328-08.
Official CAT ECM Fault 53 document details
| Brand | Caterpillar (CAT) |
| Model coverage | C-12 Truck Engine 9NS (9NS00001-UP); also applies to 3406E, C-10 engines (8YS, 9NS, 5DS, 1LW prefixes) |
| System / Group | DTCs — SMCS 1901-038 (Electronic Control Module diagnostics) |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code — describes the internal ECM problem that triggers DTC 0254-12
- System Response — details how the speedometer, tachometer, and SAE J1922 data link may stop functioning
- Replace the ECM — directive action when the fault is confirmed
- Test Step 1: ECM Memory – Test — verification procedure and expected results
Applicable truck models
This troubleshooting page applies to Caterpillar on-highway truck engines in the 3406E, C-10, and C-12 families. The specific configuration listed is the C-12 Truck Engine serial prefix 9NS (9NS00001-UP), but the publication also references serial prefixes 8YS, 5DS, and 1LW. These engines were widely installed in Class 8 trucks from multiple OEMs. Mechanics working on any vehicle equipped with these CAT powertrains should consult this document when DTC 0254-12 appears. For additional technical resources and parts information, visit Caterpillar’s official support page.
Who needs this ECM Fault 53 manual
Fleet mechanics, independent diesel technicians, and workshop owners diagnosing an internal ECM fault on 3406E, C-10, or C-12 engines need this reference. It is essential when the electronic system reports code 0254-12 and instruments such as the speedometer or tachometer become non-functional.
