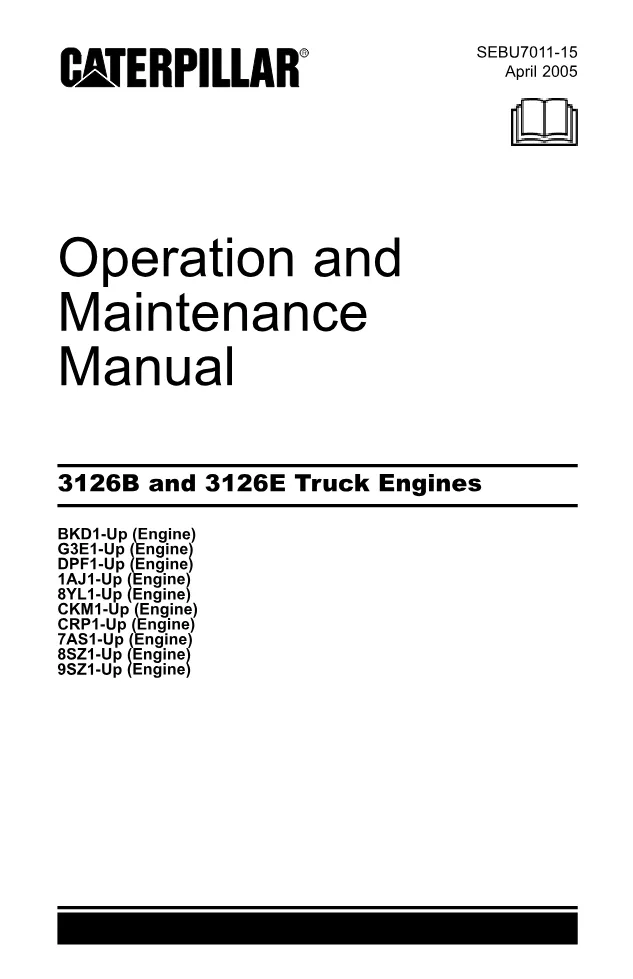

This CAT 3126B 3126E manual is the official Caterpillar Operation and Maintenance Manual (SEBU7011-15) for 3126B and 3126E truck engines. It spans 230 pages and covers safety, engine operation, diagnostics, maintenance intervals, cooling system service, cold weather operation, and warranty information.
Official CAT 3126B 3126E manual document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3126B and 3126E Truck Engines |
| Engine serial number prefixes | BKD1-Up, G3E1-Up, DPF1-Up, 1AJ1-Up, 8YL1-Up, CKM1-Up, CRP1-Up, 7AS1-Up, 8SZ1-Up, 9SZ1-Up |
| System / Group | 3126B & 3126E / Manuals |
| Publication no. | SEBU7011-15 |
| Year / Revision | April 2005 |
| Pages | 230 |
| File size | 1.0 MB |
| Format | |
| Language | English |

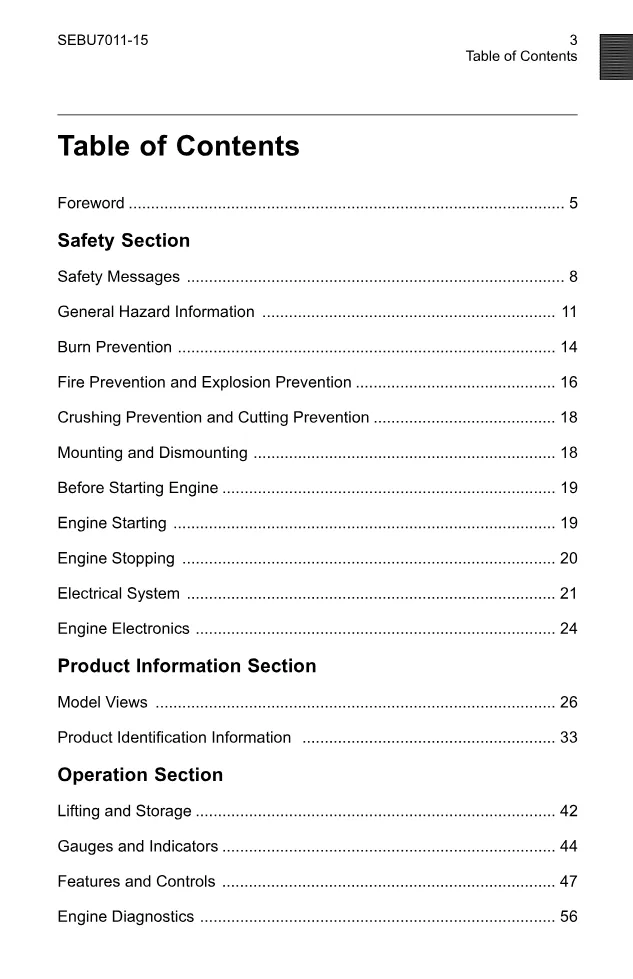

Document table of contents
- Foreword

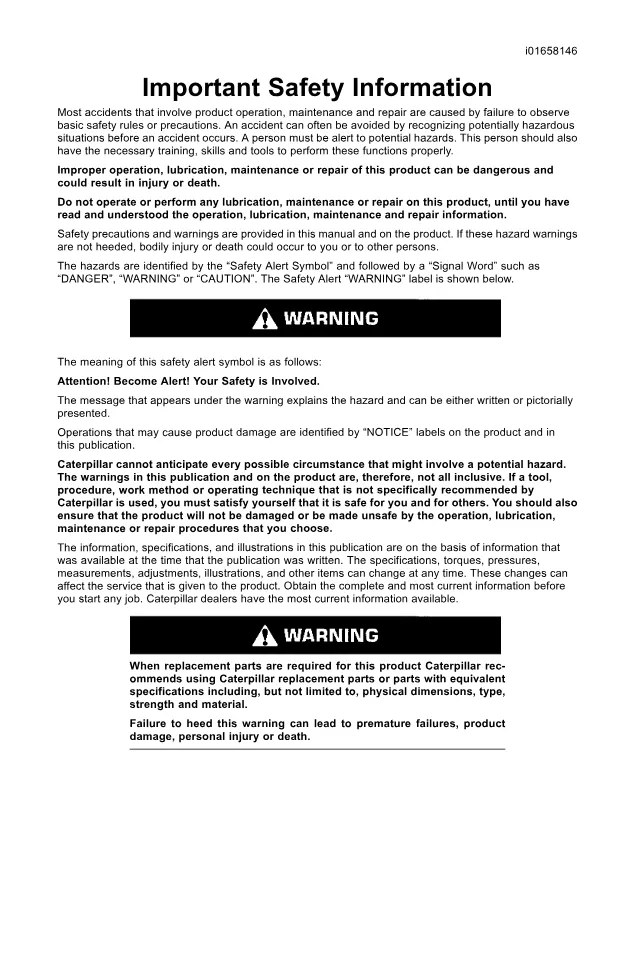

- Safety Section — Safety Messages, General Hazard Information, Burn Prevention, Fire Prevention and Explosion Prevention, Crushing Prevention and Cutting Prevention, Mounting and Dismounting, Before Starting Engine, Engine Starting, Engine Stopping, Electrical System, Engine Electronics
- Product Information Section — Model Views, Product Identification Information
- Operation Section — Lifting and Storage, Gauges and Indicators, Features and Controls, Engine Diagnostics, Engine Starting, Engine Operation, Engine Stopping, Cold Weather Operation
- Maintenance Section — Refill Capacities, Maintenance Interval Schedule (Deep Oil Sump), Maintenance Interval Schedule (Shallow Oil Sump), Cooling System Supplemental Coolant Additive (SCA) Test/Add, Starting Motor Inspect, Water Pump Inspect
- Warranty Section — Warranty Information
- Reference Information Section — Customer Service
- Index Section
Applicable truck models
This manual applies to Caterpillar 3126B and 3126E diesel truck engines across ten serial number prefix groups (BKD1, G3E1, DPF1, 1AJ1, 8YL1, CKM1, CRP1, 7AS1, 8SZ1, 9SZ1). These engines were widely installed in medium-duty on-highway and vocational trucks. The document details sensor systems including the Atmospheric Pressure Sensor (0–116 kPa operating range) and the Boost Pressure Sensor used for air/fuel ratio and transient smoke control via the Electronic Control Module (ECM). It also addresses fuel considerations for No. 1 and No. 2 diesel fuel, cloud point and pour point properties, and conditions that shorten maintenance intervals such as high altitude operation above 1525 m (5000 ft), low idle exceeding 20%, and cold starts below −18 °C (0 °F). For additional Caterpillar technical resources, visit Caterpillar Support.
Who needs this CAT 3126B 3126E manual
Diesel mechanics, fleet technicians, and workshop owners maintaining Caterpillar 3126B or 3126E powered trucks need this document for correct engine diagnostics, scheduled maintenance procedures, coolant additive testing (SCA concentration with 8T-5296 or 4C-9301 test kits), and safe operating practices. It is also essential for operators requiring cold weather fuel guidance and proper engine starting and stopping sequences.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
