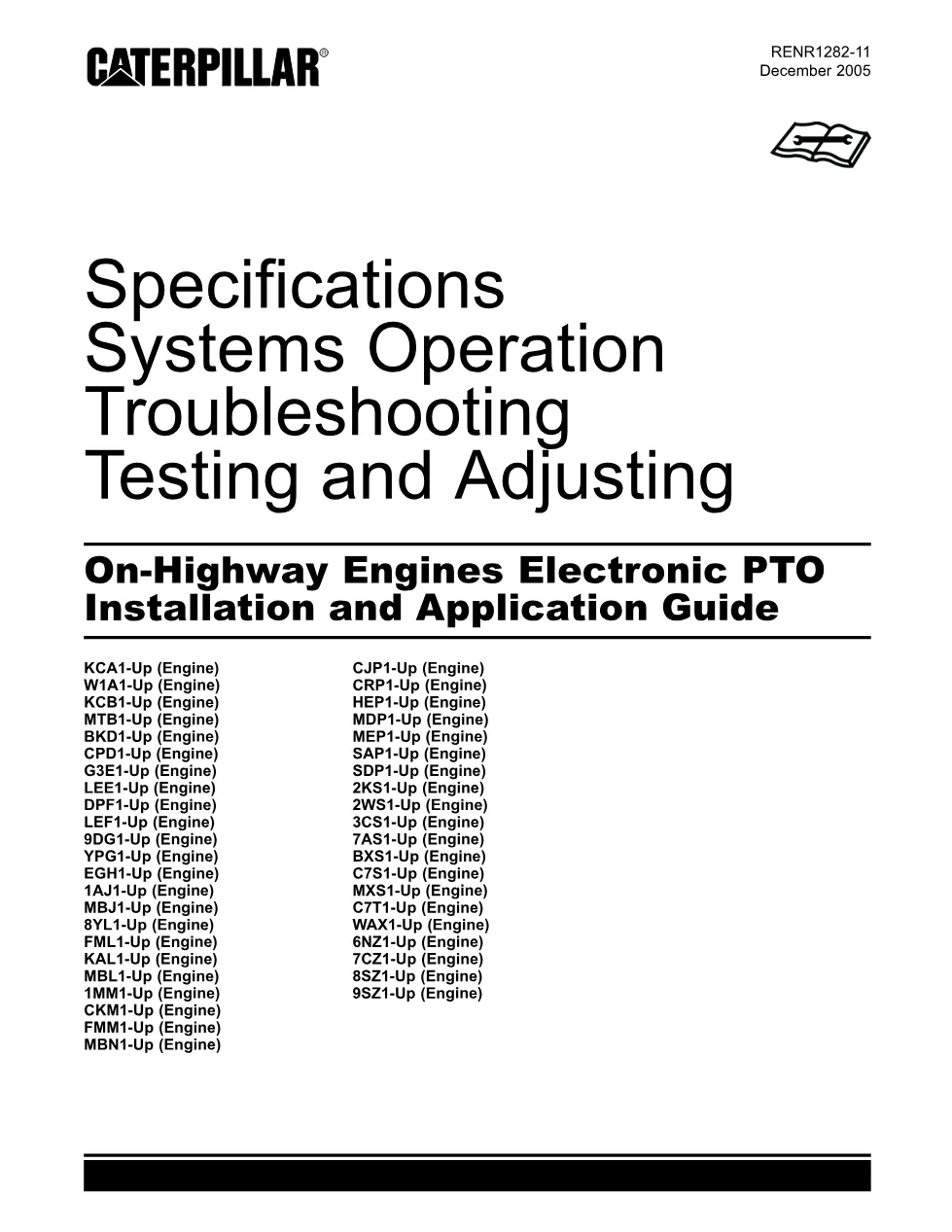

This CAT PTO electronic guide is the official Caterpillar publication RENR1282-11 covering specifications, systems operation, troubleshooting, and testing procedures for the Electronic Power Take-Off (PTO) installation on on-highway engines. It spans 112 pages and addresses switch selection, wiring harness specifications, programmable parameters, diagnostic codes, and step-by-step functional tests for PTO circuits.
Official CAT PTO electronic guide document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3126B, 3126E, 3406E, C-10, C11, C-12, C13, C15, C-15, C-16, C-18 and related serial-number prefixes (KCA1-Up through 9SZ1-Up) |
| System / Group | Electronic PTO — Installation and Application Guide |
| Publication no. | RENR1282-11 |
| Year / Revision | December 2005 |
| Pages | 112 |
| File size | 1.0 MB |
| Format | |
| Language | English |
Document table of contents

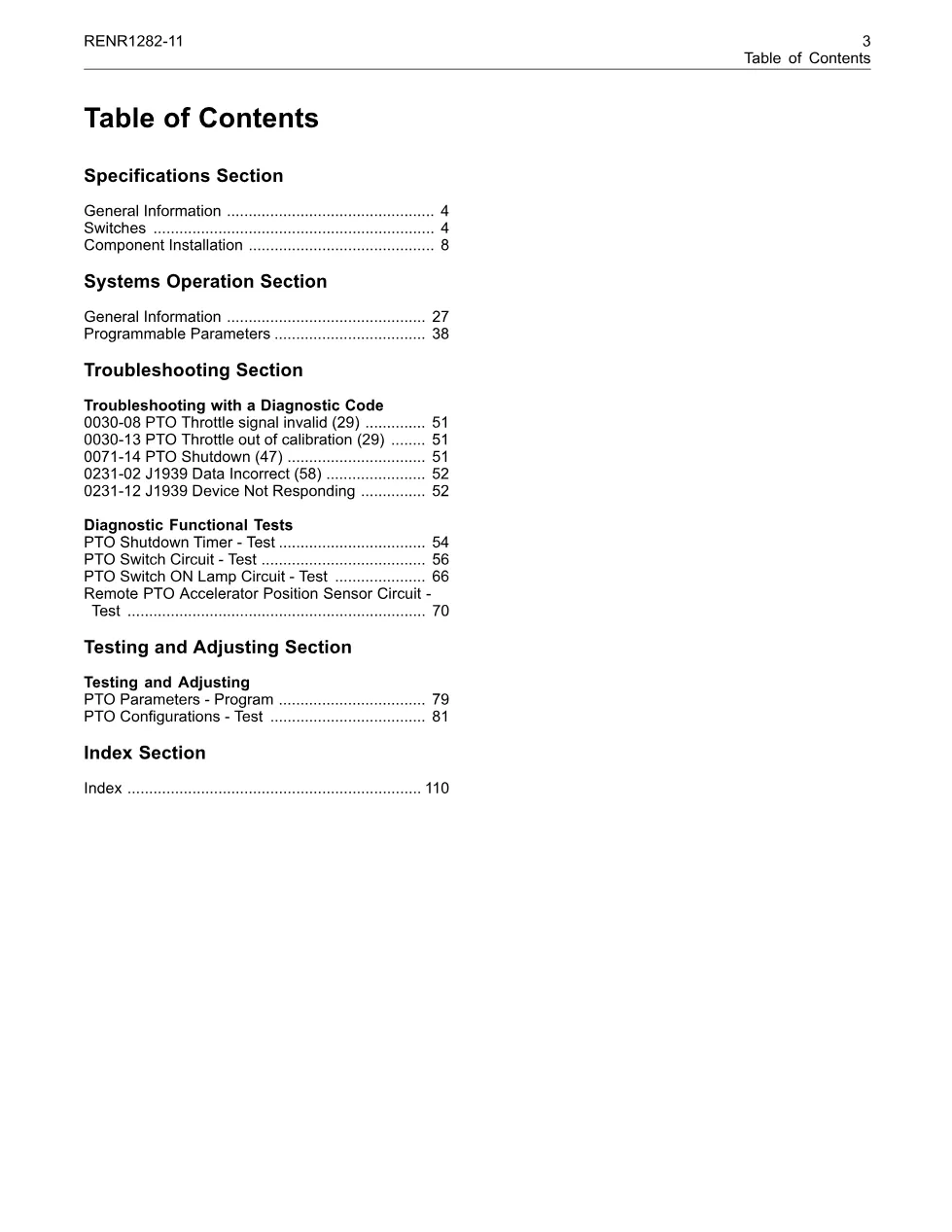

- Specifications Section — General Information, Switch Electrical Specifications, Selecting a Switch Type, Specifications for the Harness, Electrical Specifications for the Remote Accelerator Pedal Position Sensor, Component Installation
- Systems Operation Section — General Information, Programmable Parameters
- Troubleshooting Section — Diagnostic Codes 0030-08, 0030-13, 0071-14, 0231-02, 0231-12
- Diagnostic Functional Tests — PTO Shutdown Timer Test, PTO Switch Circuit Test, PTO Switch ON Lamp Circuit Test, Remote PTO Accelerator Position Sensor Circuit Test
- Testing and Adjusting Section — PTO Parameters Program, PTO Configurations Test
- Index Section
Applicable truck models
This publication applies to Caterpillar on-highway engines including the 3126B, 3126E, 3406E, C-10, C11, C-12, C13, C15, C-15, C-16, and C-18 engine families. Over 40 engine serial-number prefixes are listed, from KCA1-Up through 9SZ1-Up. The guide covers dedicated PTO mode operation, fast idle configurations, PTO shutdown timer behavior, accelerator position sensor integration, and RPM set-speed programming. PTO Top Engine Limit and engine RPM set-speed examples are provided for workshop reference. The PTO shutdown timer generates event code 71-14 (47) and cannot be overridden by clutch or brake pedal input. For additional Caterpillar technical resources visit the official Caterpillar website.
Who needs this CAT PTO electronic guide manual
Truck technicians, fleet mechanics, and workshop owners installing or diagnosing Electronic PTO systems on Caterpillar on-highway engines will find this manual essential. It provides wiring specifications, switch selection criteria, ECM parameter programming procedures, and diagnostic code troubleshooting required to correctly set up and maintain PTO operations.
The full 112-page PDF is available in the DiagTechPro manuals library, free account required to download.
