This CAT 3126 troubleshooting manual is the official Caterpillar service document (RENR1367-11) for diagnosing and repairing electronic and mechanical faults on 3126B and 3126E on-highway diesel engines. It spans 412 pages and covers diagnostic codes, sensor circuit tests, ECM programming, and systematic fault-finding procedures for mechanics and workshop technicians.
Official CAT 3126 troubleshooting manual document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3126B and 3126E On-highway Engines |
| System / Group | Troubleshooting — Electronic and Mechanical Diagnostics |
| Publication no. | RENR1367-11 |
| Year / Revision | November 2005 |
| Pages | 412 |
| File size | 4.3 MB |
| Format | |
| Language | English |
Document table of contents

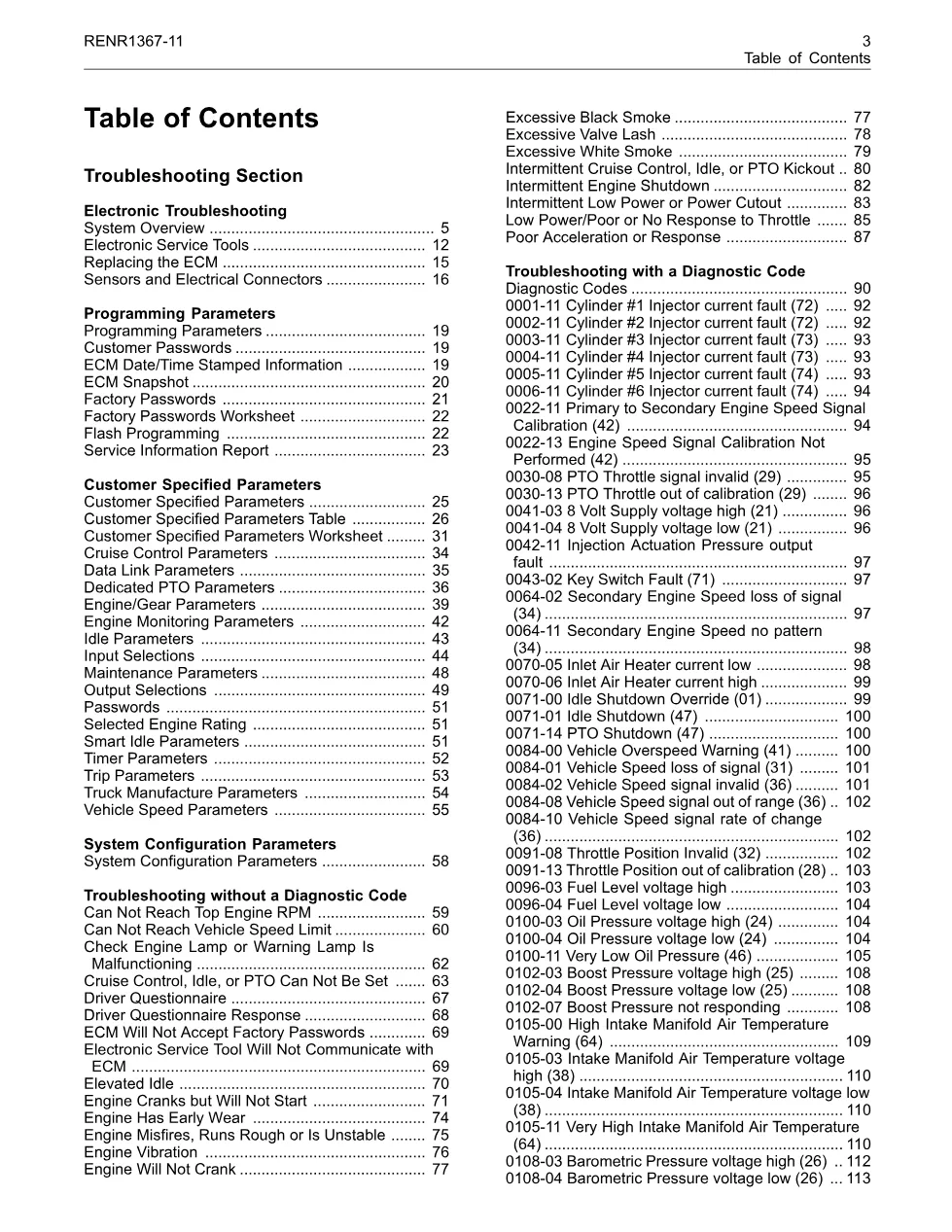

- System Overview
- Electronic Service Tools
- Replacing the ECM
- Sensors and Electrical Connectors
- Programming Parameters (Customer Passwords, ECM Snapshot, Flash Programming, Factory Passwords)
- Customer Specified Parameters (Cruise Control, Data Link, Dedicated PTO, Engine/Gear, Idle, Maintenance, Vehicle Speed Parameters)
- System Configuration Parameters
- Troubleshooting without a Diagnostic Code (Can Not Reach Top Engine RPM, Check Engine Lamp, Cruise Control / Idle / PTO faults, Driver Questionnaire)
- Injection Actuation Pressure — Test
- Injection Actuation Pressure Sensor — Test
- ECM Memory — Test
- Theft Deterrent System
- Cat ET Data Link and Bypass Harness Tests
- Temperature and Pressure Sensor Circuit Tests
- Neutral Switch Circuit — Test
- Dedicated PTO Circuit — Test (Cab Switches, Remote Switches, Remote Throttle configurations)
- Vehicle Speed and Speedometer Circuit — Test
- Vehicle Speed Circuit — Calibrate
- Wait To Start Lamp Circuit — Test
- Warning Lamp Circuit — Test
Applicable truck models
This document applies to Caterpillar 3126B and 3126E on-highway engines across multiple serial number prefixes: BKD1-Up, G3E1-Up, DPF1-Up, 1AJ1-Up, 8YL1-Up, CKM1-Up, CRP1-Up, 7AS1-Up, 8SZ1-Up, and 9SZ1-Up. These engines were widely installed in medium-duty trucks, school buses, and vocational vehicles. For current parts and support information, visit the Caterpillar official support page.
Who needs this CAT 3126 troubleshooting manual
Diesel mechanics, fleet maintenance technicians, and workshop owners servicing vehicles equipped with CAT 3126B or 3126E engines will use this manual daily. It is essential for anyone performing electronic diagnostics with Cat ET, tracing wiring harness faults, testing sensor circuits, or resolving no-start and low-power complaints on these engines.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
