Troubleshooting without diagnostic code is the section of Caterpillar manual SENR5582-06 that handles symptoms on the 3176B, C-10, C-12 and 3406E truck engines when the ECM logs no fault. It is a set of “PA” procedures that guide the technician through problems that are real but do not trip a code, which are often the hardest complaints to close out.
Starting with the driver — troubleshooting without diagnostic

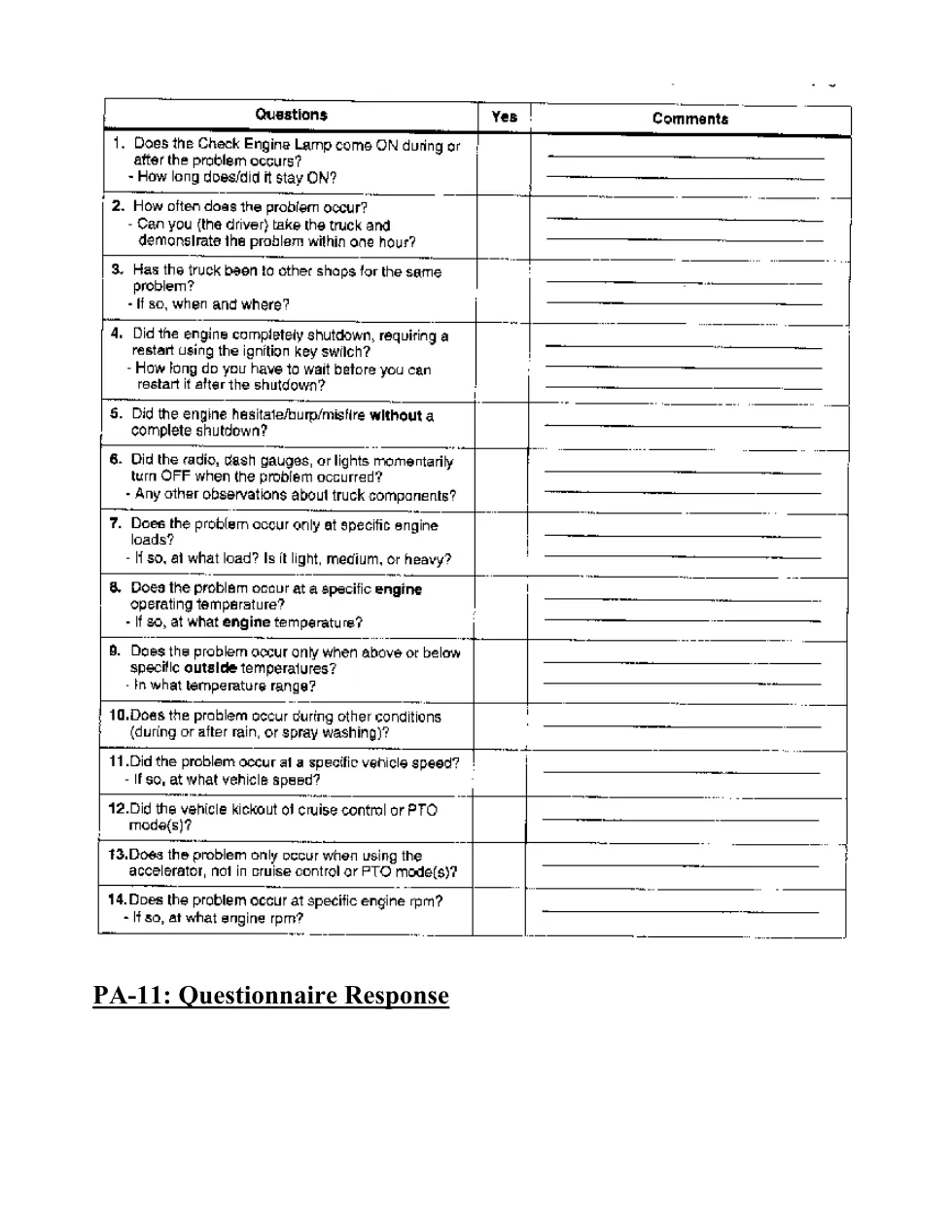

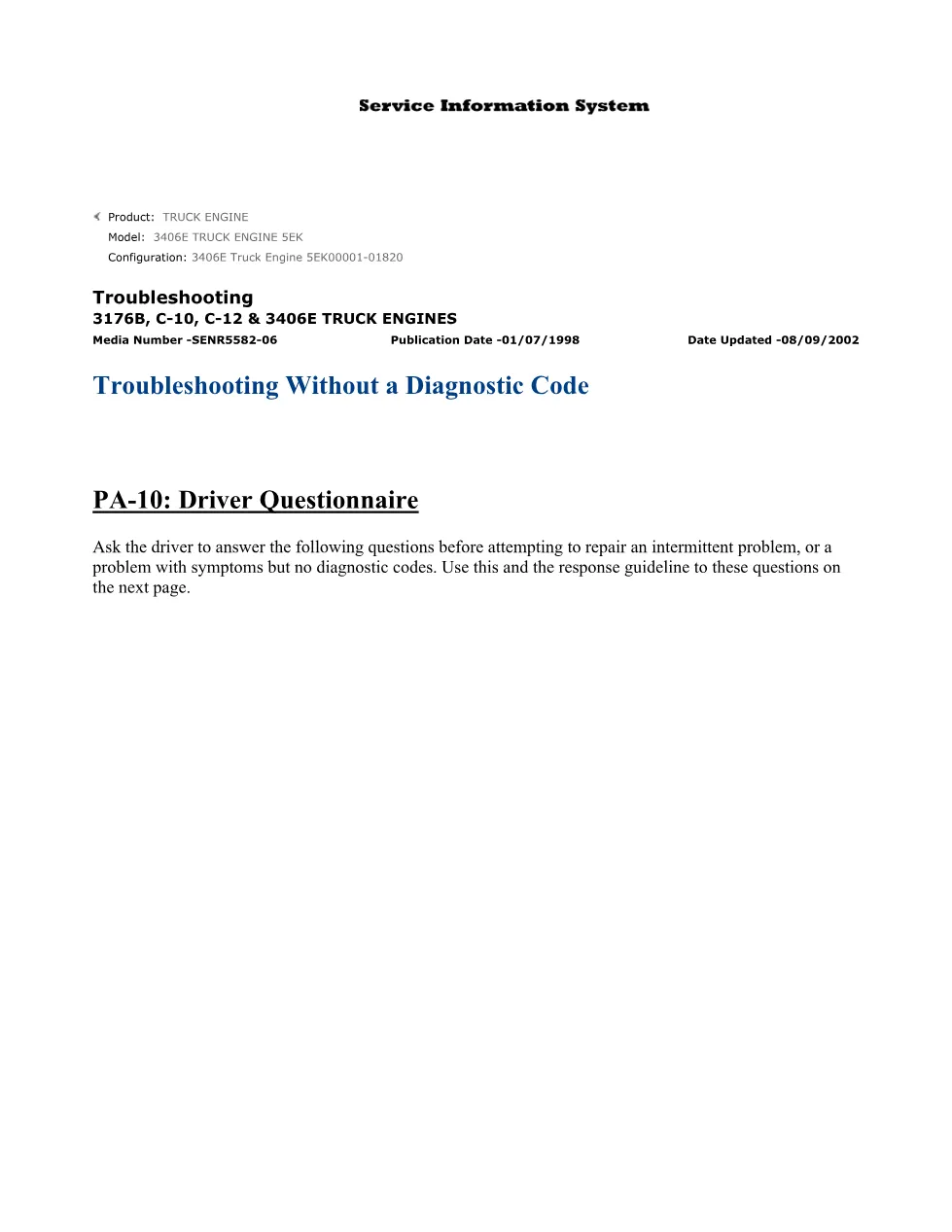

The section opens with PA-10, a driver questionnaire, and PA-11, the response guideline. Because an intermittent complaint often leaves no trace, this troubleshooting without diagnostic code approach begins by capturing exactly what the driver observed — when the symptom appears, at what speed or load, and whether the check-engine lamp came on — before any parts are touched.
Symptom procedures included — troubleshooting without diagnostic
The manual then works through a structured list of PA procedures, each keyed to a described behaviour:
- PA-13 — intermittent cruise control or PTO drop-out/kickout
- PA-15 — electronic service tool will not communicate with the ECM
- PA-16 — ECM will not accept factory passwords
- PA-18 / PA-19 — engine will not crank, or cranks but will not start
- PA-20 — engine misfires, runs rough or is unstable
- PA-21 — consistent low power or poor response to the accelerator
- PA-22 — intermittent engine shutdowns
How the procedures work
Each PA procedure is a symptom tree that narrows the cause from a reported behaviour down to a testable circuit or component, so without diagnostic code stays methodical instead of turning into parts-swapping. The section runs to twenty-nine pages, which is a measure of how many no-code complaints these engines can present.
Document details manual information
This section belongs to the SENR5582-06 set from Caterpillar, dated 01/07/1998 and updated 08/09/2002. Used with the driver questionnaire, it gives a workshop a repeatable way to attack faults that leave the code memory empty. Corporate information is at the Caterpillar website. Related sections are listed in the DiagTechPro manuals library.
