These Caterpillar engine glossary terms come from the troubleshooting manual SENR5582-06 for the 3176B, C-10, C-12 and 3406E truck engines. The glossary defines the vocabulary a technician meets throughout the diagnostic procedures, so that the terms used in fault trees and on the ECM screen are understood the same way by everyone working on the engine.
Why a glossary matters — Caterpillar engine glossary
Caterpillar electronic engine troubleshooting relies on precise language: an “active” code means something different from a “logged” code, and a data link has a specific electrical definition. Reading these Caterpillar engine glossary terms first prevents a technician from misreading a procedure step and chasing the wrong circuit, which is easy to do when abbreviations look alike or a word carries a special meaning in the manual.
Sample definitions in the manual — Caterpillar engine glossary

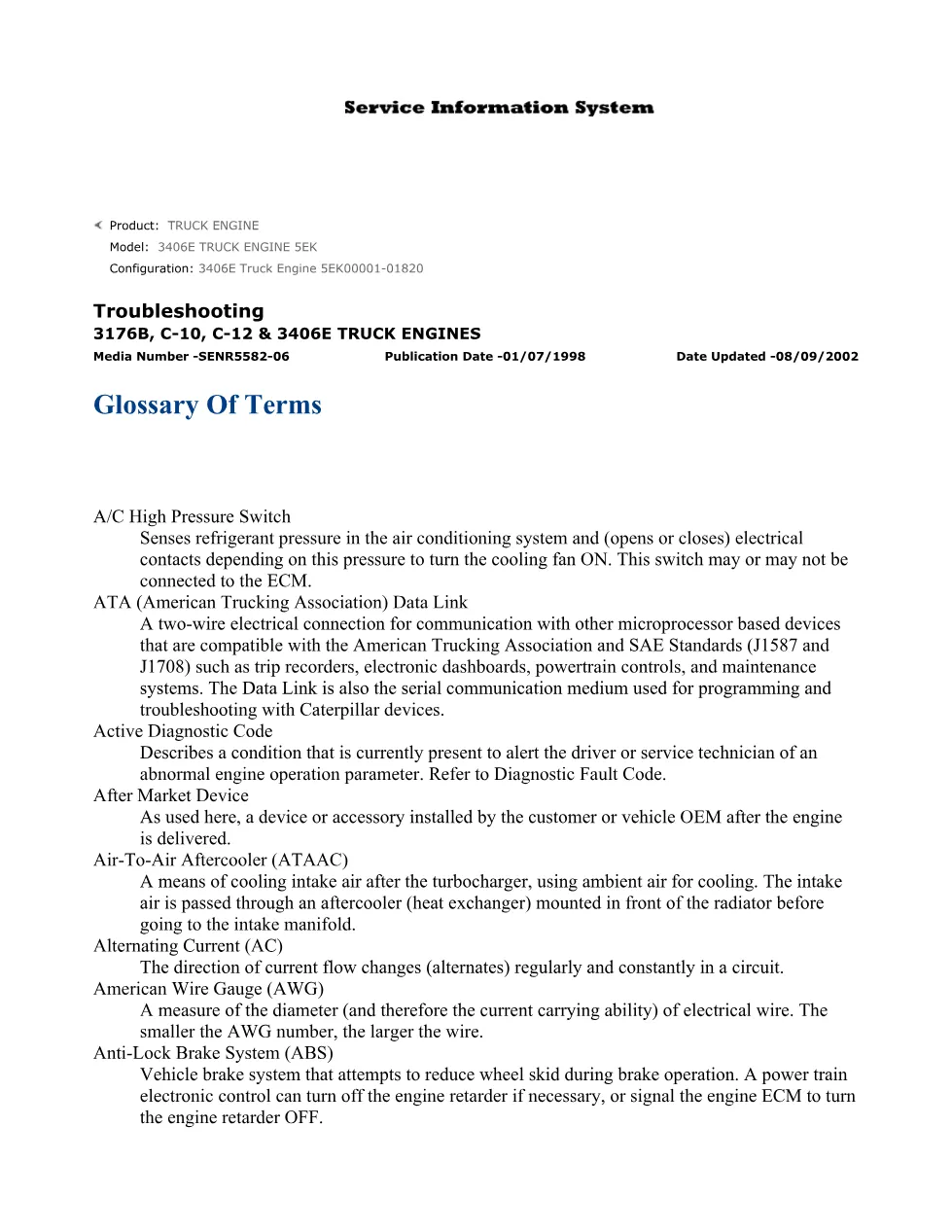

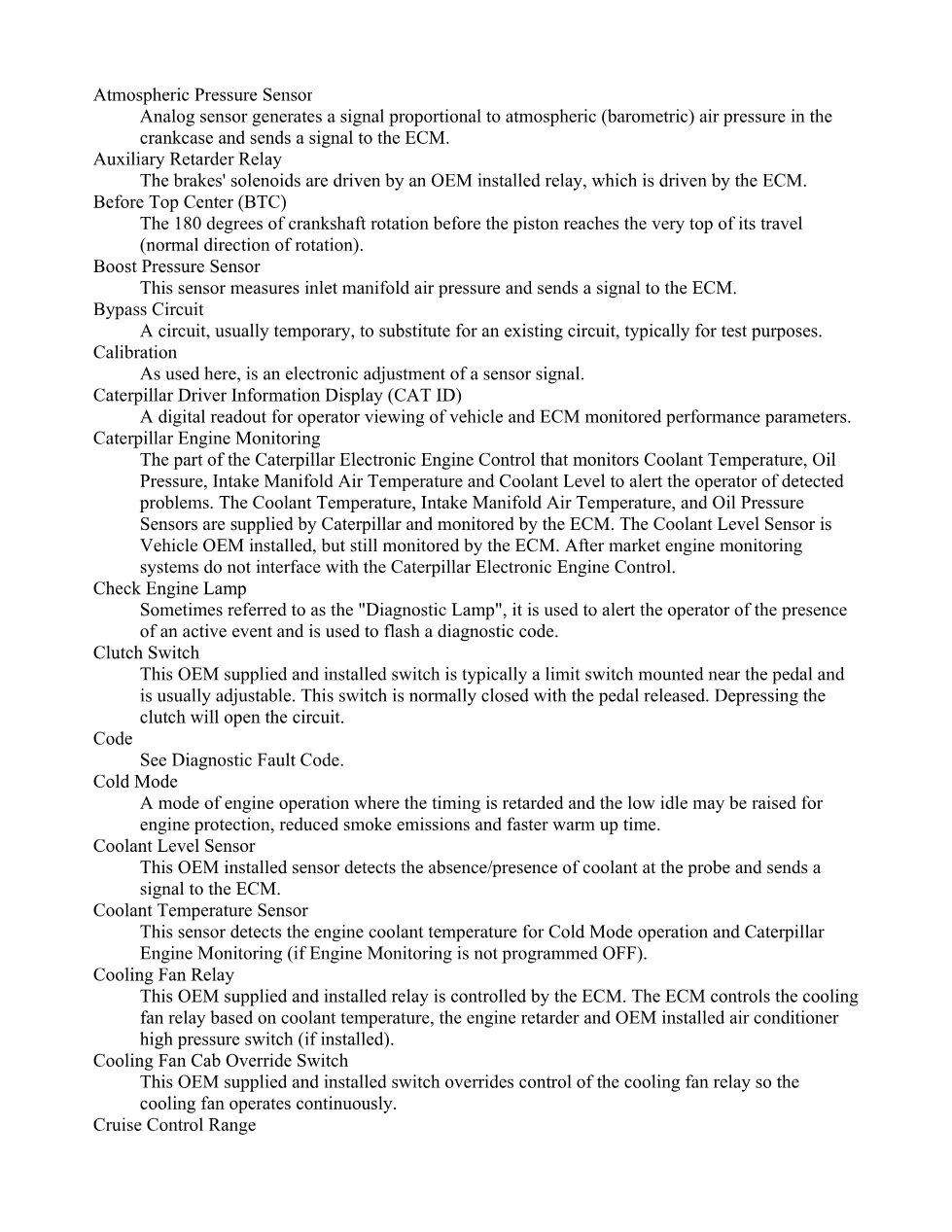

- A/C High Pressure Switch — senses refrigerant pressure and opens or closes contacts to turn the cooling fan on; it may or may not connect to the ECM.
- ATA Data Link — a two-wire connection compatible with SAE J1587 and J1708 for communication with trip recorders, electronic dashboards, powertrain controls and Caterpillar service tools.
- Active Diagnostic Code — describes a condition currently present, alerting the driver or technician to an abnormal engine parameter.
- After Market Device — an accessory installed by the customer that is not part of the base engine.
Using the glossary
Keep this reference open alongside the fault procedures for the 3406E and its C-10 and C-12 relatives, and check any unfamiliar term before acting on a step. Because the definitions align with the rest of the set, the Caterpillar engine glossary terms make the whole SENR5582-06 manual easier and safer to follow, especially for a technician new to these engines.
