This page covers the Detroit fault code SPN 5246 FMI 15, Regulatory Fault Ignored – Derate On, on DD Platform engines. It explains the government-mandated inducement and lists the underlying emissions faults that must be repaired.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD13, DD15 and DD16 (DD Platform) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Source | TruckFaultCodes.com |
| Year / Revision | 2017 (EPA10 / GHG14) |
| Pages | 2 |
| File size | 0.30 MB |
| Format | |
| Language | English |
SPN 5246 FMI 15 table of contents
- Regulatory inducement description
- EPA10 note and SPN 3361 redirect
- List of triggering emissions faults
- DEF and SCR sensor fault references
- Required SCR Efficiency Test

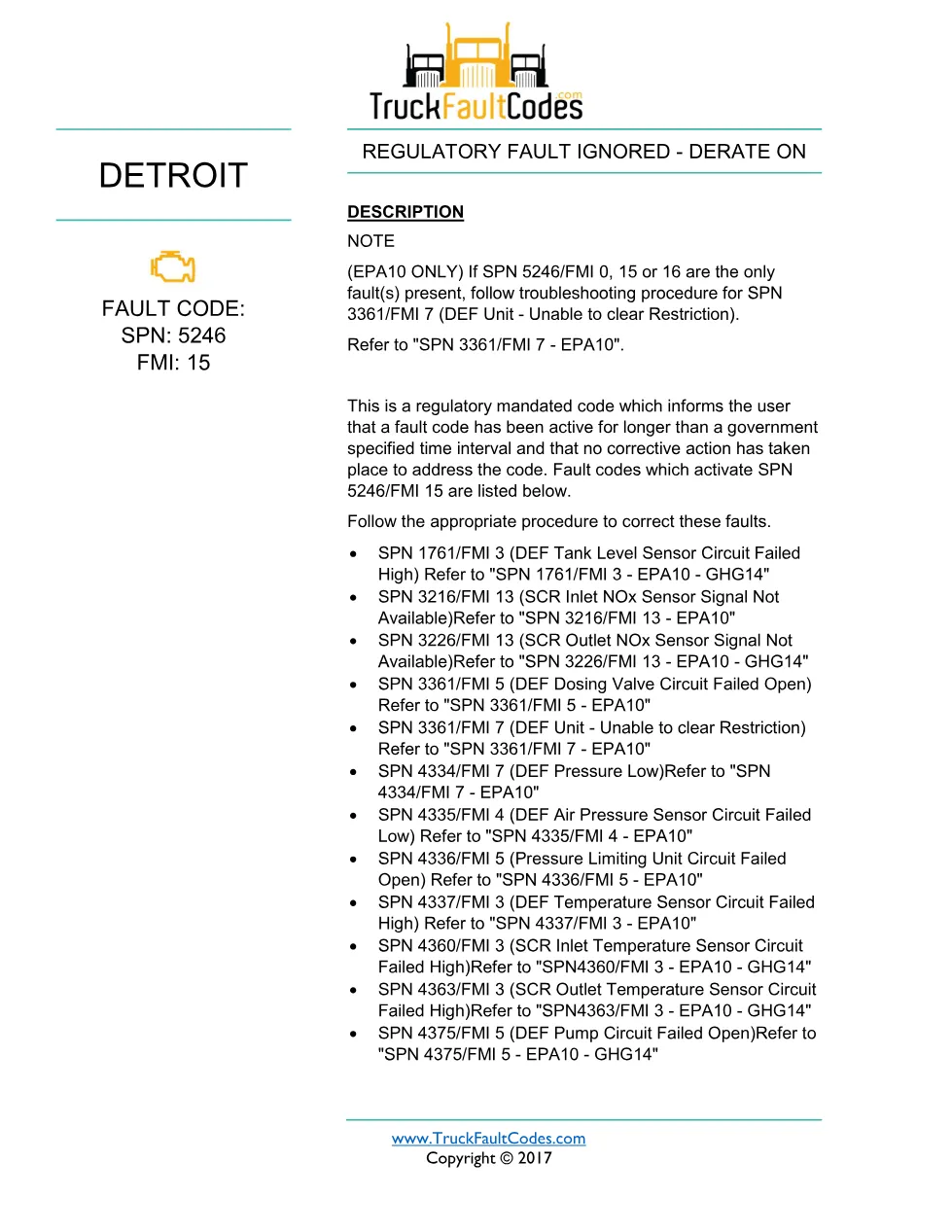

This is a regulatory mandated code that informs the operator an emissions fault has been active longer than a government-specified interval with no corrective action taken. It is not repaired on its own – the technician must find and fix the parent fault.
On EPA10 engines, if SPN 5246/FMI 0, 15 or 16 are the only faults present, the guide directs you to the SPN 3361/FMI 7 procedure (DEF Unit unable to clear restriction). Otherwise it lists the triggering codes, including DEF tank level, SCR inlet and outlet NOx sensors, DEF dosing valve, DEF pressure, air pressure, temperature sensors, SCR inlet and outlet temperature sensors, and the DEF pump.
Applicable truck models

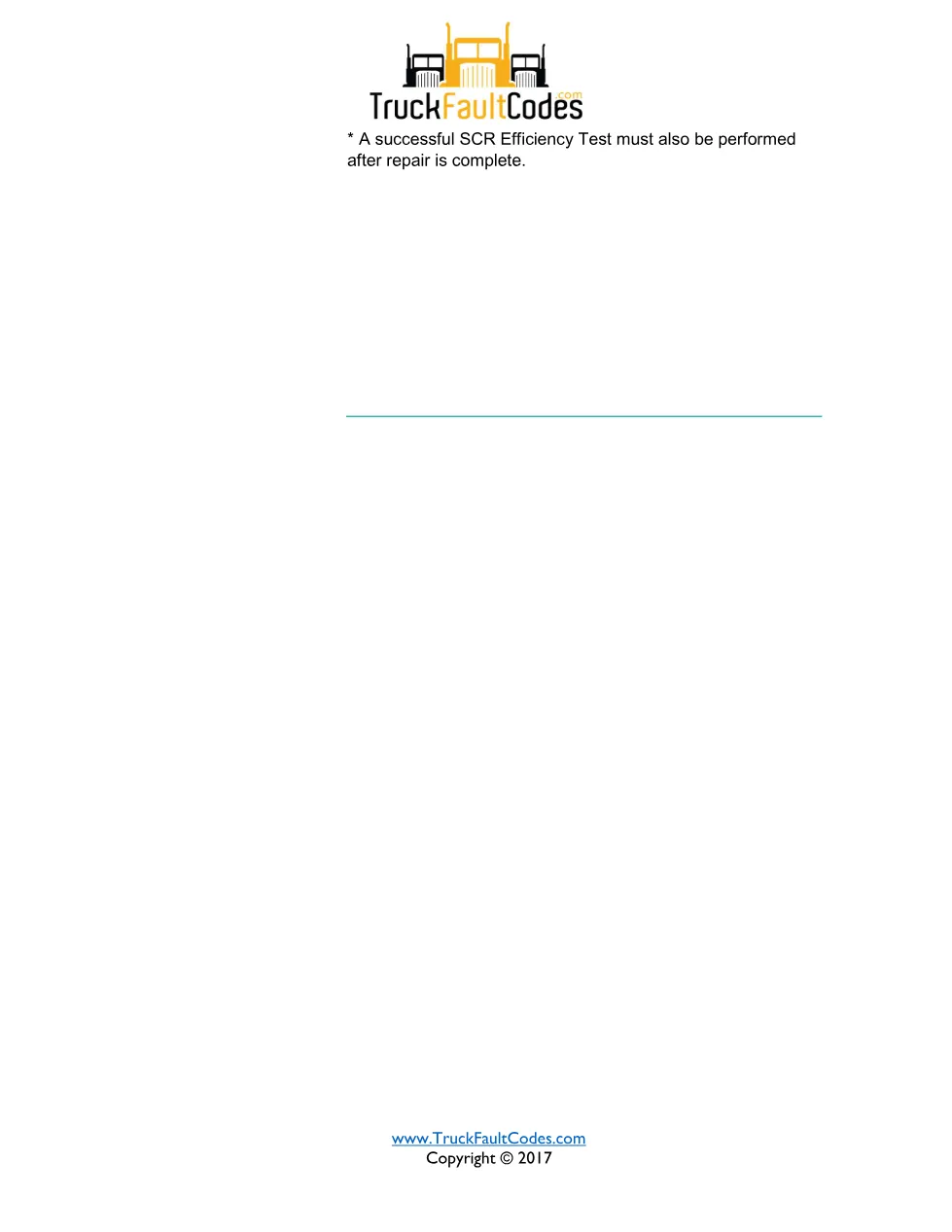

This document applies to Detroit DD13, DD15 and DD16 engines on EPA10 and GHG14 aftertreatment. Each triggering fault has its own referenced procedure, and a successful SCR Efficiency Test must be performed after the repair. For manufacturer support, visit Detroit’s official website.
Who needs this SPN 5246 FMI 15 manual
Technicians facing an emissions derate on DD Series trucks use this reference to understand that the inducement clears only after the parent DEF or SCR fault is repaired and the efficiency test passes.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
