This page covers the Detroit fault code SPN 5246 FMI 16, Regulatory Fault Ignored – Final Action Pending, on DD Platform engines. It explains the escalating emissions inducement and lists the parent faults that must be corrected.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD13, DD15 and DD16 (DD Platform) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Source | TruckFaultCodes.com |
| Year / Revision | 2017 (EPA10 / GHG14) |
| Pages | 2 |
| File size | 0.30 MB |
| Format | |
| Language | English |
SPN 5246 FMI 16 table of contents
- Regulatory inducement description
- EPA10 note and SPN 3361 redirect
- List of triggering emissions faults
- DEF and SCR sensor fault references
- Required SCR Efficiency Test

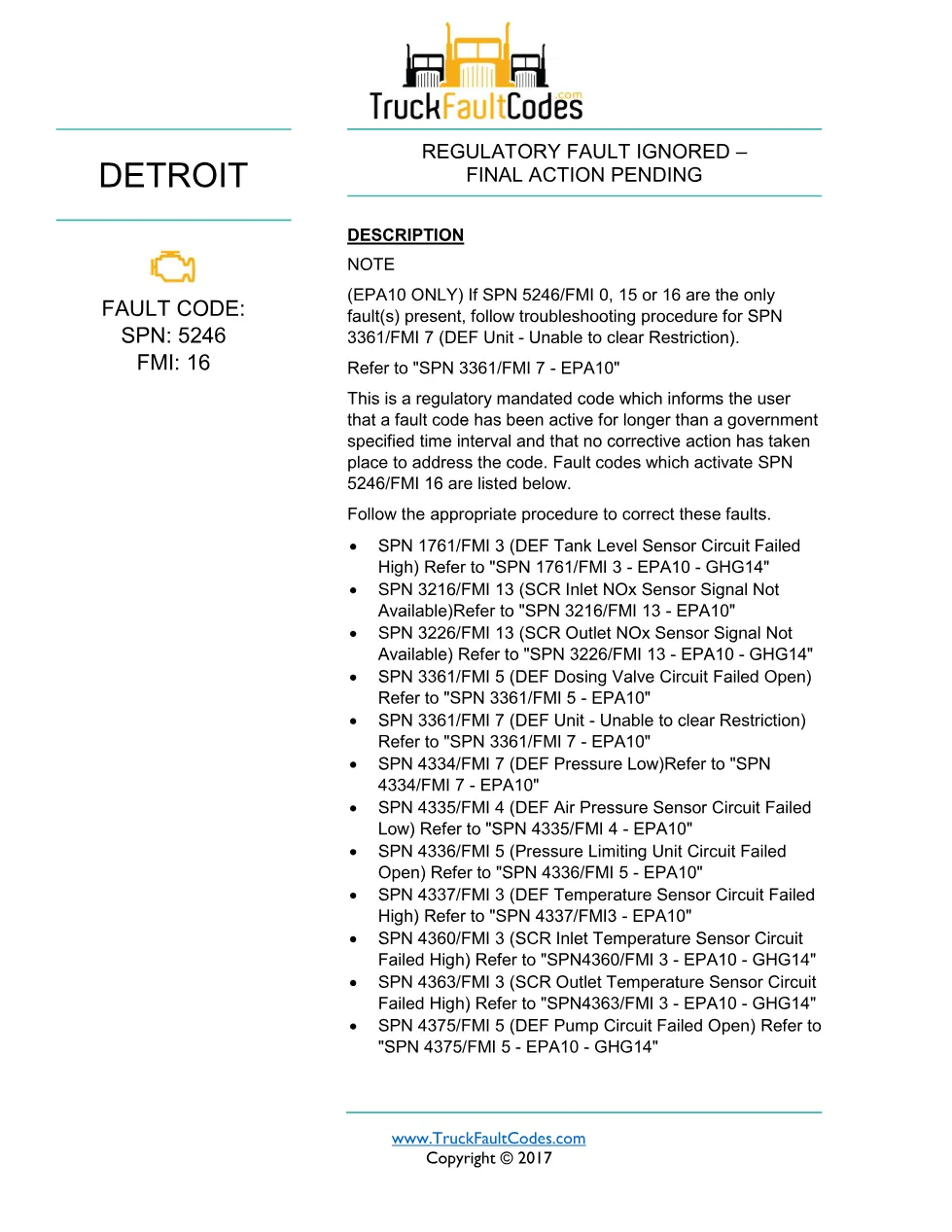

This is a regulatory mandated code indicating an emissions fault has been active beyond a government-specified interval with no corrective action – the “final action pending” stage warns that a stronger inducement is imminent. The code clears only when the underlying fault is repaired.
On EPA10 engines, if SPN 5246/FMI 0, 15 or 16 are the only faults present, follow the SPN 3361/FMI 7 procedure (DEF unit unable to clear restriction). Otherwise the guide lists the triggering codes: DEF tank level sensor, SCR inlet and outlet NOx sensors, DEF dosing valve, DEF pressure, DEF air pressure sensor, pressure limiting unit, DEF and SCR temperature sensors, and the DEF pump.
Applicable truck models

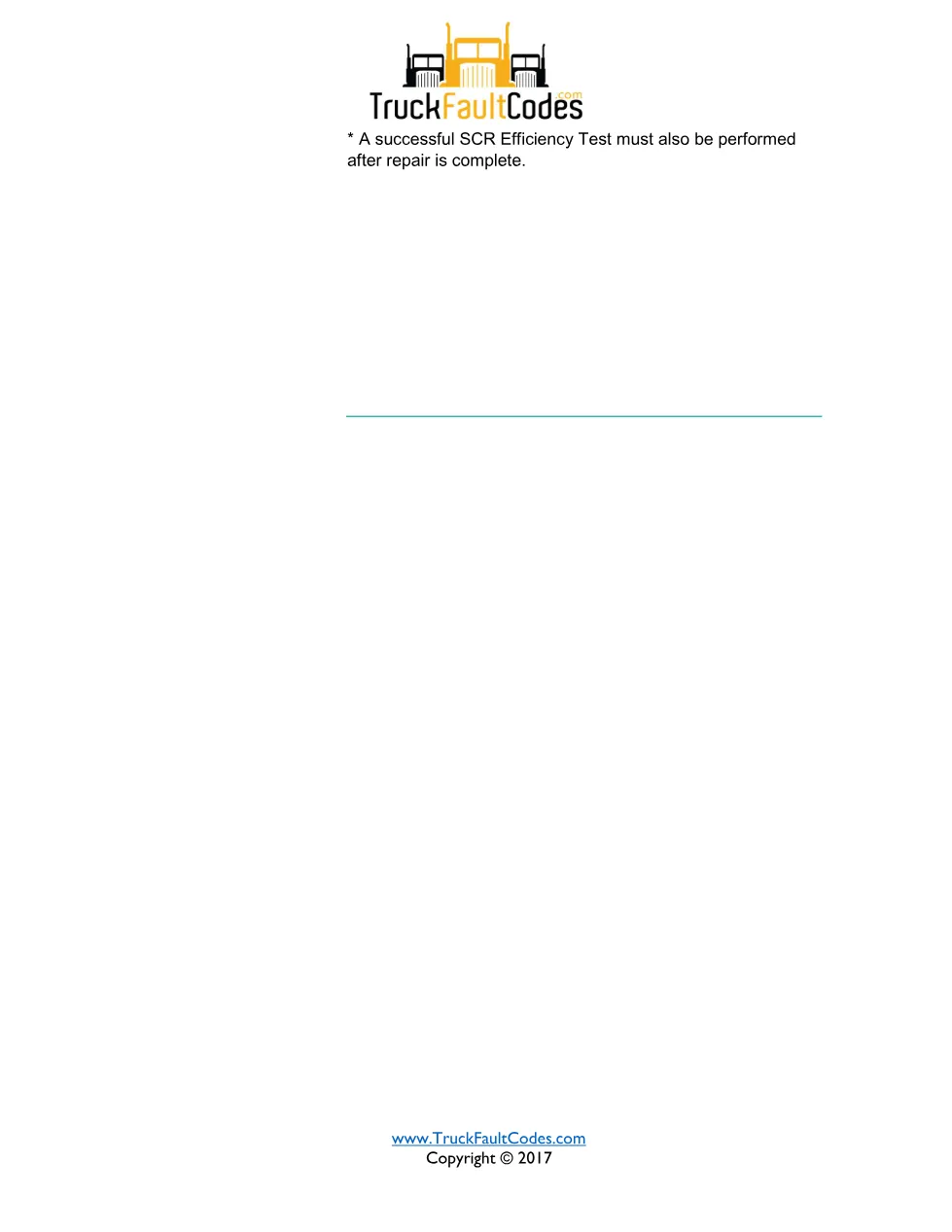

This document applies to Detroit DD13, DD15 and DD16 engines on EPA10 and GHG14 aftertreatment. Each parent fault has its own procedure, and a successful SCR Efficiency Test is required after repair. Manufacturer resources are available at Detroit’s official website.
Who needs this SPN 5246 FMI 16 manual
Technicians seeing an escalating emissions inducement on DD Series trucks use this reference to identify the parent DEF or SCR fault and confirm the efficiency test before releasing the vehicle.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
