The PACCAR P1203B DTC troubleshooting guide is a comprehensive technical document published by PACCAR for diagnosing cylinder 1 injector solenoid faults on MX-series diesel engines compliant with EPA 2004 emissions standards. This 8-page manual provides mechanics and workshop technicians with detailed step-by-step procedures to isolate electrical faults, measure circuit resistance, and verify repairs.
The guide covers both MX-11 and MX-13 engine variants, addressing harness connections, ECU diagnostics, and component-level testing. All troubleshooting steps must be completed in sequence to ensure proper fault isolation, as PACCAR P1203B DTC can be triggered by multiple failure modes.
Document details and specifications — PACCAR P1203B DTC
| Brand | PACCAR |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication Number | M051435 |
| Revision Date | 12 January 2015 (valid 17 August 2017) |
| Pages | 8 |
| File Size | 0.1 MB |
| Format | |
| Language | English |
Table of contents

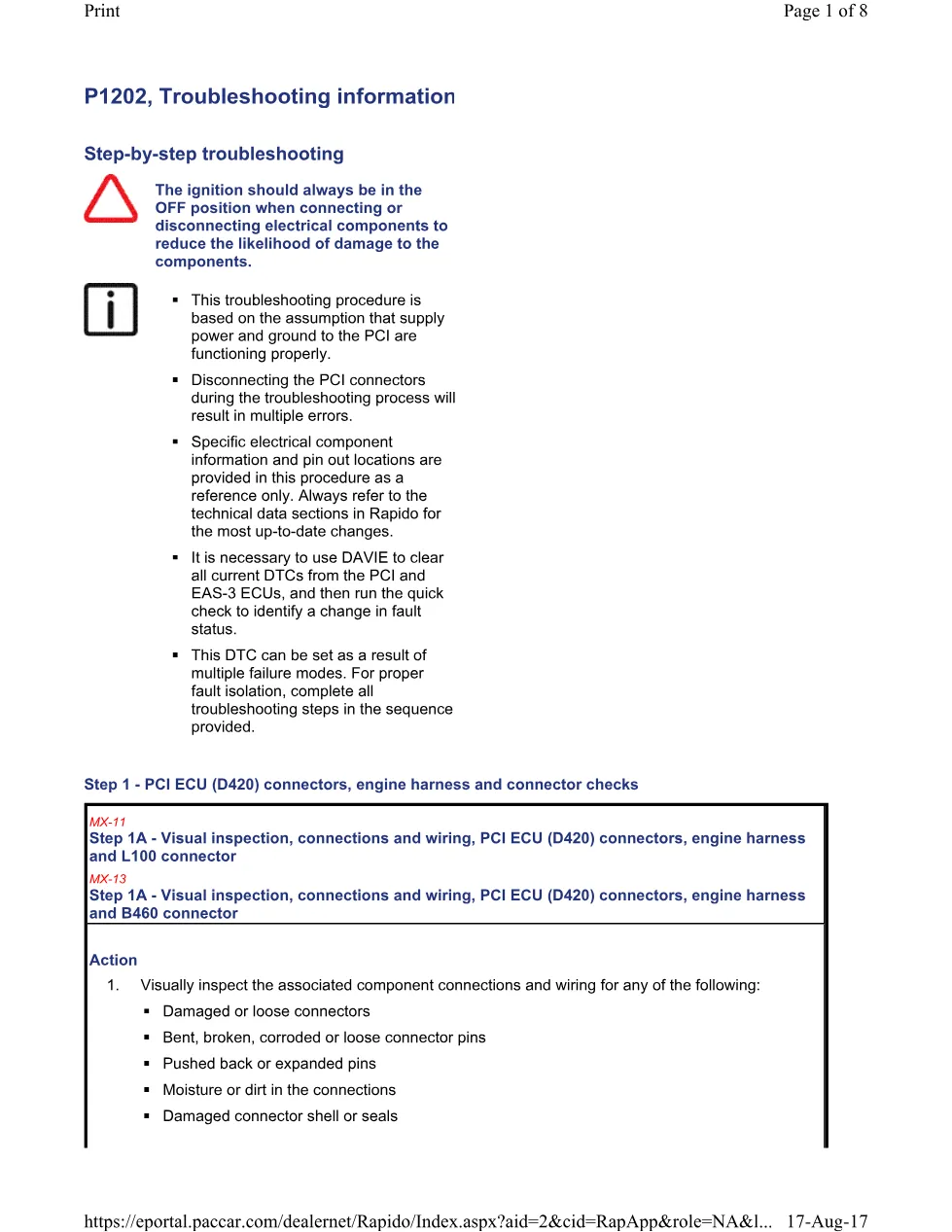

- Step 1 – PCI ECU (D420) connectors, engine harness and connector checks (Step 1A–1C)
- Step 1A – Visual inspection, connections and wiring (PCI ECU connectors, engine harness, L100/B460 connectors)

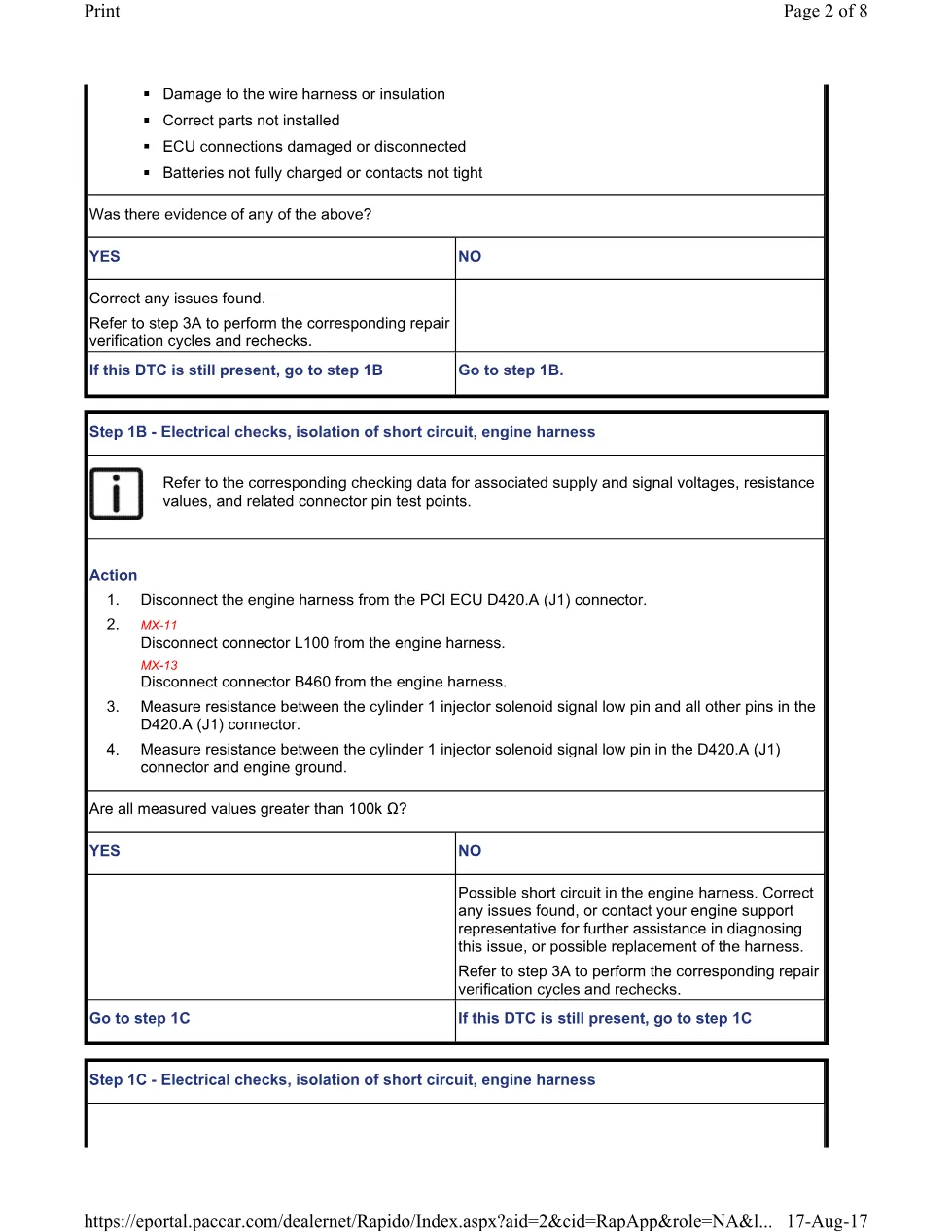

- Step 1B – Electrical checks, short circuit isolation, engine harness

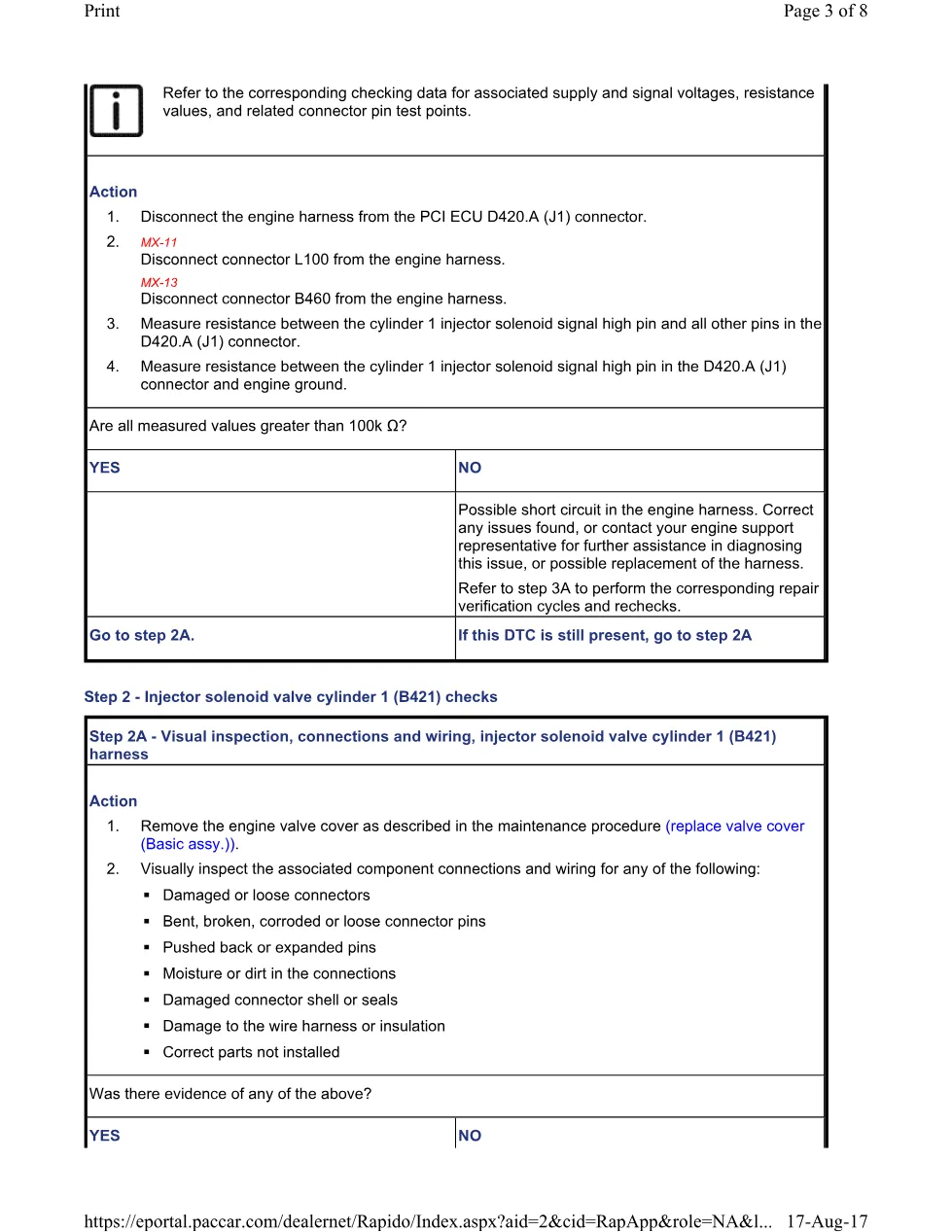

- Step 1C – Electrical checks, short circuit isolation, engine harness (signal high pin)
- Step 2 – Injector solenoid valve cylinder 1 (B421) checks (Step 2A–2D)
- Step 2A – Visual inspection, injector solenoid harness
- Step 2B – Electrical checks, short circuit isolation, injector harness
- Step 2C – Electrical checks, short circuit isolation (additional harness testing)
- Step 2D – Electrical checks and resistance measurement, injector solenoid valve
- Step 3 – Repair verification (Step 3A–3B)
- Step 3A – Repair verification cycles and engine start-up procedures
- Step 3B – DAVIE diagnostics, OBD readiness monitor confirmation
Applies to these models
This PACCAR P1203B DTC troubleshooting manual applies to PACCAR MX-11 and MX-13 diesel engines manufactured to EPA 2004 emissions standards. The procedures cover cylinder 1 fuel injector solenoid valve diagnostics, PCI ECU connector testing, and engine harness circuit verification. Technicians must have access to DAVIE diagnostic software and appropriate electrical testing equipment. For detailed specifications and the latest technical updates, consult the PACCAR Rapido technical portal and contact PACCAR engine support representatives as needed. Visit PACCAR official website
Who needs this PACCAR P1203B DTC troubleshooting guide
Diesel truck mechanics, PACCAR-certified technicians, and workshop owners diagnosing cylinder 1 fuel injector faults on MX-series engines require this PACCAR P1203B DTC troubleshooting guide. The manual is essential for anyone using DAVIE diagnostic software to test PCI ECU circuits, measure harness resistance, and perform OBD monitor readiness verification on EPA 2004-compliant PACCAR powertrains.
The complete PDF manual is available in the DiagTechPro manuals library. Free account registration is required to download the full 8-page technical document.
