This is the official 2013 PACCAR MX Diagnostic Service Manual covering fault code P1136, which addresses lambda sensor heater voltage failures and short circuits to ground on ECU connector D420 pin C46. Published by PACCAR for EPA 2013 certified MX engines, this 5-page technical document provides mechanics and workshop owners with complete diagnostic procedures, electrical schematics, and component testing specifications required to identify and repair lambda sensor heater circuit faults.

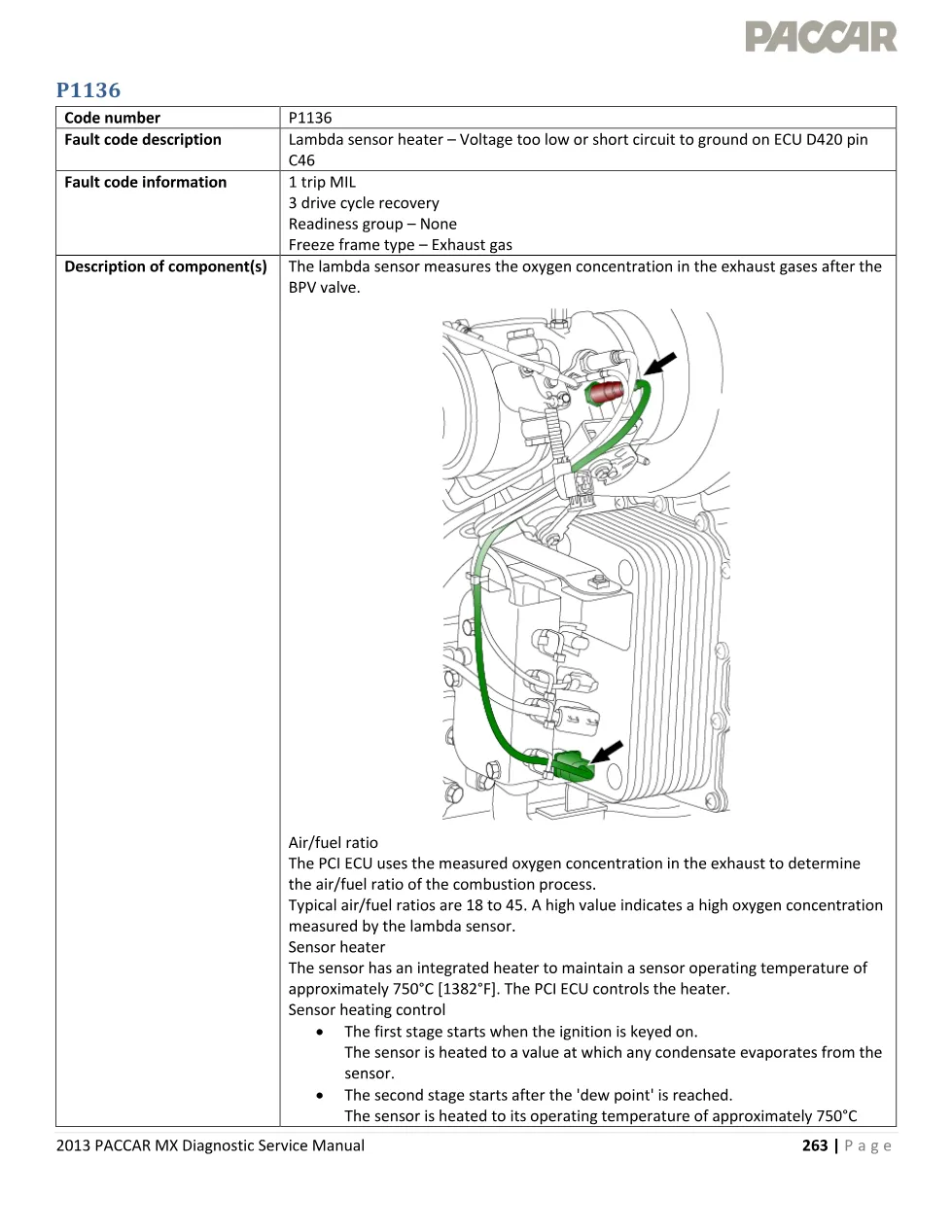

The MX lambda sensor heater system maintains the oxygen sensor at approximately 750°C (1382°F) to enable accurate air/fuel ratio measurement, smoke control, NOx emissions management, and diesel particulate filter regeneration. Fault code P1136 triggers a malfunction indicator lamp (MIL) after one trip and requires three drive cycles to clear once repaired.
Document details and specifications — MX lambda sensor
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication number | Not specified in extract |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Fault code P1136 description and information
- Component description: lambda sensor and heater operation
- Air/fuel ratio measurement and control
- Sensor heating control stages and dew point detection

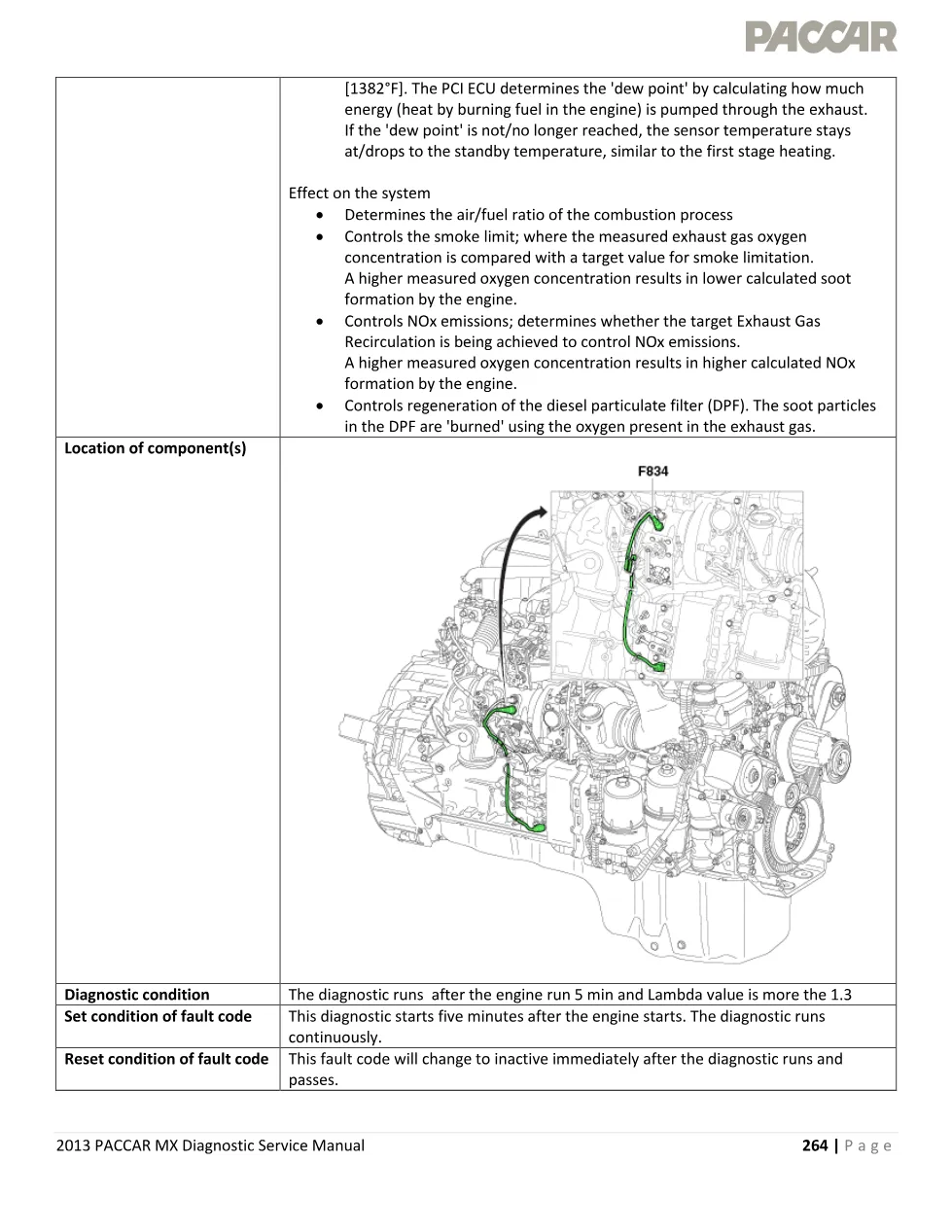

- System effects on smoke limits, NOx emissions, and DPF regeneration
- Component location reference
- Diagnostic conditions and fault set/reset criteria

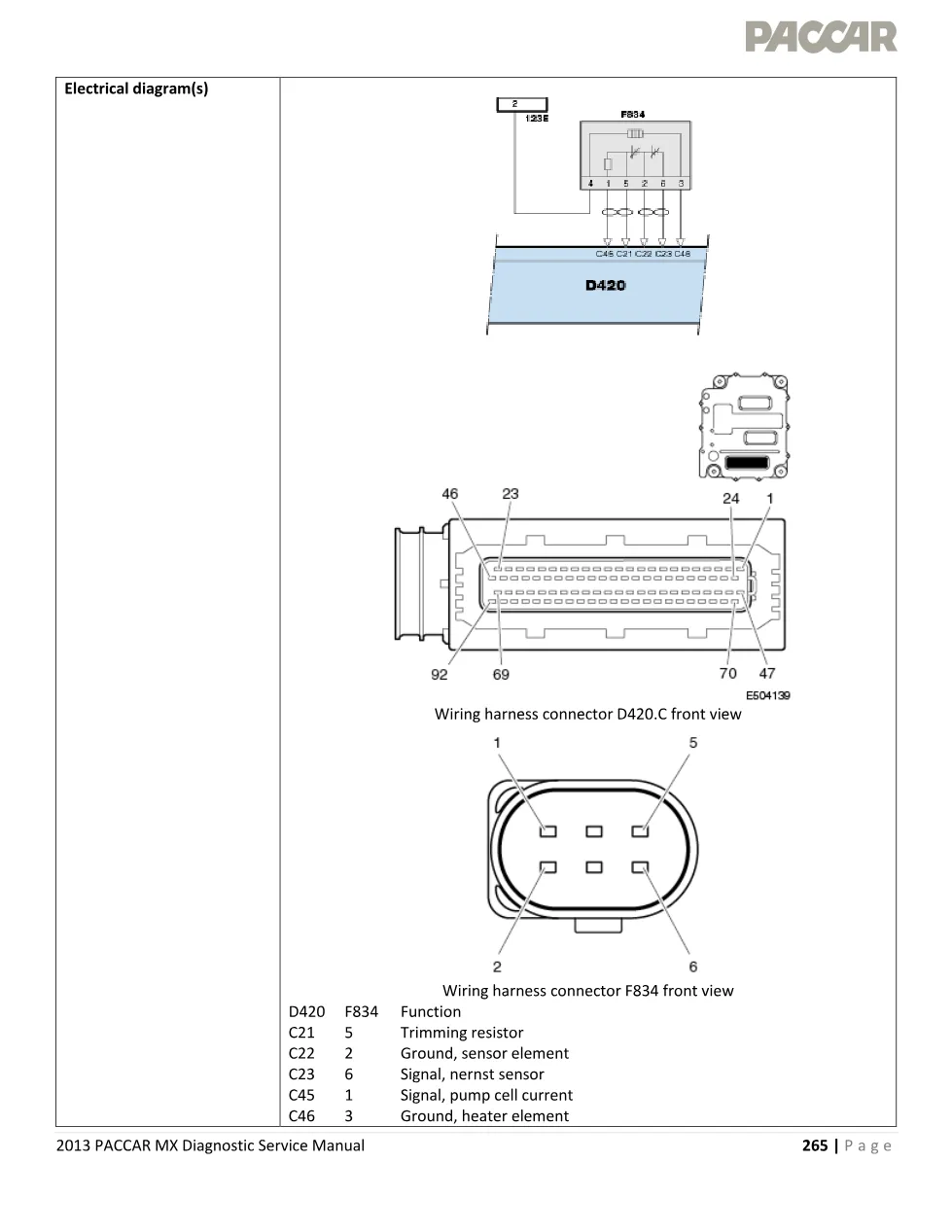

- Electrical diagrams: connectors D420 and F834 pinout
