This MX injector solenoid valve diagnostic manual covers fault code P1209, which indicates current too low or an open circuit condition on ECU D420 pin A5 affecting cylinder 3. Published by PACCAR for their 2013 MX engine line (EPA 2013 emissions standard), this manual provides workshop-level diagnostics and electrical troubleshooting steps for fuel injection system faults.
The document explains how MX injector solenoid valve operation depends on solenoid activation duration and rail pressure to control fuel injection volume. It outlines the critical role of injector calibration codes, which must be programmed via DAVIE software when injectors are replaced or repositioned, or when the PCI ECU is replaced.
Document details and specifications — MX injector solenoid
| Brand | PACCAR |
| Model coverage | MX Engines (2013) |
| System/Group | DTCs / Emissions (EPA 2013) |
| Publication no. | P1209 |
| Year/Revision | 2013 |
| Pages | 4 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents

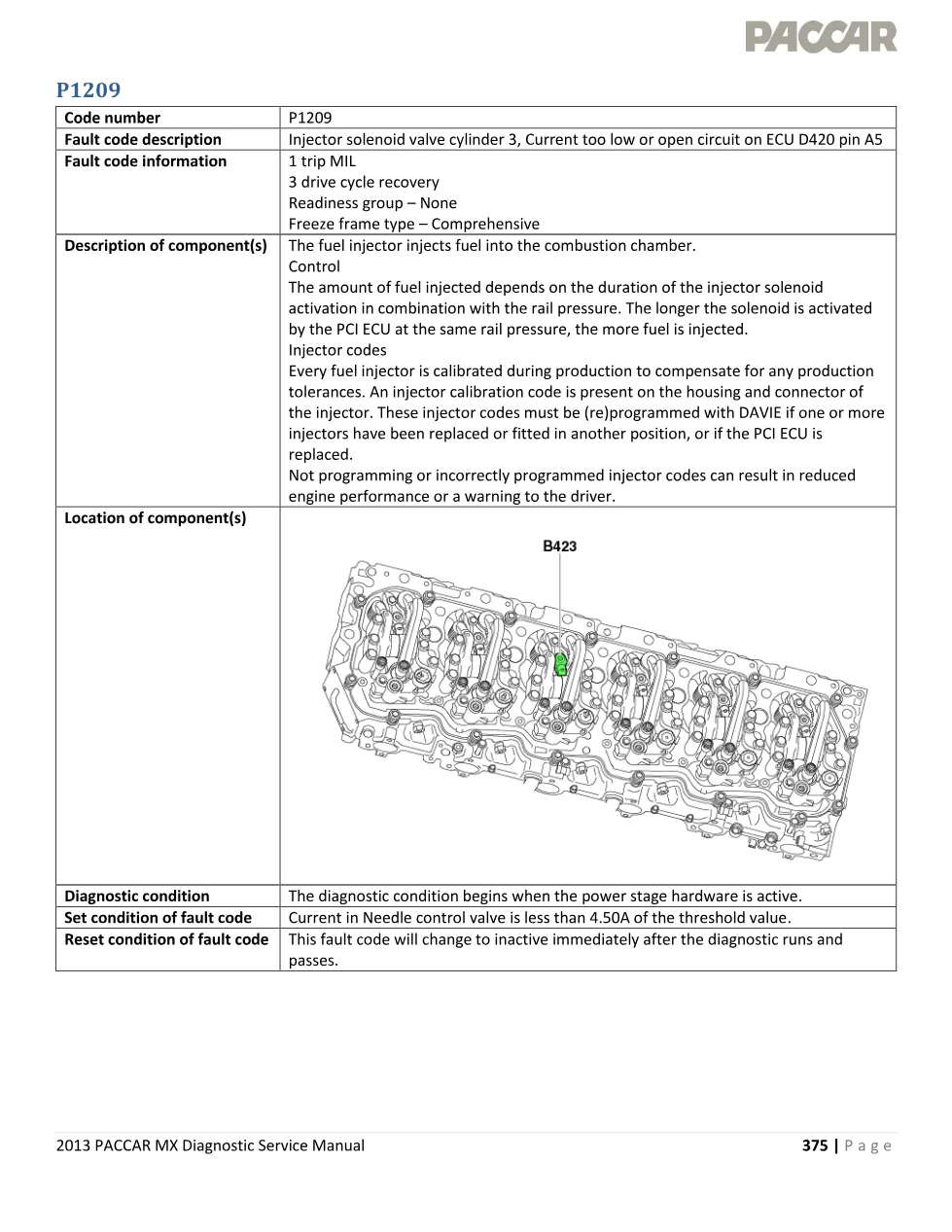

- Code number and fault code description (P1209)
- Fault code information (trip count, drive cycle recovery, freeze frame type)
- Description of fuel injector components and solenoid control
- Injector calibration codes and reprogramming requirements
- Diagnostic conditions and fault set/reset criteria

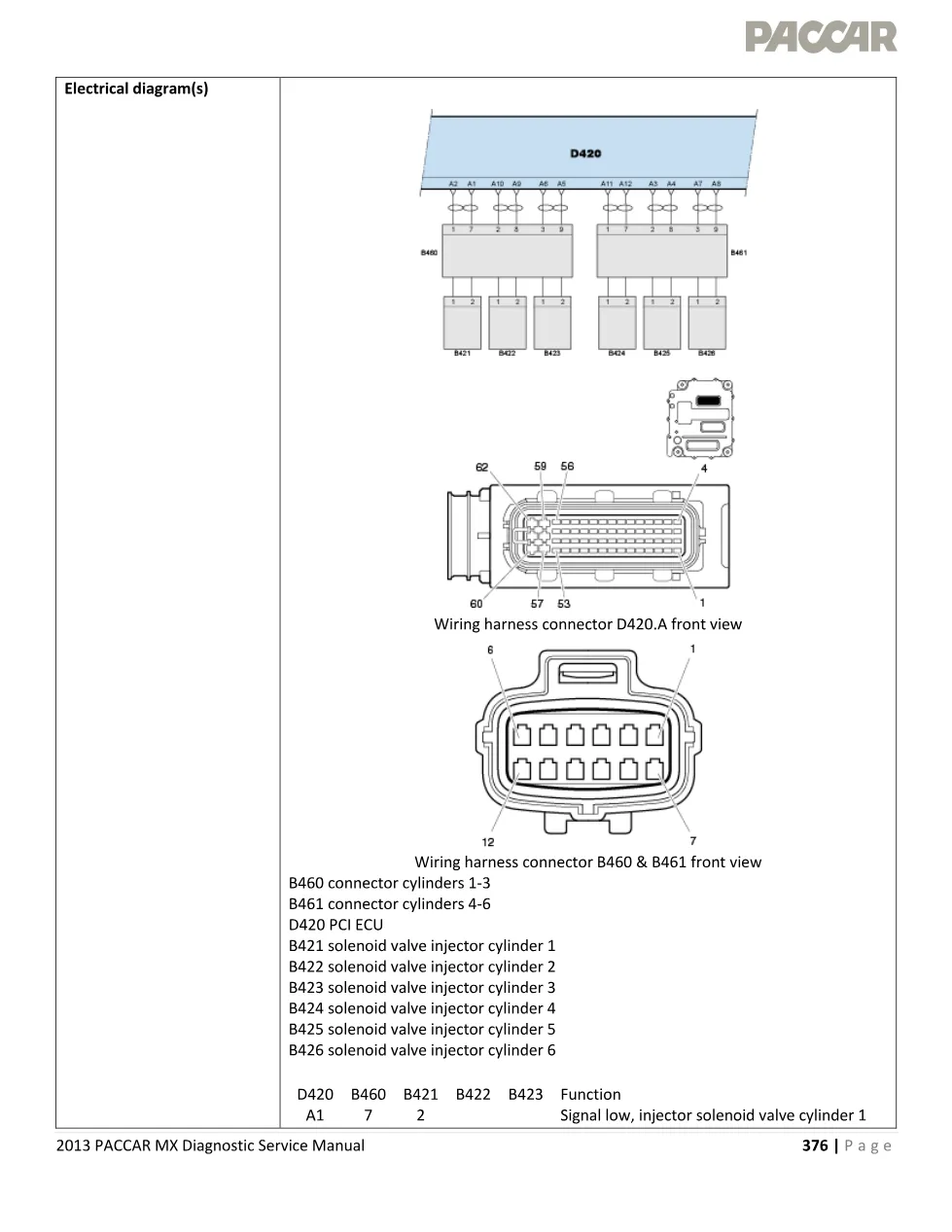

- Electrical diagrams: connectors D420, B460, B461, and injector solenoids B421–B426
- Wiring harness pinout and signal routing (cylinders 1–6)

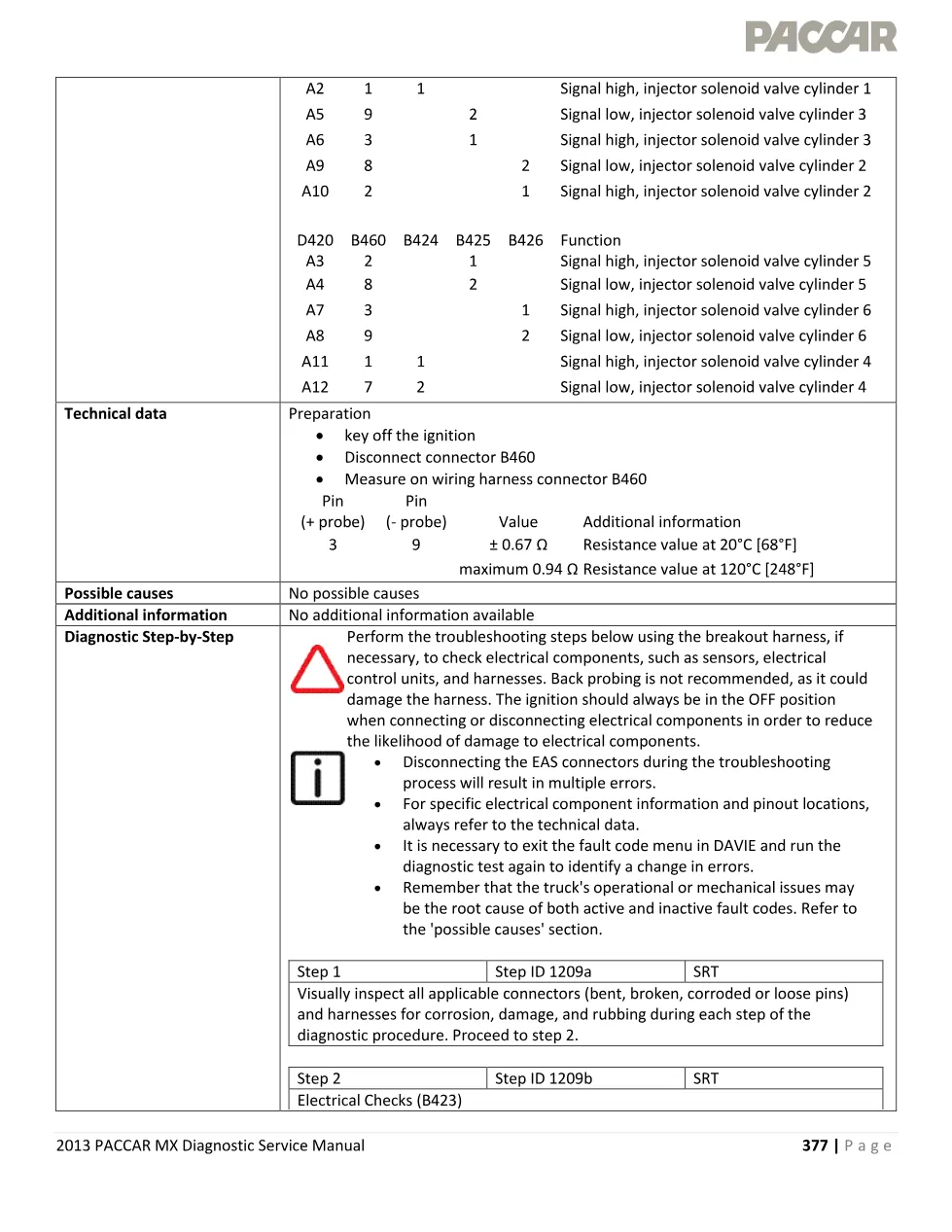

- Technical data and resistance specifications
- Step-by-step diagnostic procedure (Steps 1209a–1209d)
- Electrical checks using Engine Service Rapido (ESV)
- Component replacement guidance
- PACCAR Engine Support contact information
- Verification drive cycle instructions
Applies to these models
This MX injector solenoid valve diagnostic manual applies to 2013 PACCAR MX diesel engines equipped with fuel injection systems controlled by the PCI ECU. Covers all six-cylinder configurations with solenoid injectors on cylinders 1–6. For official PACCAR engine documentation and support, visit PACCAR official.
Who needs this injector solenoid valve manual
Diesel mechanics, engine specialists, and workshop owners diagnosing fuel injection faults on PACCAR MX trucks need this injector solenoid valve diagnostic guide. The manual is essential for technicians performing electrical fault isolation, component testing, and injector solenoid replacement on 2013 EPA-compliant engines.
The complete injector solenoid valve diagnostic PDF is available in the DiagTechPro manuals library. A free account is required to download.
