This is the official 2013 PACCAR MX Diagnostic Service Manual covering MX injector solenoid P1227 fault code P1227, published by PACCAR for technicians and workshop owners diagnosing fuel injection system electrical failures on MX-series engines certified to EPA 2013 emission standards. The manual provides complete wiring diagrams, component specifications, and step-by-step diagnostic procedures to isolate faults in injector solenoid circuits on cylinders 4, 5, and 6.
Document details and specifications — MX injector solenoid
| Brand | PACCAR |
| Model coverage | MX Engine Series |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication no. | Not listed |
| Year/Revision | 2013 |
| Pages | 7 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Table of contents

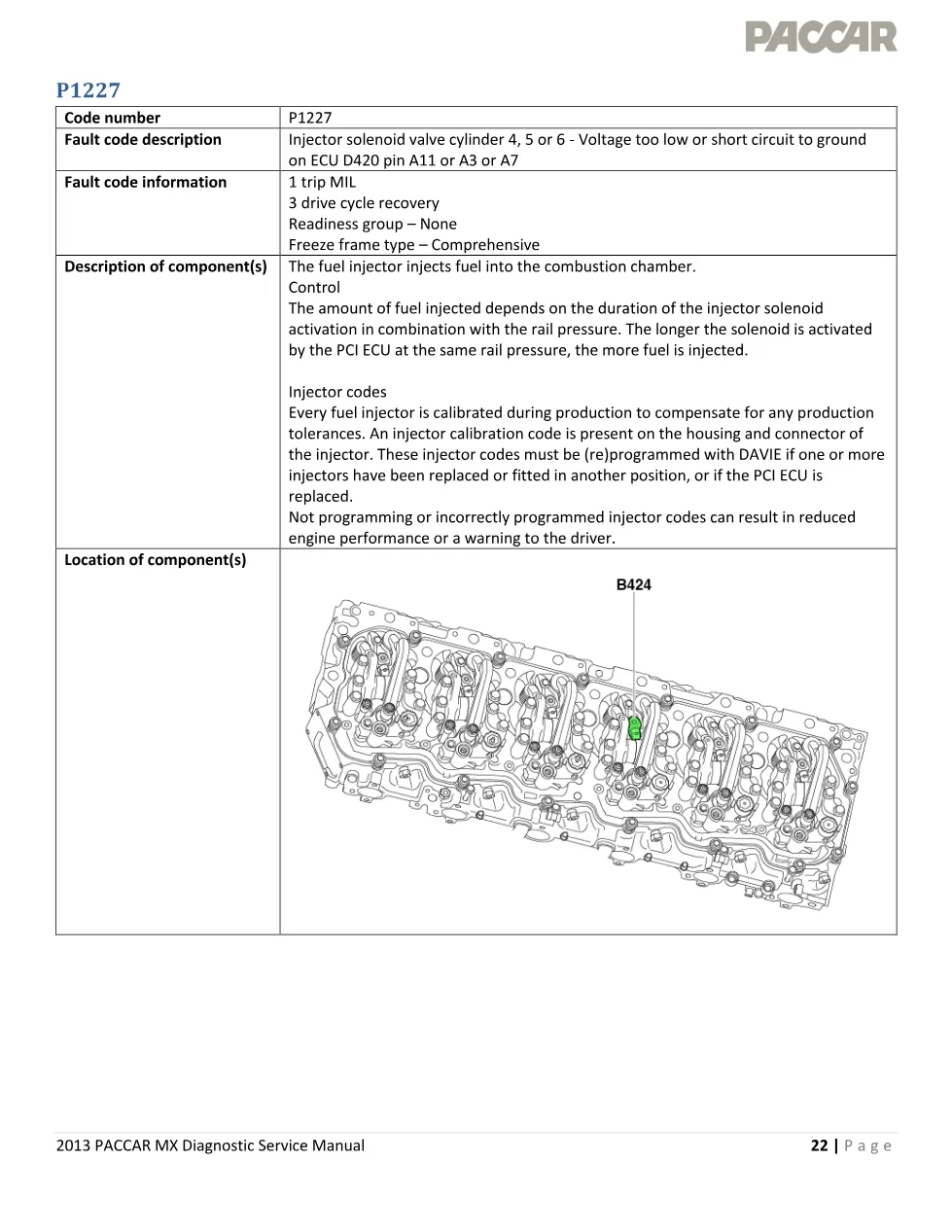

- Fault code description and information
- Component description and control operation
- Injector calibration codes and reprogramming requirements

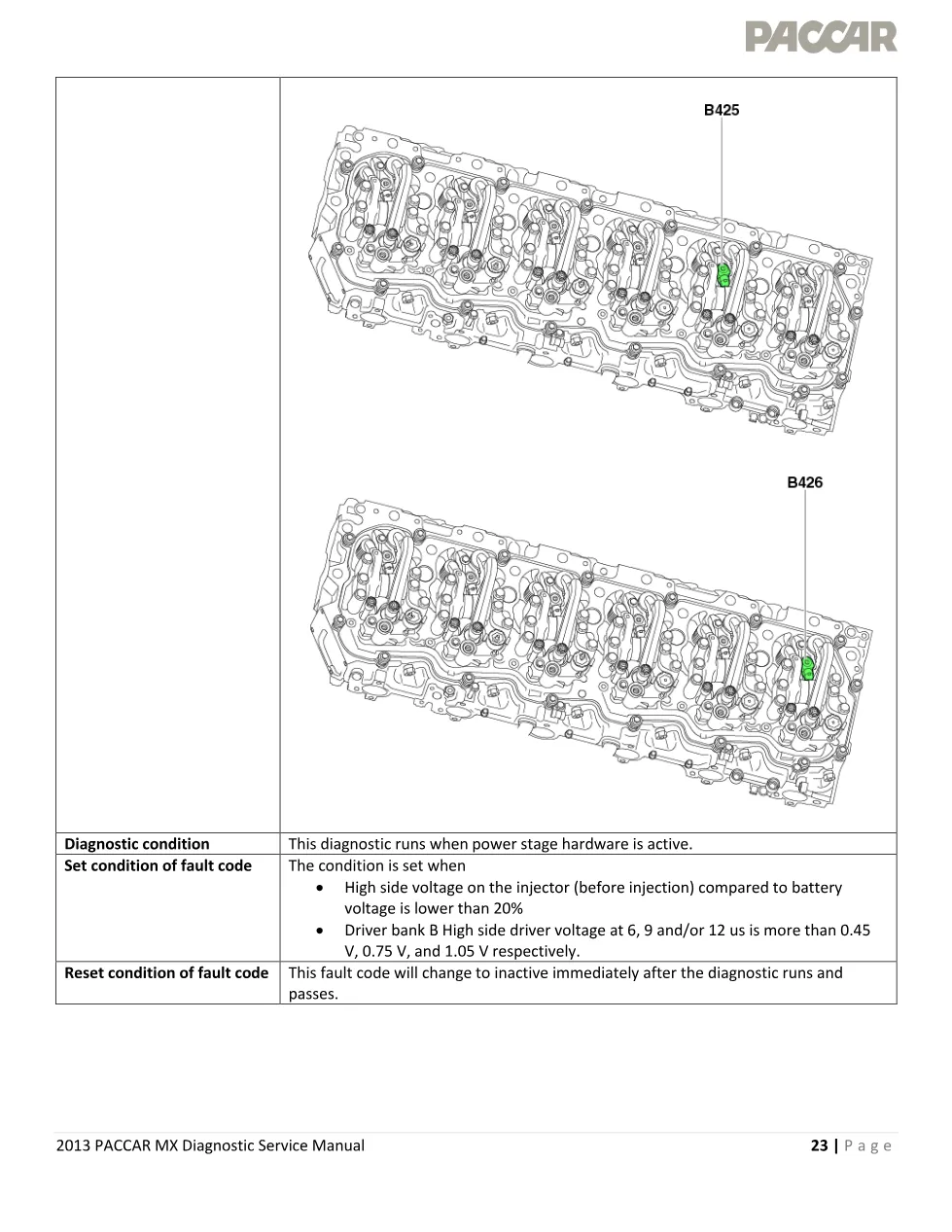

- Diagnostic conditions and fault set/reset criteria

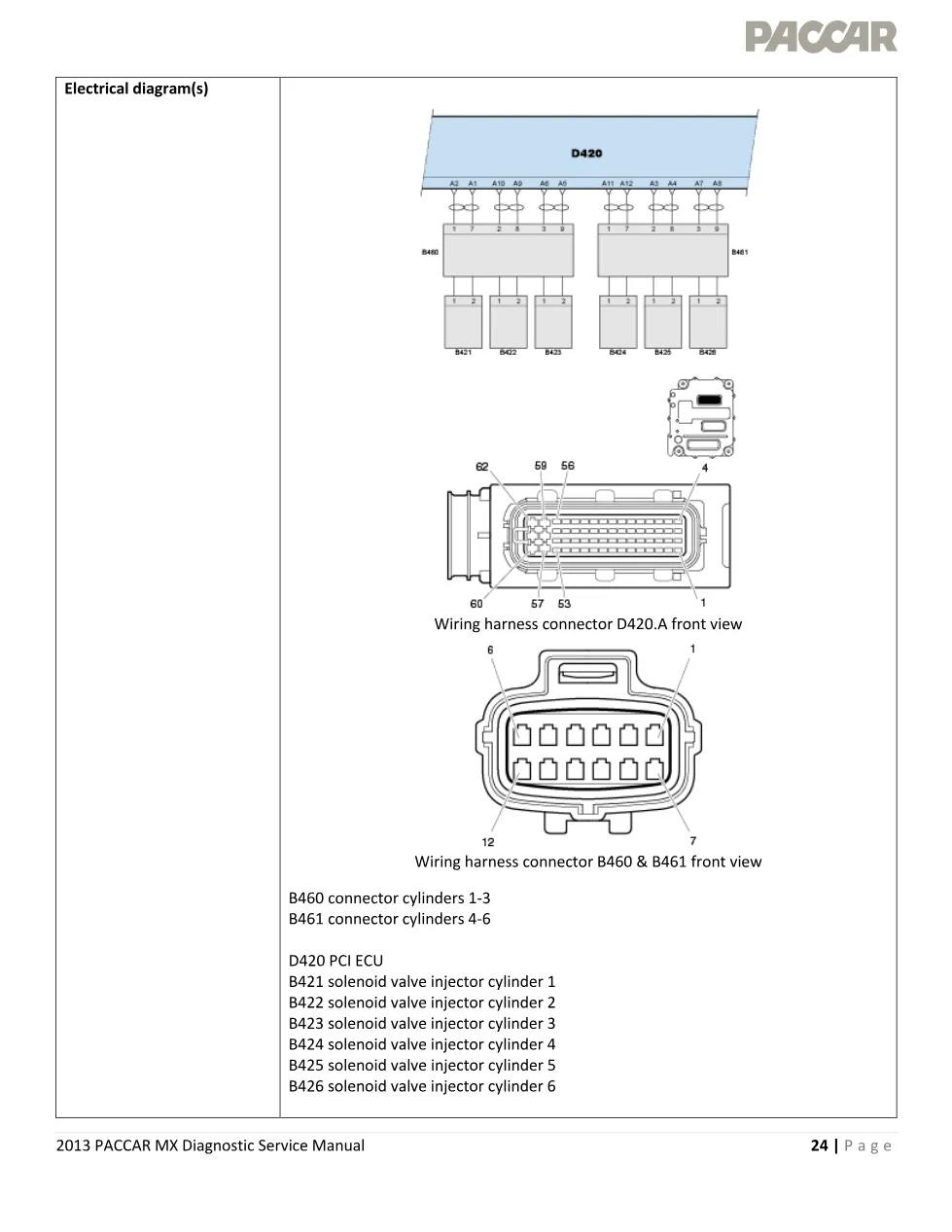

- Electrical diagrams and connector pinouts (D420 PCI ECU, B460, B461)
- Injector solenoid valve resistance specifications (cylinders 1–6)
- Possible causes and technical data
- Eight-step diagnostic troubleshooting procedure with breakout harness guidance
- Verification and drive cycle validation procedure
