The ISM code 111 DTCs manual is a 2-page PDF that documents fault code 111, the electronic control module critical internal failure caused by a bad intelligent device or component. It explains that the ECM runs continuous internal diagnostics that check its internal memory, and that this code is triggered only by an internal ECM problem. The procedure is credited to TruckFaultCodes.com and covers the circuit description, component location and full troubleshooting steps.
Official document details
| Brand | Cummins |
| Model coverage | Cummins ISM CM871 and ISX CM871 (2007-09) engines |
| System / group | ISM CM871 (2007-09) / DTCs |
| Fault code | 111 (PID S254, SPN 629, FMI 12) |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents

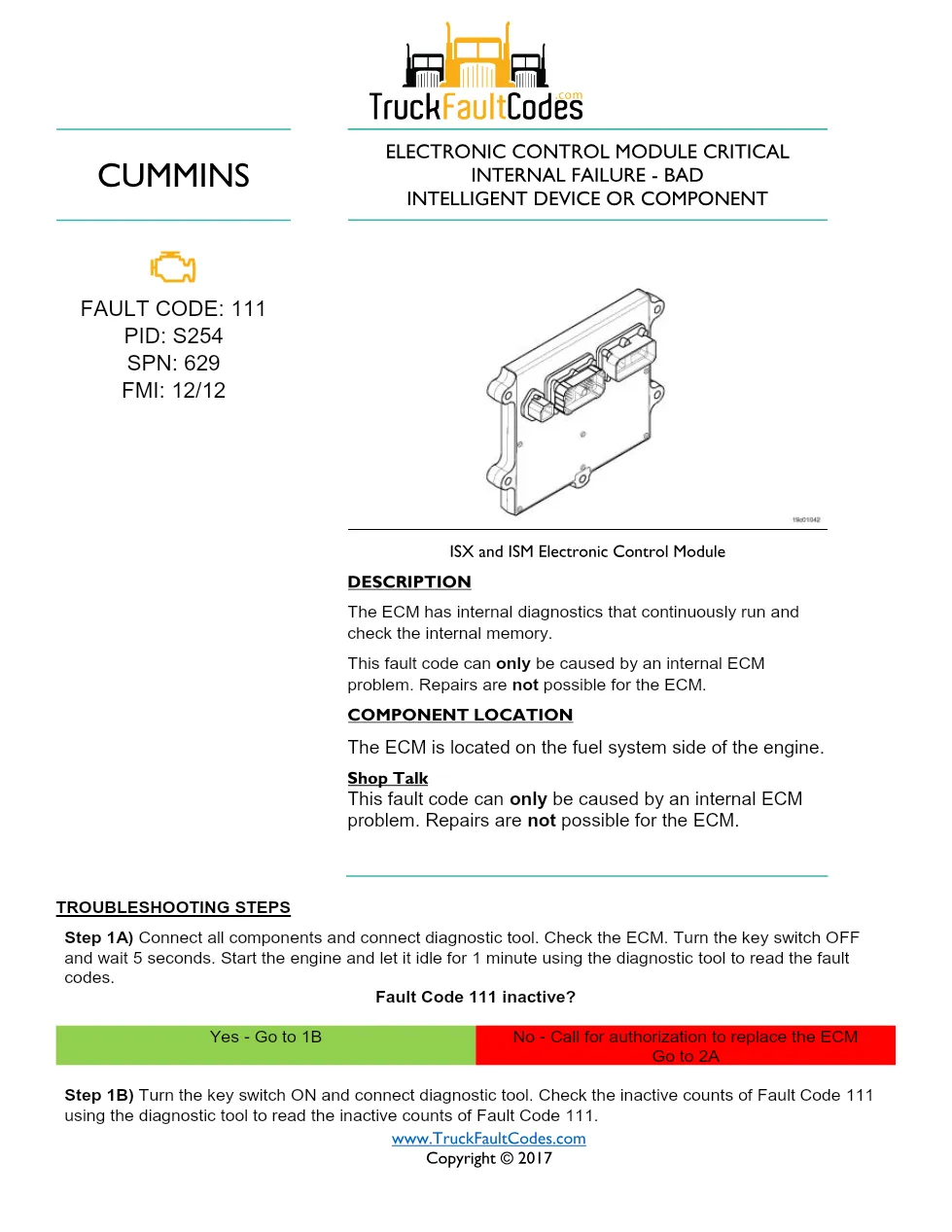

- Fault code 111 description
- Circuit description and ECM operation
- Component location
- Shop talk and possible causes

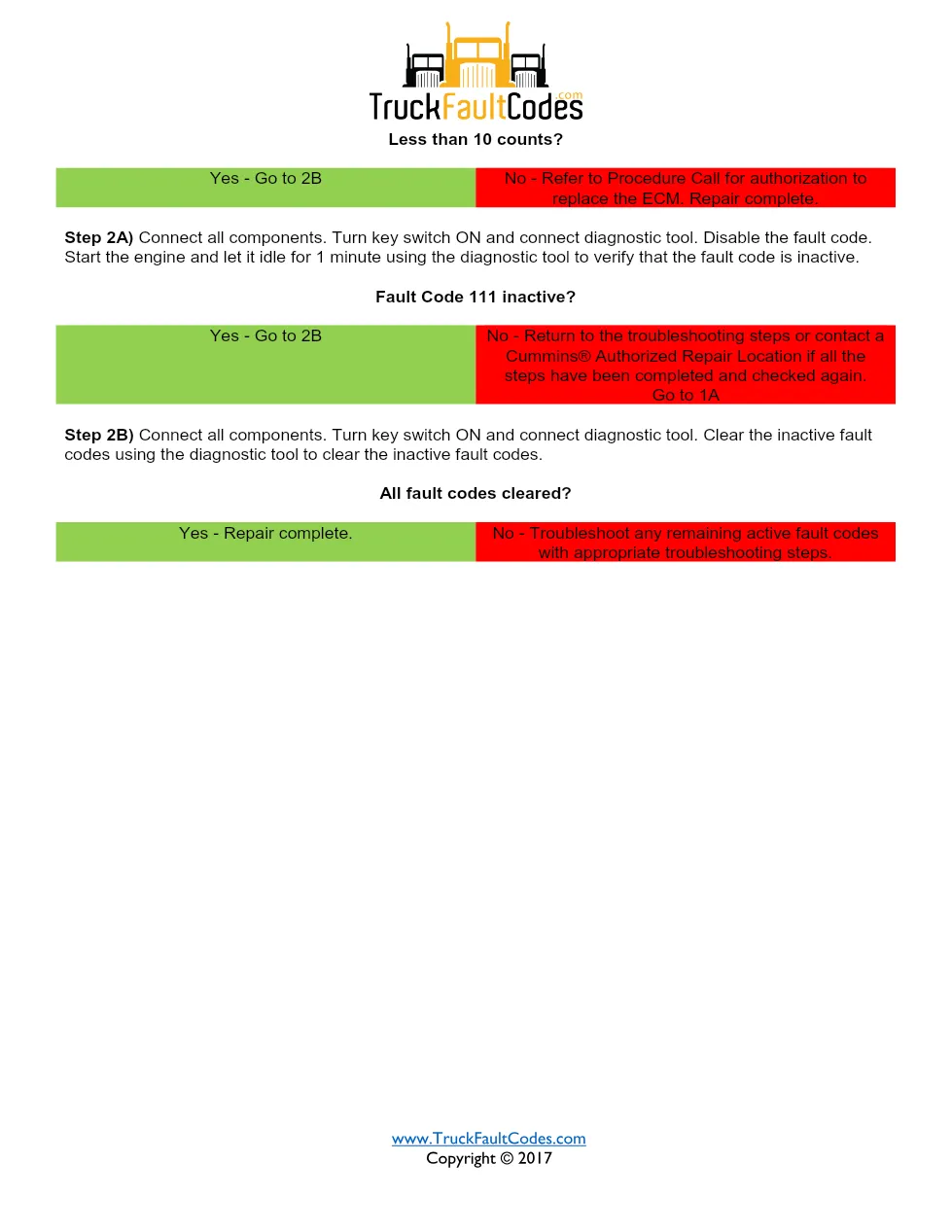

- Step-by-step troubleshooting flow
Applicable truck models
This diagnostic applies to Cummins ISM CM871 and ISX CM871 (2007-09) engines. The ECM is mounted on the fuel system side of the engine. This fault can only be caused by an internal ECM problem, and the shop talk states that repairs are not possible for the ECM. For engine data and authorised service, visit the Cummins official website.
Who needs this ISM code 111 DTCs manual
Heavy-duty diesel technicians, fleet workshops and owner-operators reach for this manual when fault code 111 is logged. It confirms for a technician that the fault is internal to the module, so the correct action is ECM replacement rather than further harness or sensor testing.
Download the code 111 DTCs PDF
The complete procedure, wiring detail and step tables are available in the DiagTechPro manuals library; a free account is required to download the PDF. Keep it alongside the related ISM CM871 fault-code sheets listed below.
