The fault code 452 DTCs troubleshooting manual is the official Cummins diagnostic procedure for the injector metering rail 1 pressure sensor circuit on the ISX11.9 CM2250 engine platform. The fuel rail pressure sensor responds to pressure changes in the fuel delivered to the rail and uses a 5-volt supply, a signal circuit and a return circuit back to the ECM. This 18-page PDF walks a technician from symptom to verified repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | Cummins ISX11.9 CM2250 (2010-12), Cummins ISX12 CM2250 (2010-12) |
| System / Group | injector metering rail 1 pressure sensor circuit, DTCs |
| Fault code reference | Fault Code 452 — SPN 157, FMI 3 |
| Warning lamp | an amber warning lamp |
| Revision (Last Modified) | 11-Jun-2010 |
| Pages | 18 |
| File size | 0.27 MB |
| Format | |
| Language | English |
fault code 452 DTCs document contents

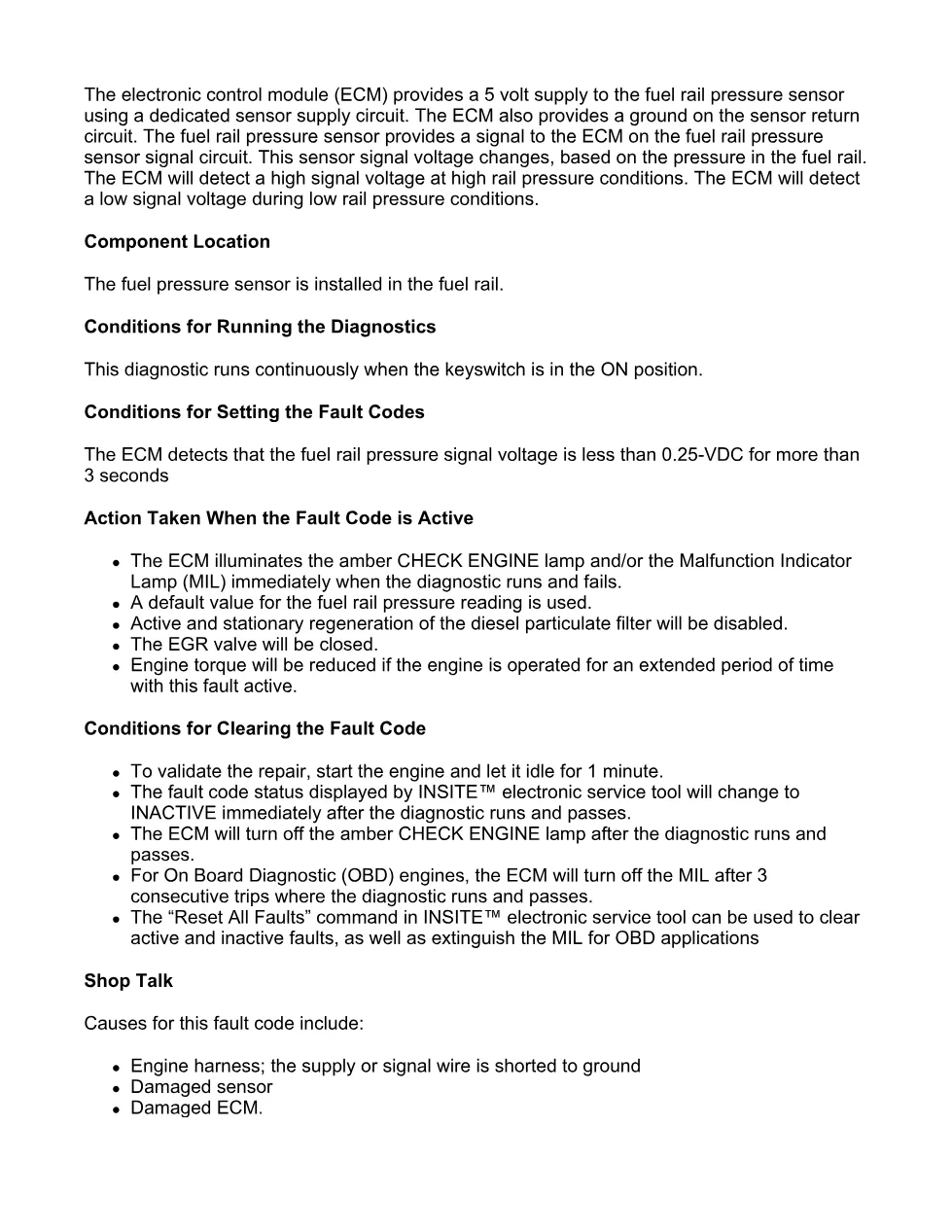

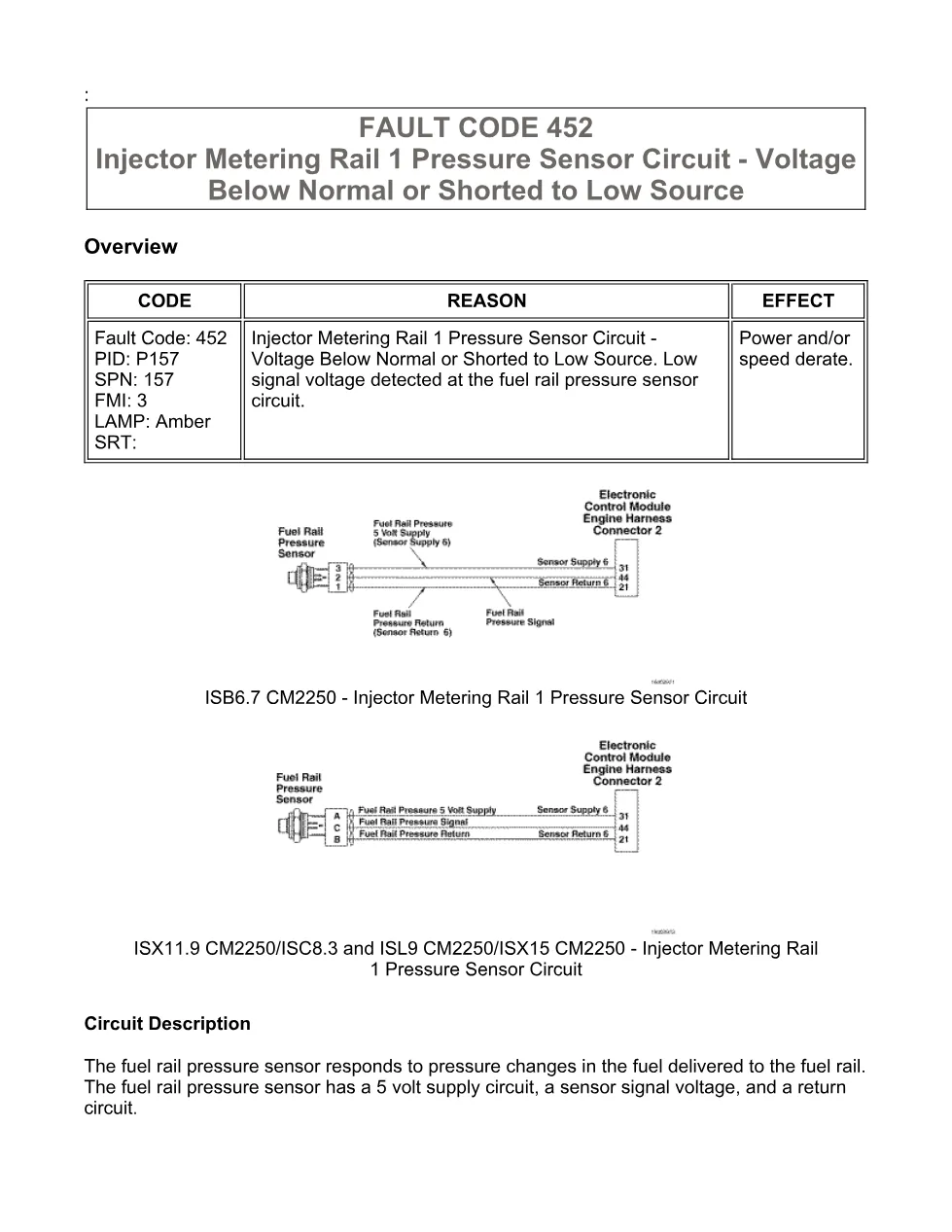

- Overview and Circuit Description
- Component Location
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Code
- Action Taken When the Fault Code Is Active
- Conditions for Clearing the Fault Code
- Shop Talk and possible causes
- Associated Procedures table
- Guided troubleshooting steps
- Verify the repair
Applicable truck models covered
This procedure applies to Cummins engines that report Fault Code 452 (SPN 157, FMI 3), including the Cummins ISX11.9 CM2250 (2010-12), Cummins ISX12 CM2250 (2010-12). Always confirm the exact calibration and publication for your engine on the official Cummins engine support site before ordering parts.
Common causes and symptoms
The ECM records the fault when the rail pressure signal voltage is below normal or shorted to a low source, and fuel control accuracy is reduced. Shop Talk in the document lists the most likely causes:
- Signal circuit shorted to ground in the harness, sensor or connector
- Open sensor supply circuit
- A failed fuel rail pressure sensor
Who needs the fault code 452 DTCs manual
Diesel technicians and workshop owners diagnosing Fault Code 452 on ISX11.9 CM2250 trucks need this manual to follow the guided steps, use the correct connector pins and verify the repair with INSITE electronic service tool instead of guessing.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
