This 9-page Fault Code 3651 DTCs troubleshooting guide covers the aftertreatment diesel exhaust fluid (DEF) tank temperature diagnostic for ISB6.7 CM2250 and related engine platforms. It provides the circuit description, fault code conditions, shop talk notes on possible causes, and a complete guided troubleshooting procedure with four major diagnostic steps.
Official Fault Code 3651 DTCs document details
| Brand | Cummins |
| Model coverage | ISB6.7 CM2250, ISX11.9 CM2250, ISC8.3 and ISL9 CM2250, ISX15 CM2250, ISF2.8 CM2220, ISF3.8 CM2220, GX CM2250 |
| System / Group | Aftertreatment Diesel Exhaust Fluid Tank Temperature — Diagnostic Trouble Codes (DTCs) |
| Publication no. | — |
| Year / Revision | Last modified 27-Dec-2010 |
| Pages | 9 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

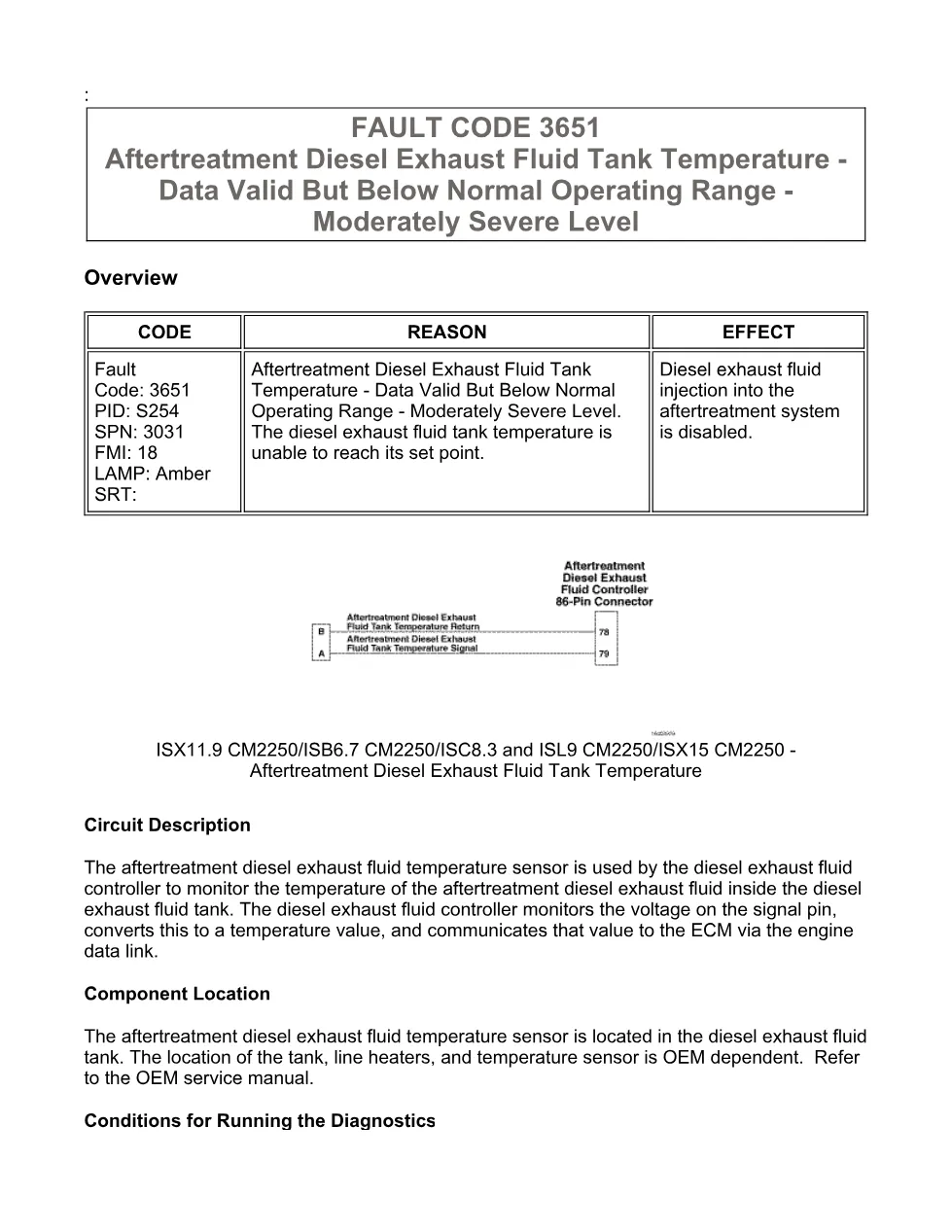

- Overview — Circuit Description and Component Location
- Conditions for Running the Diagnostics
- Conditions for Setting the Fault Code (SPN 3031 / FMI 18)
- Action Taken When the Fault Code is Active
- Conditions for Clearing the Fault Code

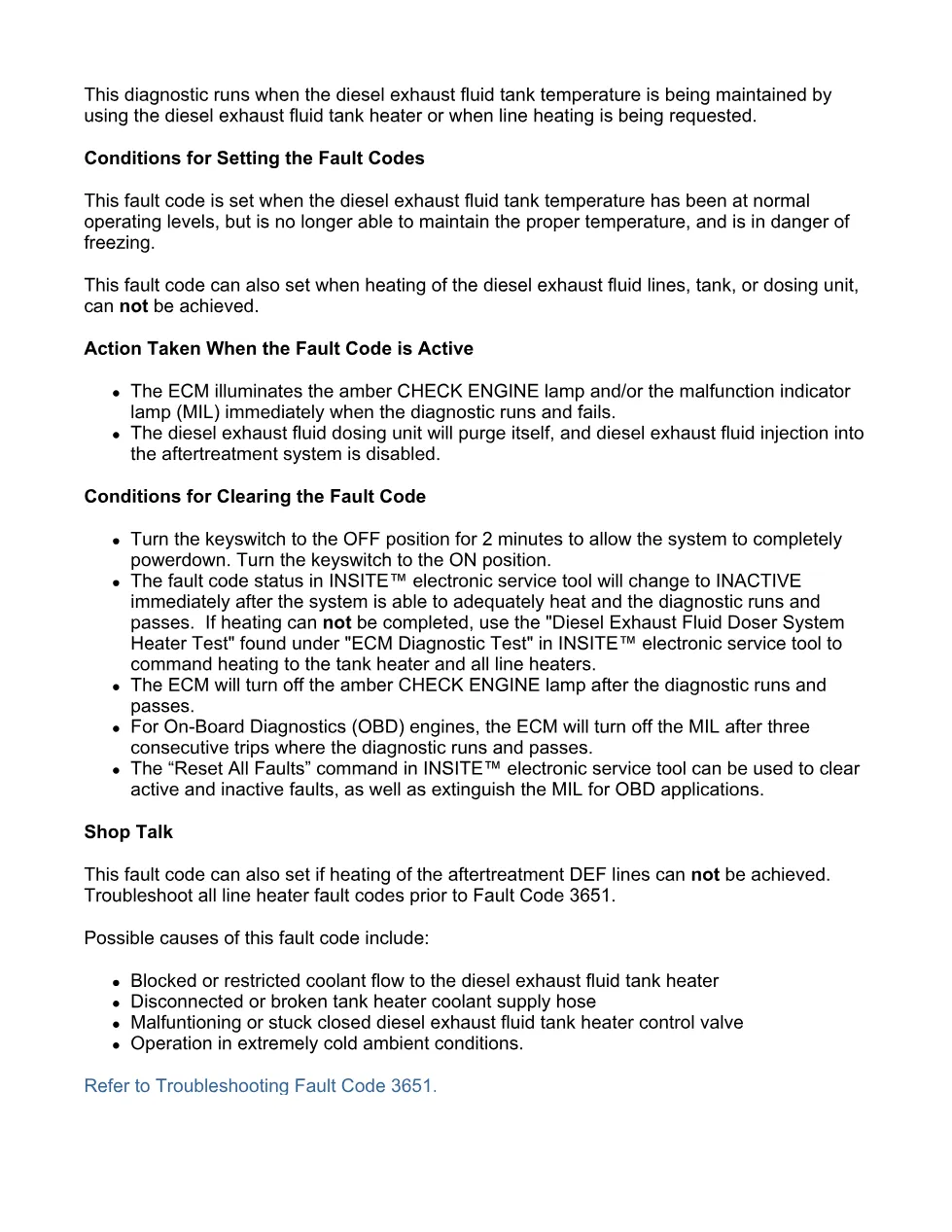

- Shop Talk — Possible Causes
- Associated Procedures — ECM Calibration Code (Procedure 019-032)
- Step 1: Check for Active Fault Codes (1677, 1678, 1679, 1683, 1684, 1712, 3237, 3239, 3258, 3261, 3422, 3425, 3426, 3429, 3562, 3563, 3564, 3576)
- Step 2: Check the Aftertreatment DEF Tank Heating System — Inspect Coolant Lines and Engine Coolant Level
- Step 3: Verify Proper Operation of the DEF Tank Heater Control Valve
- Step 4: Check ECM Calibration Update and Clear Fault Codes
Applicable truck models
This document applies to Cummins engines equipped with the CM2250 and CM2220 electronic control modules across multiple platforms: ISB6.7 CM2250 (2010–2012), ISX11.9 CM2250, ISC8.3 and ISL9 CM2250, ISX15 CM2250, ISF2.8 CM2220, ISF3.8 CM2220, and GX CM2250. The DEF tank location, line heaters, and temperature sensor placement are OEM dependent; consult the chassis manufacturer’s service manual for specifics. Fault Code 3651 sets when the DEF tank temperature drops below normal operating range and is in danger of freezing, or when DEF line, tank, or dosing unit heating cannot be achieved. Possible causes include blocked or restricted coolant flow, disconnected tank heater coolant supply hoses, a malfunctioning or stuck-closed DEF tank heater control valve, or operation in extremely cold ambient conditions. Diagnostics require the INSITE electronic service tool to read fault codes, perform the Diesel Exhaust Fluid Tank Heater Test, and verify ECM calibration revisions. For official Cummins engine resources, visit Cummins official website.
